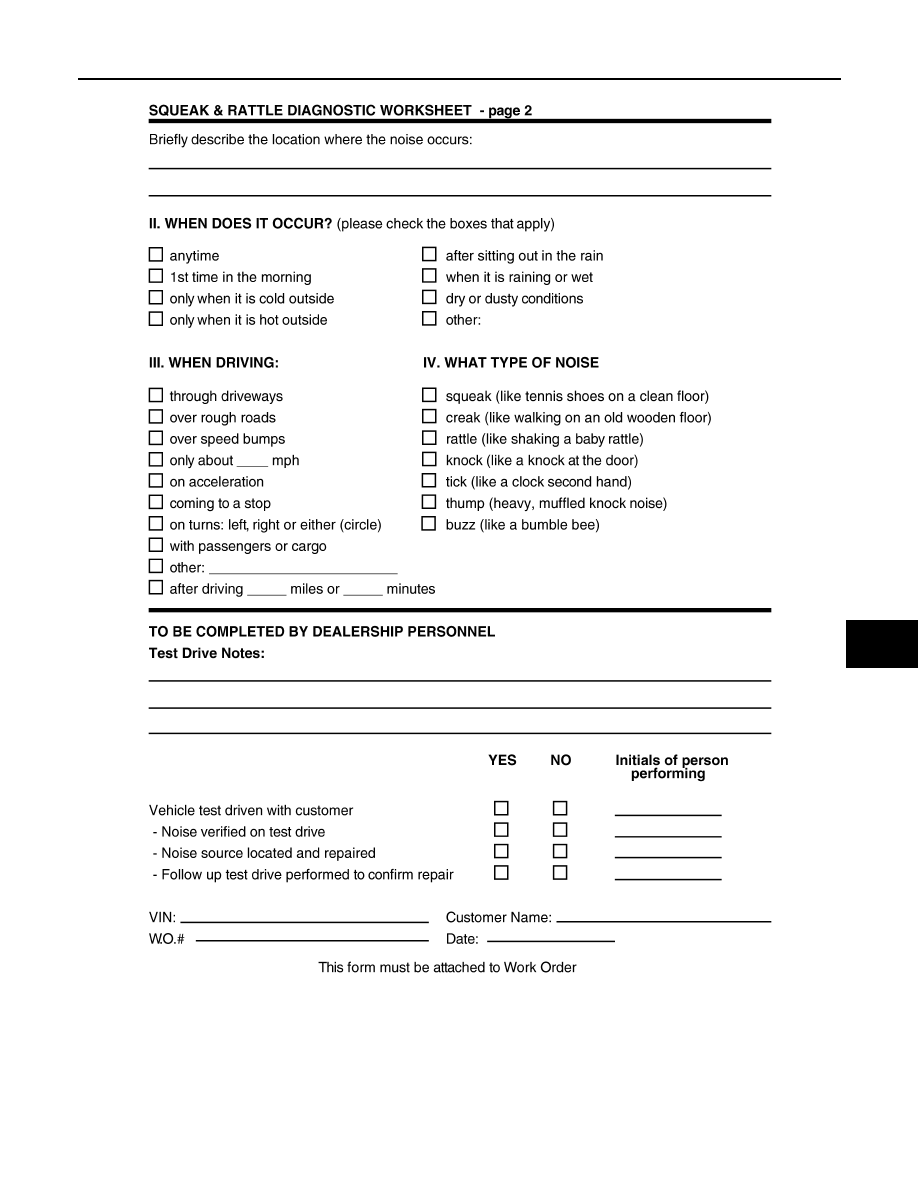

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-23

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PIIB8742E

SE-24

< REMOVAL AND INSTALLATION >

FRONT SEAT

REMOVAL AND INSTALLATION

FRONT SEAT

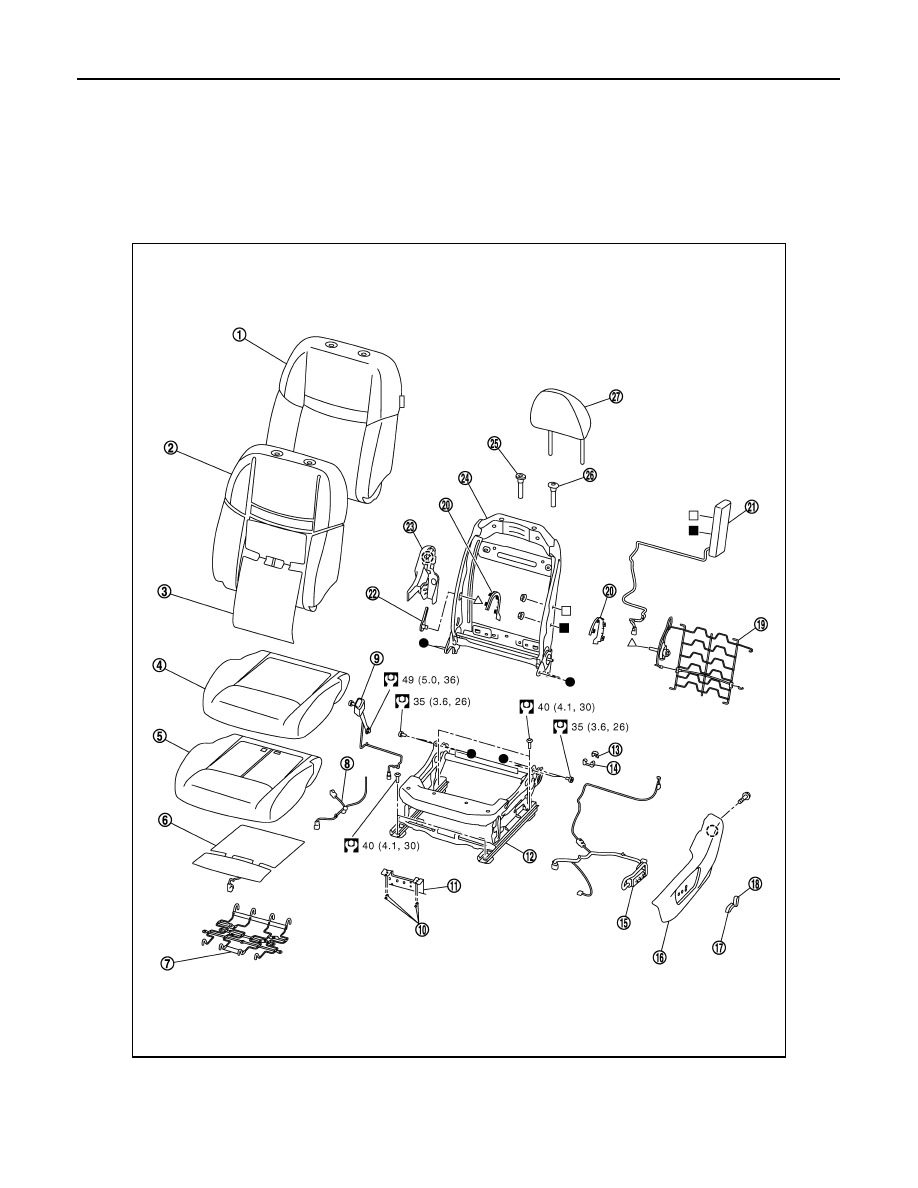

Exploded View

INFOID:0000000010478132

DRIVER SEAT

POWER SEAT

E1JIA0290GB

1.

Seatback trim

2.

Seatback pad

3.

Seatback heater unit (if
equipped)

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion heater unit (if
equipped)

FRONT SEAT

SE-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

MANUAL SEAT

7.

Seat cushion suspension mat

8.

Seat cushion heater unit har-
ness connector

9.

Seat belt buckle

10. Rivet

11.

Connector bracket

12. Seat cushion frame

13. Lower end cap

14. Upper end cap

15. Power seat switch assembly

16. Seat cushion outer finisher (LH)

17. Slide switch knob

18. Reclining switch knob

19. Seat lumbar unit assembly

20. Seat cushion inner finisher

21. Side air bag module

22. Lumbar handle

23. Seat cushion inner finisher

24. Seatback frame

25. Headrest holder (free)

26. Headrest holder (locked)

27. Headrest

Refer to

GI-4, "Components"

 for symbols in the figure.

E1JIA0289GB

SE-26

< REMOVAL AND INSTALLATION >

FRONT SEAT

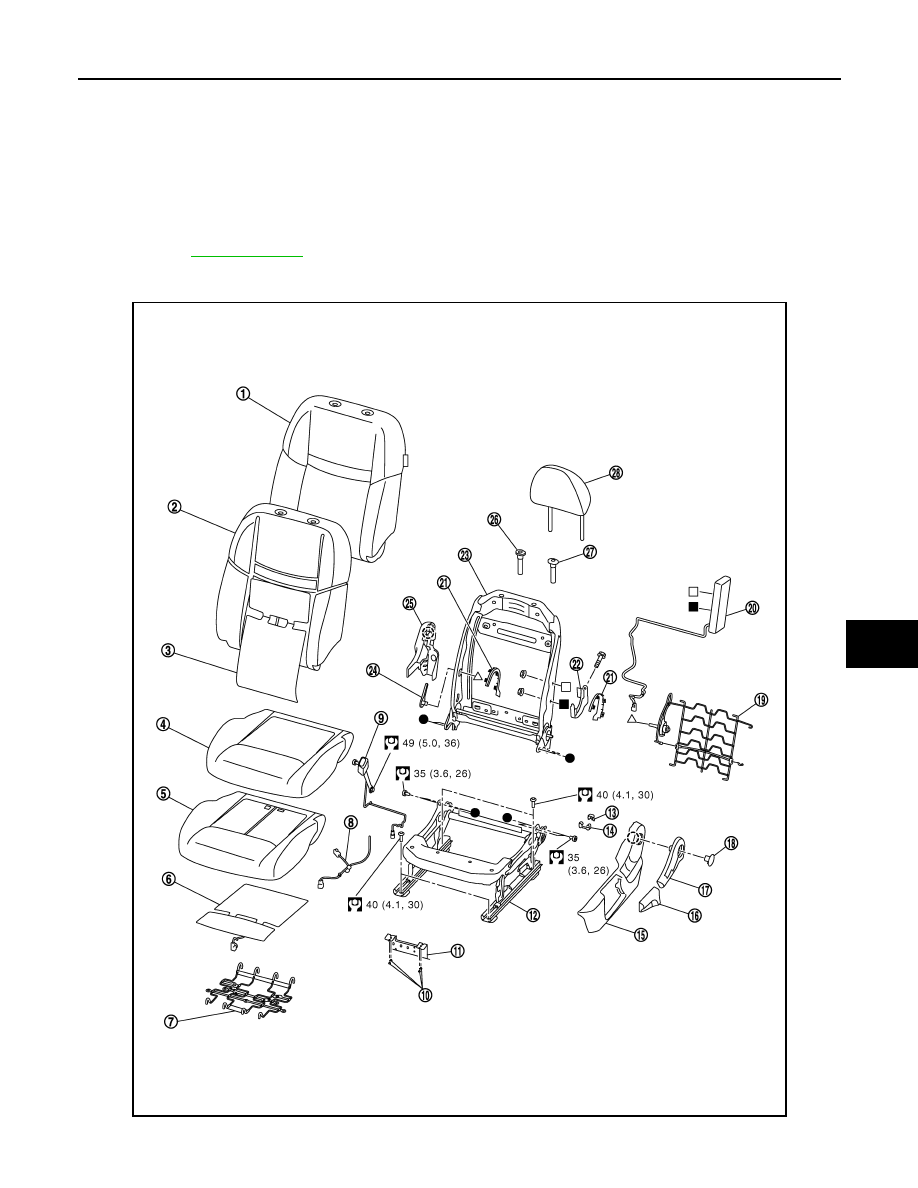

PASSENGER SEAT

1.

Seatback trim

2.

Seatback pad

3.

Seatback heater unit (if
equipped)

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion heater unit (if
equipped)

7.

Seat cushion suspension mat

8.

Seat cushion heater unit har-
ness connector

9.

Seat belt buckle

10. Rivet

11.

Connector bracket

12. Seat cushion frame

13. Lower end cap

14. Upper end cap

15. Seat cushion outer finisher

16. Lifter lever knob

17. Reclining lever knob

18. Lifter lever knob cap

19. Seat lumbar unit assembly (if

equipped)

20. Side air bag module

21. Seat cushion inner finisher

22. Spring inner cover

23. Seatback frame

24. Lumbar handle (if equipped)

25. Seat cushion inner finisher

26. Headrest holder (free)

27. Headrest holder (locked)

28. Headrest

Refer to

GI-4, "Components"

 for symbols in the figure.
