HEADLINING

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

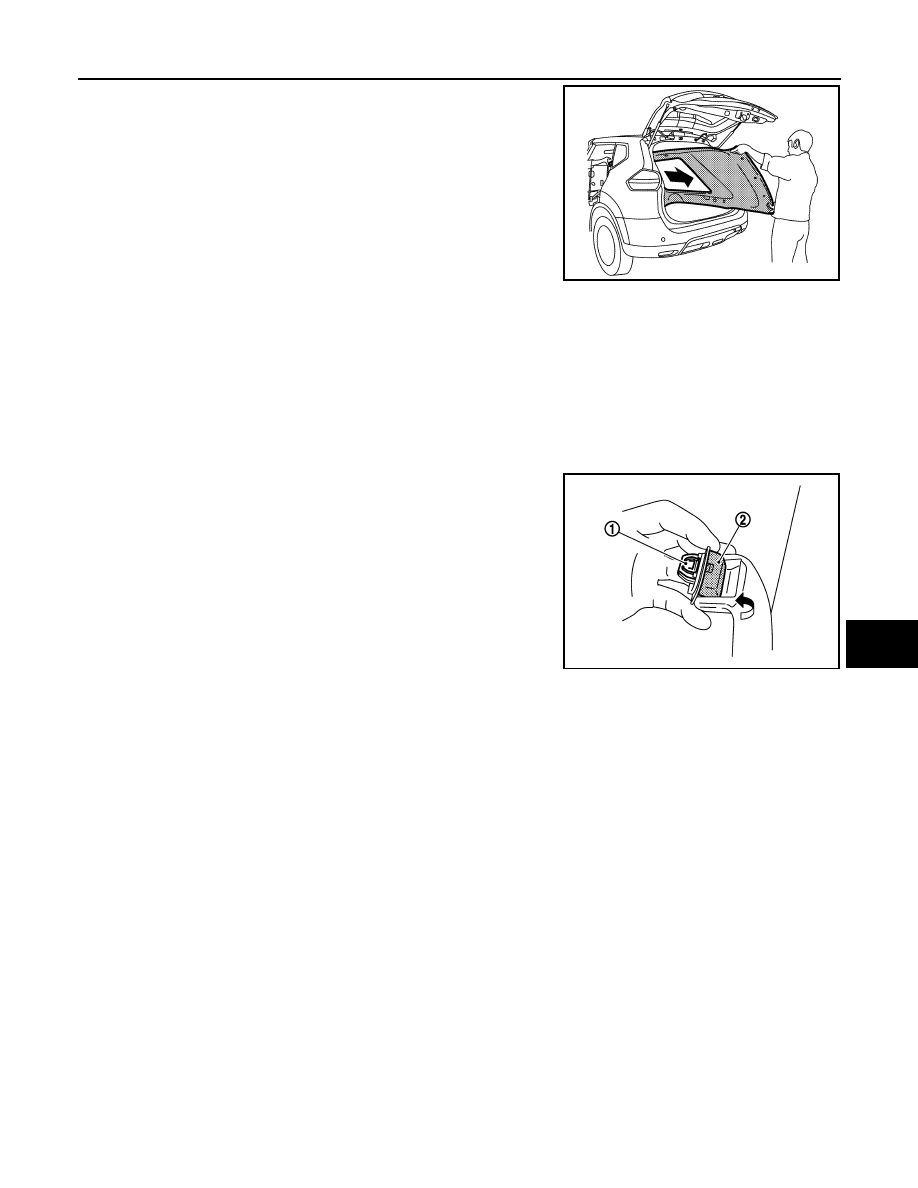

13. Remove headlining assembly through the back door.

CAUTION:

• Two workers are required for removal in order to prevent damage.
• Apply protective tape to the portion where contact may occur during work.
• Never bend headlining when removing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never bend headlining when installing.
• Be careful that the surface is not wrinkled when installing.
• When finstalling assist grip, install metal clip (1) to assist grip

cap (2) and then instal to the body panel.

JMJIA9641ZZ

JMJIA3623ZZ

INT-28

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

LUGGAGE TRIM

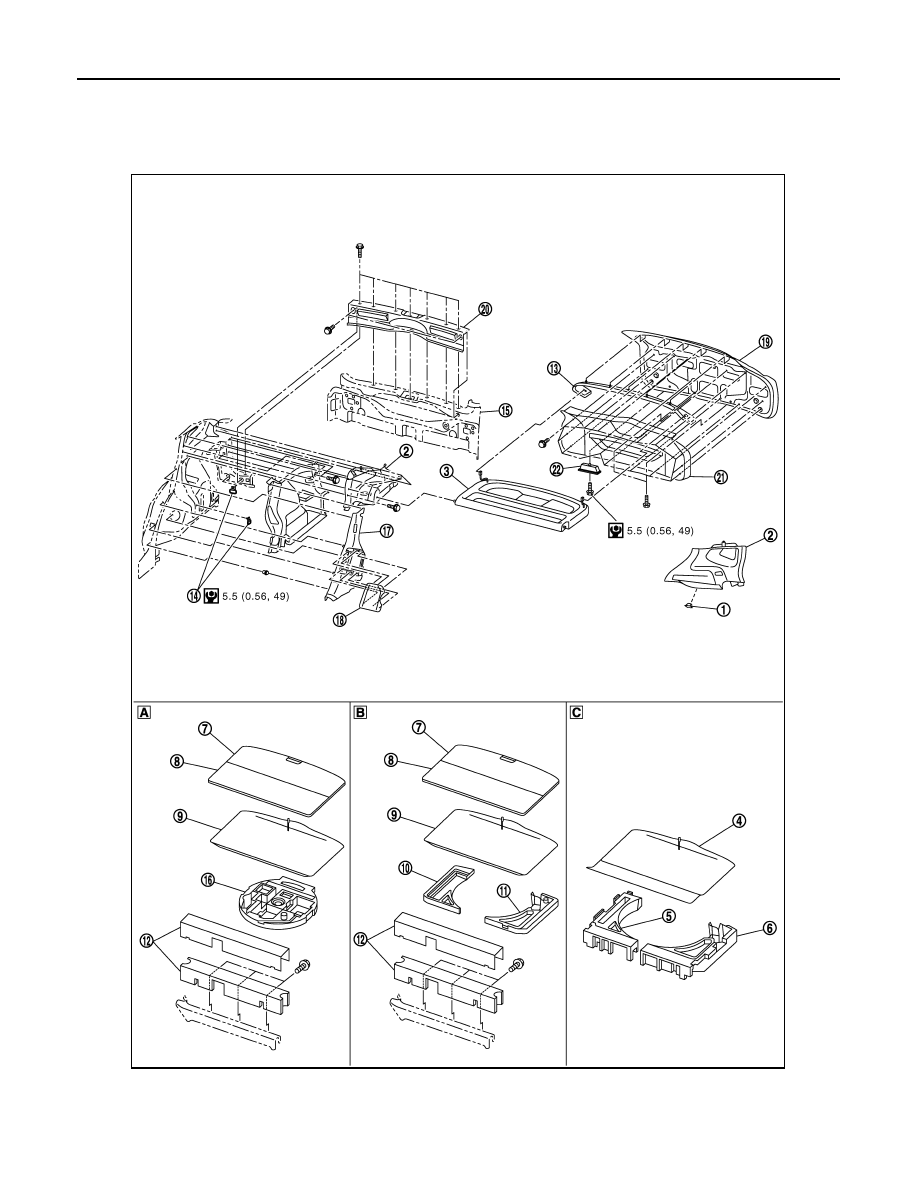

Exploded View

INFOID:0000000010350947

1.

Lamp assembly

2.

Rear pillar finisher

3.

Parcel shelf

4.

Luggage floor carpet

5.

Luggage floor spacer (RH)

6.

Luggage floor spacer(LH)

7.

Luggage floor board assembly

8.

Luggage floor board assembly

9.

Luggage floor carpet

E1JIA0281GB

LUGGAGE TRIM

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Luggage side trim

INFOID:0000000010350948

REMOVAL

LUGGAGE SIDE LOWER FINISHER (FRONT)

1.

Remove rear kicking plate inner. Refer to

INT-18, "Removal and Installation"

 .

2.

Release luggage side lower finisher (front) portion from rear body side welt.

3.

Remove rear seat cushion assembly and rear seatback assembly. Refer to

SE-35, "Removal and Installa-

tion"

.

4.

Disengage luggage side lower finisher (front) fixing clips.

5.

Remove luggage side lower finisher (front).

LUGGAGE SIDE LOWER FINISHER

CAUTION:

Be careful not to damage the body panel.

1.

Fully open back door.

2.

Remove back door weather-strip. Refer to

DLK-356, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

3.

Remove luggage rear plate fixing clips.

4.

Disengage luggage rear plate fixing pawls and metal clips.

5.

Remove luggage rear plate.

6.

Remove rear parcel shelf finisher (if equipped).

7.

Remove luggage floor carpet.

8.

Remove luggage floor board (if equipped).

9.

Remove luggage side lower finisher (front).

10. Remove rear pillar finisher. Refer to

INT-18, "Removal and Installation"

.

11. Remove trunk side finisher mounting bolts.

12. Remove trunk side finisher.

13. Remove luggage floor carpet front fixing clips.
14. Remove luggage floor carpet front.

15. Remove luggage side lower finisher fixing clips.

16. Remove luggage side lower finisher.

10. Luggage floor spacer (RH)

11. Luggage floor spacer (LH)

12. Front luggage floor carpet structure

13. Back door trim finisher upper

14. Hook assembly

15. Rear body assembly

16. Hook rope (LH)Rear center luggage

floor spacer assembly (if equipped)

17. Luggage side lower finisher

18. Front luggage side lower finisher

19. Back door assembly

20. Luggage rear plate

21. Back door trim finisher lower

22. Back door pull handle

A

With luggage floor spacer

B

Without luggage floor spacer

C

Without luggage floor spacer and
luggage floor board assembly

: Clip

: Pawl

: Metal clip

JMJIA0245ZZ

INT-30

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

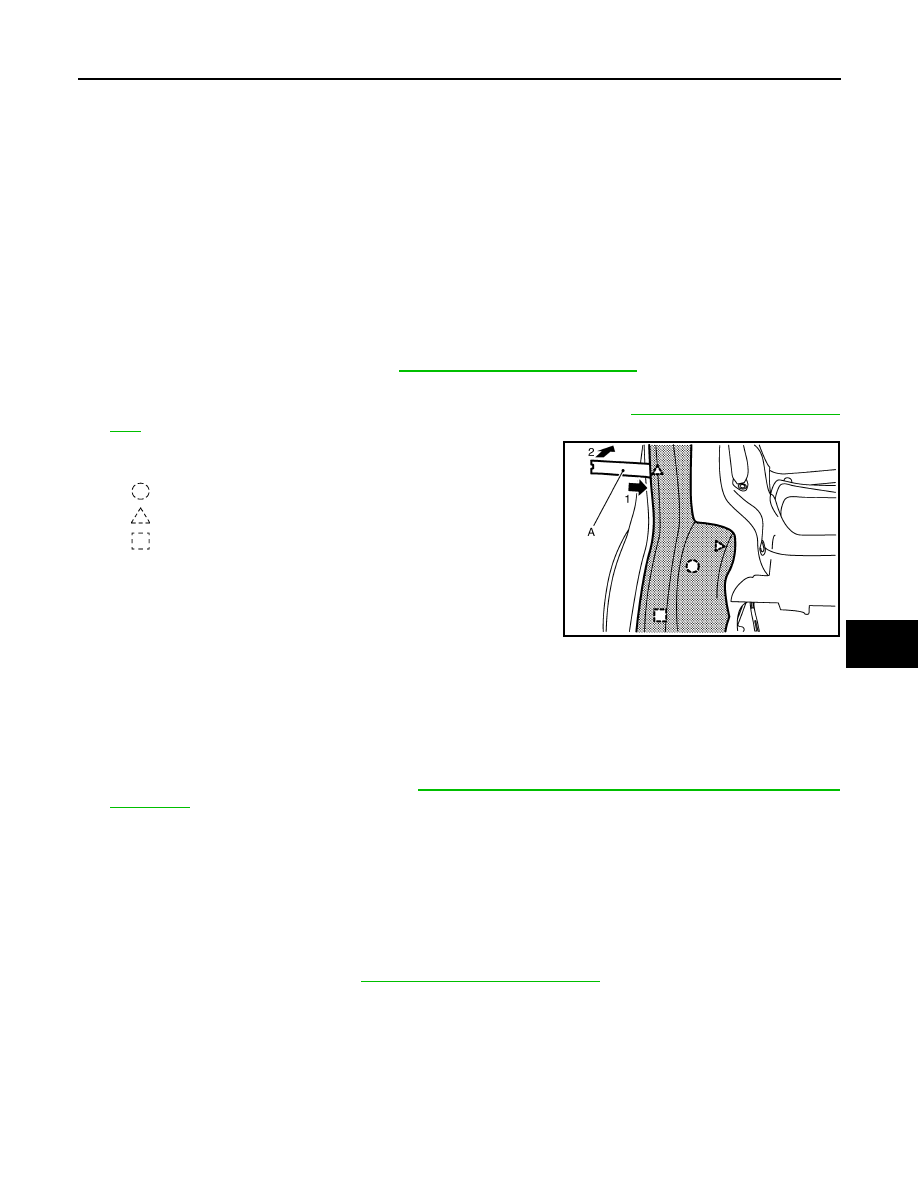

REAR PILLAR FINISHER

CAUTION:

Be careful not to damage the body panel.
1.

Remove rear seat cushion and rear seatback assembly. Refer to

SE-35, "Removal and Installation"

.

2.

Remove lower anchor bolt. Refer to

SB-10, "Exploded View"

3.

Disengage seat belt finisher fixing pawls, and then remove seat belt finisher.

4.

Remove luggage side lower finisher (front). Refer to

INT-29, "Luggage side trim"

5.

Remove luggage room lamp (rear pillar finisher LH side only). Refer to

INL-79, "Removal and Installation"

.

6.

Release rear pillar finisher portion of back door weather-strip.

7.

Disengage rear pillar finisher fixing clips and metal clips.

8.

Remove rear pillar finisher (LH/RH).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Visually check clips and metal clips for deformation and damage during installation. Replace with new
one if necessary.
When installing check in advance that clips and metal clips are accurately aligned with the portions on
body panel.

Luggage floor trim

INFOID:0000000010375508

REMOVAL

LUGGAGE REAR PLATE

1.

Remove luggage floor carpet and luggage floor spacers.

2.

Remove back door weather-strip. Refer to

INT-31, "Removal and Installation"

.

3.

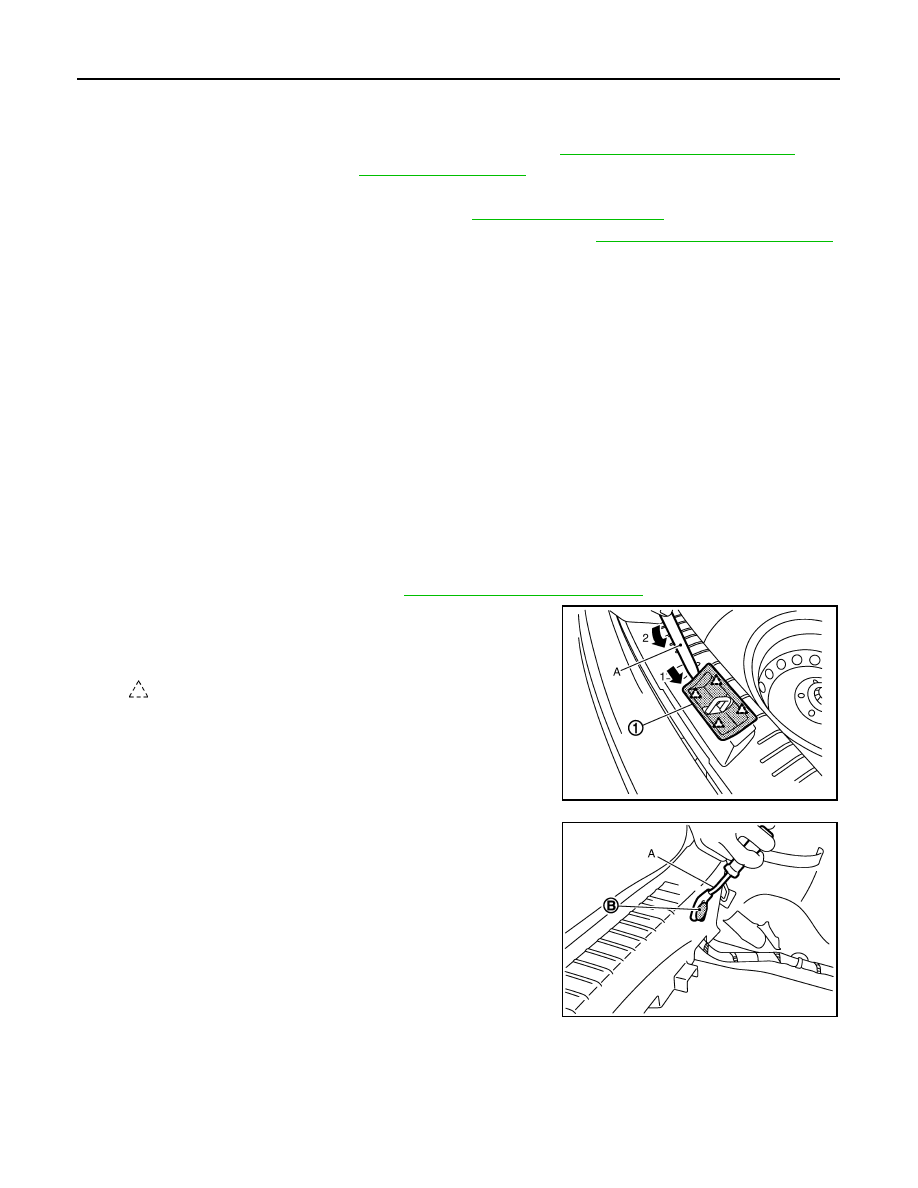

Insert remover tool (A) between luggage rear plate and luggage
rear plate cap (1) to disengage pawls and then remove luggage
rear plate cap.

4.

Remove both clips (B) on luggage rear plate using a remover
tool (A).

5.

Hold both sides of rear plate, pull upwards to remove.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMJIA0235ZZ

JMJIA0236ZZ
