CLIP LIST

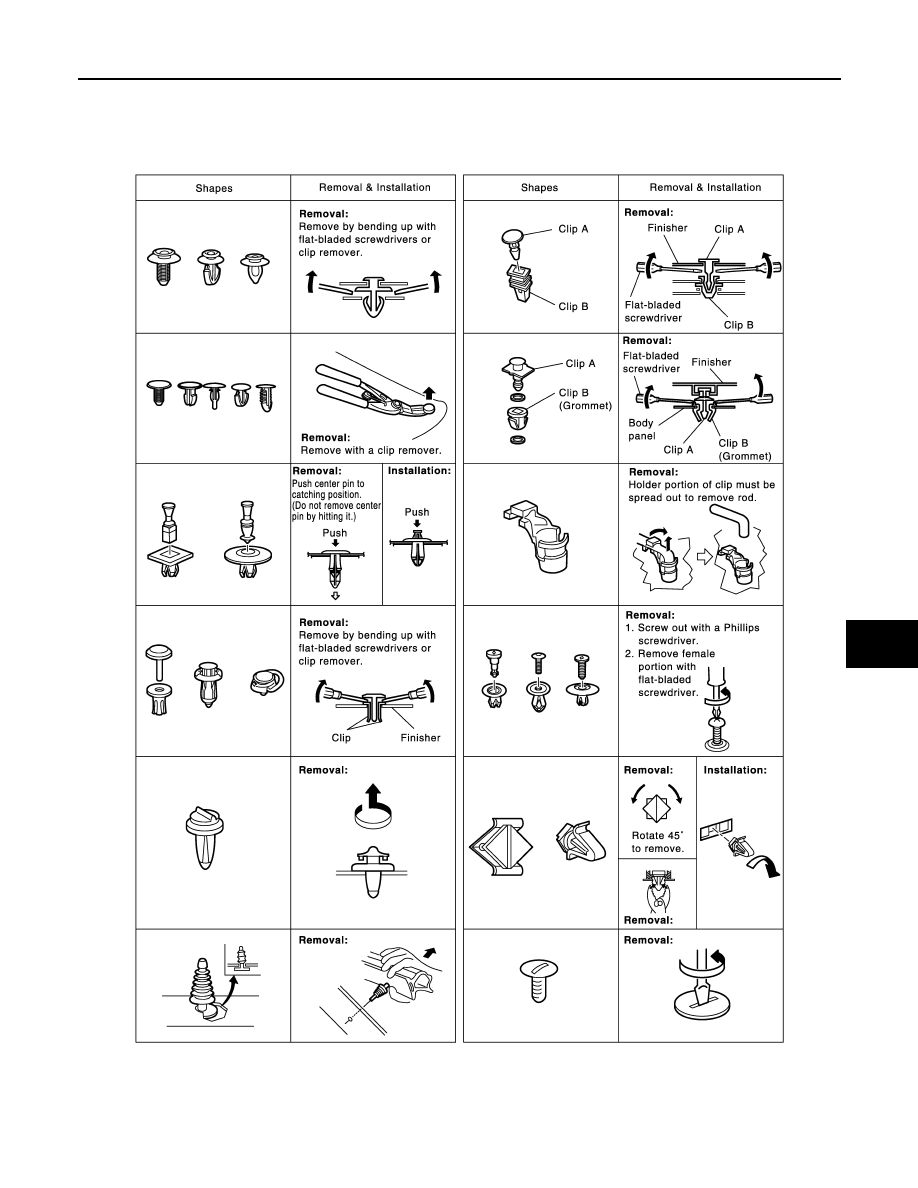

Clip List

INFOID:0000000010350934

JMJIA3734GB

INT-12

< REMOVAL AND INSTALLATION >

DOOR FINISHER

REMOVAL AND INSTALLATION

DOOR FINISHER

FRONT DOOR FINISHER

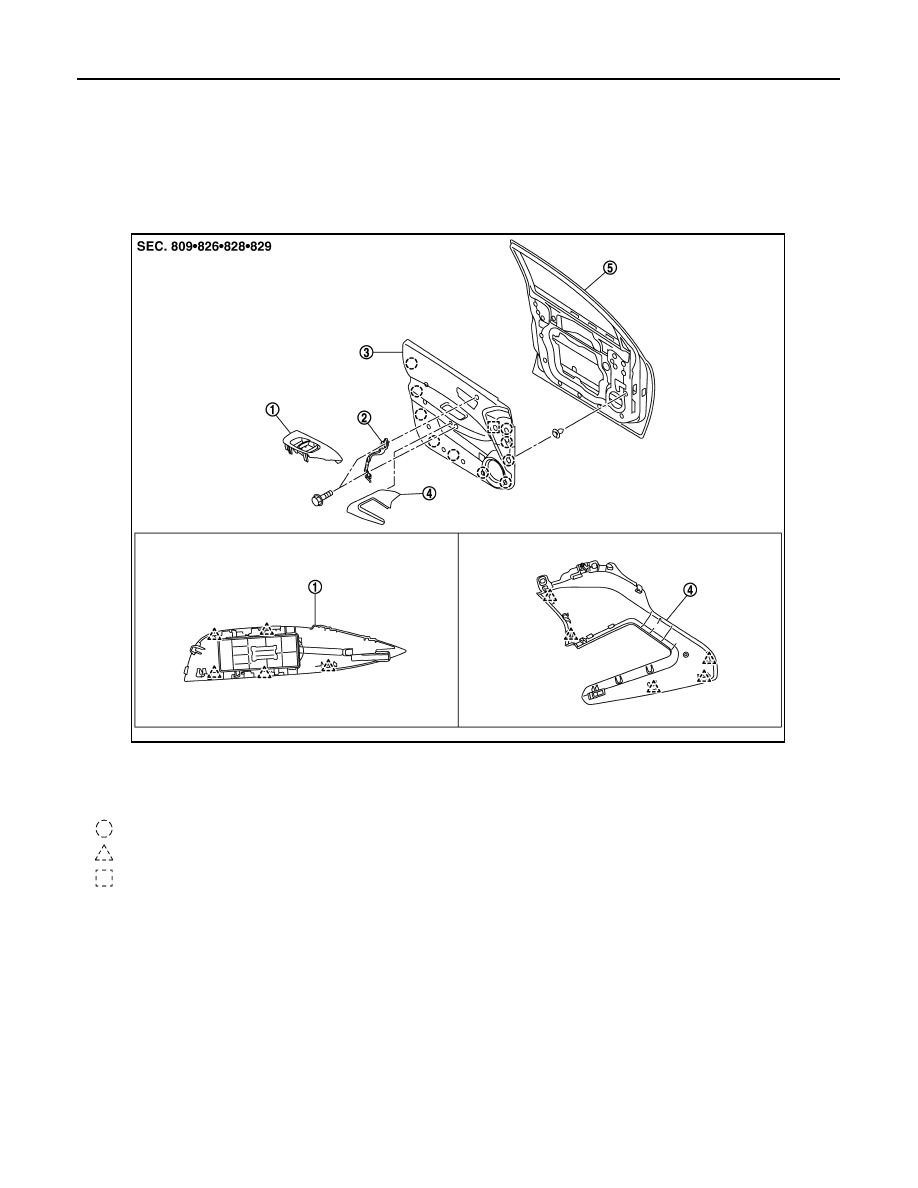

FRONT DOOR FINISHER : Exploded View

INFOID:0000000010350935

FRONT DOOR FINISHER : Removal and Installation

INFOID:0000000010350936

REMOVAL

1.

Fully open door window.

1.

Power window switch front (driver
side)

2.

Front door bracket

3.

Front door finisher (LH)

4.

Front door grip  (LH)

5.

Front door panel

: Clip

: Pawl

: Metal clip

E1JIA0267ZZ

DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

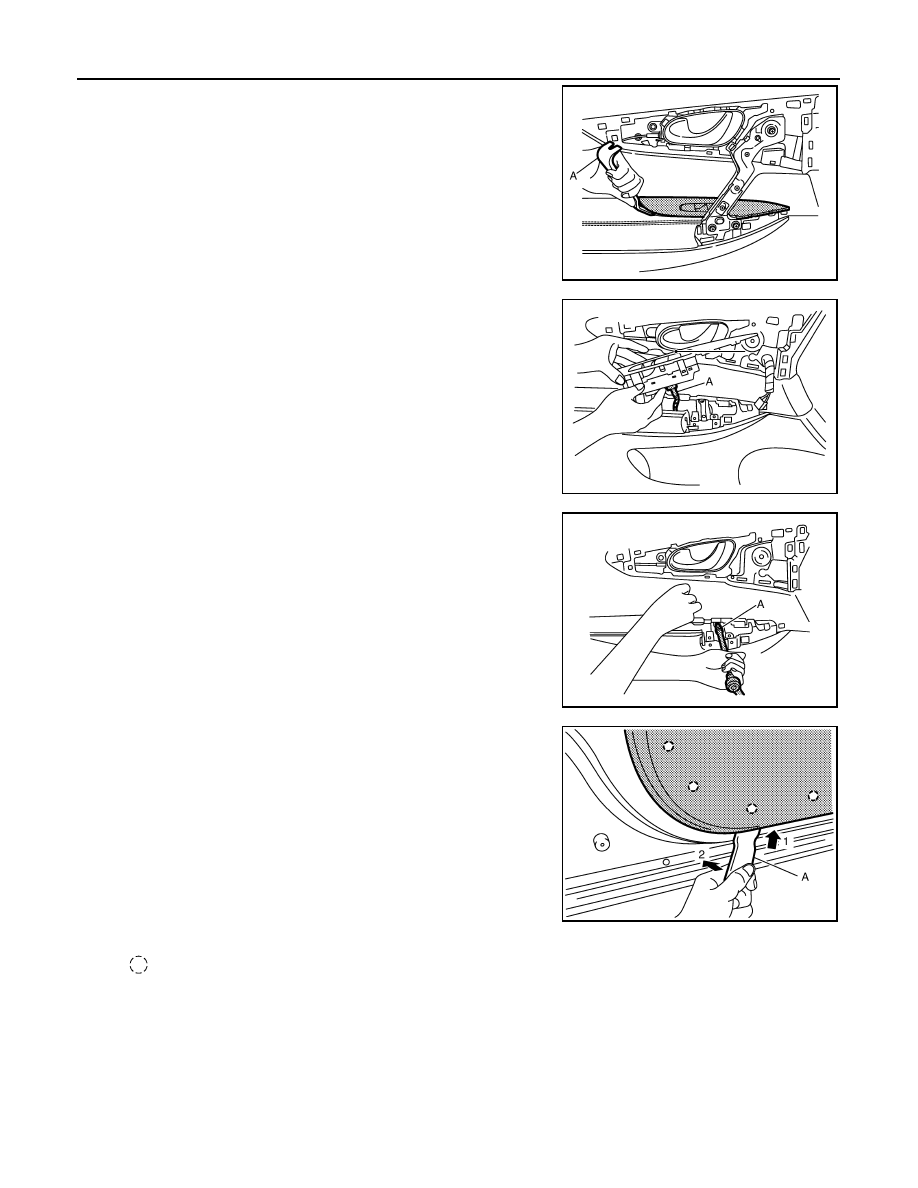

2.

Insert remover tool (A) to release inside handle finisher.

3.

Remove handle finisher.

4.

Insert remover tool (A) to release front door grip.

5.

Disconnect harness connector (A).

6.

Remove front door grip.

7.

Remove screws (A) holding front door bracket in place using
screw-driver.

: Pawl

E1JIA0257ZZ

E1JIA0258ZZ

E1JIA0259ZZ

E1JIA0260ZZ

INT-14

< REMOVAL AND INSTALLATION >

DOOR FINISHER

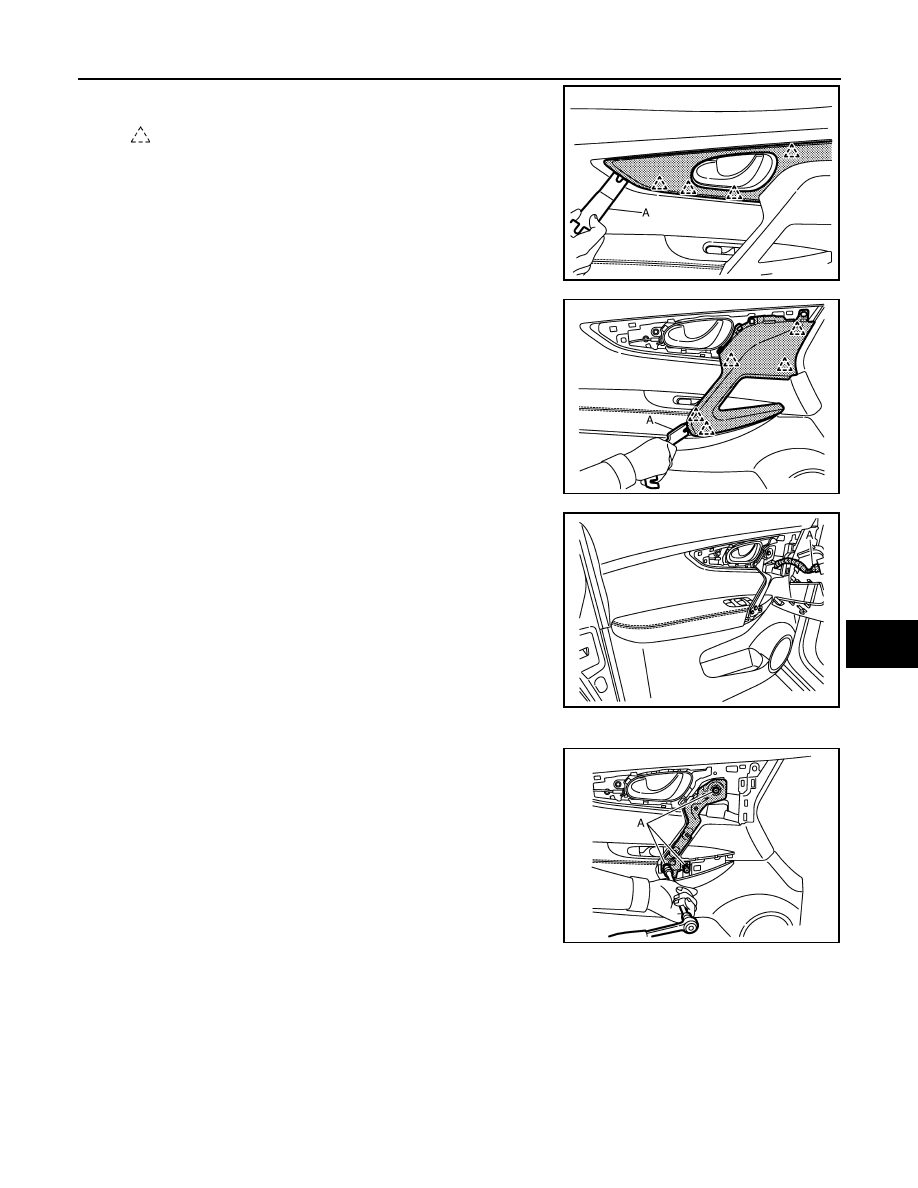

8.

Insert remover tool (A) to release power window switch.

9.

Disconnect harness connectors (A) for power window switch
front.

10. Remove mounting screw (A).

11. Insert remover tool (A) between door finisher and door panel to

disengage door finisher mounting clips, starting from the bottom
and working to the top.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

REAR DOOR FINISHER

E1JIA0261ZZ

E1JIA0262ZZ

E1JIA0268ZZ

JMJIA0253ZZ

: Clip
