Nissan Qashqai J11. Manual - part 1166

HAC-300

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

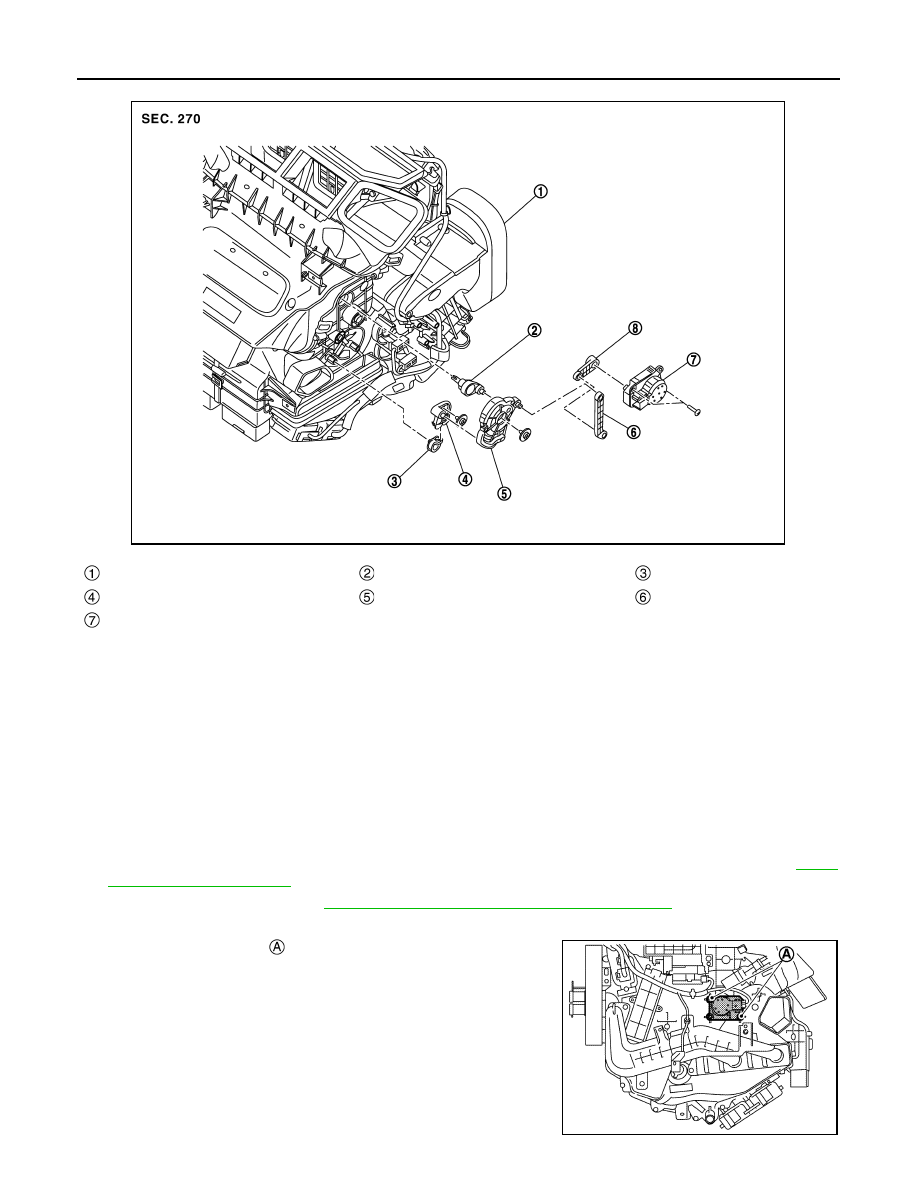

DOOR MOTOR

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000010433497

REMOVAL

Air Mix Door Motor LH

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

"Removal and Installation"

3.

Remove foot duct LH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

5.

Remove fixing screws

, and then remove air mix door motor

LH.

A/C unit assembly

Side ventilator door lever

Foot door link

Foot door link

Main link

Mode door link

Mode door motor

JMIIA3531ZZ

JMIIA3395ZZ

DOOR MOTOR

HAC-301

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

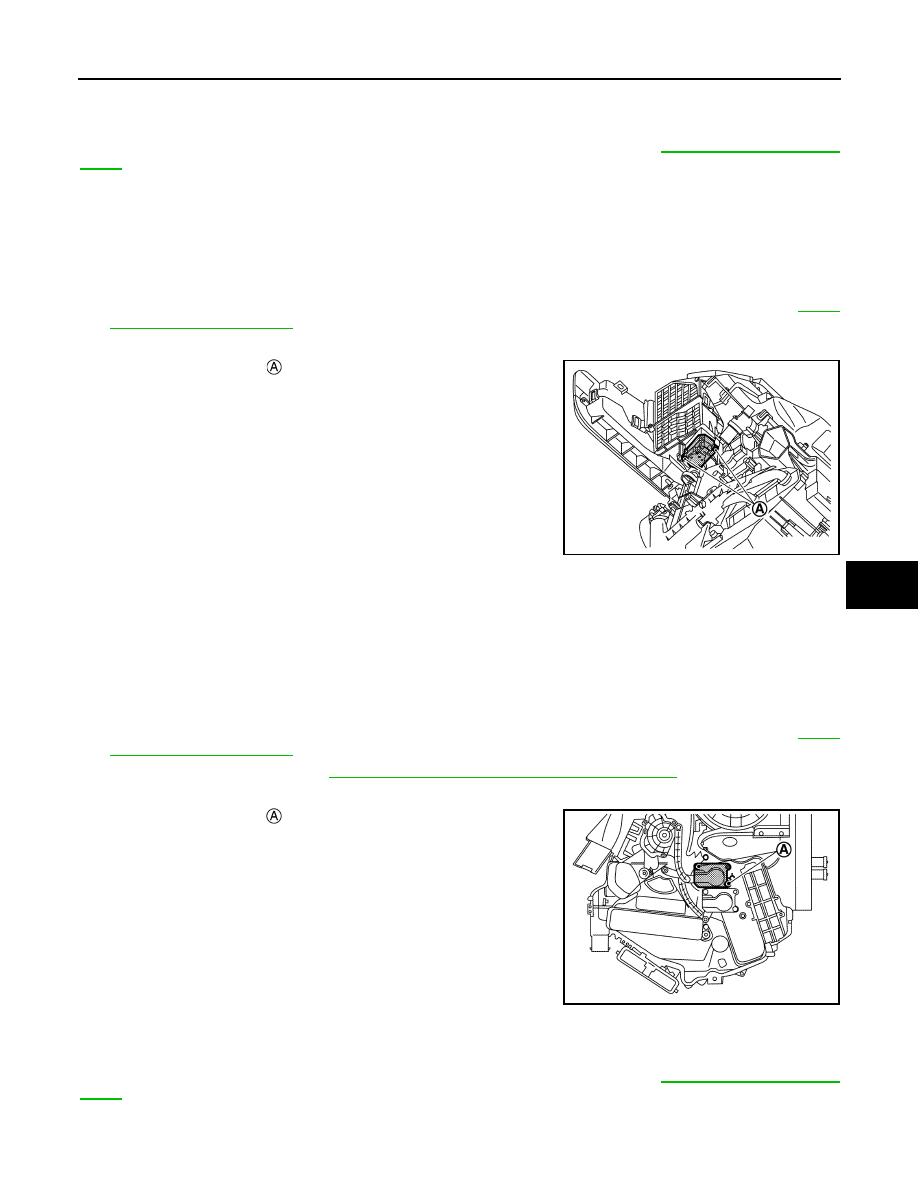

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-272, "Work Proce-

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000010433498

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

"Removal and Installation"

2.

Disconnect intake door motor harness connector.

3.

Remove fixing screws

, and then remove intake door motor.

INSTALLATION

Install in the reverse order of removal.

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000010433499

REMOVAL

1.

Remove instrument lower panel RH (RHD models) or glove box cover (LHD models). Refer to

"Removal and Installation"

2.

Remove foot duct RH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

3.

Disconnect mode door motor harness connector.

4.

Remove fixing screws

, mode door motor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-272, "Work Proce-

JMIIA3394ZZ

JMIIA3396ZZ

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

SYMPTOM DIAGNOSIS ...............................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

Work Flow .................................................................

Inspection Procedure ................................................

Diagnostic Worksheet ...............................................

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

Precaution for Work ..................................................

PREPARATION ...........................................

PREPARATION ..................................................

Commercial Service Tools ......................................

CLIP LIST ...........................................................

Clip List ...................................................................

REMOVAL AND INSTALLATION ...............

DOOR FINISHER ...............................................

FRONT DOOR FINISHER ..........................................

FRONT DOOR FINISHER : Exploded View ............

FRONT DOOR FINISHER : Removal and Installa-
tion ...........................................................................

REAR DOOR FINISHER ............................................

REAR DOOR FINISHER : Exploded View ..............

REAR DOOR FINISHER : Removal and Installa-
tion ...........................................................................

BODY SIDE TRIM .............................................

Exploded View .........................................................

Removal and Installation .........................................

FLOOR TRIM ....................................................

Exploded View .........................................................

Removal and Installation .........................................

HEADLINING ....................................................

Exploded View .........................................................

Removal and Installation .........................................

LUGGAGE TRIM ...............................................

Exploded View .........................................................

Luggage side trim ....................................................

Luggage floor trim ....................................................

BACK DOOR TRIM ...........................................

Exploded View .........................................................

Removal and Installation .........................................

INT-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

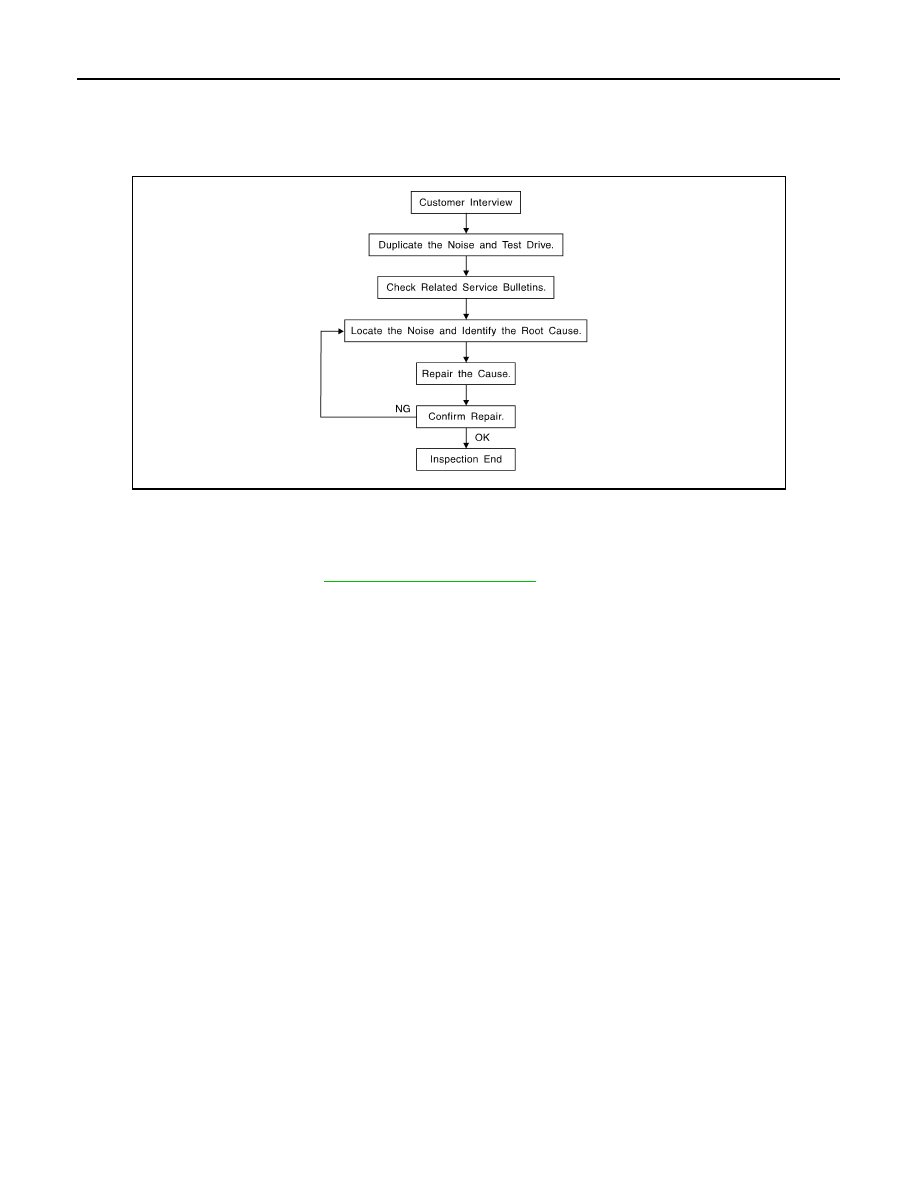

Work Flow

INFOID:0000000010350927

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

INT-6, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842
