Nissan Qashqai J11. Manual - part 108

PREPARATION

EM-371

< PREPARATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

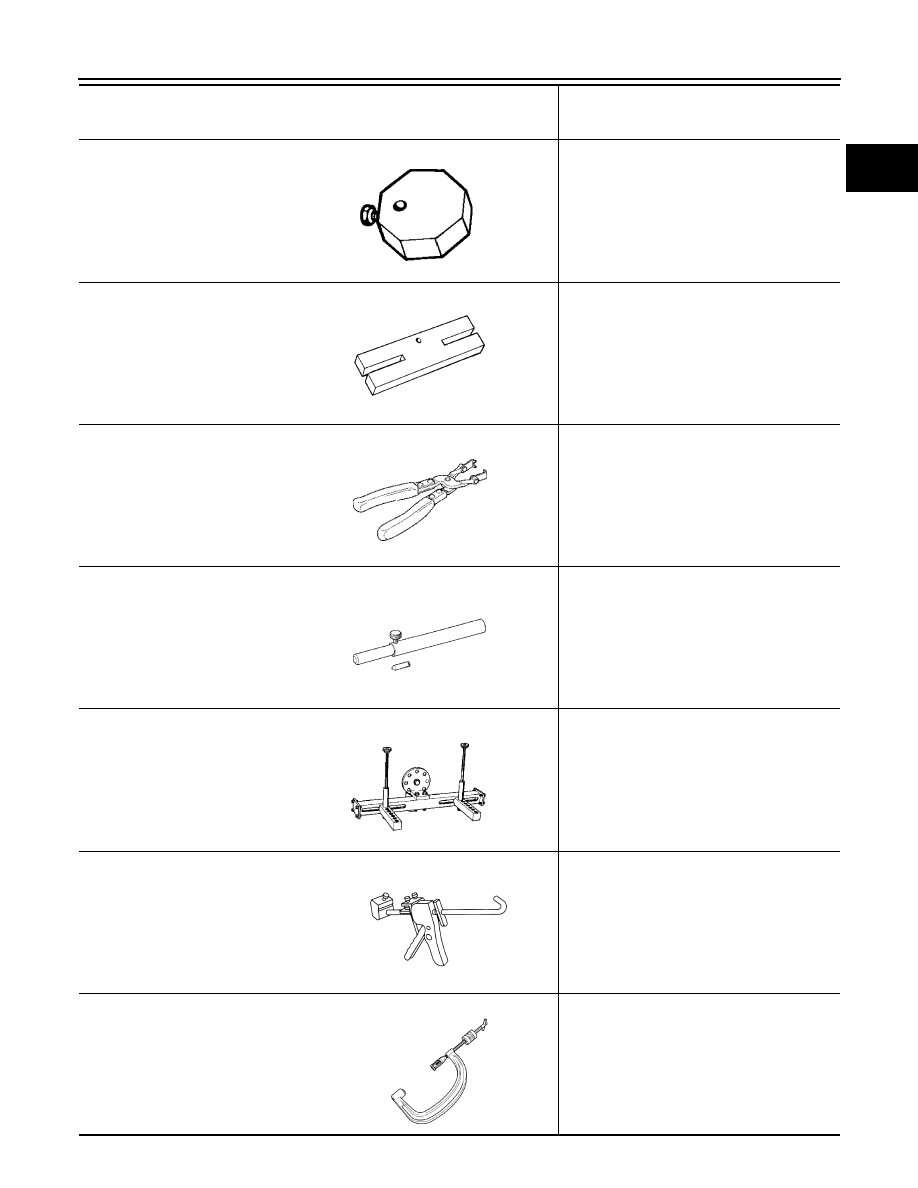

KV113B0040
(Mot. 251-01)
Dial indicator stand set

Gauge stand used with KV113B0050 (Mot.
252-01)

KV113B0050
(Mot. 252-01)
Dial indicator stand set

Thrust plate for measuring the protrusion of
piston used with KV113B0040 (Mot. 251-01)

KV113B0090
(Mot. 1335)
Valve seal remover

Tool for removing valve oil seals

KV113B0180
(Mot. 1511-01)
Valve seal drift

Tool for installing valve oil seals

KV113B0200
(Mot. 1573)
Cylinder head stand

Cylinder head and cylinder head housing sup-
port

Tube presser

Pressing the tube of liquid gasket

Valve spring compressor

Disassembling valve mechanism

MBIB0360E

MBIB0361E

MBIB0370E

MBIB0378E

MBIB0380E

NT052

JPBIA0770ZZ

EM-372

< PREPARATION >

[R9M]

PREPARATION

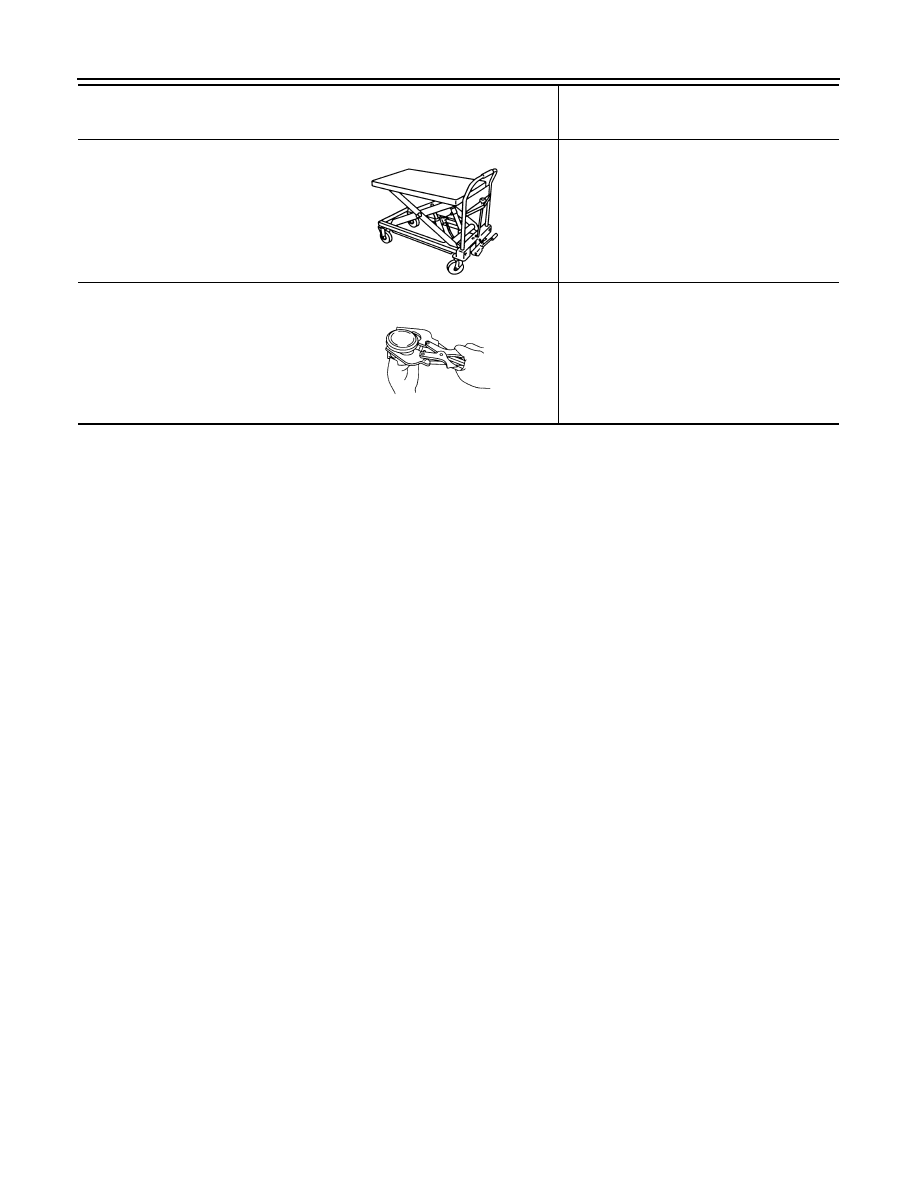

Manual lift table caddy

Removing and installing engine

Piston ring expander

Removing and installing piston ring

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

ZZA1210D

NT030

DRIVE BELT

EM-373

< PERIODIC MAINTENANCE >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PERIODIC MAINTENANCE

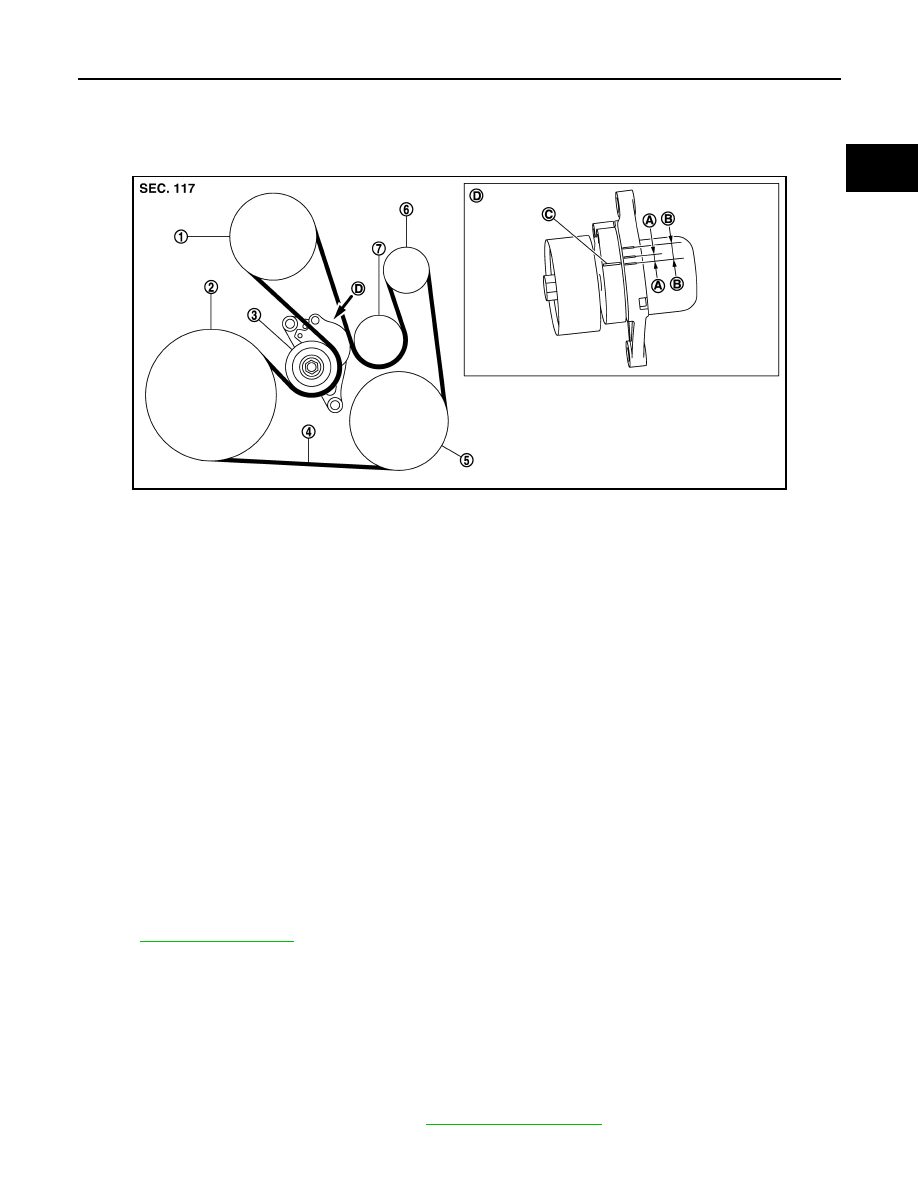

DRIVE BELT

Exploded View

INFOID:0000000010281963

Checking

INFOID:0000000010281964

WARNING:

Be sure to perform this step when the engine is stopped.
• Check that the indicator (C) (notch on fixed side) of drive belt auto-tensioner is within the possible use range

(B).
NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator (notch on fixed side) should be within the range (A) in the fig-

ure.

• Visually check entire drive belt for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.

CAUTION:

Drive belt auto-tensioner and idler pulley must be replaced with new ones when the drive belt is
replaced.

Tension Adjustment

INFOID:0000000010281965

Refer to

EM-274, "Adjustment"

.

Removal and Installation

INFOID:0000000010281966

CAUTION:

• Replace the drive belt that has been removed with a new one.
• Drive belt auto-tensioner and idler pulley must be replaced with new ones when the drive belt is

replaced.

• Never run the engine without the drive belt to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove front fender protector (RH). Refer to

EXT-31, "Exploded View"

.

E1BIA1197GB

1.

Water pump

2.

Crankshaft pulley

3.

Drive belt auto-tensioner

4.

Drive belt

5.

A/C compressor or Idler roller

6.

Alternator

7.

Idler pulley

A.

Range when new drive belt is installed

B.

Possible use range

C.

Indicator

D.

View

EM-374

< PERIODIC MAINTENANCE >

[R9M]

DRIVE BELT

2.

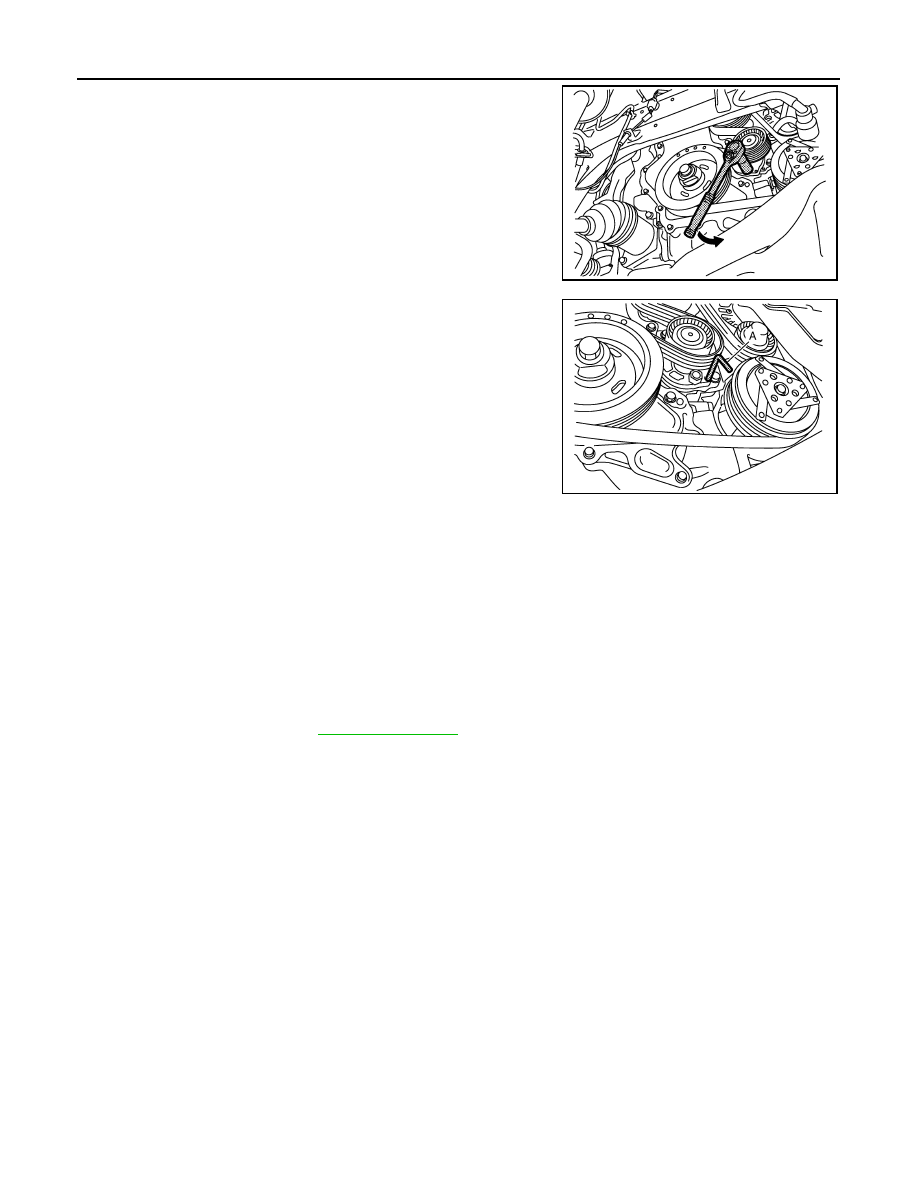

Hold the hexagonal part of drive belt auto-tensioner pulley with a
hexagonal socket (A) securely. Then move the wrench handle in
the direction of arrow (loosening direction of tensioner).

CAUTION:

Never place hand in a location where pinching may occur if
the holding tool accidentally comes off.

3.

Insert a stopper pin (A) in diameter such as short-length screw-
driver into the hole of the retaining boss to fix drive belt auto-ten-
sioner pulley.
• Keep drive belt auto-tensioner pulley arm locked after drive

belt is removed.

NOTE:
Use approximately 3.0 mm (0.118 in) dia. hard metal pin as a
stopper pin.

4.

Remove drive belt.

INSTALLATION

1.

Install drive belt.

CAUTION:

• Check that drive belt is completely set to pulleys.
• Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each

pulley groove.

2.

Release drive belt auto-tensioner, and apply tension to drive belt.

3.

Turn crankshaft pulley clockwise several times to equalize tension between each pulley.

4.

Check that the indicator (notch on fixed side) of drive belt auto-tensioner is within the range when new
drive belt is installed. Refer to

EM-373, "Checking"

.

E1BIA0658ZZ

E1BIA0657ZZ
