VTL-14

< REMOVAL AND INSTALLATION >

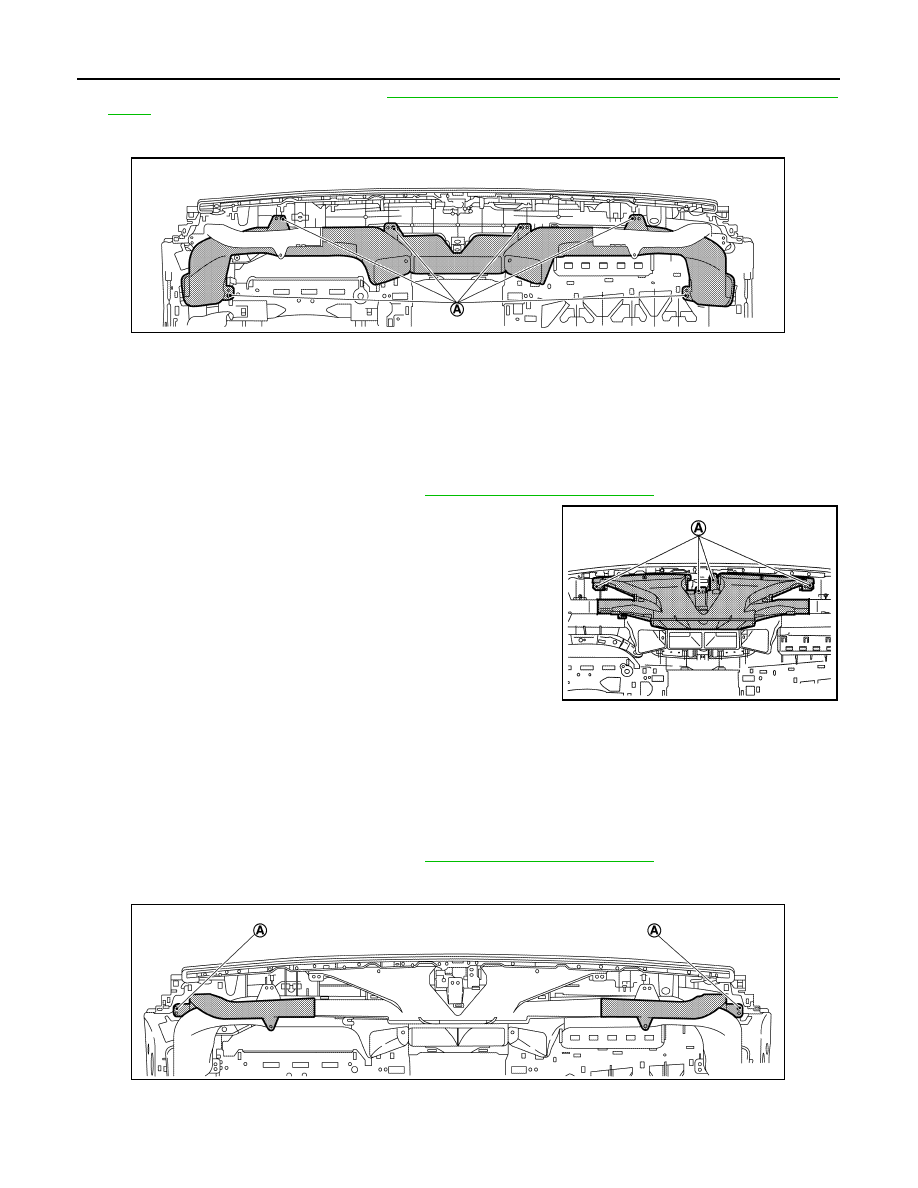

DUCT AND GRILLE

2.

Remove front defroster nozzle. Refer to

VTL-14, "CENTER DEFROSTER NOZZLE : Removal and Instal-

lation"

.

3.

Remove fixing screws (A), and then remove center ventilator duct assembly from instrument panel
assembly.

INSTALLATION

Install in the reverse order of removal.

CENTER DEFROSTER NOZZLE

CENTER DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000010451818

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove center defroster
nozzle from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER NOZZLE

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000010451819

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove side defroster nozzle LH and RH from instrument panel
assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3410ZZ

JMIIA3380ZZ

JMIIA3381ZZ

DUCT AND GRILLE

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SIDE DEFROSTER GRILLE

SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000010451820

REMOVAL

1.

Remove side defroster nozzle. Refer to

VTL-14, "SIDE DEFROSTER NOZZLE : Removal and Installa-

tion"

.

2.

Disengage fixing pawl, and then remove side defroster grille LH or RH.

INSTALLATION

Install in the reverse order of removal.

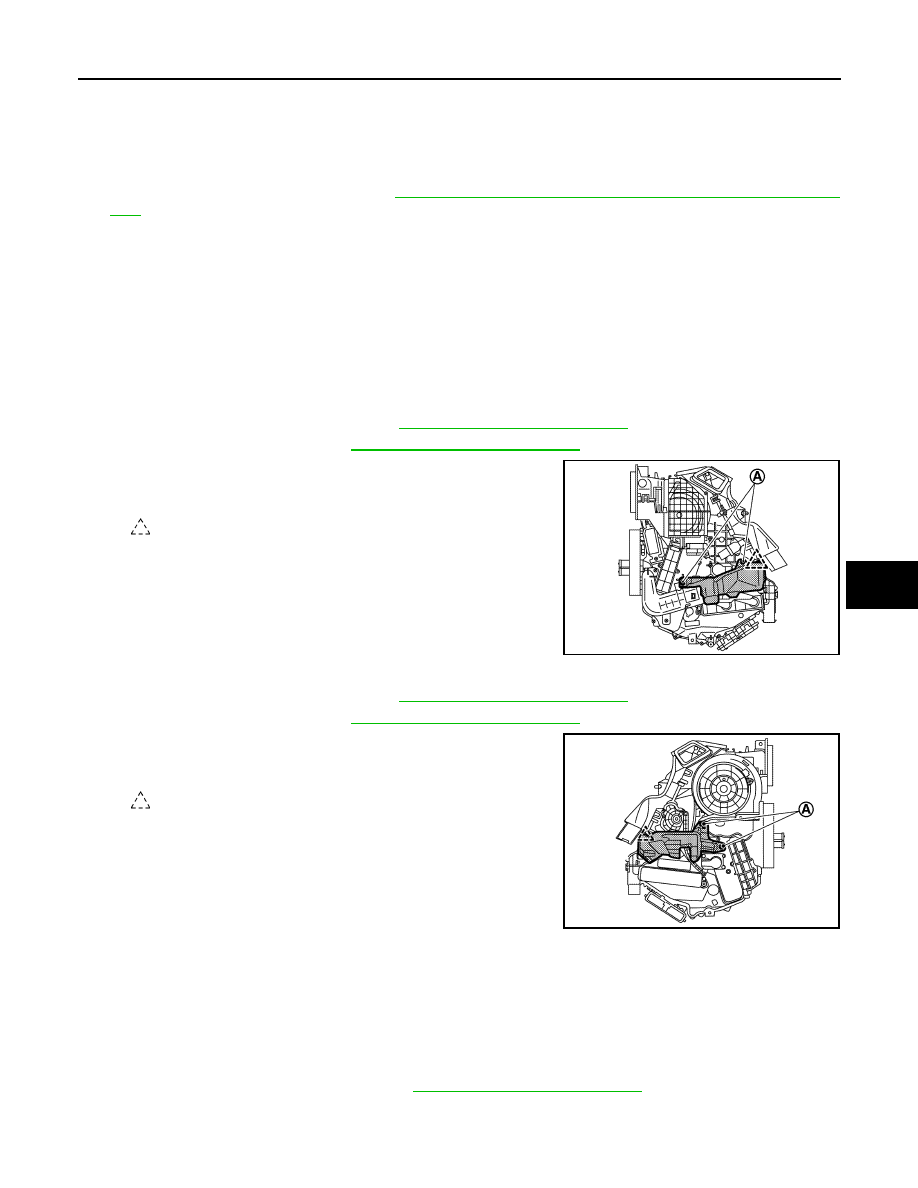

FOOT DUCT

FOOT DUCT : Removal and Installation

INFOID:0000000010451821

REMOVAL

Foot Duct LH

1.

Remove instrument lower cover. Refer to

IP-13, "Removal and Installation"

. (LHD models)

2.

Remove glove box cover. Refer to

IP-13, "Removal and Installation"

.(RHD models)

3.

Remove fixing screws (A) and pawl, and then remove foot duct
LH.

Foot Duct RH

1.

Remove instrument lower cover. Refer to

IP-13, "Removal and Installation"

. (RHD models)

2.

Remove glove box cover. Refer to

IP-13, "Removal and Installation"

.(LHD models)

3.

Remove fixing screws (A) and pawl, and then remove foot duct
RH.

INSTALLATION

Install in the reverse order of removal.

REAR FLOOR DUCT 1

REAR FLOOR DUCT 1 : Removal and Installation

INFOID:0000000010451822

REMOVAL

1.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove rear floor duct 1.

INSTALLATION

: Pawl

JMIIA3371ZZ

: Pawl

JMIIA3370ZZ

VTL-16

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

Install in the reverse order of removal.

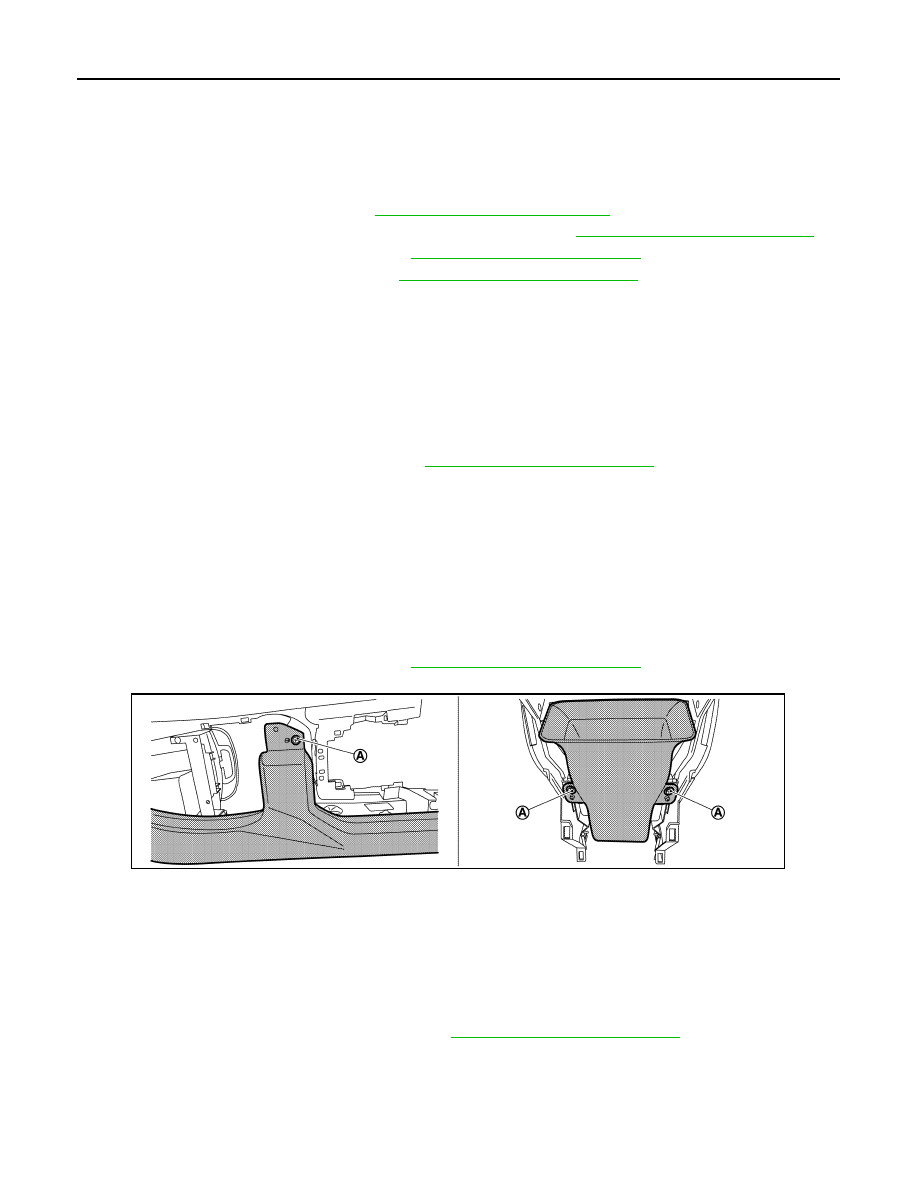

REAR FLOOR DUCT 2

REAR FLOOR DUCT 2 : Removal and Installation

INFOID:0000000010451874

REMOVAL

1.

Remove front seat assembly. Refer to

SE-29, "Removal and Installation"

.

2.

Remove dush side finisher and center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

3.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

4.

Peel off floor carpet of front side. Refer to

INT-22, "Removal and Installation"

.

5.

Disconnect fixing clips and harness clip, and then remove rear floor duct 2 LH or RH.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 1

REAR VENTILATOR DUCT 1 : Removal and Installation

INFOID:0000000010787480

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage pawls, and then remove rear ventilator duct 1.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 2

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000010787481

REMOVAL

1.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove rear ventilator duct 2 .

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR GRILLE

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010787482

REMOVAL

1.

Remove console rear finisher assembly. Refer to

IP-19, "Removal and Installation"

.

JMIIA3340ZZ

BLOWER MOTOR

VTL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

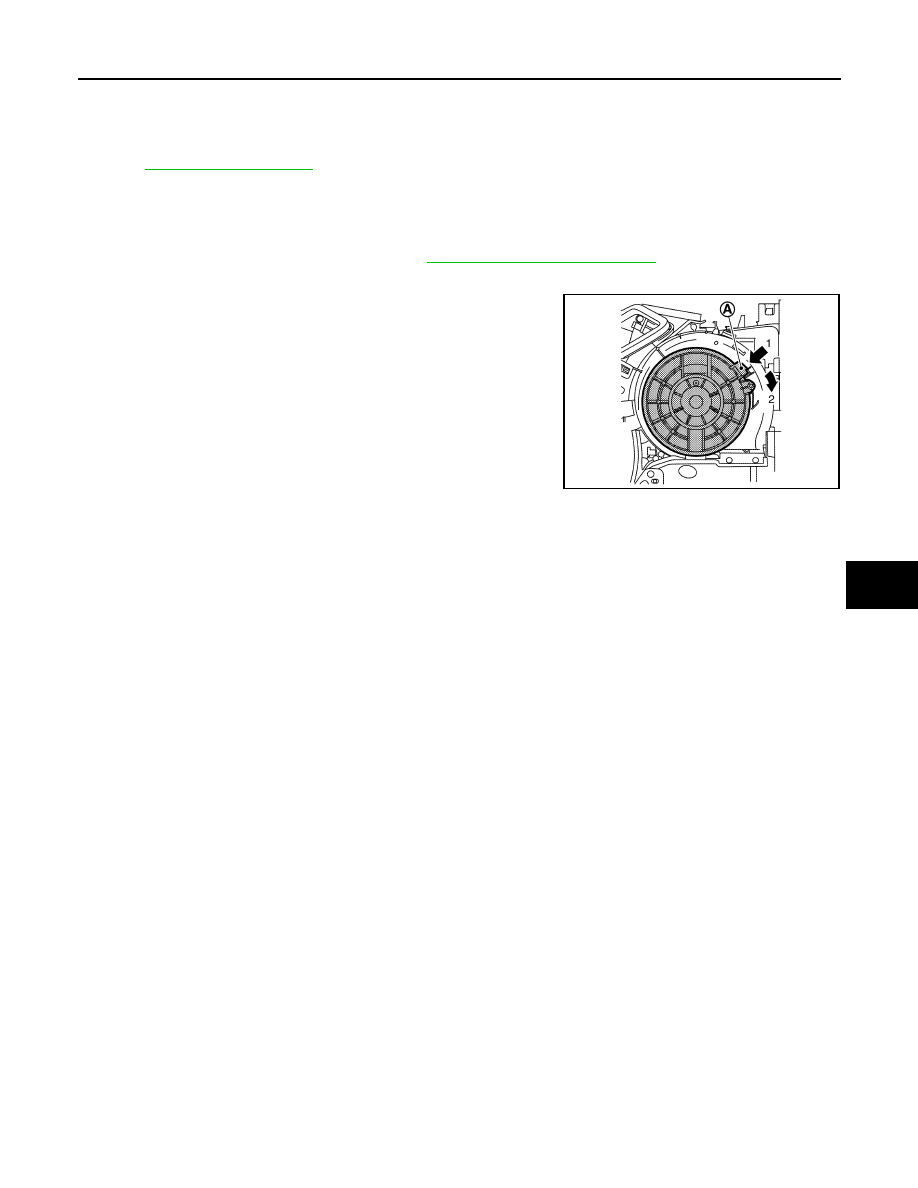

BLOWER MOTOR

Exploded View

INFOID:0000000010451823

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010451824

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower motor connector and remove fixing screw.

3.

Press flange holding hook (A), and then turn blower motor clock-
wise according numerical order 1

→

2 indicated by arrows as

shown in the figure.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Install in the reverse order of removal.

JMIIA3373ZZ
