DIAGNOSIS SENSOR UNIT

B1431–09

PRE-TEN FRONT RH

SRC-85, "DTC Description"

B1431–11

B1431–12

B1431–13

B1431–1A

B1432–09

PRE-TEN FRONT LH 2

SRC-87, "DTC Description"

B1432–11

B1432–12

B1432–13

B1432–1A

B1433–09

PRE-TEN FRONT RH 2

SRC-89, "DTC Description"

B1433–11

B1433–12

B1433–13

B1433–1A

DTC

Diagnostic item

Reference page

SRS AIR BAG SYSTEM

SRC-23

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WIRING DIAGRAM

SRS AIR BAG SYSTEM

LHD

LHD : Wiring Diagram

INFOID:0000000010377823

JRHWC1560GB

SRC-24

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

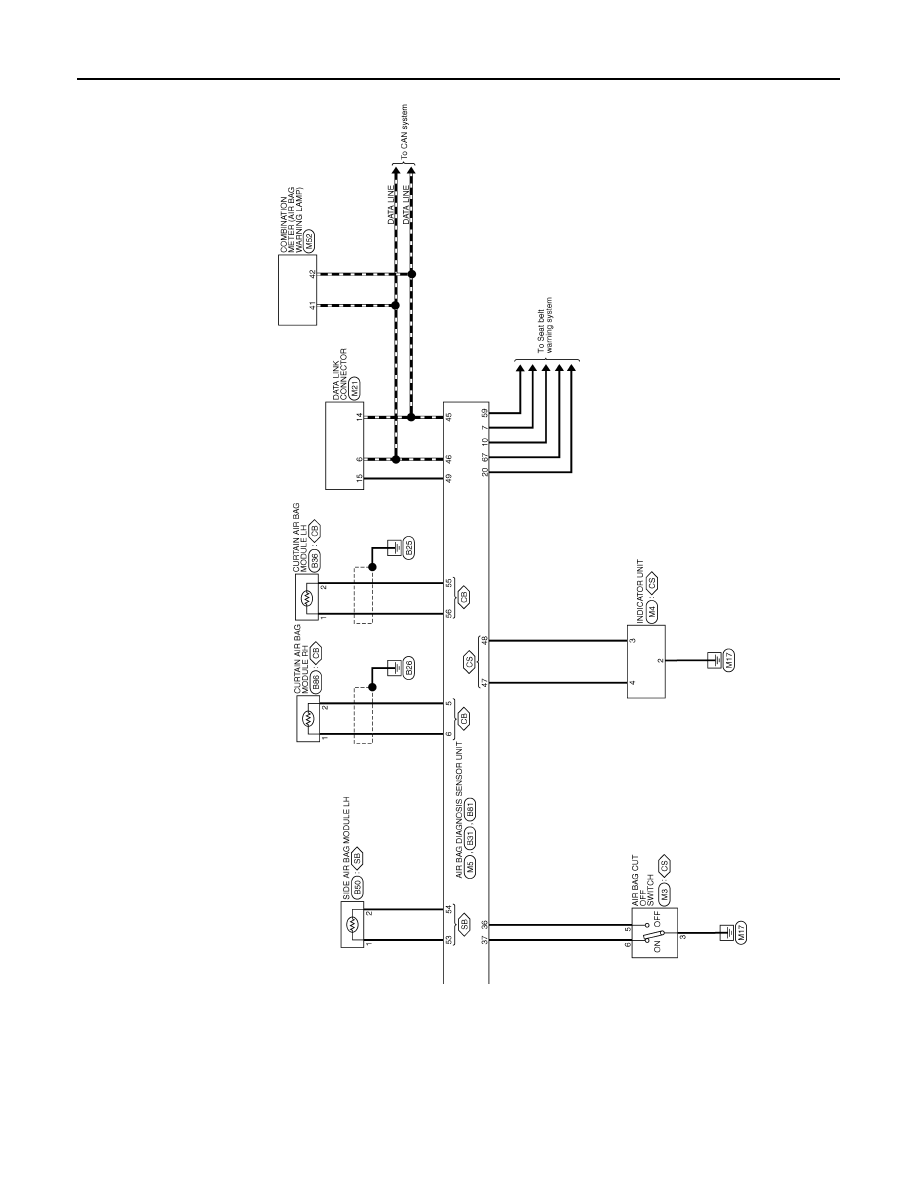

JRHWC1828GB

SRS AIR BAG SYSTEM

SRC-25

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

JRHWC1577GB
