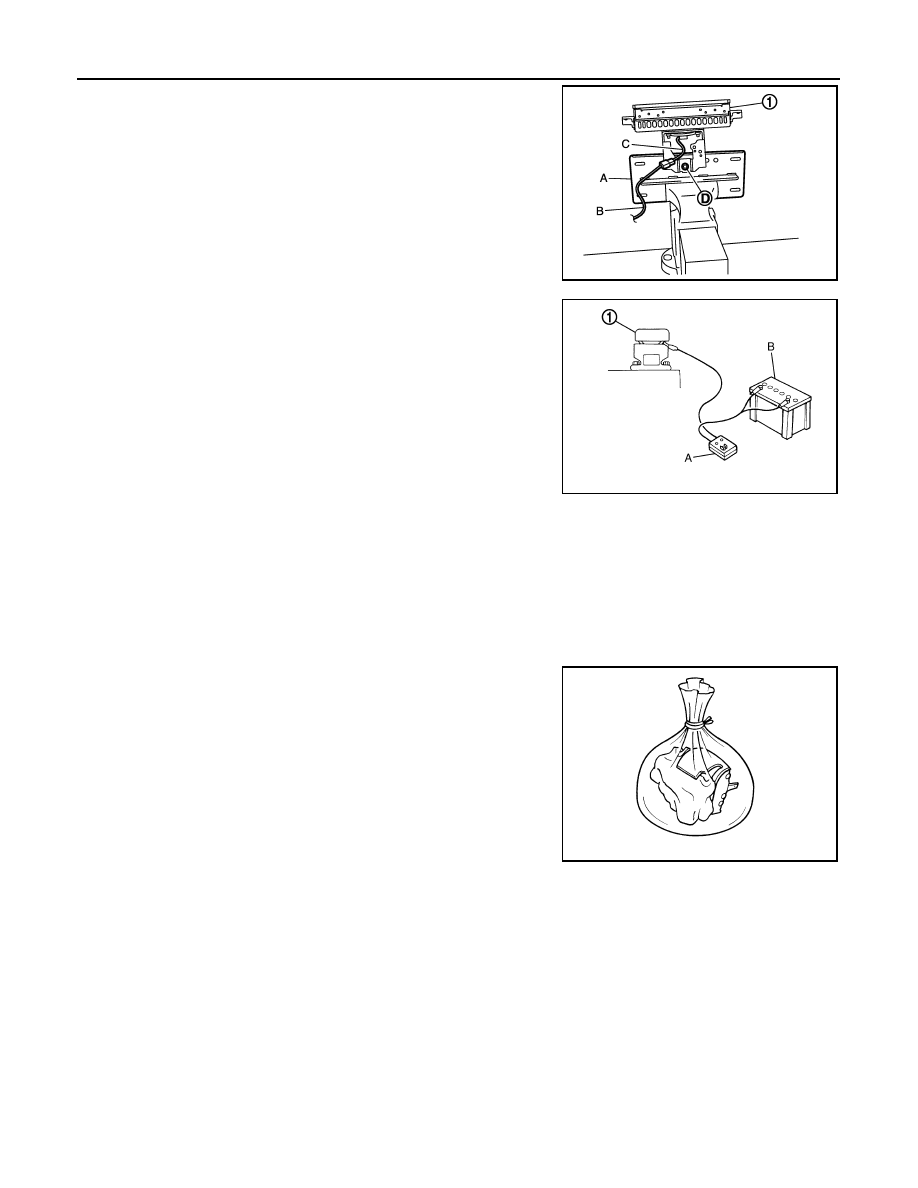

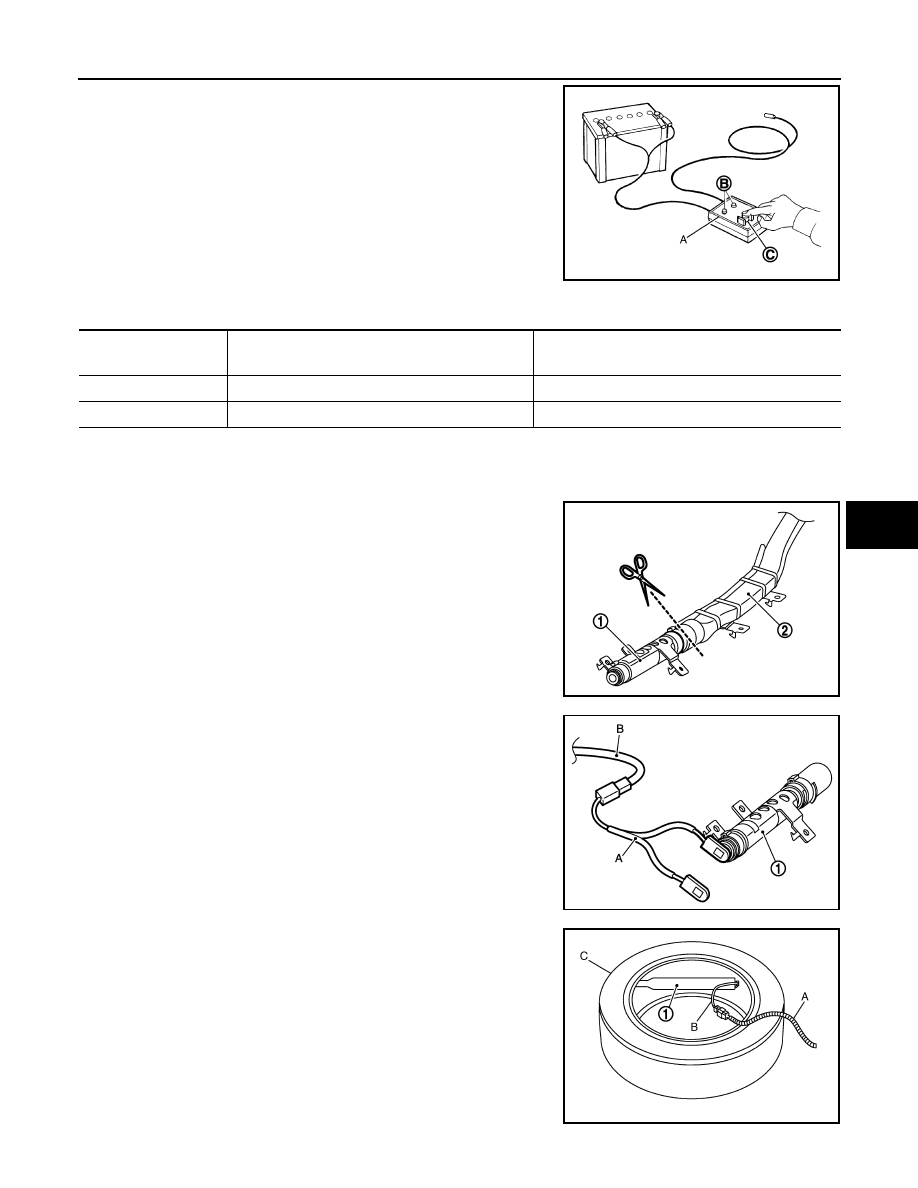

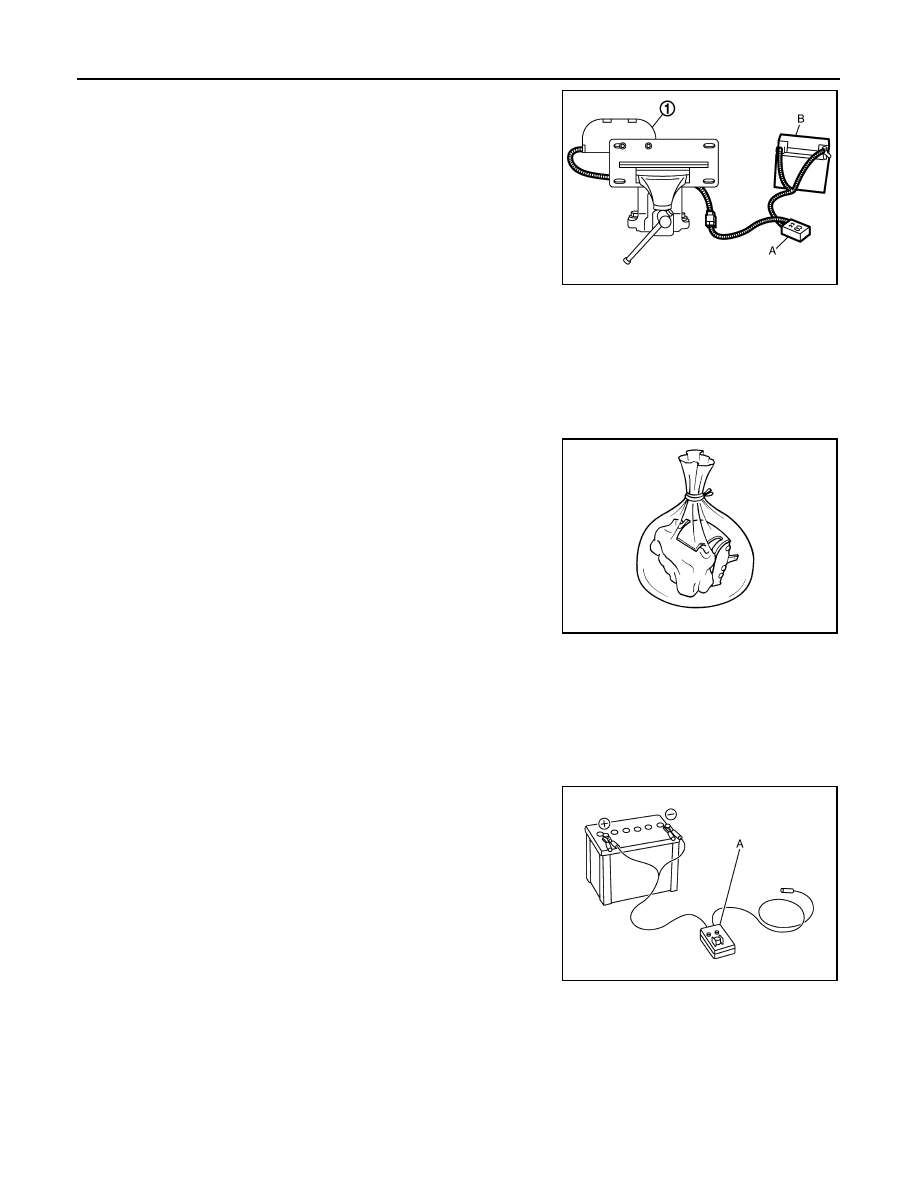

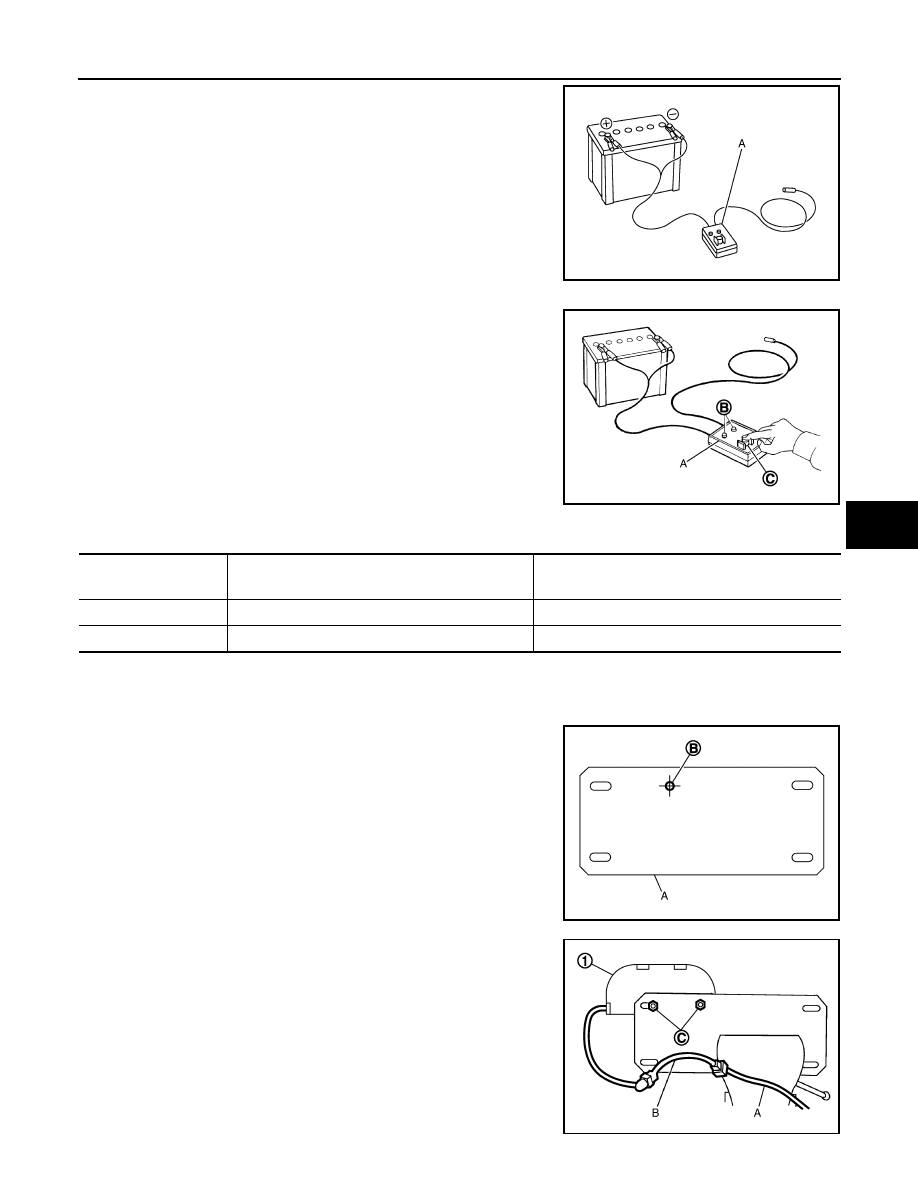

SR-34 < REMOVAL AND INSTALLATION > DISPOSAL OF AIR BAG MODULE 3. Firmly secure air bag module bracket (SST: KV99105300) (A) in 4. Insert bolt (D) through air bag module bracket and passenger air 5. Connect deployment tool (SST: KV99106400) (B) and deploy- 6. Connect red clip of deployment tool (A) to battery positive termi- 7. The lamp on the right side of the tool, marked “deployment tool 8. Press the button on the deployment tool (A). The left side lamp CAUTION: • When deploying the passenger air bag module, never stand on the deploying side. • Stand at least 5.0 m (16.4 ft) away from the passenger air bag module. PASSENGER AIR BAG MODULE : Disposal INFOID:0000000010499324 DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER Deployed air bag module, seat belt pre-tensioner, and lap pre-tensioner are very hot. Before disposing of air CAUTION: • Never apply water to a deployed air bag module or seat belt pre-tensioner or lap pre-tensioner. • Wear gloves when handling a deployed air bag module or seat belt pre-tensioner or lap pre-tensioner. • No poisonous gas is produced upon air bag module deploy- ment. However, be careful not to inhale gas since it irritates • Never disassemble air bag module, seat belt pre-tensioner and lap pre-tensioner. • Air bag module, seat belt pre-tensioner and lap pre-tensioner cannot be reused. • Wash your hands clean after the work is complete. SIDE AIR BAG MODULE SIDE AIR BAG MODULE : Deployment INFOID:0000000010499325 CHECKING DEPLOYMENT TOOL Connecting to Battery CAUTION: JMHIA0799ZZ JMHIA0209ZZ SBF276H |
