INSTALLATION

Note the following, and install in the reverse order of removal.
• Do not allow engine oil to get on engine mounting insulator. Be careful not to damage engine mounting insu-

lator.

• Make sure that each mounting insulator is seated properly, and tighten mounting nuts and bolts.
• Tighten engine mounting insulator (RH) bolts.

Inspection

INFOID:0000000010282243

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-59, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids includ-

ing engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission / transaxle
fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

Transmission / transaxle
fluid

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

—

Leakage

—

EM-56

< UNIT DISASSEMBLY AND ASSEMBLY >

[HRA2DDT]

ENGINE STAND SETTING

UNIT DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

Setting

INFOID:0000000010282244

NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1.

Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the
engine. Refer to

EM-52, "Exploded View"

.

2.

Remove clutch cover and clutch disc. Refer to

CL-22, "HRA2DDT : Removal and Installation"

.

3.

Remove flywheel.
• Secure flywheel with a stopper plate [SST: — (Mot.1431)], and remove mounting bolts.

CAUTION:

• Never disassemble flywheel.
• Never place flywheel with signal plate facing down.
• When handling signal plate, take care not to damage or scratch it.
• Handle signal plate in a manner that prevents it from becoming magnetized.

4.

Lift the engine with a hoist to install it onto widely use engine stand.

CAUTION:

• Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large

enough for supporting the engine weight.

• If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the poten-

tial risk of overturning stand.

- Intake manifold: Refer to

EM-25, "Exploded View"

.

- Exhaust manifold: Refer to

EM-37, "Exploded View"

.

- Rocker cover: Refer to

EM-49, "Exploded View"

.

NOTE:

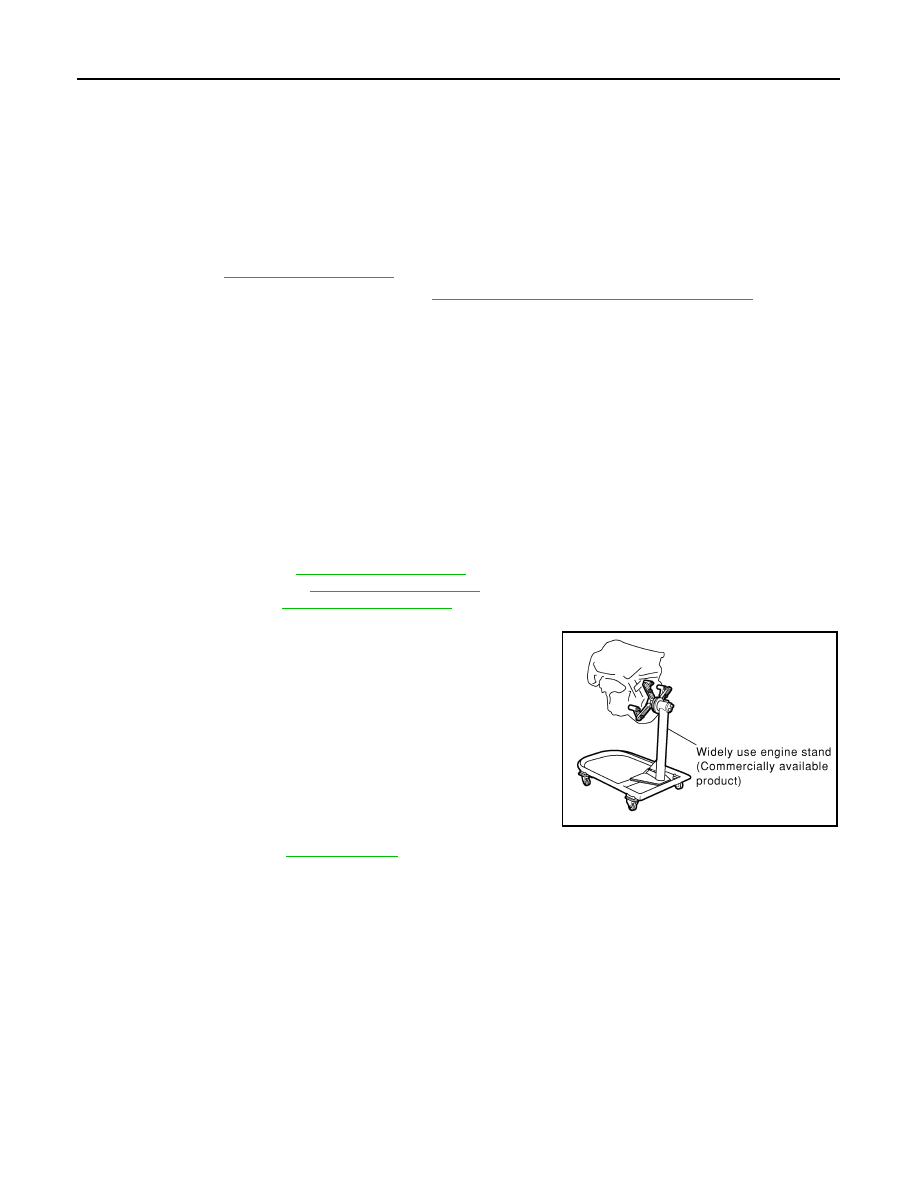

The figure shows an example of widely use engine stand that
can support mating surface of transaxle with flywheel removed.

CAUTION:

Before removing the hanging chains, make sure the engine
stand is stable and there is no risk of overturning.

5.

Drain engine oil. Refer to

LU-9, "Draining"

.

CAUTION:

Be sure to clean drain plug and install with new drain plug washer.

PBIC0085E

ENGINE UNIT

EM-57

< UNIT DISASSEMBLY AND ASSEMBLY >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ENGINE UNIT

Disassembly

INFOID:0000000010282245

1.

Remove intake manifold. Refer to

EM-25, "Exploded View"

.

2.

Remove exhaust manifold. Refer to

EM-37, "Exploded View"

.

3.

Remove oil pan (lower). Refer to

EM-46, "Exploded View"

.

4.

Remove ignition coil, spark plug and rocker cover. Refer to

EM-49, "Exploded View"

.

5.

Remove fuel injector and fuel tube. Refer to

EM-42, "Exploded View"

.

6.

Remove timing chain. Refer to

EM-58, "Exploded View"

.

7.

Remove camshaft. Refer to

EM-77, "Exploded View"

.

8.

Remove cylinder head. Refer to

EM-69, "Exploded View"

.

Assembly

INFOID:0000000010282246

Assembly is the reverse order of disassembly.

EM-58

< UNIT DISASSEMBLY AND ASSEMBLY >

[HRA2DDT]

TIMING CHAIN

TIMING CHAIN

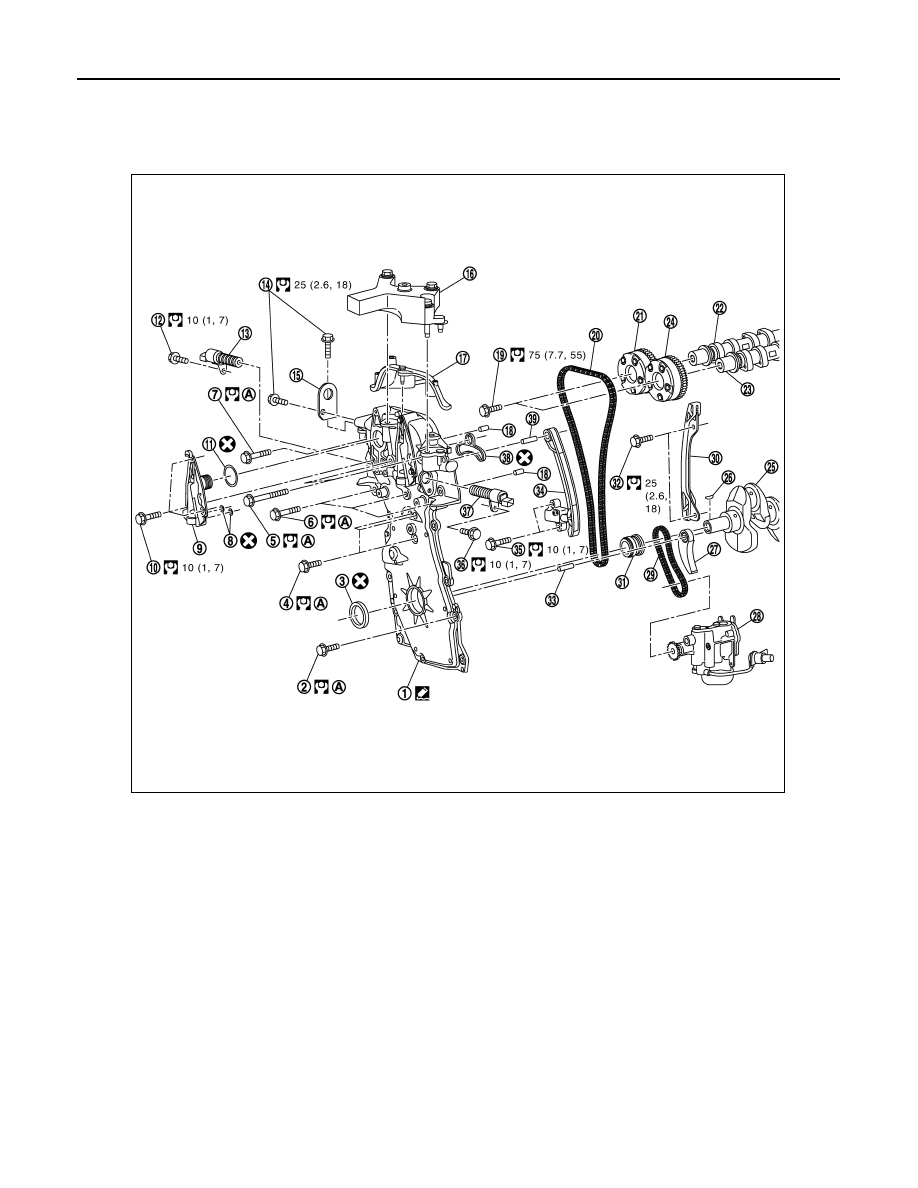

Exploded View

INFOID:0000000010282228

1.

Front cover

2.

Front cover bolt

3.

Front oil seal

4.

Front cover bolt

5.

Front cover bolt

6.

Front cover bolt

7.

Front cover bolt

8.

Camshaft dephaser oil cover gasket

9.

Camshaft dephaser oil cover

10. Camshaft dephaser oil cover bolt

11. Camshaft dephaser oil cover seal

12.

Exhaust valve timing control sole-
noide valve.

13.

Exhaust valve timing control sole-
noide valve.

14. Engine slinger bolts

15. Engine slinger

16. Engine mounting bracket (RH)

17. Rocker cover

18. Front cover dowel pin

19. Camshaft sprocket bolt

20. Timing chain

21. Exhaust camshaft sprocket

22. Exhaust camshaft

23. Intake camshaft

24. Intake camshaft sprocket

25. Crankshaft

26. Crankshaft sprocket key

27. Oil pump drive chain tensioner

28. Oil pump

29. Oil pumpdrive chain

30. Timing chain tension guide

31. Oil pump sprocket

32. Timing chain tension guide bolt

33. Oil pump chain tensioner shaft

34. Timing chain tensioner

35. Timing chain tensioner bolts

36. Intake valve timing control solenoide

valve

E1BIA1016GB
