Nissan Juke F15. Manual - part 908

INT-36

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

CAUTION:

When installing luggage side lower finisher, check that clips are securely in body panel holes, and

press them in.

Removal and Installation of Shock Absorber Mask

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

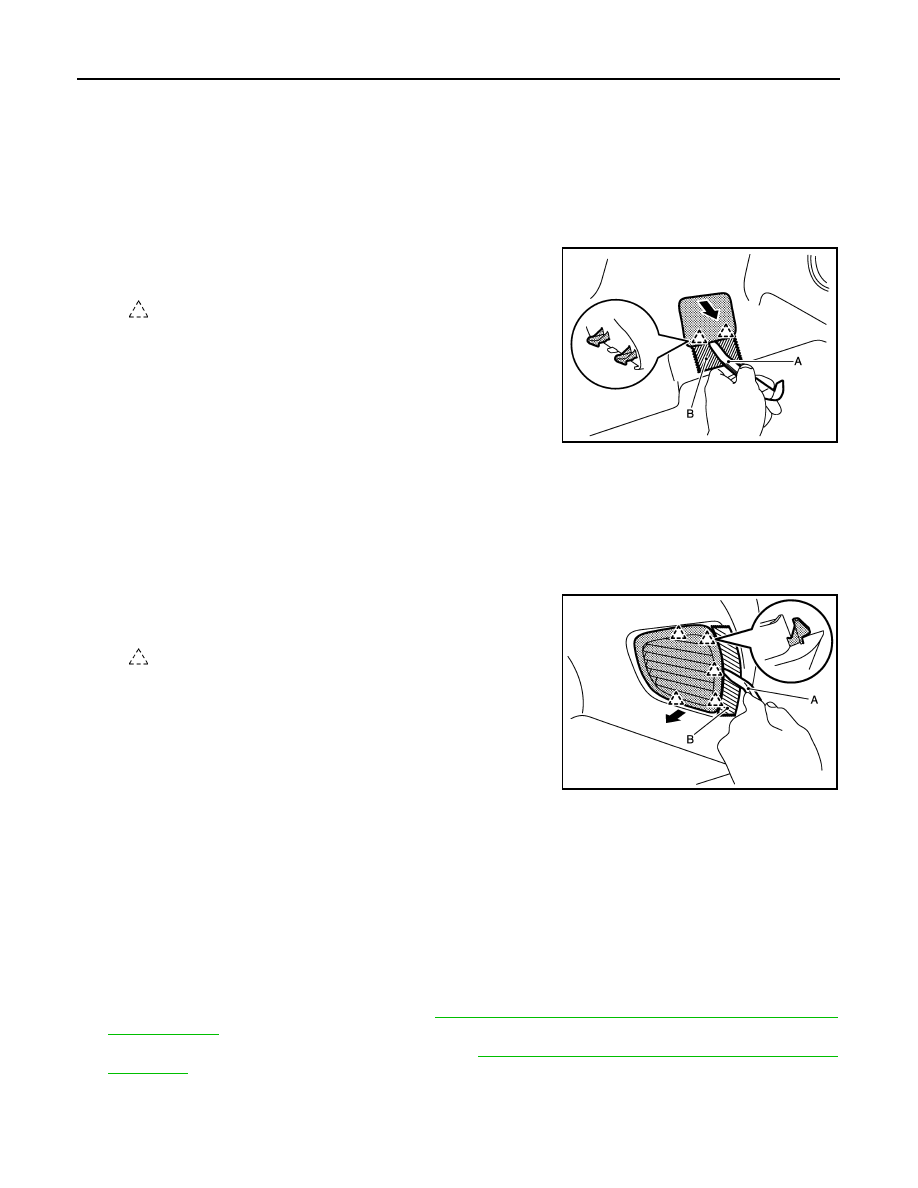

1. Disengage shock absorber mask fixing pawls with a remover

tool (A), and then remove shock absorber mask.

CAUTION:

Apply protective tape (B) on the parts to protect it from

damage.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Luggage Side Lower Finisher Grille

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

Disengage luggage side lower finisher grille fixing pawls with a

remover tool (A), and then remove luggage side lower finisher grille.

CAUTION:

Apply protective tape (B) on the parts to protect it from damage.

INSTALLATION

Install in the reverse order of removal.

LUGGAGE SIDE UPPER FINISHER
LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000012199188

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the body.

1. Remove luggage side lower finisher. Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2. Remove rear seat belt (floor) anchor bolt. Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and

Installation"

.

: Pawl

JMJIA4407ZZ

: Pawl

JMJIA4408ZZ

LUGGAGE FLOOR TRIM

INT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

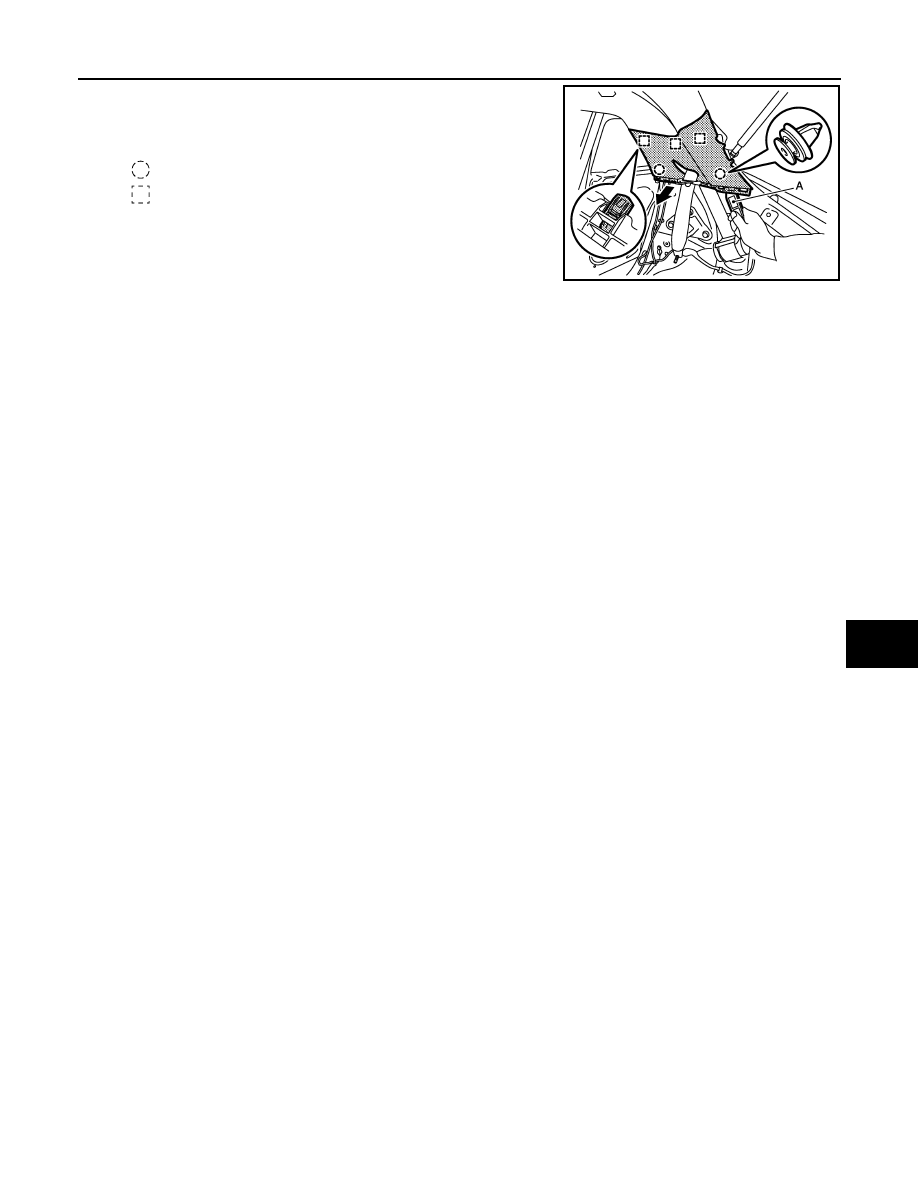

3. Disengage luggage side upper finisher fixing clips and metal

clips with a remover tool (A), and then remove luggage side

upper finisher.

INSTALATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing luggage side upper finisher, check that clips, and metal clips are securely in body

panel holes, and press them in.

: Clip

: Metal clip

JMJIA4406ZZ

INT-38

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

BACK DOOR TRIM

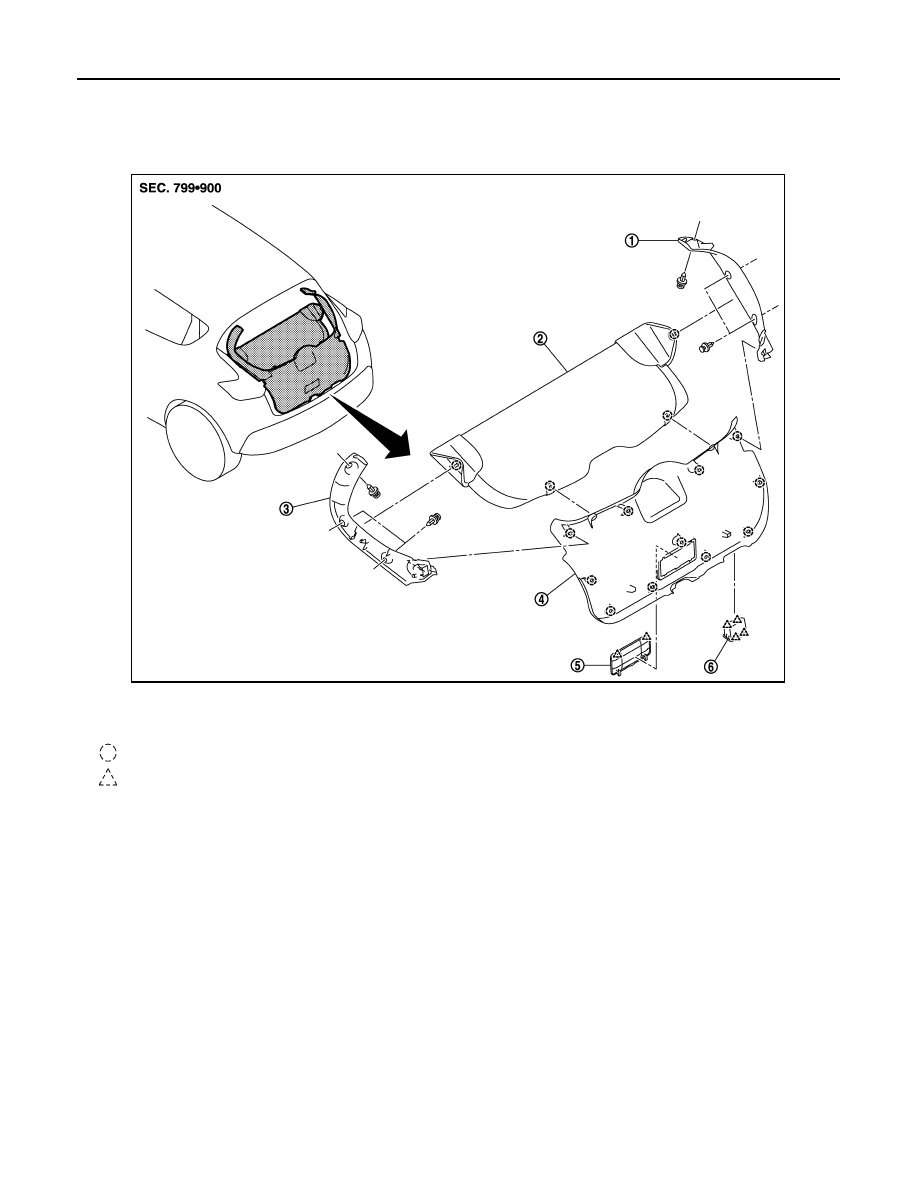

Exploded View

INFOID:0000000012199189

BACK DOOR PULL HANDLE
BACK DOOR PULL HANDLE : Removal and Installation

INFOID:0000000012199190

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the back door panel.
1. Fully open back door.

1.

Back door side finisher RH

2.

Rear parcel shelf finisher

3.

Back door side finisher LH

4.

Back door lower finisher

5.

Emergency lid

6.

Back door pull handle

: Clip

: Pawl

JMJIA4537ZZ

BACK DOOR TRIM

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

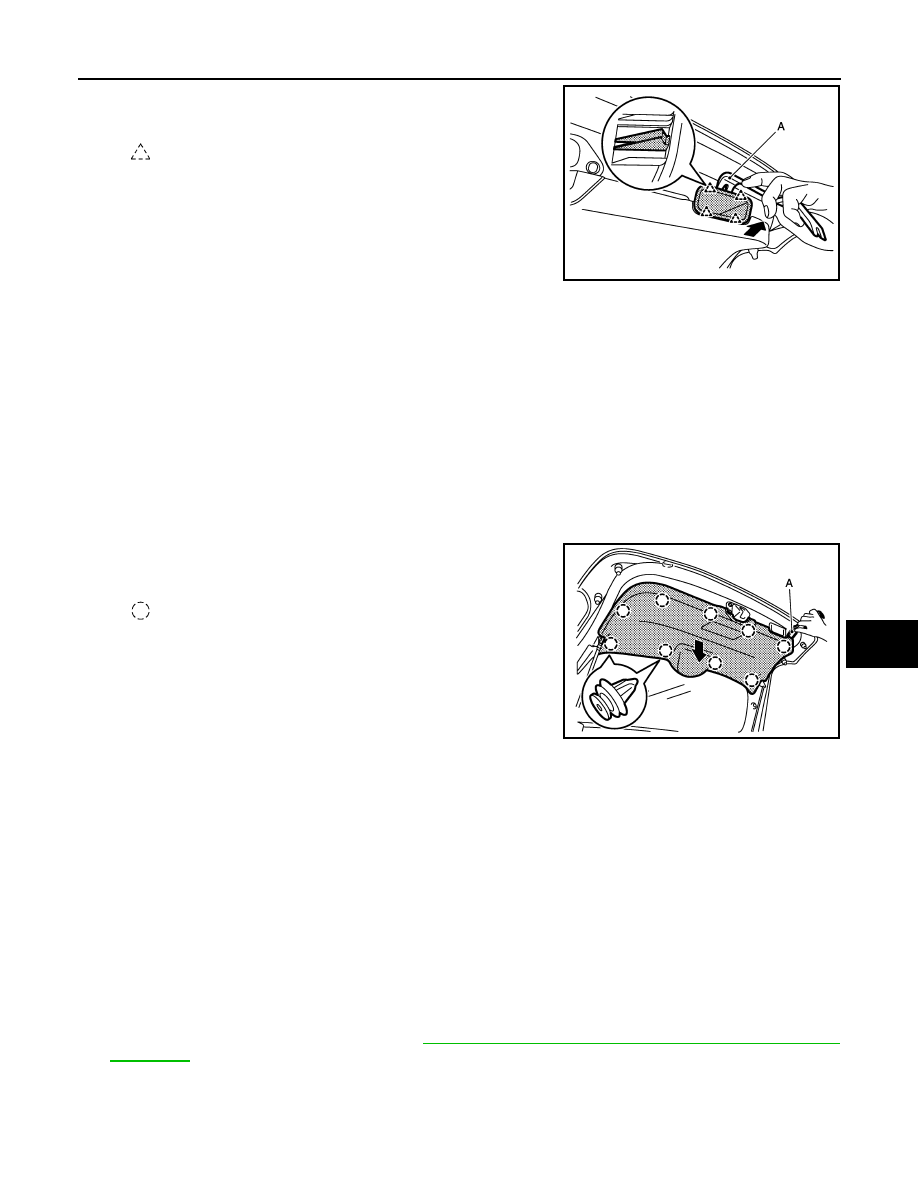

2. Disengage back door pull handle fixing pawls with a remover

tool (A), and then remove back door pull handle.

INSTALATION

Install in the reverse order of removal.

BACK DOOR LOWER FINISHER
BACK DOOR LOWER FINISHER : Removal and Installation

INFOID:0000000012199191

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the back door panel.

1. Fully open back door.
2. Remove rear parcel shelf finisher. (Models with rear parcel shelf finisher)
3. Disengage back door lower finisher fixing clips with a remover

tool (A), and then remove back door lower finisher.

INATALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing back door lower finisher, check that clips are securely in back door panel holes, and

press them in.

BACK DOOR SIDE FINISHER
BACK DOOR SIDE FINISHER : Removal and Installation

INFOID:0000000012199192

REMOVAL

CAUTION:

• When removing, always use a remover tool that is made of plastic.

• Never damage the back door panel.

1. Fully open back door.
2. Remove back door lower finisher. Refer to

INT-39, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

: Pawl

JMJIA4411ZZ

: Clip

JMJIA4409ZZ
