FRONT DRIVE SHAFT

FAX-107

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

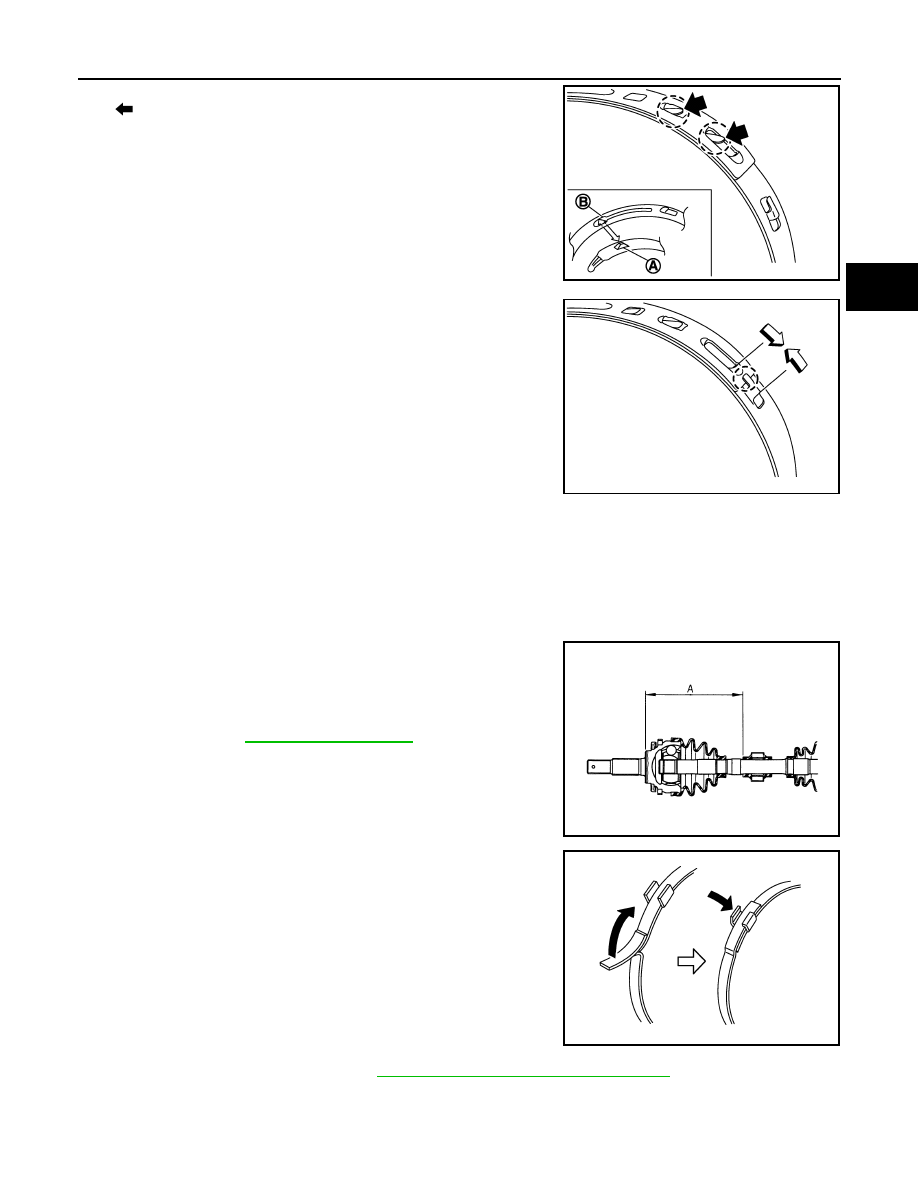

a. Put boot band in the groove on drive shaft boot. Then fit pawls

(

) into holes to temporary installation.

NOTE:

For the large diameter side, fit projection (A) and guide slit (B) at

first.

b. Pinch projection on the band with suitable pliers to tighten band.
c. Insert the tip of band into the lower part of pawl (marked with

dotted circle) as shown in the figure.

8. Check that displacement does not occur when boot is rotated with the housing assembly fixed.

CAUTION:

• If displacement occurs, reinstall band.

• Never reuse boot band.

9. Install dynamic damper, follow the procedure described below.
a. Install dynamic damper to shaft.
b. Secure dynamic damper with bands in the following specified

position (A) when installing.

CAUTION:

Never reuse bands.

c. Install boot bands securely as showin in the figure.

10. Install boot to the wheel side. Refer to

FAX-76, "AWD : Removal and Installation"

.

JPDIF0157ZZ

JPDIF0158ZZ

A :

Refer

to

FAX-109, "Drive Shaft"

.

JPDIF0178ZZ

PDIA1188J

FAX-108

< REMOVAL AND INSTALLATION >

[TYPE 2]

FRONT DRIVE SHAFT

AWD : Inspection

INFOID:0000000012201567

INSPECTION AFTER INSTALLATION

1. Check wheel sensor harness for proper connection. Refer to

BRC-147, "FRONT WHEEL SENSOR :

Exploded View"

.

2. Check the wheel alignment. Refer to

FSU-7, "Inspection"

.

3. Adjust neutral position of steering angle sensor. Refer to

BRC-63, "Work Procedure"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-109

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TYPE 2]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000012201568

Drive Shaft

INFOID:0000000012201569

2WD

*: For measuring position, refer to

FAX-87, "2WD : Disassembly and Assembly"

.

AWD

*: For measuring position, refer to

FAX-101, "AWD : Disassembly and Assembly"

.

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Left side

Right side

Grease quantity

Wheel side

115 – 125 g (4.05 – 4.40 oz)

Transaxle side

132 – 142 g (4.65 – 5.00 oz)

Boots installed length

*

Wheel side

97.1 mm (3.82 in)

Transaxle side

85.0 mm (3.35 in)

Dimension of dynamic damper

*

M/T models

267 – 273 mm (10.51 – 10.75 in)

257 – 263 mm (10.12 – 10.35 in)

CVT models

267 – 273 mm (10.51 – 10.75 in)

Item

Standard

Grease quantity

Wheel side

88 – 108 g (3.10 – 3.80 oz)

Transaxle side

126 – 136 g (4.45 – 4.79 oz)

Boots installed length

*

Wheel side

95.4 mm (3.75 in)

Transaxle side

93.8 mm (3.69 in)

Dimension of dynamic damper

*

267 – 273 mm (10.51 – 10.75 in)

FL-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

FL

A

FL

N

O

P

CONTENTS

FUEL SYSTEM

MR16DDT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

General Precautions  .................................................

2

Precautions for Removing Battery Terminal  .............

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tools  ........................................

4

PERIODIC MAINTENANCE ..........................

5

FUEL SYSTEM ....................................................

5

Inspection ..................................................................

5

Quick Connector  .......................................................

5

REMOVAL AND INSTALLATION ................

6

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

6

2WD .............................................................................

6

2WD : Exploded View  ...............................................

6

2WD : Removal and Installation ................................

7

2WD : Disassembly and Assembly  ...........................

9

2WD : Inspection .....................................................

10

AWD ...........................................................................

10

AWD : Exploded View  .............................................

10

AWD : Removal and Installation  .............................

11

AWD : Disassembly and Assembly .........................

16

AWD : Inspection  ....................................................

17

FUEL TANK  ......................................................

18

2WD ............................................................................

18

2WD : Exploded View ..............................................

18

2WD : Removal and Installation  ..............................

18

2WD : Inspection  .....................................................

22

AWD ...........................................................................

22

AWD : Exploded View  .............................................

22

AWD : Removal and Installation ..............................

23

AWD : Inspection .....................................................

24

EVAP CANISTER ..............................................

26

2WD ............................................................................

26

2WD : Hydraulic Layout ...........................................

26

2WD : Exploded View ..............................................

27

2WD : Removal and Installation  ..............................

27

2WD : Disassembly and Assembly ..........................

28

2WD : Inspection  .....................................................

28

AWD ...........................................................................

28

AWD : Hydraulic Layout  ..........................................

28

AWD : Exploded View  .............................................

30

AWD : Removal and Installation ..............................

30

AWD : Disassembly and Assembly  .........................

31

AWD : Inspection .....................................................

31

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

32

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

32

Fuel Tank .................................................................

32
