EXL-104

< REMOVAL AND INSTALLATION >

[XENON TYPE]

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000012201691

Refer to

MIR-17, "Exploded View"

.

Removal and Installation

INFOID:0000000012201692

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove door mirror cover. Refer to

MIR-20, "DOOR MIRROR COVER : Removal and Installation"

.

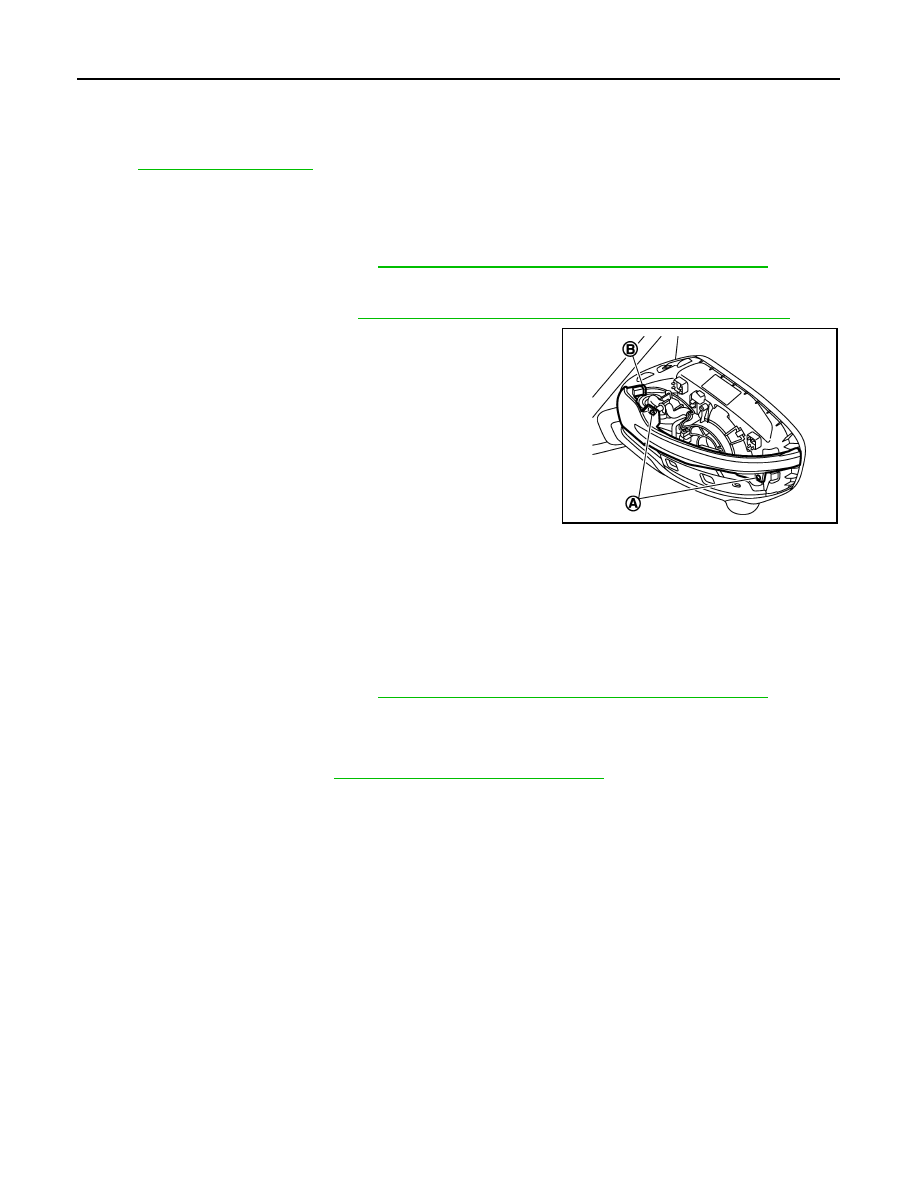

2. Remove side turn signal lamp fixing screws (A), and then dis-

connect side turn signal lamp harness connector (B).

3. Remove side turn signal lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000012201693

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

SIDE TURN SIGMNAL LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace side

turn signal lamp as a set. Refer to

EXL-104, "Removal and Installation"

.

JMLIA5402ZZ

OPTICAL SENSOR

EXL-105

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

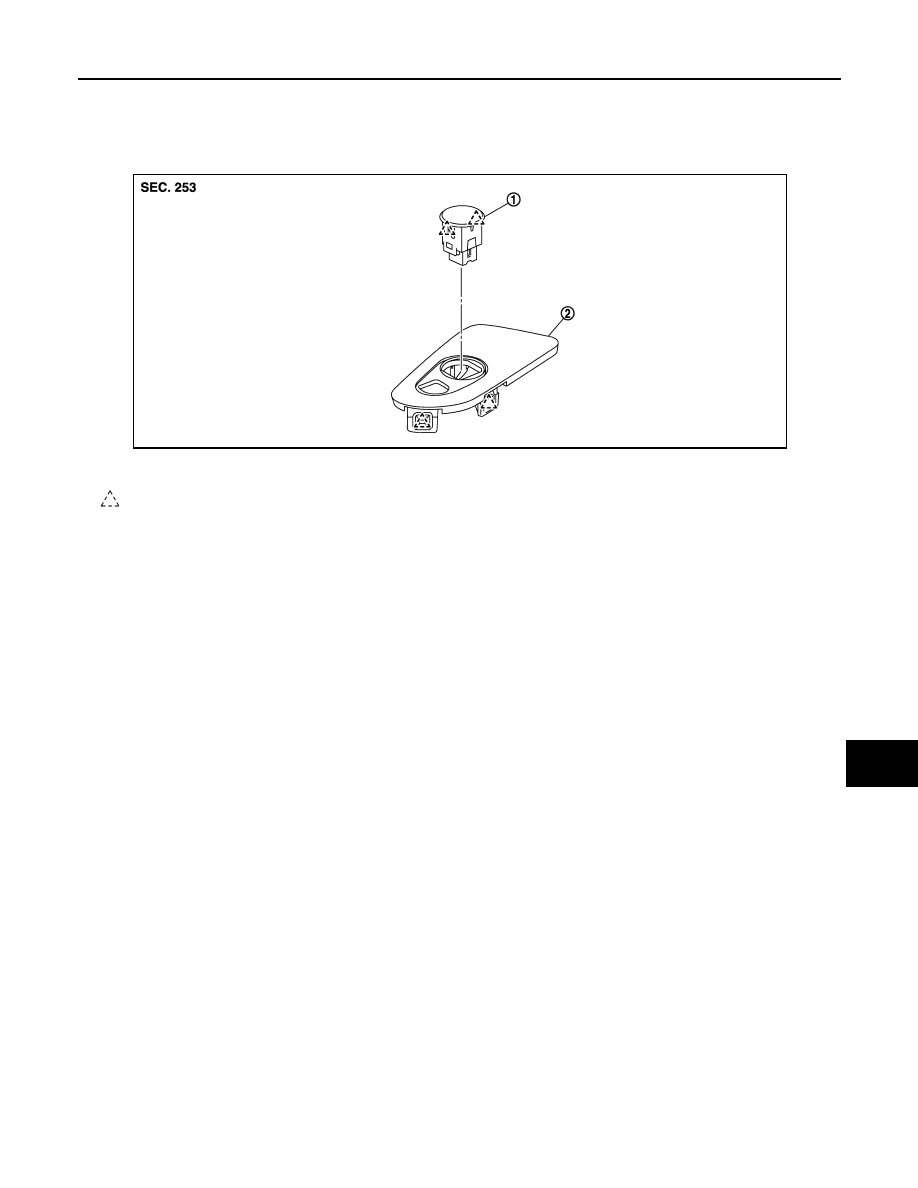

OPTICAL SENSOR

Exploded View

INFOID:0000000012201694

Removal and Installation

INFOID:0000000012201695

REMOVAL

1. Insert an appropriate tool between the switch panel and the instrument upper panel. Pull out the optical

sensor upward.

2. Disconnect the optical sensor connector.
3. Remove optical sensor from switch panel.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

2.

Switch panel

: Pawl

JMLIA1245ZZ

EXL-106

< REMOVAL AND INSTALLATION >

[XENON TYPE]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000012201696

REMOVAL

Remove light & turn signal switch. Refer to

BCS-95, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HAZARD SWITCH

EXL-107

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000012201697

Removal and Installation

INFOID:0000000012201698

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

EXL-7, "Precautions for Removing Battery Terminal"

.

REMOVAL

1. Remove audio unit. Refer to

AV-50, "Removal and Installation"

.

2. Disengage fixing pawls, and then remove hazard switch from instrument panel inside to outside.

INSTALLATION

Install in the reverse order of removal.

1.

Instrument panel assembly

2.

Hazard switch

: Pawl

JMLIA1246ZZ
