RING GEAR SHAFT

DLN-101

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

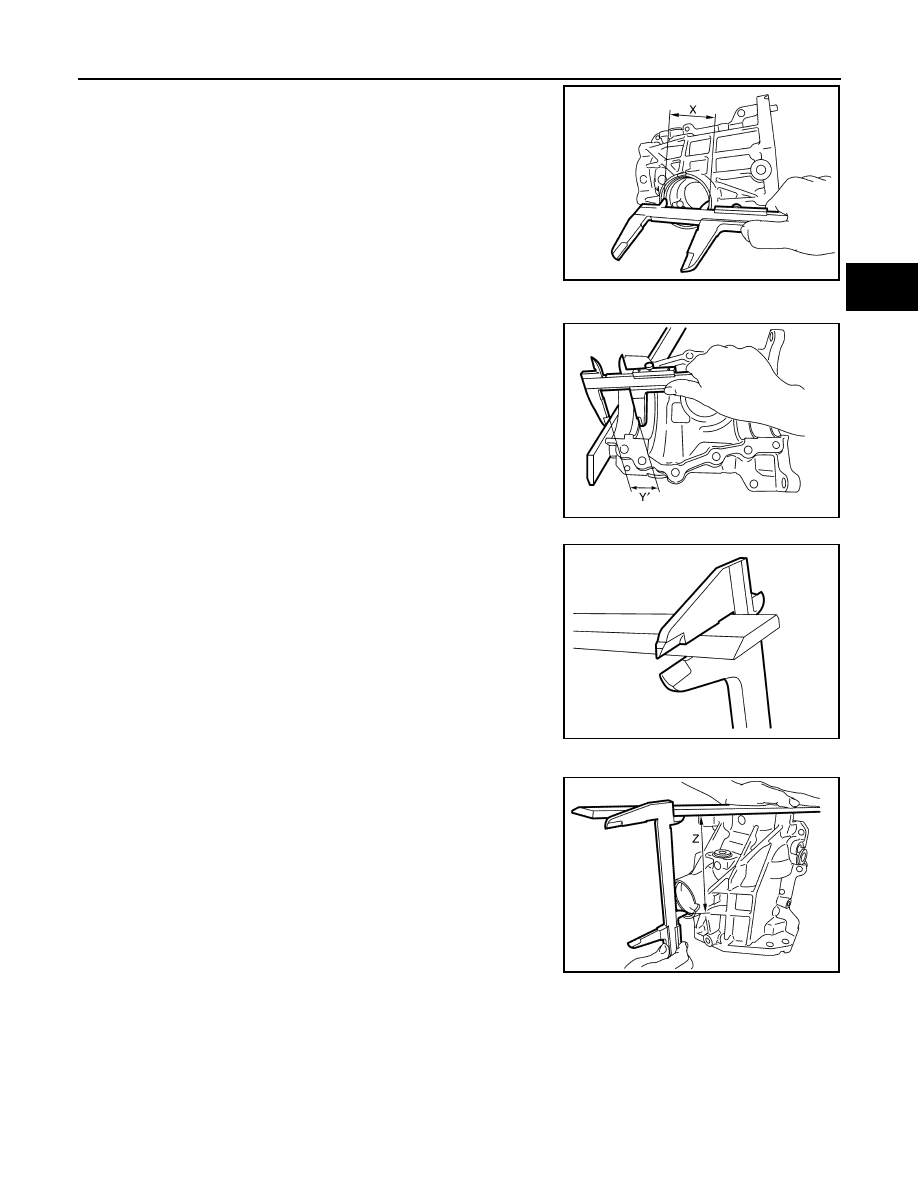

• Measure the diameter (X) of transfer case with a pair of vernier

calipers. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

Dimension “Y” measurement

• Measure dimension (Y

′) of transfer case (including the thick-

ness of straightedge) with a pair of vernier calipers and

straightedge. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

• Measure the thickness of straightedge.

• Calculate the dimension “Y” by formula below.

Dimension “Z” measurement

• Measure dimension (Z) of transfer case with a pair of vernier

calipers and straightedge. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

Dimension “V” measurement

JSDIA2171ZZ

JSDIA2494ZZ

Y = Y

′ − “Thickness of straightedge”

JSDIA2543ZZ

JSDIA2174ZZ

DLN-102

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21B]

RING GEAR SHAFT

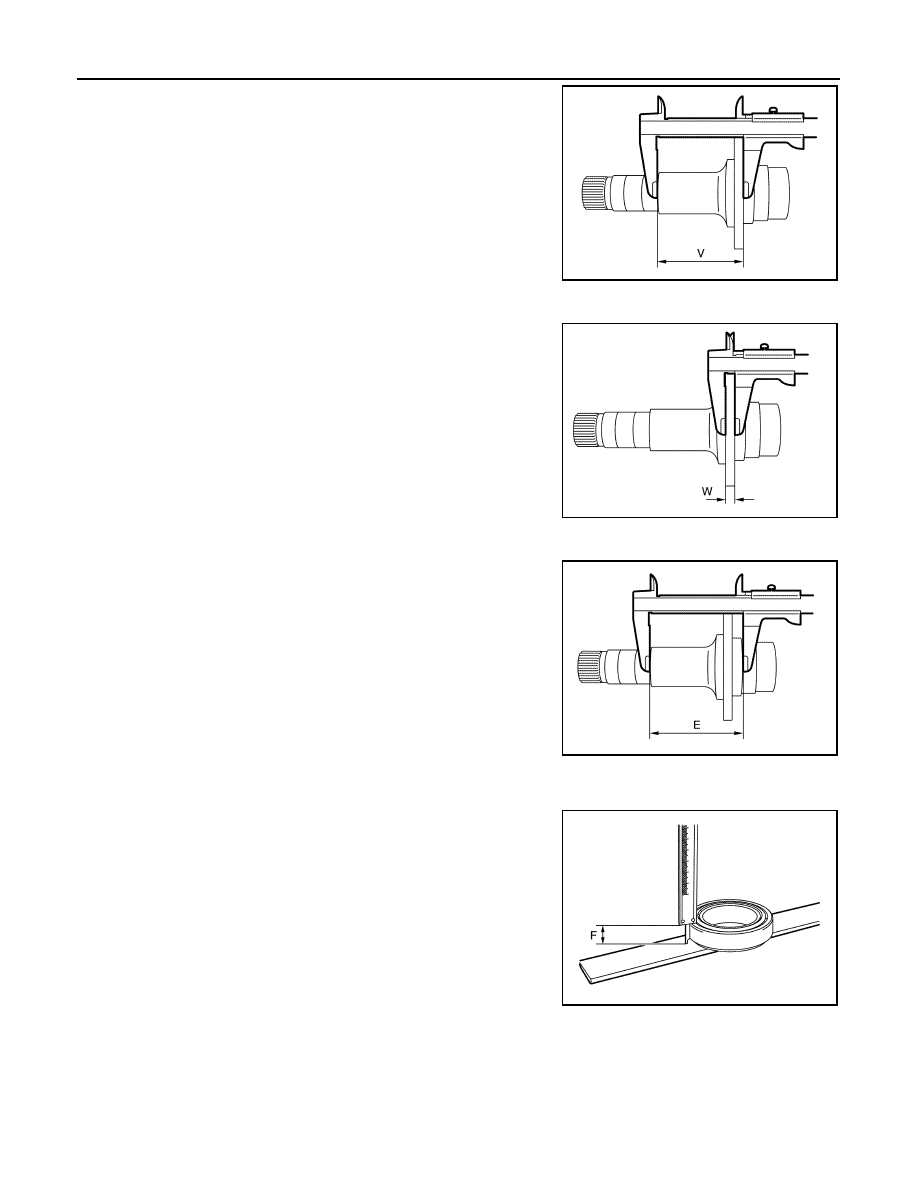

• Measure dimension (V) of ring gear shaft with a pair of vernier

calipers. Refer to “Measuring point”.

Dimension “W” measurement

• Measure dimension (W) of ring gear shaft with a pair of vernier

calipers. Refer to “Measuring point”.

Dimension “E” measurement

• Measure dimension (E) of ring gear shaft with a pair of vernier

calipers. Refer to “Measuring point”.

Dimension “F” measurement

• Measure dimension (F) from outer race edge surface of ring

gear bearing (left) to inner race edge surface with depth

gauge. Refer to “Measuring point”.

Dimension “G” measurement

JSDIA2175ZZ

JSDIA2176ZZ

JSDIA2177ZZ

JSDIA2178ZZ

RING GEAR SHAFT

DLN-103

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

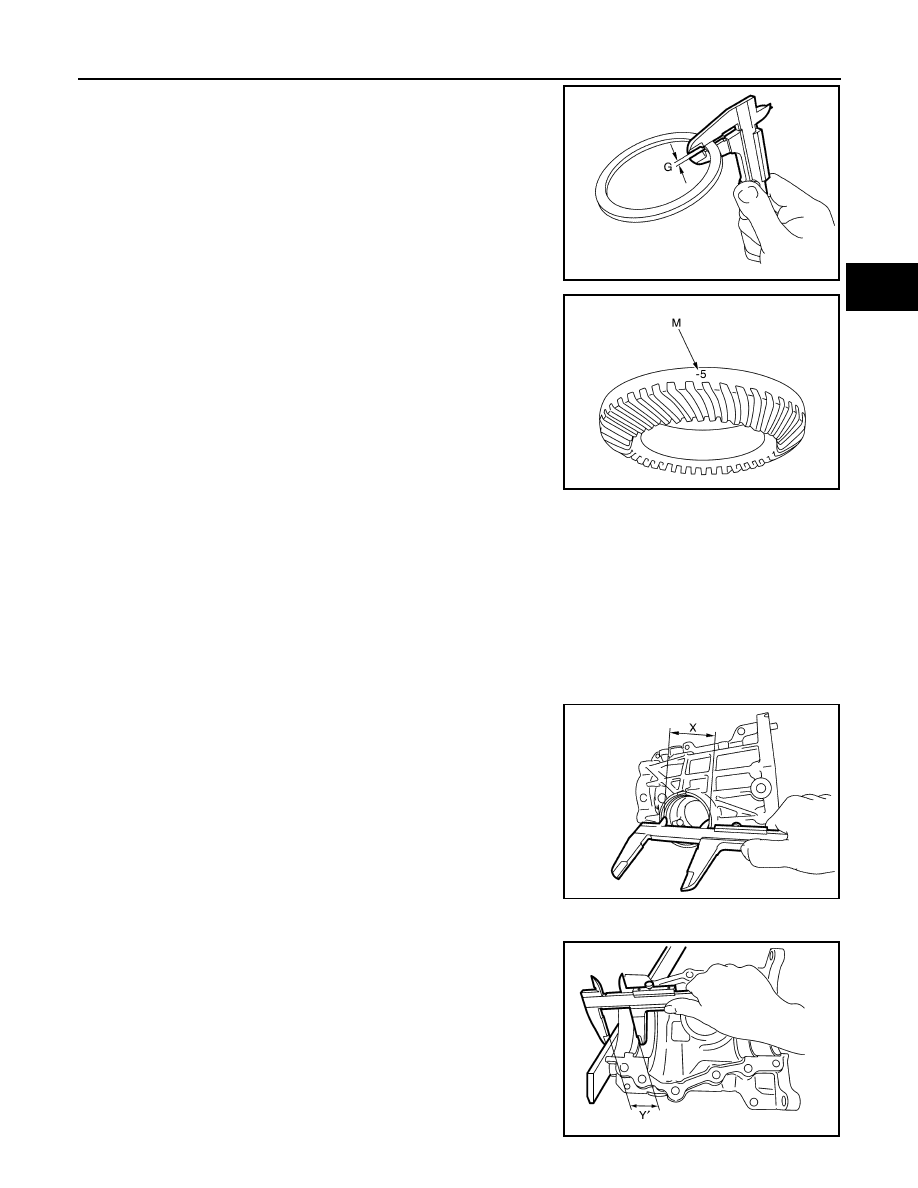

• Measure thickness (G) of spacer (left) with a pair of vernier

calipers. Refer to “Measuring point”.

2. Calculate dimension “B” by the formula below.

3. Calculate dimension “D” by the formula below.

4. Check dimension (M) on the ring gear side face.

NOTE:

Dimension “M” indicates the difference between the optimum

engagement and standard dimensions in increments of 0.01 mm

(0.0004 in) written on the ring gear side face.

5. Calculate the thickness of the ring gear bearing adjusting shim

(left) “T

1

” by the formula below.

NOTE:

Calculate dimension “C” as 56.0 mm (2.20 in)

6. Select ring gear bearing adjusting shim (left).

For selection adjusting shim, refer to the latest parts information.

CAUTION:

• Only one adjusting shim can be selected.

• Select the closest one, favoring thicker over thinner when necessary if no adjusting shim with

the calculated value is available.

Ring gear bearing adjusting shim (right)

1. Measure the dimensions of each measuring point with the following procedure:

Dimension “X” measurement

• Measure the diameter (X) of transfer case with a pair of vernier

calipers. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

Dimension “Y” measurement

• Measure dimension (Y

′) of transfer case (including the thick-

ness of straightedge) with a pair of vernier calipers and

straightedge. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

B = Z

− Y − (X × 0.5)

D = E

− V + W

JSDIA2179ZZ

T

1

 = A

− B + C + D − E − F − G − (M / 100) + 0.045 mm

(0.0018 in)

JSDIA2495ZZ

JSDIA2171ZZ

JSDIA2494ZZ

DLN-104

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21B]

RING GEAR SHAFT

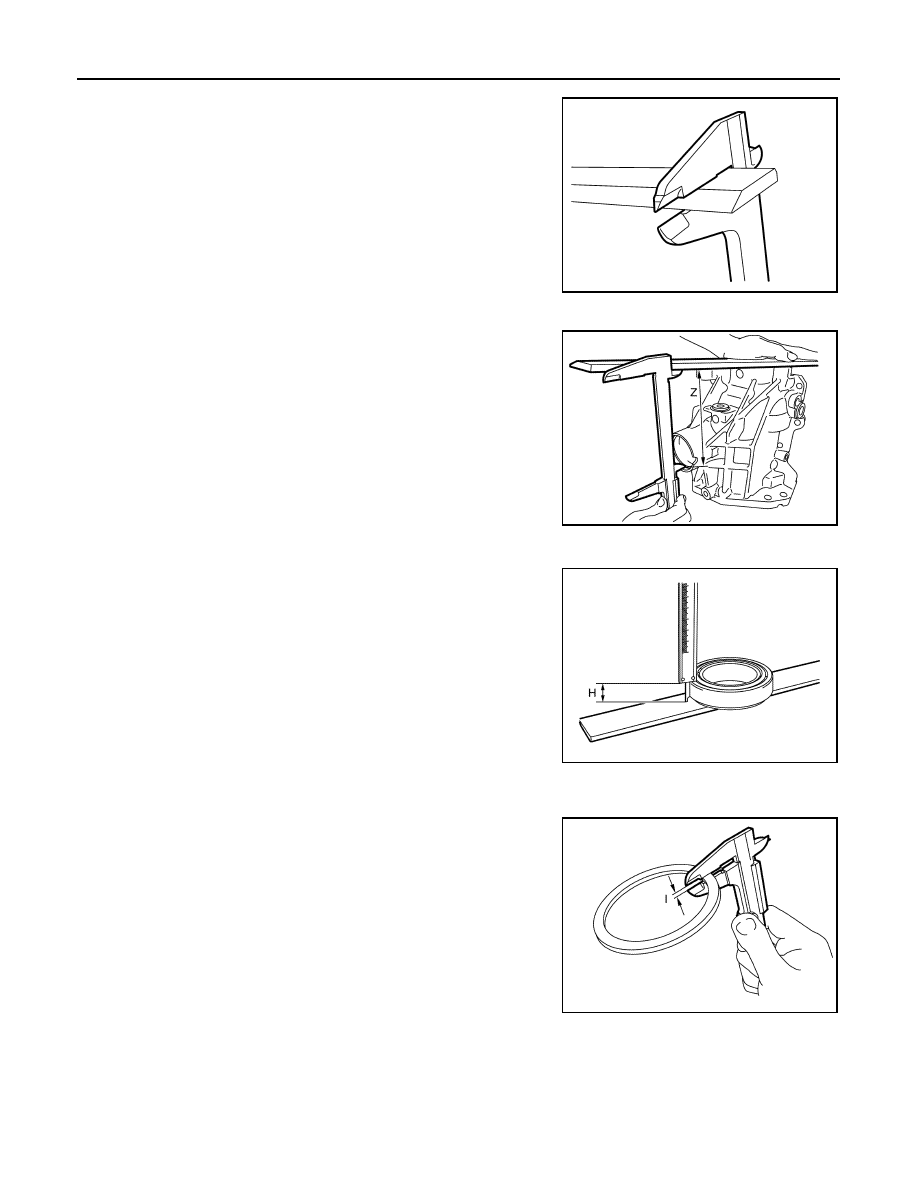

• Measure the thickness of straightedge.

• Calculate the dimension “Y” by formula below.

Dimension “Z” measurement

• Measure dimension (Z) of transfer case with a pair of vernier

calipers and straightedge. Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

Dimension “H” measurement

• Measure dimension (H) from outer race edge surface of ring

gear bearing (right) to inner race edge surface with depth

gauge. Refer to “Measuring point”.

Dimension “I” measurement

• Measure thickness (I) of spacer (right) with a pair of vernier

calipers. Refer to “Measuring point”.

2. Calculate dimension “B” by the formula below.

3. Calculate dimension “D” by the formula below.

Y = Y

′ − “Thickness of straightedge”

JSDIA2543ZZ

JSDIA2174ZZ

JSDIA2180ZZ

B = Z

− Y − (X × 0.5)

D = E

− V + W

JSDIA2181ZZ
