AWD SYSTEM

DLN-33

< WIRING DIAGRAM >

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

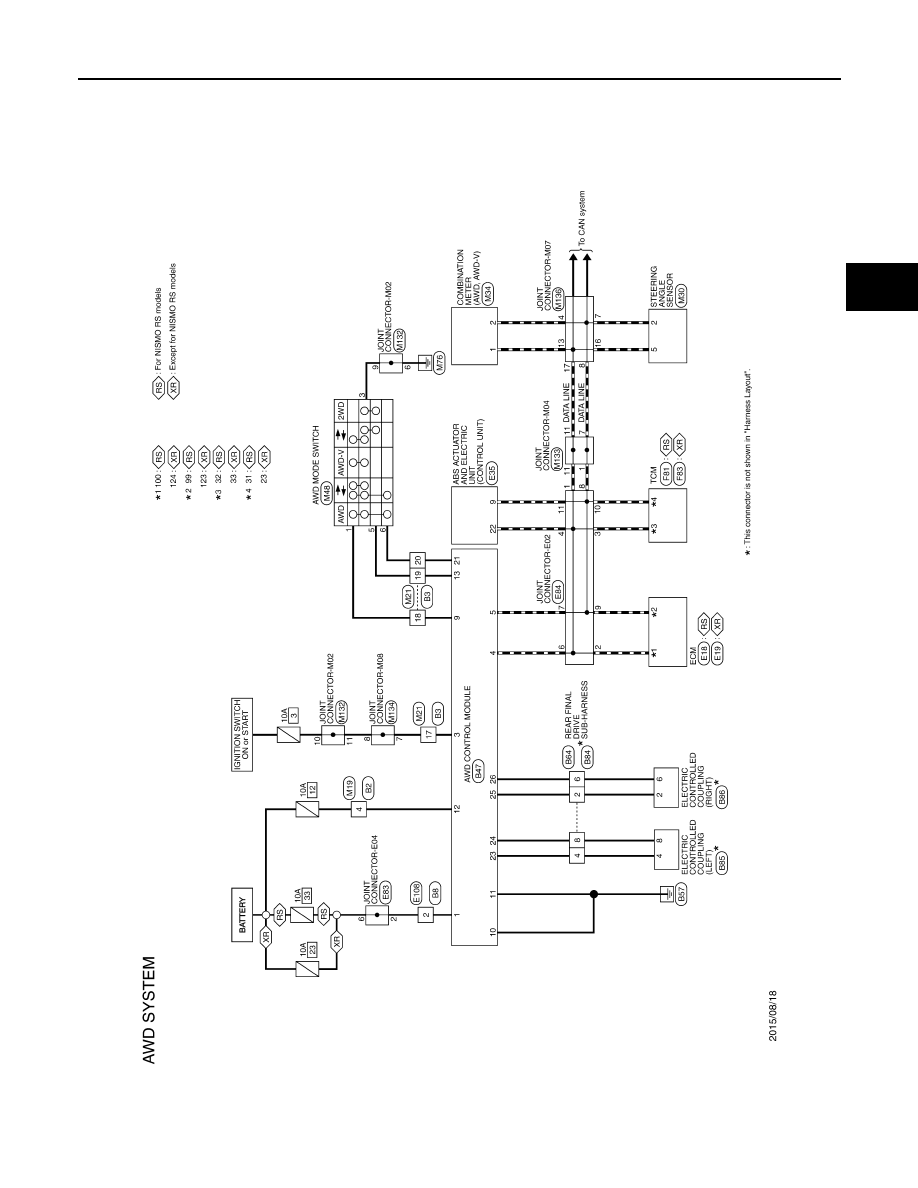

WIRING DIAGRAM

AWD SYSTEM

Wiring Diagram

INFOID:0000000012199373

JRDWC6642GB

DLN-34

< WIRING DIAGRAM >

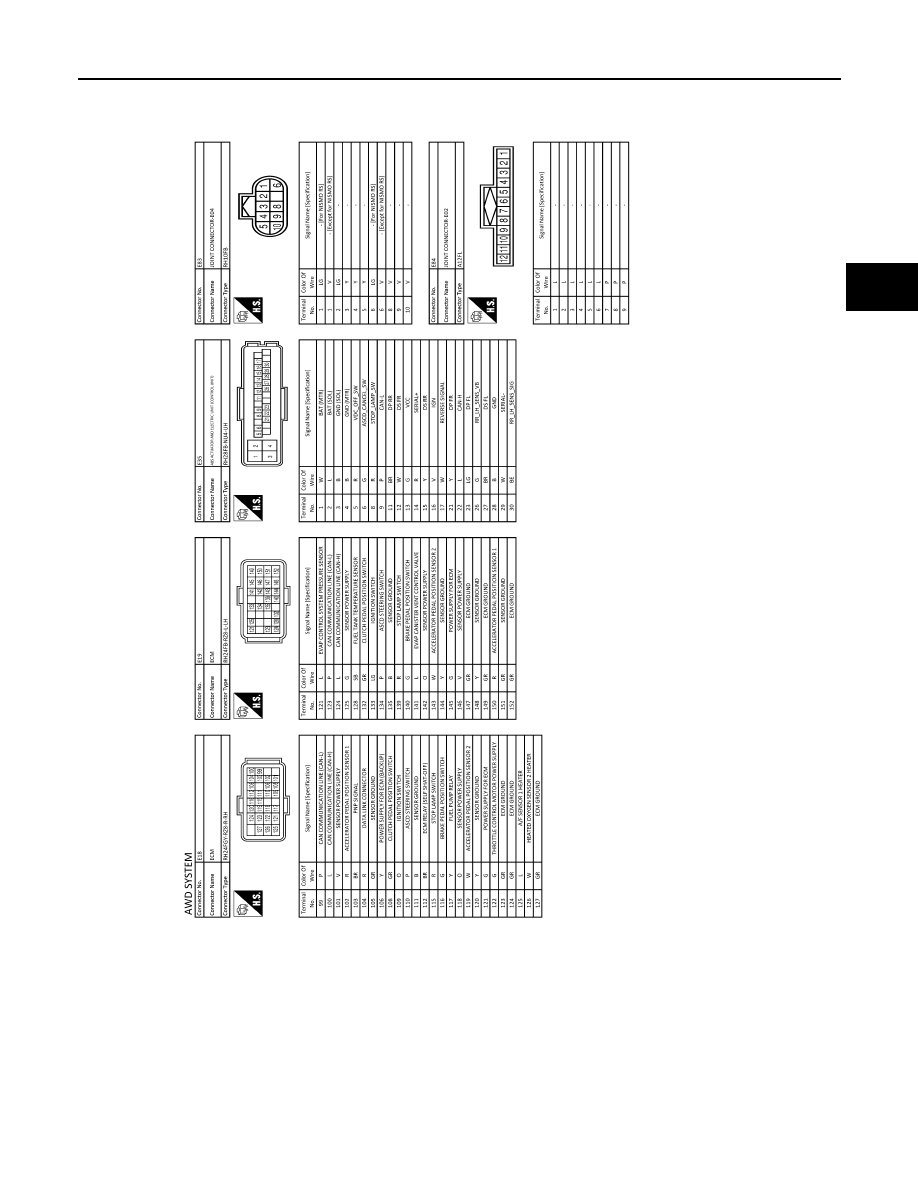

[TRANSFER: TY21B]

AWD SYSTEM

JRDWC6643GB

AWD SYSTEM

DLN-35

< WIRING DIAGRAM >

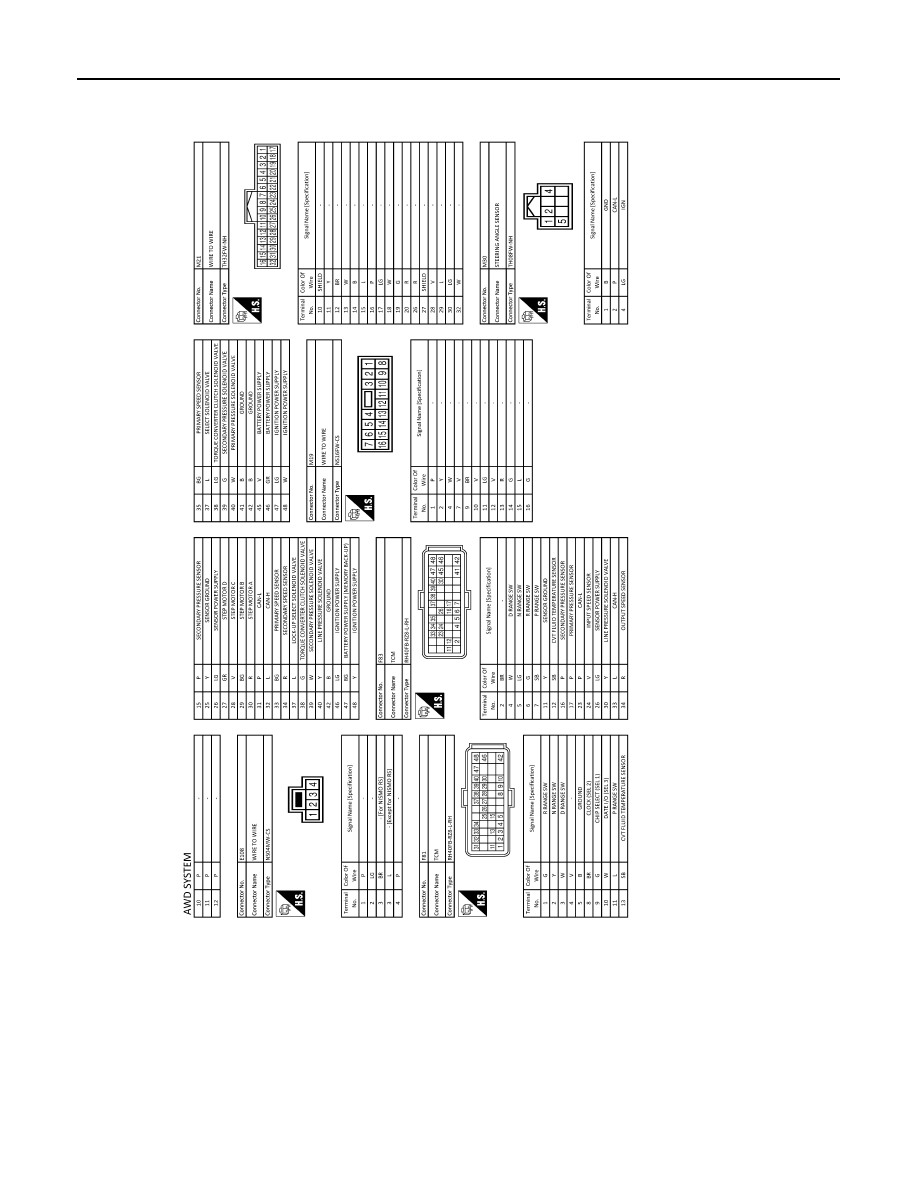

[TRANSFER: TY21B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

JRDWC6644GB

DLN-36

< WIRING DIAGRAM >

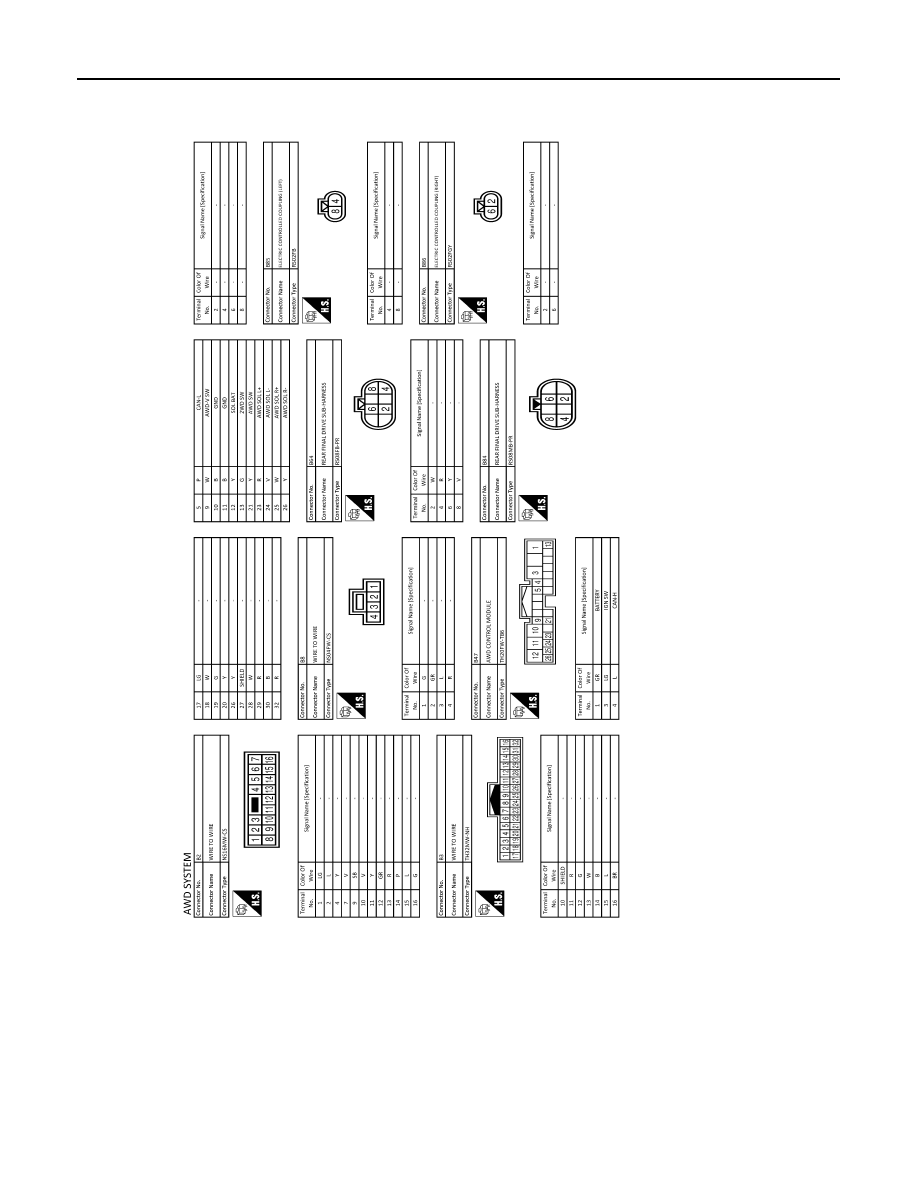

[TRANSFER: TY21B]

AWD SYSTEM

JRDWC6645GB
