DLK-164

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

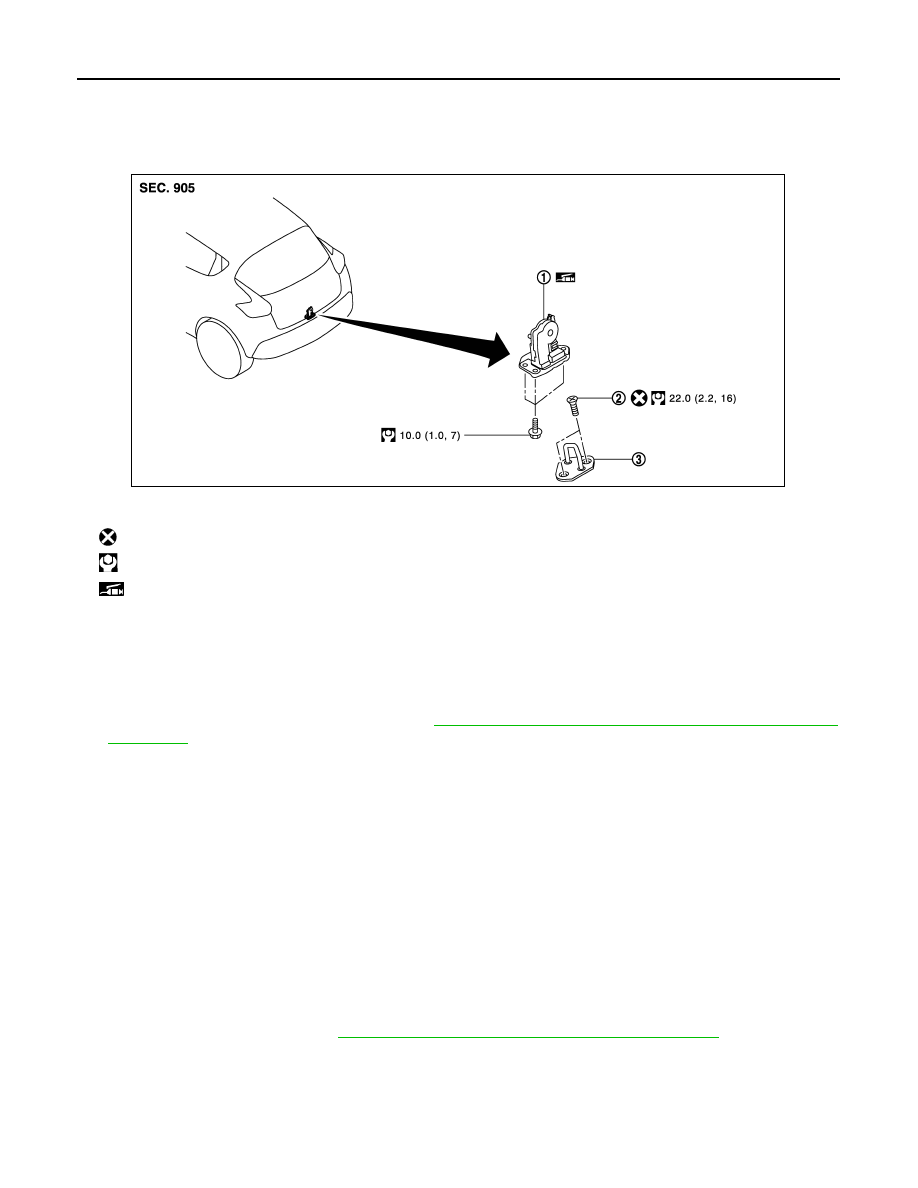

Exploded View

INFOID:0000000012196742

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000012196743

REMOVAL

1. Remove the back door lower finisher. Refer to

INT-39, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Remove back door lock assembly mounting bolts.
3. Disconnect back door lock connector, and then remove back door lock assembly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check back door open/close, and lock/unlock operation.

EMERGENCY LEVER
EMERGENCY LEVER : Unlock procedures

INFOID:0000000012196744

UNLOCK PROCEDURES

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, follow the procedures to

unlock back door.
1. Remove emergency lid. Refer to

INT-40, "EMERGENCY LID : Removal and Installation"

.

1.

Back door lock assembly

2.

TORX bolt

3.

Back door striker

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIA5714GB

BACK DOOR LOCK

DLK-165

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. From inside the vehicle, rotate emergency lever toward lower

direction and unlock.

JMKIA5616ZZ

DLK-166

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

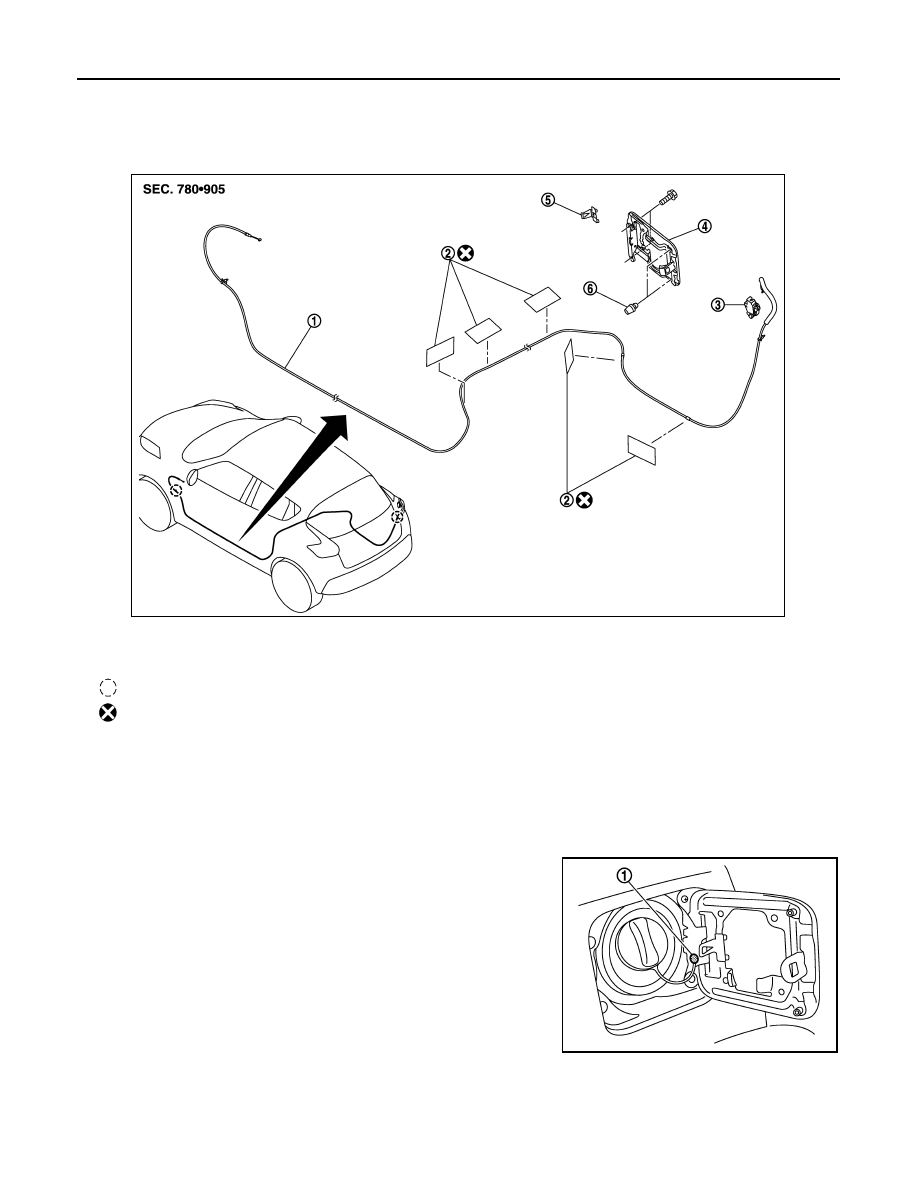

Exploded View

INFOID:0000000012196745

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000012196746

REMOVAL

1. Fully open fuel filler lid.
2. Remove fuel mounting pin (1).

3. Remove mounting screws, and then remove fuel filler lid.

INSTALLATION

Note the following items, and install in the reverse order of removal.

1.

Fuel filler lid opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Fuel filler lid assembly

5.

Spring

6.

Bumper rubber

: Clip

: Always replace after every disassembly.

JMKIA5904ZZ

JMKIA5717ZZ

FUEL FILLER LID OPENER

DLK-167

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

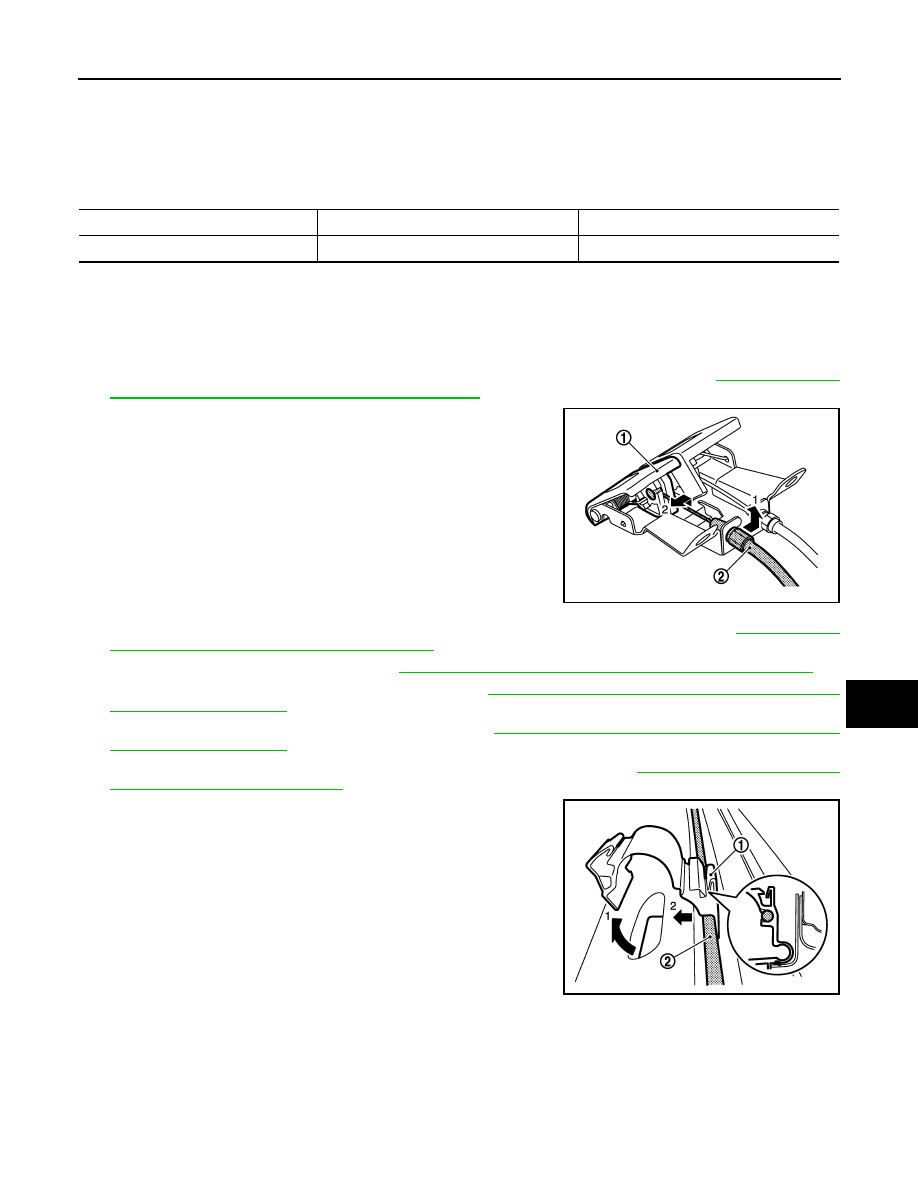

CAUTION:

• After installation, check fuel filler lid assembly open/close, lock/unlock operation.

• After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

NOTE:

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

Unit: mm (in)

FUEL FILLER OPENER CABLE
FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000012196747

REMOVAL

1. Remove hood lock control cable assembly from instrument lower panel (LH). Refer to

DLK-155, "HOOD

LOCK CONTROL CABLE : Removal and Installation"

.

2. Remove fuel filler lid opener cable (2) from fuel filler lid opener

lever (1).

3. Remove front kicking plate inner (LH) and rear kicking plate inner (LH and RH). Refer to

INT-19, "KICK-

ING PLATE INNER : Removal and Installation"

.

4. Remove dash side finisher (LH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installation"

.

5. Remove center pillar lower garnish (LH). Refer to

INT-22, "CENTER PILLAR LOWER GARNISH :

Removal and Installation"

.

6. Remove luggage side lower finisher (RH). Refer to

INT-35, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

7. Remove fuel filler lid opener cable from fuel filler lid lock assembly. Refer to

DLK-168, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8. Disengage each harness protector (1), and then remove fuel

filler lid opener cable (2).

9. Remove fuel filler lid opener cable fixing clips, and then remove fuel filler lid opener cable.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID LOCK

Clearance

Evenness

Fuel filler lid – Body side outer

2.0 – 4.0 (0.079 – 0.157)

(-1.0) – (+1.0) [(-0.039) – (+0.039)]

JMKIA5901ZZ

JMKIA5720ZZ
