Nissan Juke F15. Manual - part 1355

WCS

SYSTEM

WCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000012201468

WARNING CHIME OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CHIME CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1. BCM requires warning chime output to combination meter when it judges light reminder warning chime is

necessary from signals below.

2. Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-

nal) from BCM.

Operation conditions

Ignition switch

OFF or ACC position

Combination switch (Lighting
switch)

1st or 2nd position

Driver side door

Open [front door switch (driver side) ON]

Operation conditions

Ignition switch

ON

Combination switch (Lighting
switch)

OFF or AUTO position

Driver side door

Close [front door switch (driver side) OFF]

Signal name

Signal path

Ignition switch signal

—

Combination switch signal

Combination switch (Lighting switch)

 BCM

Driver door switch signal

Front door switch (driver side)

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

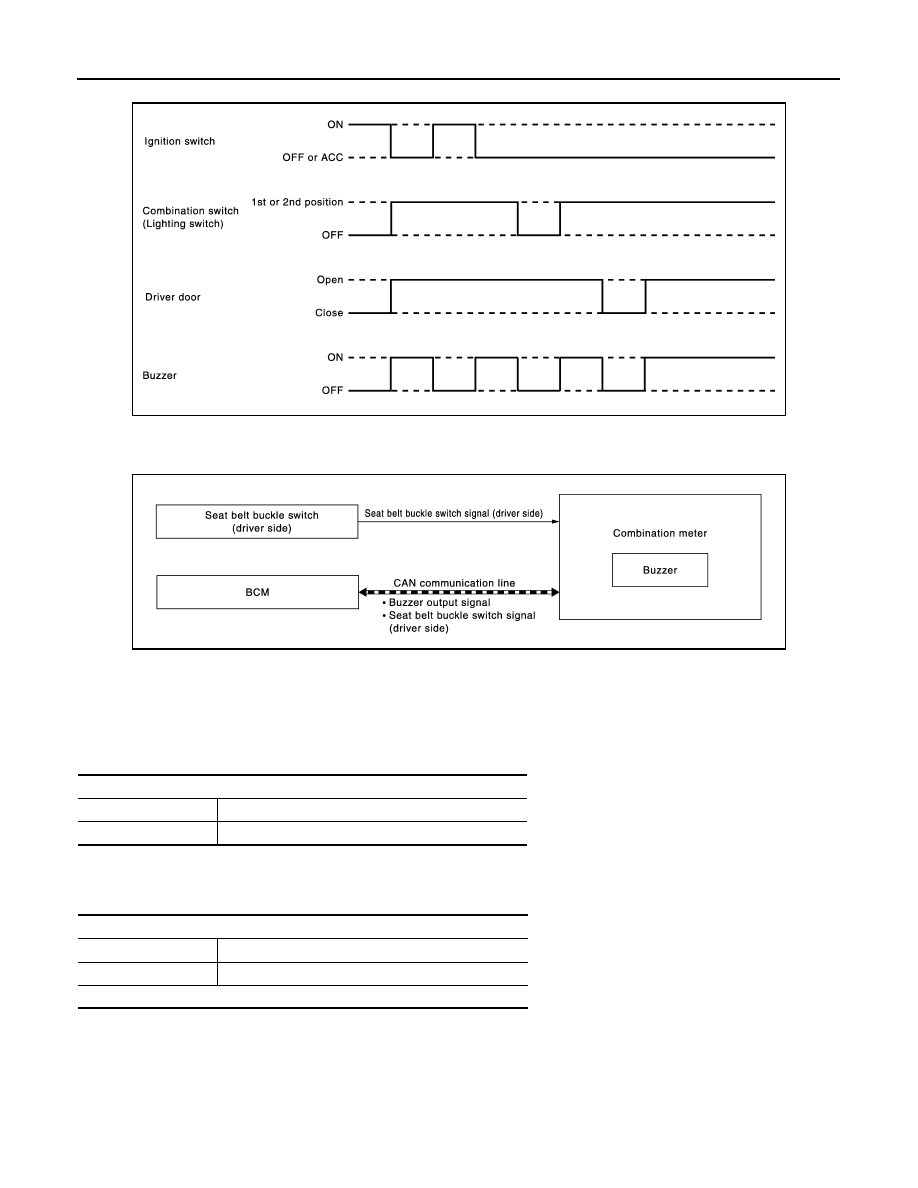

WCS-10

< SYSTEM DESCRIPTION >

SYSTEM

TIMING CHART

SEAT BELT WARNING CHIME
SEAT BELT WARNING CHIME : System Diagram

INFOID:0000000012201469

SEAT BELT WARNING CHIME : System Description

INFOID:0000000012201470

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1. BCM requires warning chime output to combination meter when it judges seat belt warning chime is nec-

essary from signals below.

JSNIA2426GB

JSNIA3118GB

Operation conditions

Ignition switch

ON

Driver seat belt

Unfastened [seat belt buckle switch (driver side) ON]

Operation conditions

Ignition switch

OFF

Seat belt (driver side)

Fastened (driver side seat belt buckle switch OFF)

6 seconds after the start of warning sound

WCS

SYSTEM

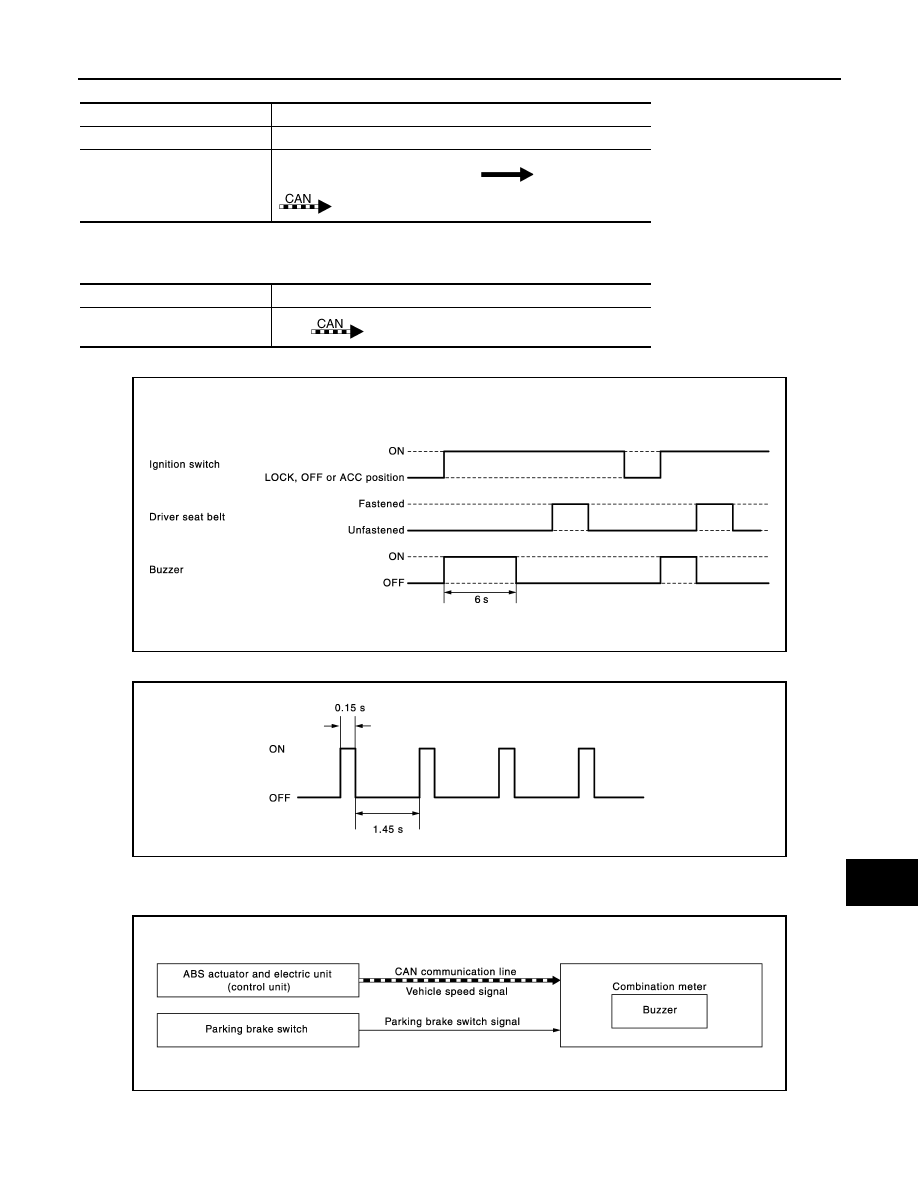

WCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2. Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-

nal) from BCM.

TIMING CHART

SOUND SPECIFICATION

PARKING BRAKE RELEASE WARNING CHIME
PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000012201471

Signal name

Signal path

Ignition switch signal

—

Seat belt buckle switch signal
(driver side)

Seat belt buckle switch (driver side)

 Combination meter

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

JSNIA3123GB

JSNIA3111GB

JSNIA2422GB

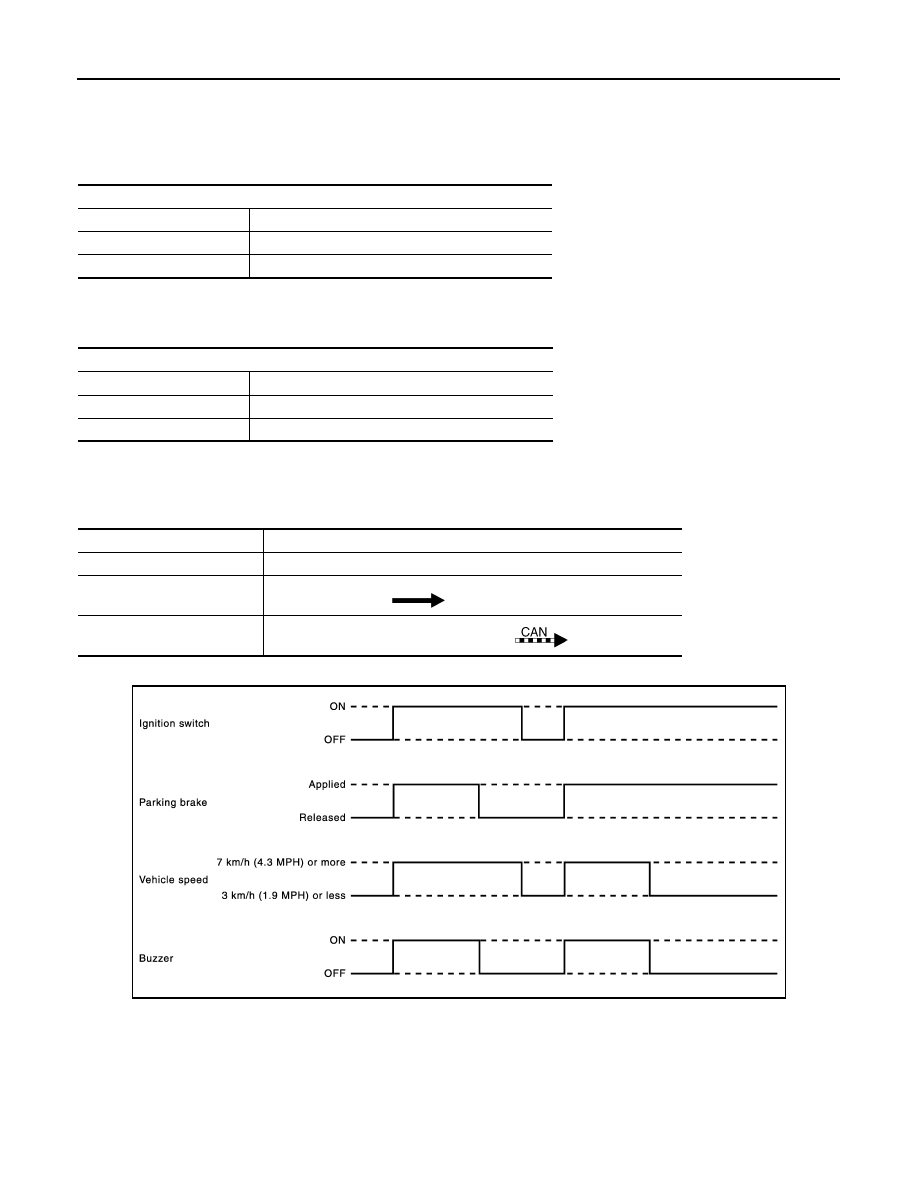

WCS-12

< SYSTEM DESCRIPTION >

SYSTEM

PARKING BRAKE RELEASE WARNING CHIME : System Description

INFOID:0000000012201472

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions are fulfilled.

SIGNAL PATH

Combination meter sounds integrated buzzer when it judges that parking brake release warning chime is nec-

essary from signals below.

TIMING CHART

Operation conditions

Ignition switch

ON

Parking brake

During the operation (parking brake switch ON)

Vehicle speed

Approximately 7 km/h (4.3 MPH) or more

Operation conditions

Ignition switch

OFF

Parking brake

Release condition (parking brake switch OFF)

Vehicle speed

Approximately 3 km/h (1.9 MPH) or less

Signal name

Signal path

Ignition switch signal

—

Parking brake switch signal

Parking brake switch

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

JSNIA2428GB
