[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

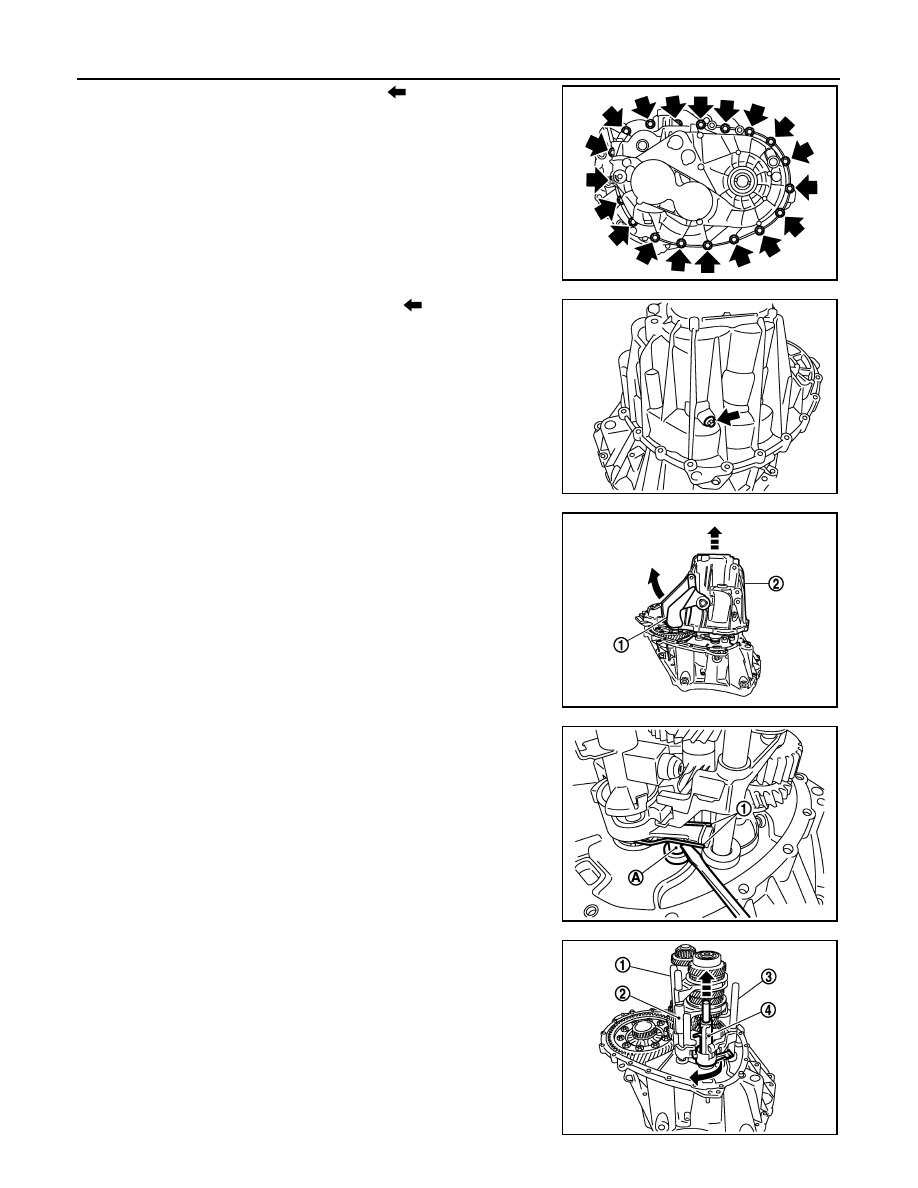

5. Remove transaxle case mounting bolts (

).

6. Remove reverse idler shaft mounting bolt (

) and seal washer.

7. Remove transaxle case (2) while rotating shifter lever A (1) in

the direction as shown in the figure.

8. Remove selector spring (1) from return bushing (A).

9. Shift 1st-2nd fork rod (1), fork rod (2), and reverse fork rod (3) to

the neutral position.

10. Remove selector (4) from clutch housing.

PCIB1694E

PCIB1695E

JPDIC0444ZZ

JPDIC0445ZZ

PCIB1698E

TRANSAXLE ASSEMBLY

TM-39

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

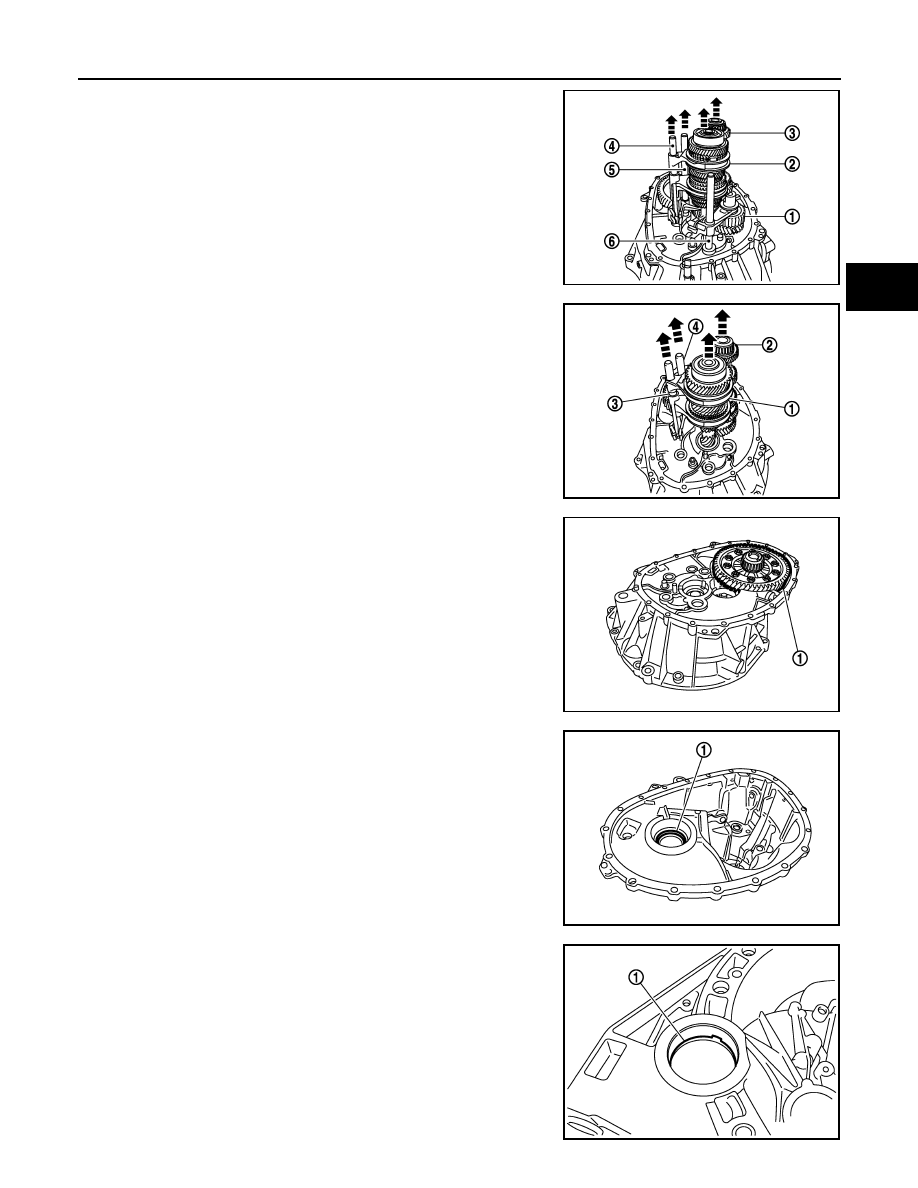

11. Remove reverse idler shaft assembly (1), as per the following

procedure.

a. Pull up input shaft assembly (2), mainshaft assembly (3), fork

rod (4), and 1st-2nd fork rod (5).

NOTE:

It is easier to pull up when shifting each fork rod to each shaft

side.

b. Remove reverse idler shaft assembly and reverse fork rod (6)

from clutch housing.

12. Remove spring washer from clutch housing.

13. Pull up and remove input shaft assembly (1), mainshaft assem-

bly (2), fork rod (3), and 1st-2nd fork rod (4) from clutch housing.

NOTE:

It is easier to pull up when shifting each fork rod to each shaft

side.

14. Remove final drive assembly (1) from clutch housing.
15. Remove magnet from clutch housing.

16. Remove differential side oil seals (1) from clutch housing and

transaxle case.

CAUTION:

Never damage clutch housing and transaxle case.

17. Remove differential side bearing outer race (1) from clutch hous-

ing, using a brass rod.

CAUTION:

Never damage clutch housing.

JPDIC0606ZZ

JPDIC0607ZZ

PCIB1703E

PCIB1704E

PCIB1716E

TM-40

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

18. Remove differential side bearing outer race (1) from transaxle

case, using a brass rod.

CAUTION:

Never damage transaxle case.

19. Remove shim (2) from transaxle case.

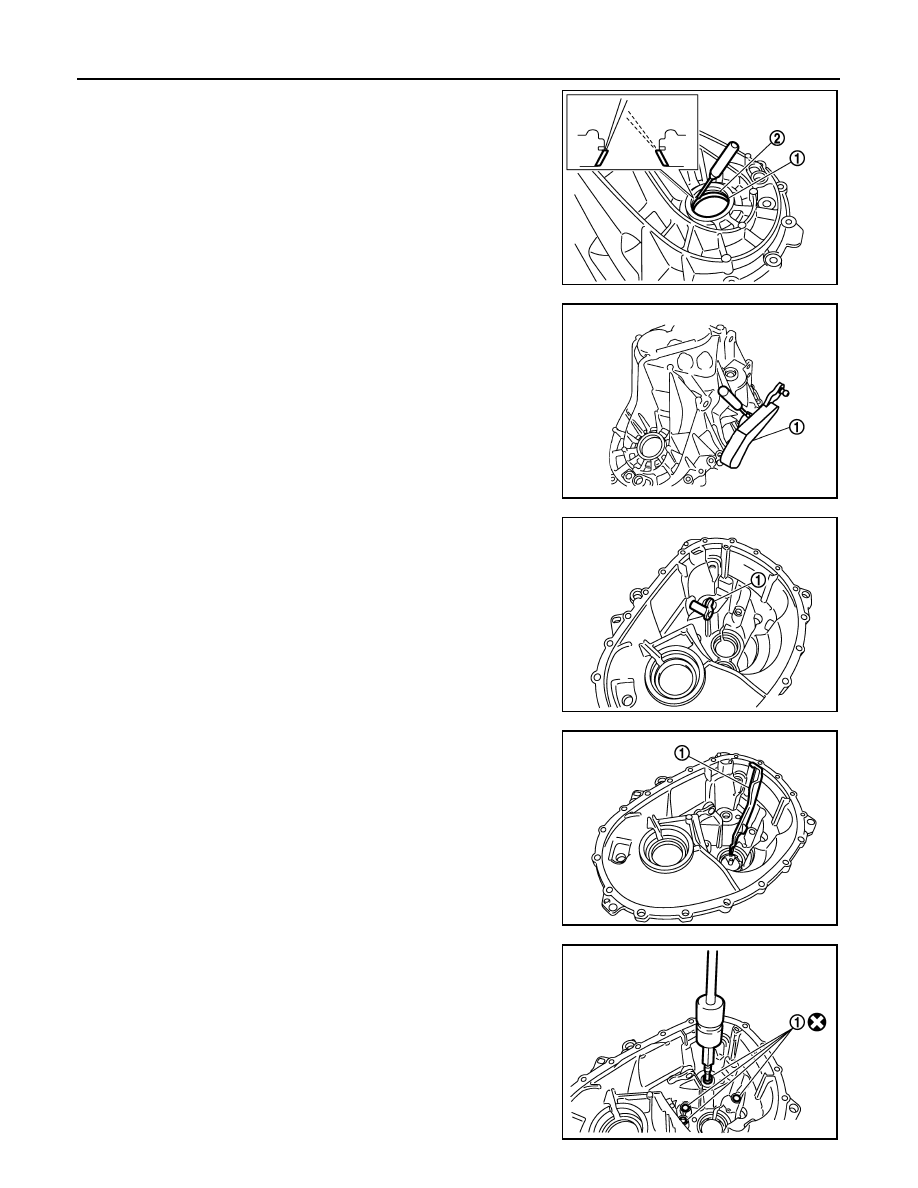

20. Remove shifter lever A (1) retaining pin, using a pin punch.
21. Remove shifter lever A from transaxle case.

22. Remove shifter lever B (1) from transaxle case.

23. Remove oil gutter (1) from transaxle case.

24. Remove bushings (1) from transaxle case, using a remover

[Commercial service tool].

PCIB1705E

JPDIC0106ZZ

PCIB1712E

PCIB1707E

PCIB1710E

TRANSAXLE ASSEMBLY

TM-41

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

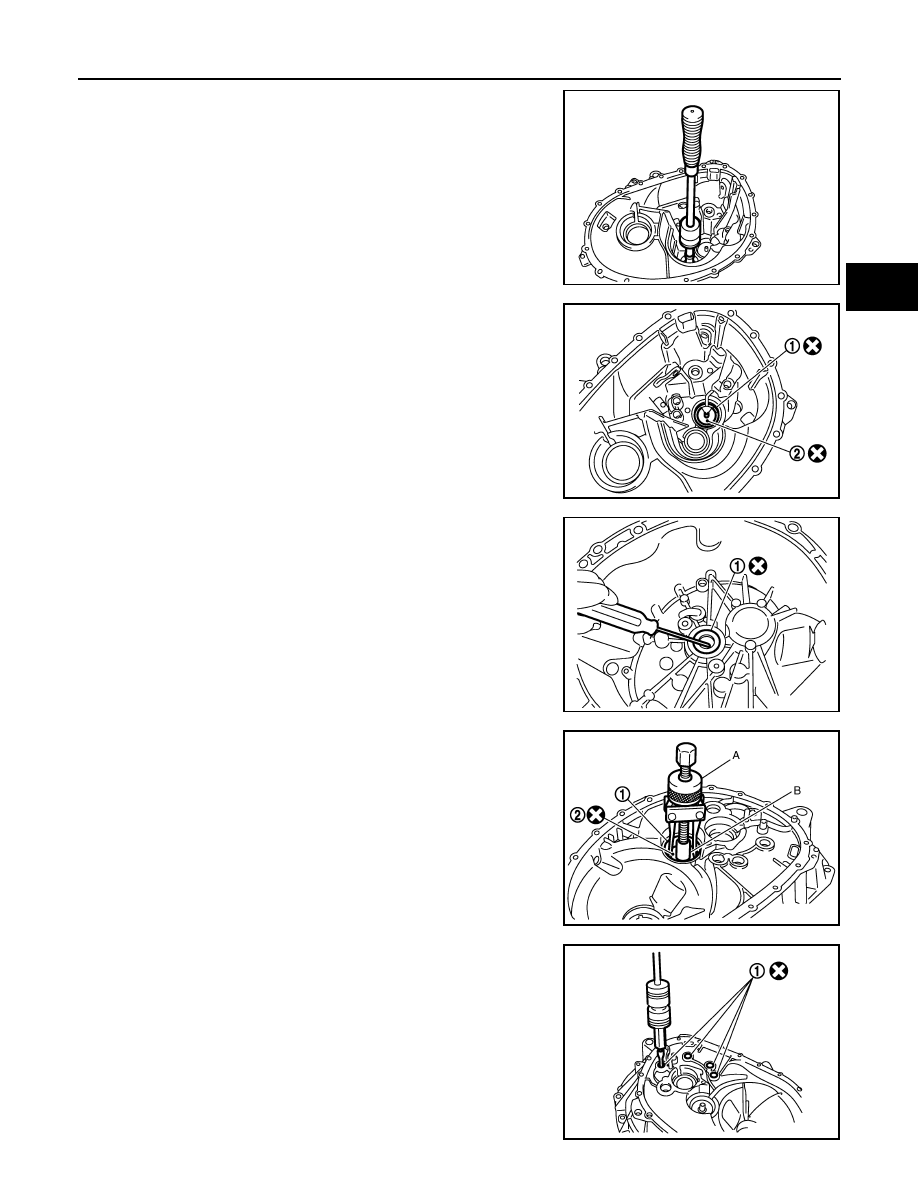

25. Remove mainshaft rear bearing outer race from transaxle case,
