Nissan Juke F15. Manual - part 1127

SEC-32

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWF4420GB

SECURITY CONTROL SYSTEM

SEC-33

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWF4421GB

SEC-34

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

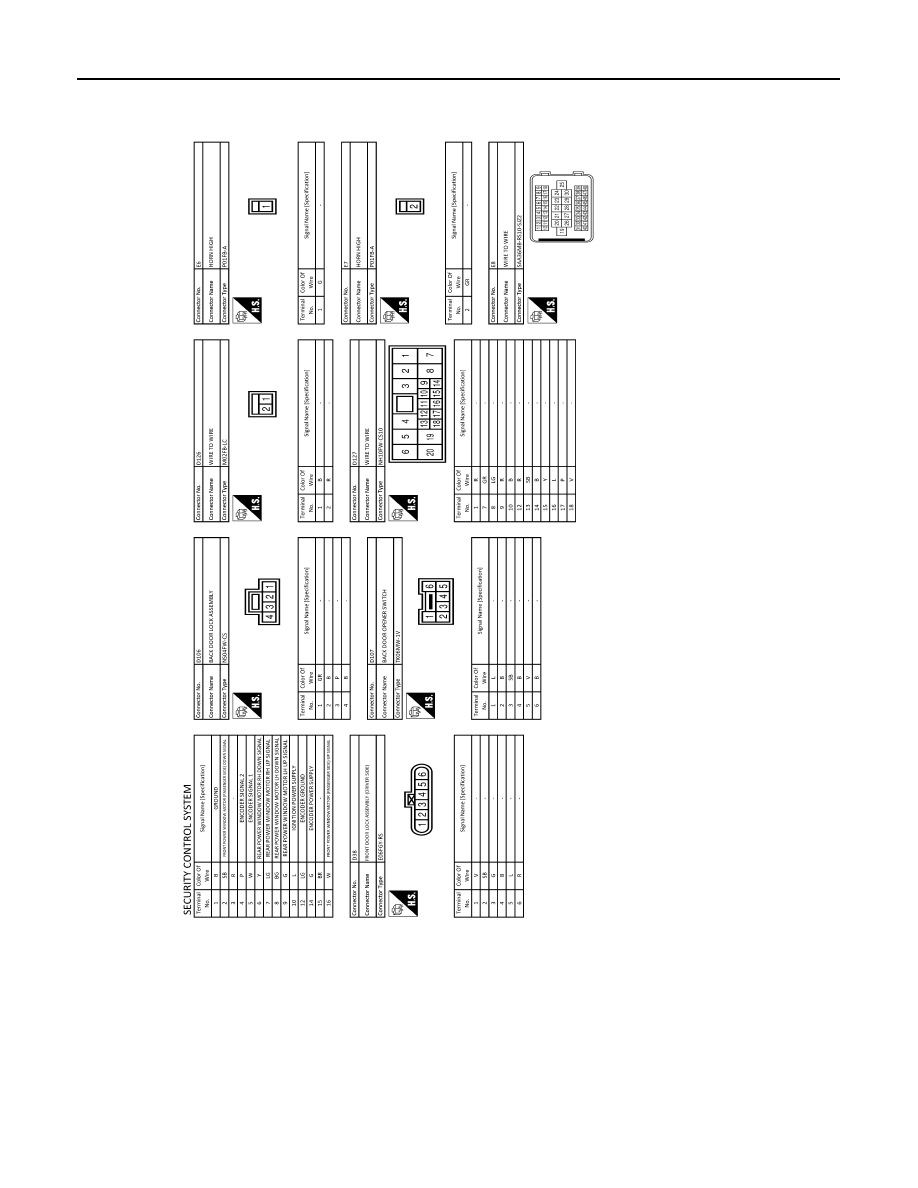

JRKWF4422GB

SECURITY CONTROL SYSTEM

SEC-35

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

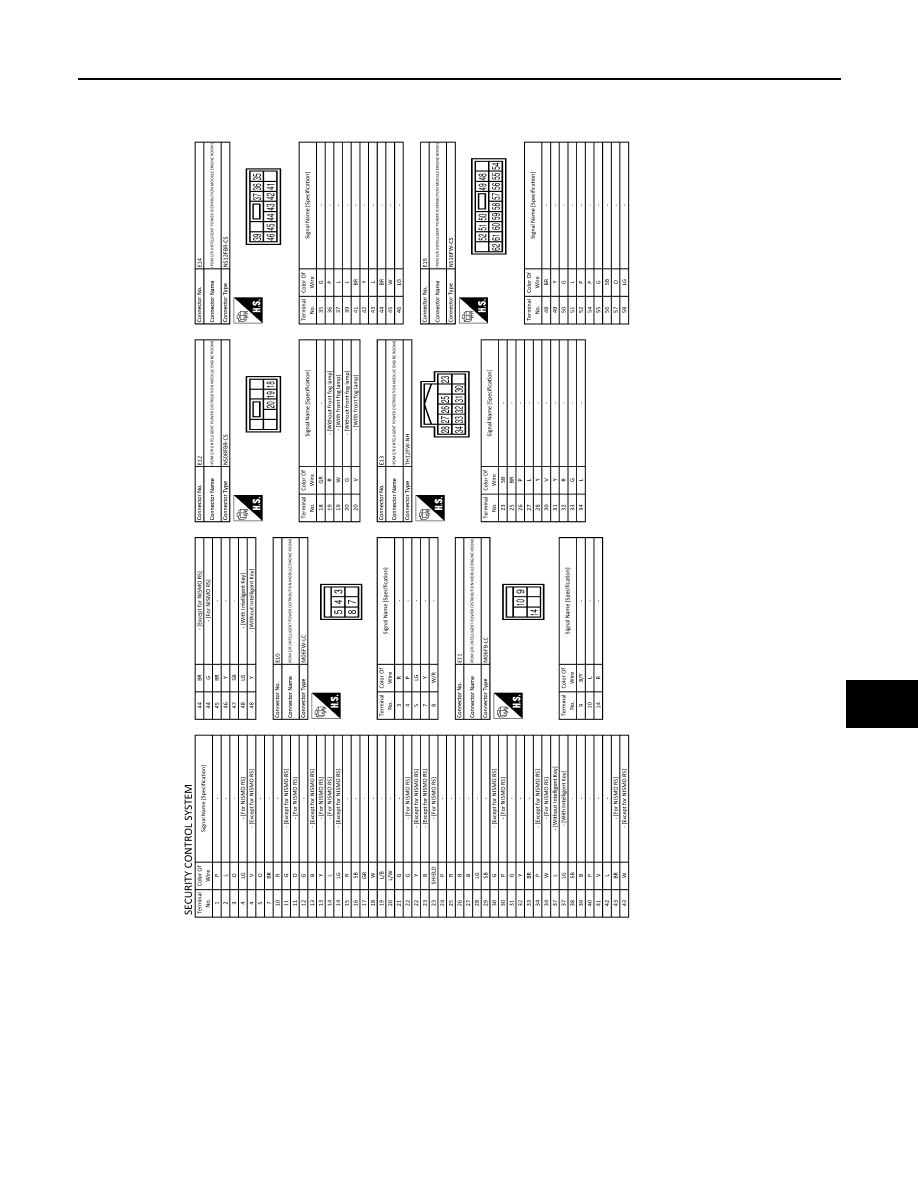

JRKWF4423GB
