PG-44

< WIRING DIAGRAM >

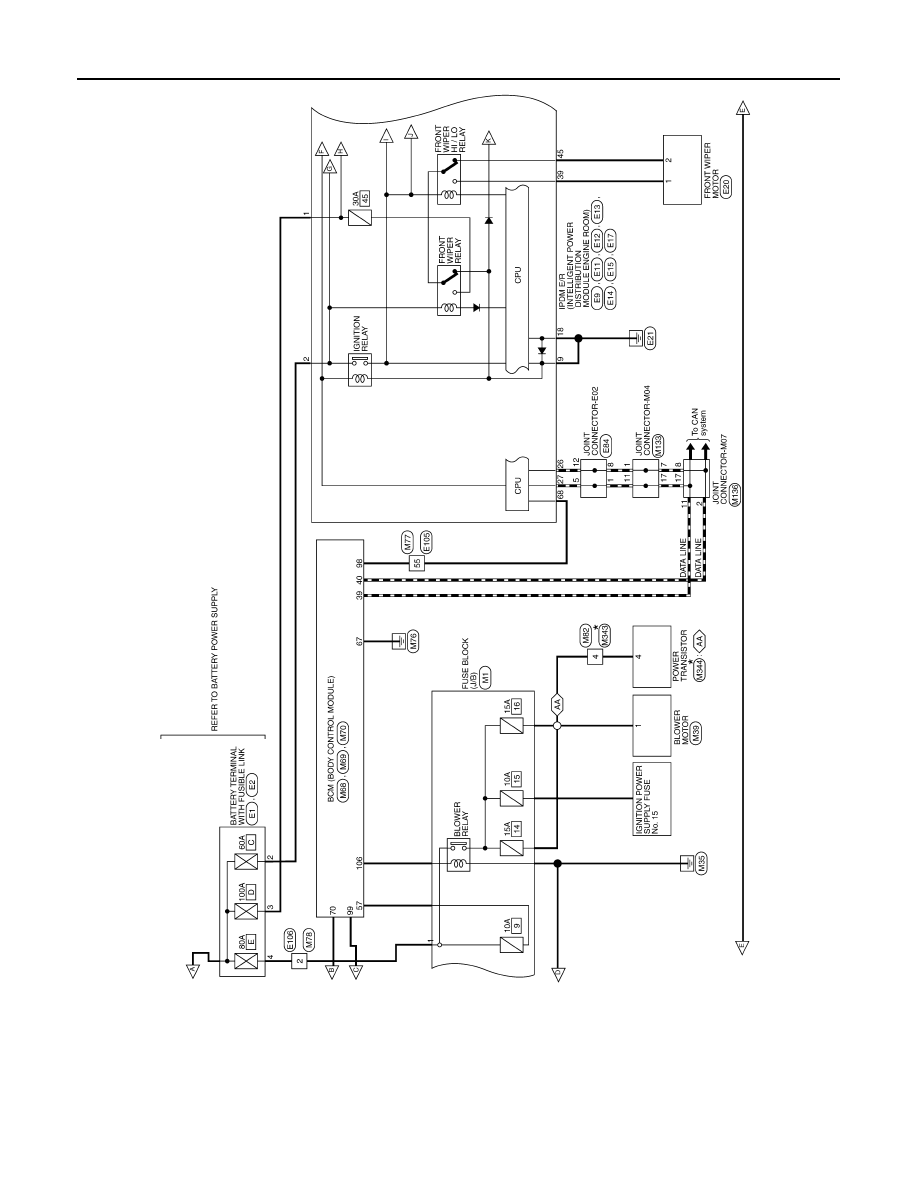

POWER SUPPLY ROUTING CIRCUIT

JRMWI5183GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5184GB

PG-46

< WIRING DIAGRAM >

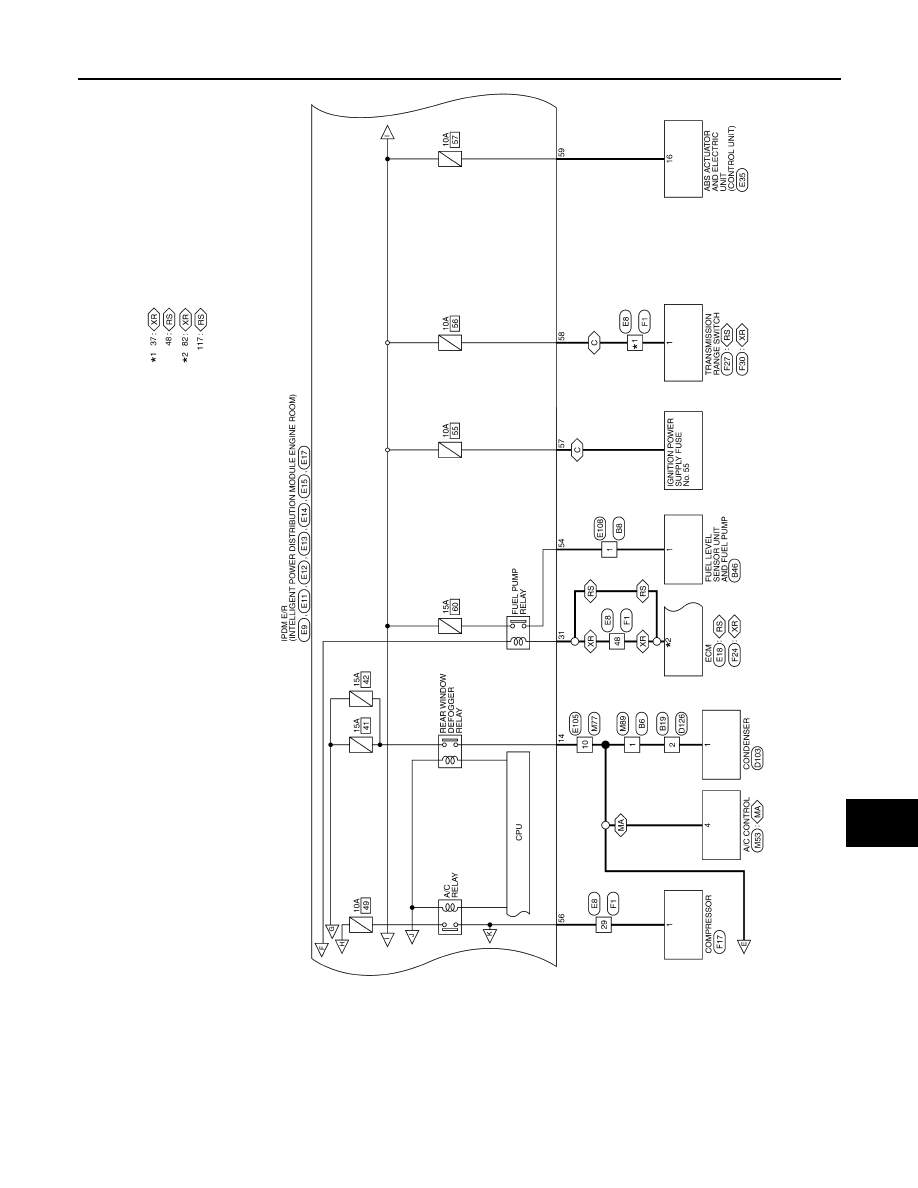

POWER SUPPLY ROUTING CIRCUIT

JRMWI5185GB

PG

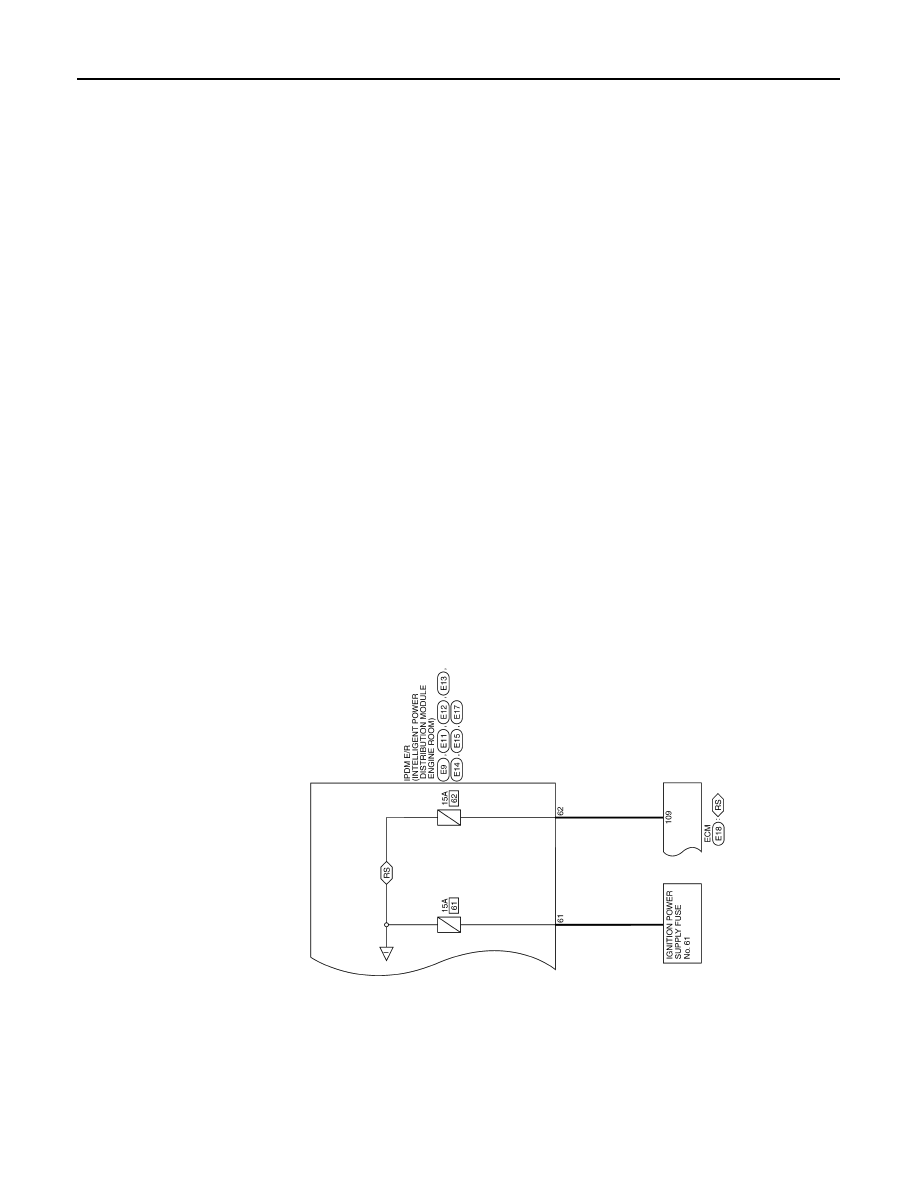

POWER SUPPLY ROUTING CIRCUIT

PG-47

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWI5186GB
