Nissan Juke F15. Manual - part 1030

PCS-64

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2614 ACC RELAY CIRCUIT

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK ACCESSORY RELAY GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair accessory relay ground circuit.

4.

CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT-2

1. Turn ignition switch ACC.

2. Check voltage between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Check continuity open or short between accessory relay and battery.

5.

CHECK ACCESSORY RELAY

Refer to

PCS-64, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace accessory relay.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000012197199

1.

CHECK ACCESSORY RELAY

1. Turn ignition switch OFF.

2. Remove accessory relay.

Accessory relay

Ground

Continuity

Terminal

1

Not existed

Accessory relay

Ground

Continuity

Terminal

2

Existed

(+)

(–)

Voltage (V)

(Approx.)

Accessory relay

Terminal

5

Ground

Battery voltage

PCS

B2614 ACC RELAY CIRCUIT

PCS-65

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

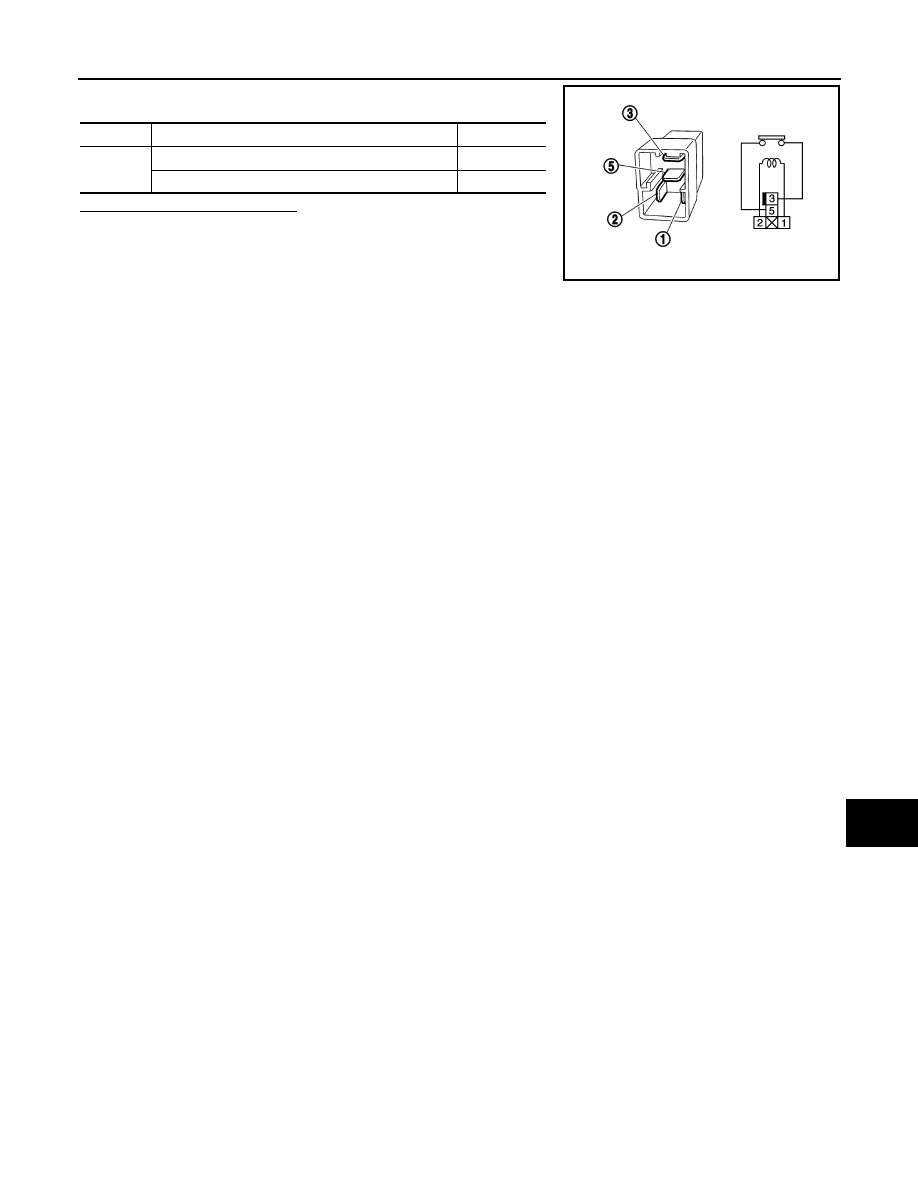

3. Check the continuity between accessory relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accessory relay

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E

PCS-66

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2615 BLOWER RELAY CIRCUIT

B2615 BLOWER RELAY CIRCUIT

DTC Logic

INFOID:0000000012197200

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON under the following conditions, and wait for 1 second or more.

-

Selector lever is in the P position

-

Do not depress brake pedal

2. Check “Self-diagnosis result” of BCM with CONSULT.
Is DTC detected?

YES

>> Go to

PCS-66, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012197201

1.

CHECK BLOWER RELAY POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect blower relay.

3. Check voltage between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BLOWER RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between blower relay harness connector and BCM harness connector.

4. Check continuity between blower relay harness connector and ground.

Is the inspection result normal?

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2615

BCM

BCM detects a difference of signal for 1 second or
more between the following items.
• Blower relay ON/OFF request
• Blower relay feedback

• Harness or connectors

(Blower relay circuit is open or
shorted)

• BCM
• Blower relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Blower relay

Terminal

1

Ground

Ignition switch

OFF or ACC

0

ON

Battery voltage

Blower relay

BCM

Continuity

Terminal

Connector

Terminal

1

M70

106

Existed

Blower relay

Ground

Continuity

Terminal

1

Not existed

PCS

B2615 BLOWER RELAY CIRCUIT

PCS-67

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

YES

>> GO TO 6.

NO

>> Repair or replace harness.

3.

CHECK BLOWER RELAY GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair blower relay ground circuit.

4.

CHECK BLOWER RELAY POWER SUPPLY CIRCUIT-2

1. Turn ignition switch ON.

2. Check voltage between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Check continuity open or short between blower relay and battery.

5.

CHECK BLOWER RELAY

Refer to

PCS-67, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace blower relay.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

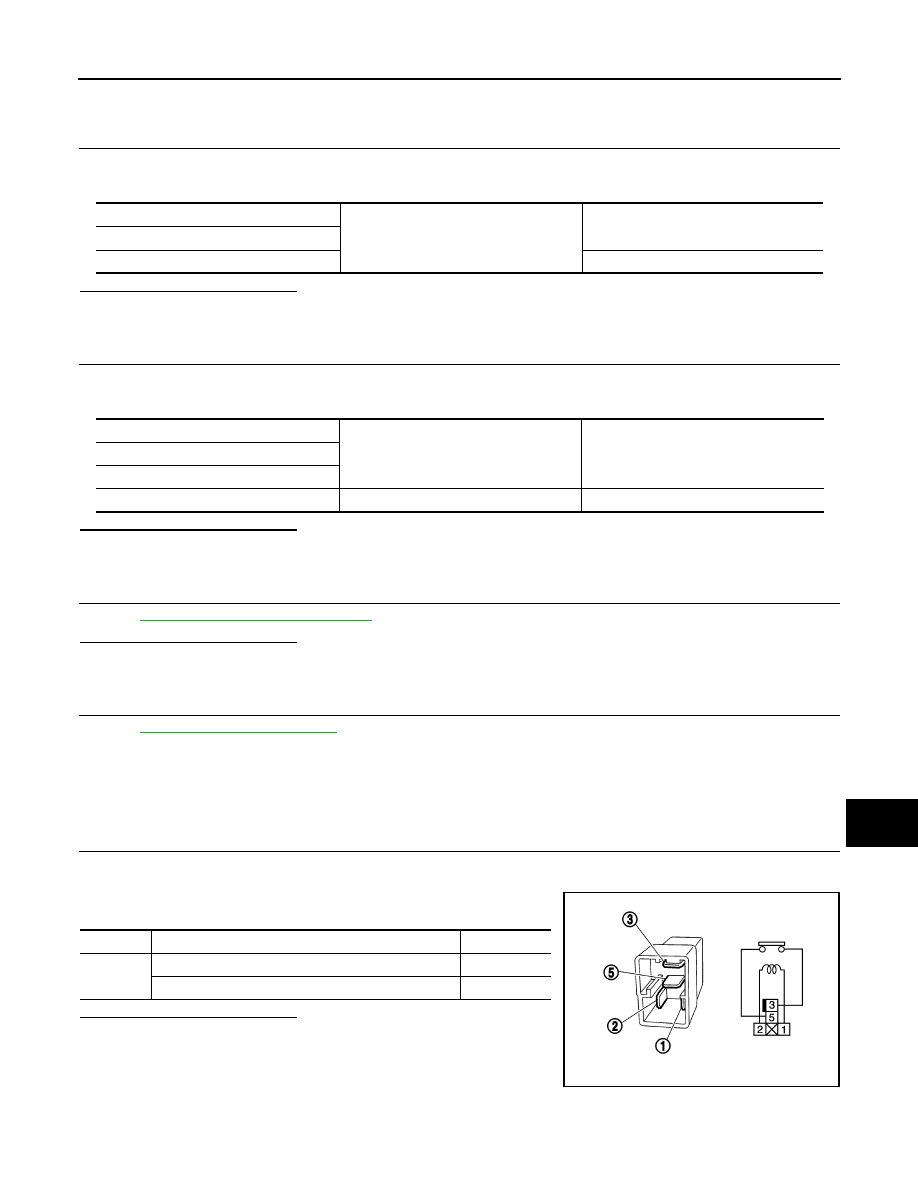

Component Inspection

INFOID:0000000012197202

1.

CHECK BLOWER RELAY

1. Turn ignition switch OFF.

2. Remove blower relay.

3. Check the continuity between blower relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace blower relay

Blower relay

Ground

Continuity

Terminal

2

Existed

(+)

(–)

Voltage (V)

(Approx.)

Blower relay

Terminal

5

Ground

Battery voltage

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E
