Mitsubishi Outlander XL. Manual - part 962

GROUP 54Ab

COMBINATION METER

CONTENTS

SERVICE SPECIFICATIONS........

54Ab-3

SPECIAL TOOL..................

54Ab-4

DIAGNOSIS.....................

54Ab-5

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING...............

54Ab-5

DIAGNOSTIC FUNCTION...........

54Ab-5

DIAGNOSTIC TROUBLE CODE CHART
..............................

54Ab-7

DIAGNOSTIC TROUBLE CODE PROCEDURES
..............................

54Ab-9

DTC B1200: Malfunction of odometer
................................

54Ab-9

DTC B1201: Abnormal fuel
informationDTC B1202: Abnormal fuel2
information....................

54Ab-10

DTC B1208: Malfunction of LCD heater
...............................

54Ab-15

DTC B1209: Test mode...........

54Ab-16

DTC B2203: Chassis No. not programmed
...............................

54Ab-16

DTC B2463: Sticking of rheostat switch
...............................

54Ab-18

DTC B2464: The sticking of meter
information switch.............

54Ab-19

DTC B2465: Ignition switch signal
error..........................

54Ab-21

DTC B2467: Malfunction of stepper
motor..........................

54Ab-23

DTC U0019: Bus off(CAN-B)......

54Ab-24

DTC U0100: Engine control module CAN
timeout........................

54Ab-25

DTC U0141: ETACS CAN timeout
...............................

54Ab-27

DTC U0151: SRS-ECU CAN timeout
...............................

54Ab-28

DTC U0154: Occupant classification-ECU
CAN timeout....................

54Ab-29

DTC U0164: A/C-ECU CAN timeout
...............................

54Ab-31

DTC U0168: KOS-ECU or WCM CAN timeout
...............................

54Ab-33

DTC U0184: Audio CAN timeout
...............................

54Ab-34

DTC U0197: Hands free module CAN
timeout........................

54Ab-35

DTC U0245: Audio visual navigation unit
CAN timeout....................

54Ab-37

DTC U1415: Coding not completed/Data
fail...........................

54Ab-38

TROUBLE SYMPTOM CHART........

54Ab-40

TROUBLE SYMPTOM PROCEDURES
.............................

54Ab-41

Inspection Procedure 1: Power supply
circuit check..................

54Ab-41

Inspection Procedure 2: The
speedometer does not work (the other
meters work)...................

54Ab-46

Inspection Procedure 3: The tachometer
does not work (the other meters work).
...............................

54Ab-47

Inspection Procedure 4: Tone alarm does
not sound normally.............

54Ab-49

54Ab-1

Continued on next page

Inspection Procedure 5: The
combination meter light does not
illuminate normally or the multi
information display is not displayed
normally.......................

54Ab-51

Inspection Procedure 6: The multi
information display screen cannot be
changed with the operation of the meter
information switch.............

54Ab-54

SERVICE DATA.................

54Ab-56

ACTUATOR TEST TABLE..........

54Ab-61

CHECK PROCEDURE FOR EACH MULTI
INFORMATION DISPLAY SCREEN
.............................

54Ab-61

ON-VEHICLE SERVICE...........

54Ab-65

SPEEDOMETER CHECK............

54Ab-65

TACHOMETER CHECK.............

54Ab-67

FUEL LEVEL SENSOR CHECK......

54Ab-67

METER INFORMATION SWITCH CHECK
.............................

54Ab-69

SERVICE REMINDER FUNCTION SET
.............................

54Ab-70

COMBINATION METER ASSEMBLY
.............................

54Ab-77

REMOVAL AND INSTALLATION. . . . .

54Ab-77

DISASSEMBLY AND ASSEMBLY. . . . .

54Ab-79

CHECK AT ECU TERMINALS.......

54Ab-79

54Ab-2

SERVICE SPECIFICATIONS

M15410100002USA0000010000

Item

Standard Value

Speedometer  indication  tolerance  mph  (km/h)
<Except vehicles for CANADA>

10 (16)

8.5 - 11.5 (13.6 - 18.4)

25 (40)

23.5 - 26.5 (37.6 - 42.4)

50 (80)

48.5 - 51.5 (77.6 - 82.4)

75 (120)

73.5 - 76.5 (117.6 - 122.4)

100 (161)

98.5 - 102.5 (158.6 - 165.0)

125 (201)

123.5 - 127.5 (198.6 - 205.0)

Speedometer  indication  tolerance  km/h  (mph)
<Vehicles for CANADA>

20 (12.4)

19 - 24 (11.8 - 14.9)

40 (24.8)

40 - 44 (24.8 - 27.3)

80 (49.7)

80 - 85 (49.7 - 52.8)

120 (74.6)

120.5 - 125.5 (74.9 - 78.0)

160 (99.4)

160.5 - 165.5 (99.7 - 102.8)

200 (124.3)

200.5 - 207.0 (124.6 - 128.6)

Tachometer indication tolerance r/min
The value in parentheses is a reference value.)

600

550 - 650

(2,000)

(1,950 - 2,050)

3,000

2,950 - 3,050

(4,000)

(3,950 - 4,050)

5,000

4,950 - 5,050

6,000

5,950 - 6,050

(7,000)

(6,950 - 7,050)

(8,000)

(7,950 - 8,050)

FWD

Fuel level sensor resistance ohms

Stopper position "F"

13.0 ± 1.0

Stopper position "E"

120.0 ± 1.0

Fuel level sensor float height mm (in)

Stopper

 position

"F" (height A)

201.9 (7.9)

Stopper

 position

"E" (height B)

18.3 (0.7)

AWD

Fuel  level  sensor
resistance ohms

Fuel  level  sensor
(main)

Stopper position "F"

6.5 ± 1.0

Stopper position "E"

44.7 ± 1.0

Fuel  level  sensor
(sub)

Stopper position "F"

6.5 ± 1.0

Stopper position "E"

75.3 ± 1.0

Fuel  level  sensor
float  height  mm
(in)

Fuel  level  sensor
(main)

Stopper

 position

"F" (height A)

166.2 (6.5)

Stopper

 position

"E" (height B)

38.8 (1.5)

Fuel  level  sensor
(sub)

Stopper

 position

"F" (height A)

48.8 ± 3.0 (1.9 ± 0.1)

Stopper

 position

"E" (height B)

238.0 ± 3.0 (9.3 ± 0.1)

COMBINATION METER

54Ab-3

SERVICE SPECIFICATIONS

SPECIAL TOOL

M15410100004USA0000010000

Tool

Tool  number  and
name

Supersession

Application

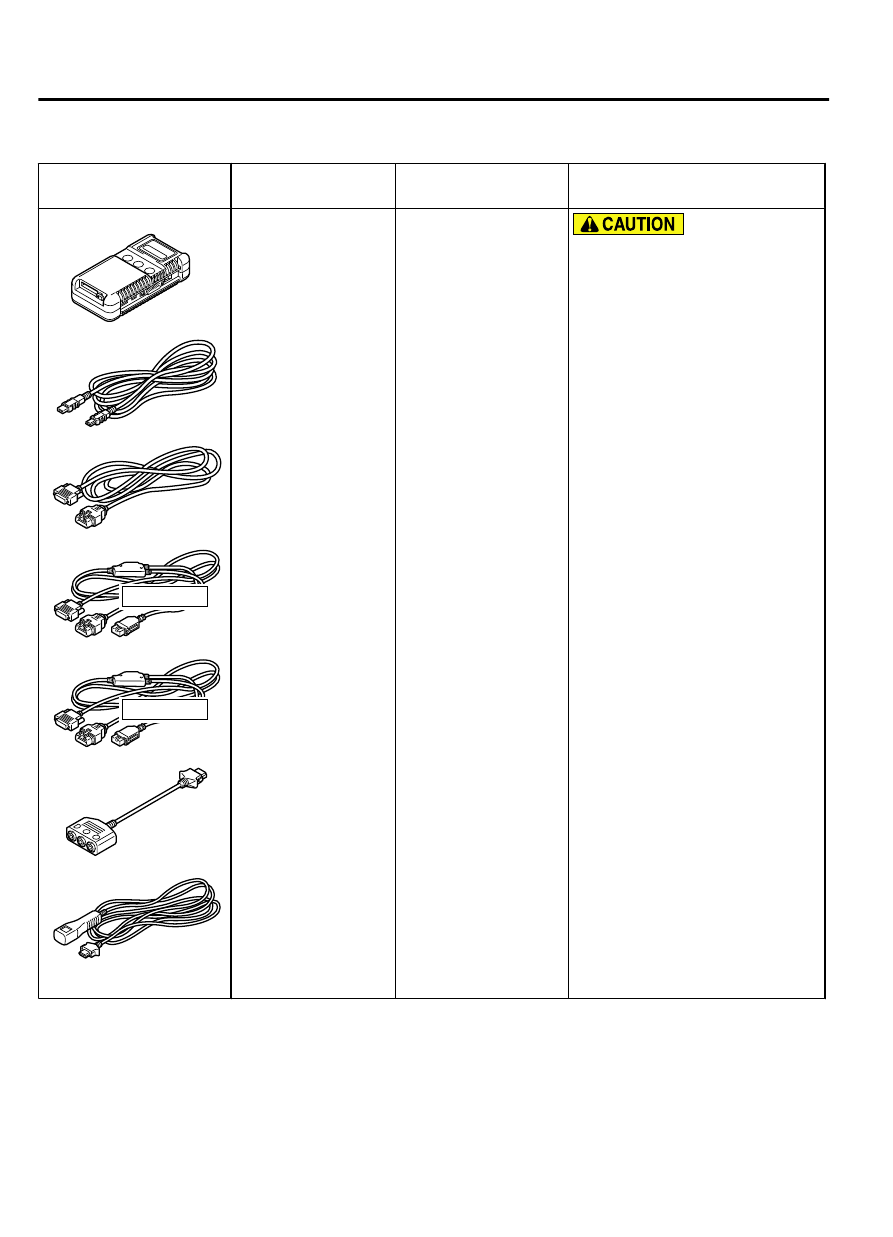

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III

 sub

assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III

 USB

cable

c.

M.U.T.-III

 main

harness

 A

(Vehicles

 with

CAN
communication
system)

d.

M.U.T.-III

 main

harness

 B

(Vehicles  without
CAN
communication
system)

e.

M.U.T.-III

 main

harness  C  (for
Daimler  Chrysler
models only)

f.

M.U.T.-III
measurement
adapter

g.

M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

M.U.T.-III  main  harness  A
(MB991910)  should  be  used.
M.U.T.-III main harness B and C
should  not  be  used  for  this
vehicle.
Combination

 meter

 check

(Diagnosis code, service data)

54Ab-4

COMBINATION METER

SPECIAL TOOL
