2.
Mount TPMS transmitter valve through rim hole as illustrated.
Pressure holes in the transmitter case should face away from
center of rim. Tighten valve nut finger tight, then slowly torque
the valve nut to 8.0 ± 0.5 N·m (71 ± 4 in-lb).
Install the TPMS transmitter correctly. If the TPMS
transmitter is installed incorrectly, it may not work
correctly, or become damaged when the tire is installed.
3.
Check that the TPMS transmitter is correctly assembled
(Refer to illustration).
｠
Lower lip of the TPMS transmitter case is touching the rim
after torquing.
>>B<< TIRE BEAD MOUNTING
ZC604545 AA00
1.

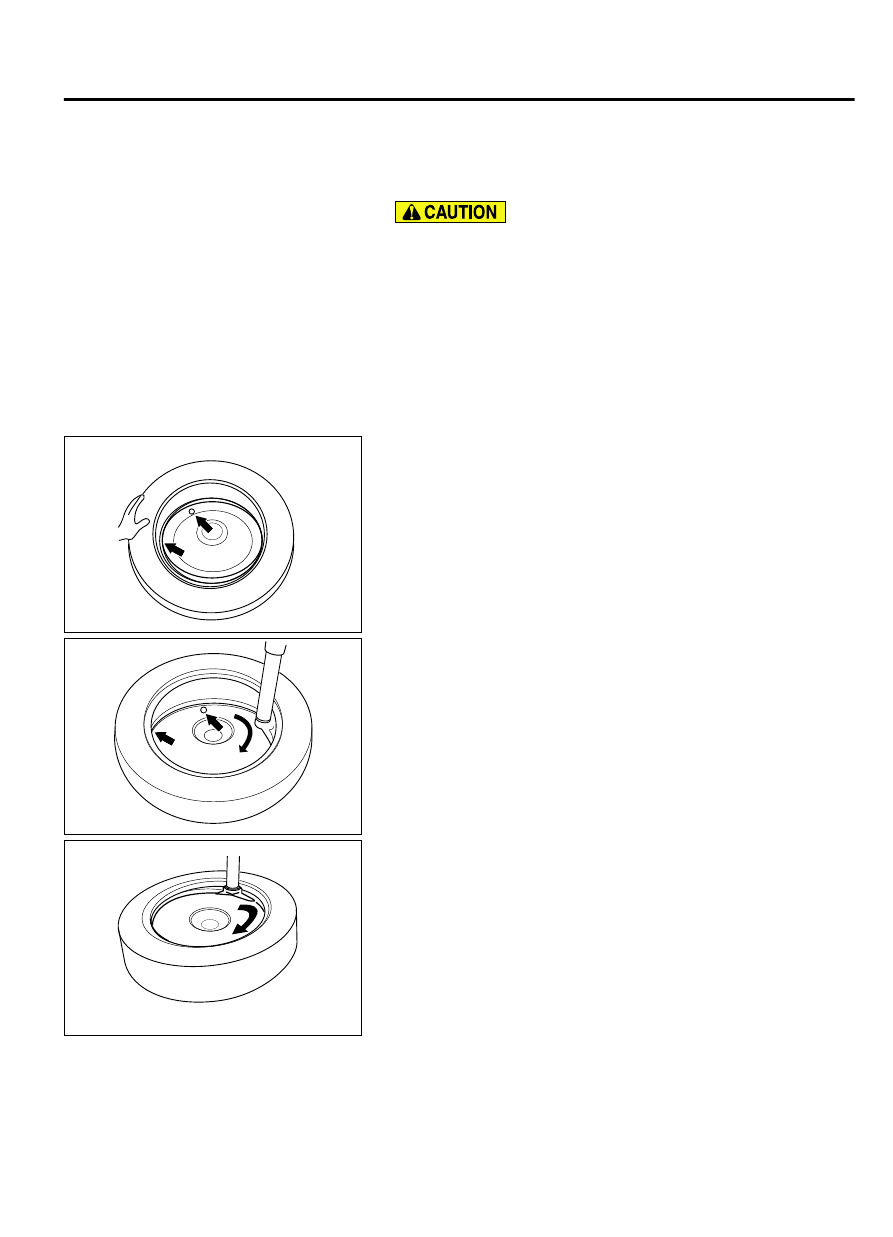

Put the tire on the rim, so that the cross point of the belt with
the rim is approximately 20 cm (7.9 inch) away from the valve
ZC604546AA00
2.
Engage the shoe and make sure that 20 cm (7.9 inch) is
maintained between the cross point and the valve. The arrow
shows the direction of rotation of the wheel.
ZC604547AA00

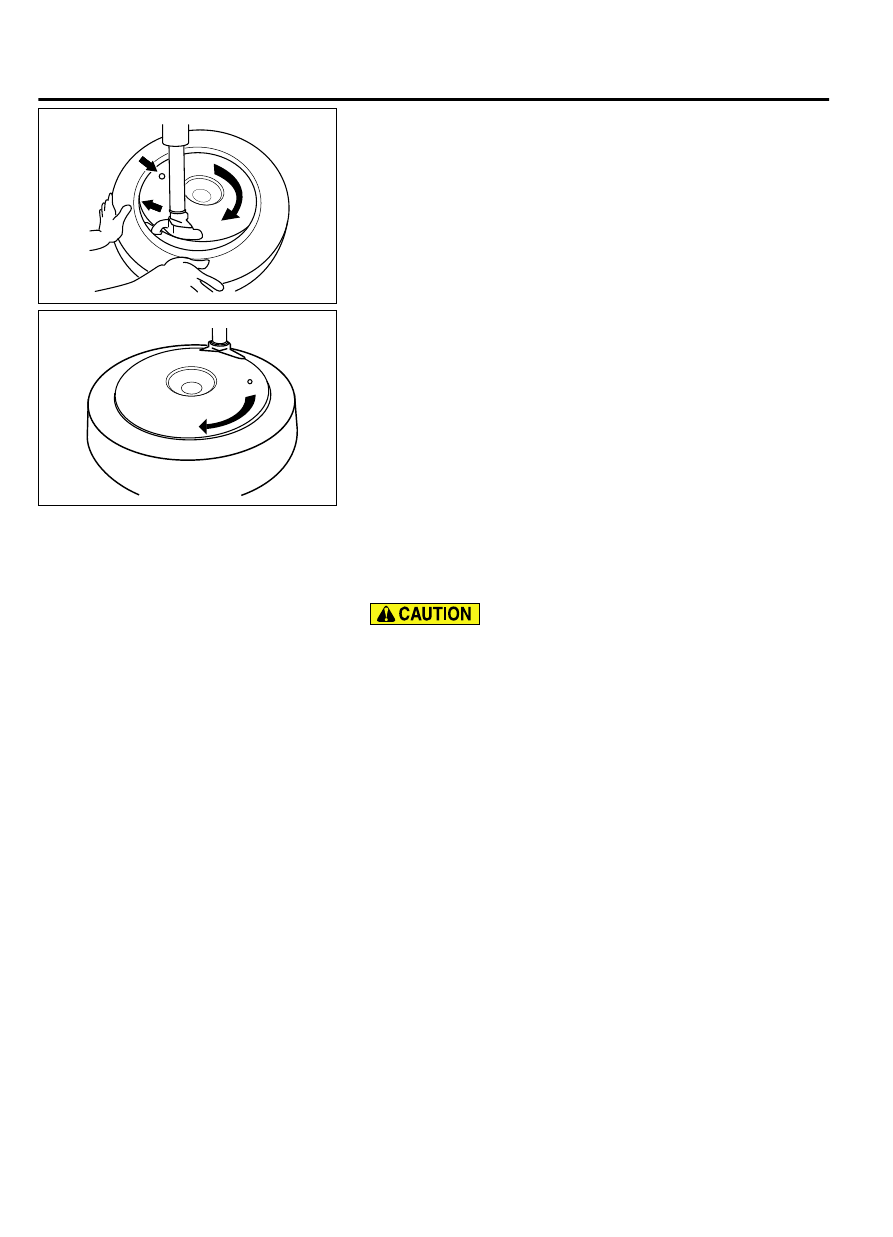

3.
Turn the wheel in order to engage all the first side of the tire.
NOTE:
The standard shoes can pass over the sensor without
damaging it.
