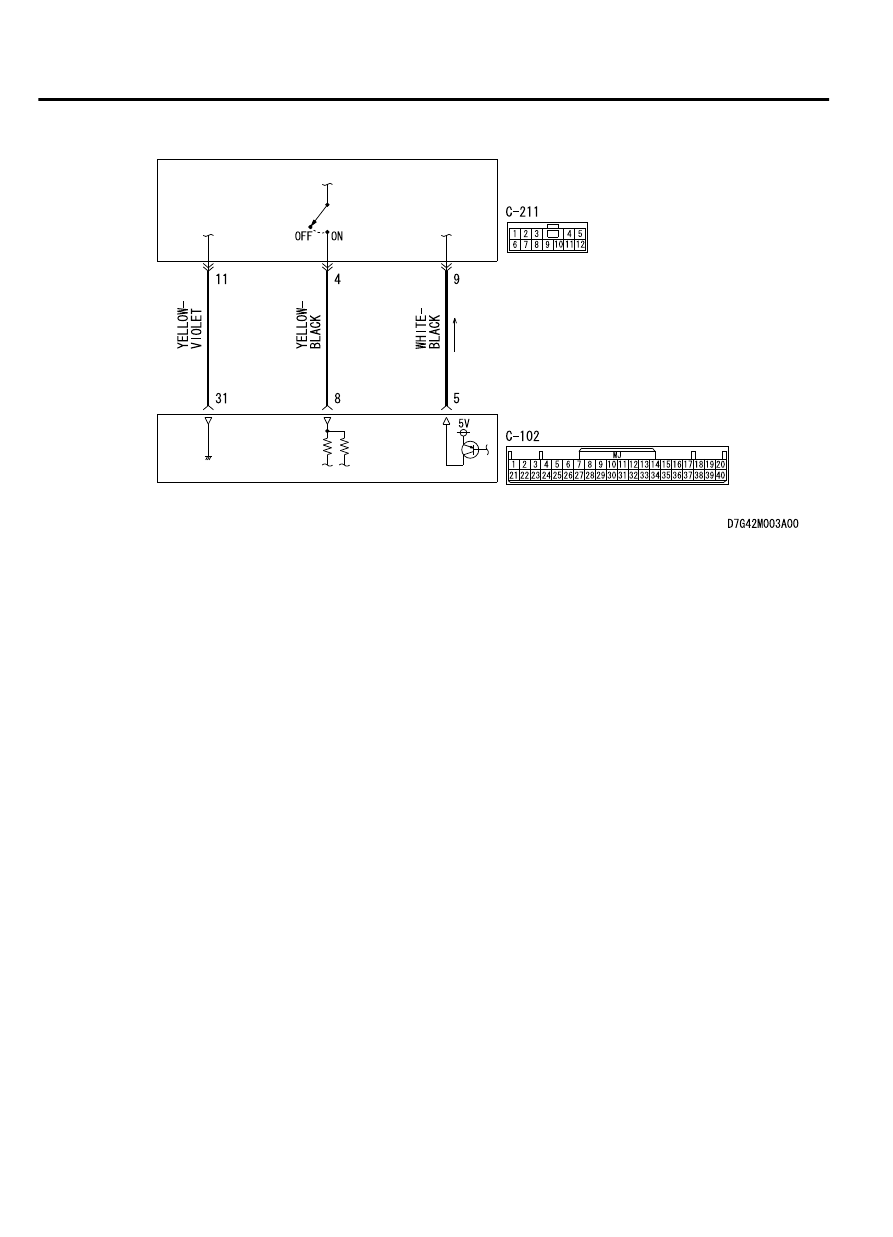

STEP 3. Check the wiring harness between the key reminder
switch connector C-211 (terminal No. 4, 9) and the KOS-ECU
connector C-102 (terminal No. 8, 5).
｠
Check the signal lines for open circuit and short circuit.
Q:Is the wiring harness between key reminder switch
connector C-211 (terminal No. 4, 9) and the KOS-ECU
connector C-102 (terminal No. 8, 5) in good condition?
YES:
Go to Step 4.
NO:
The wiring harness may be damaged or the connector
(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

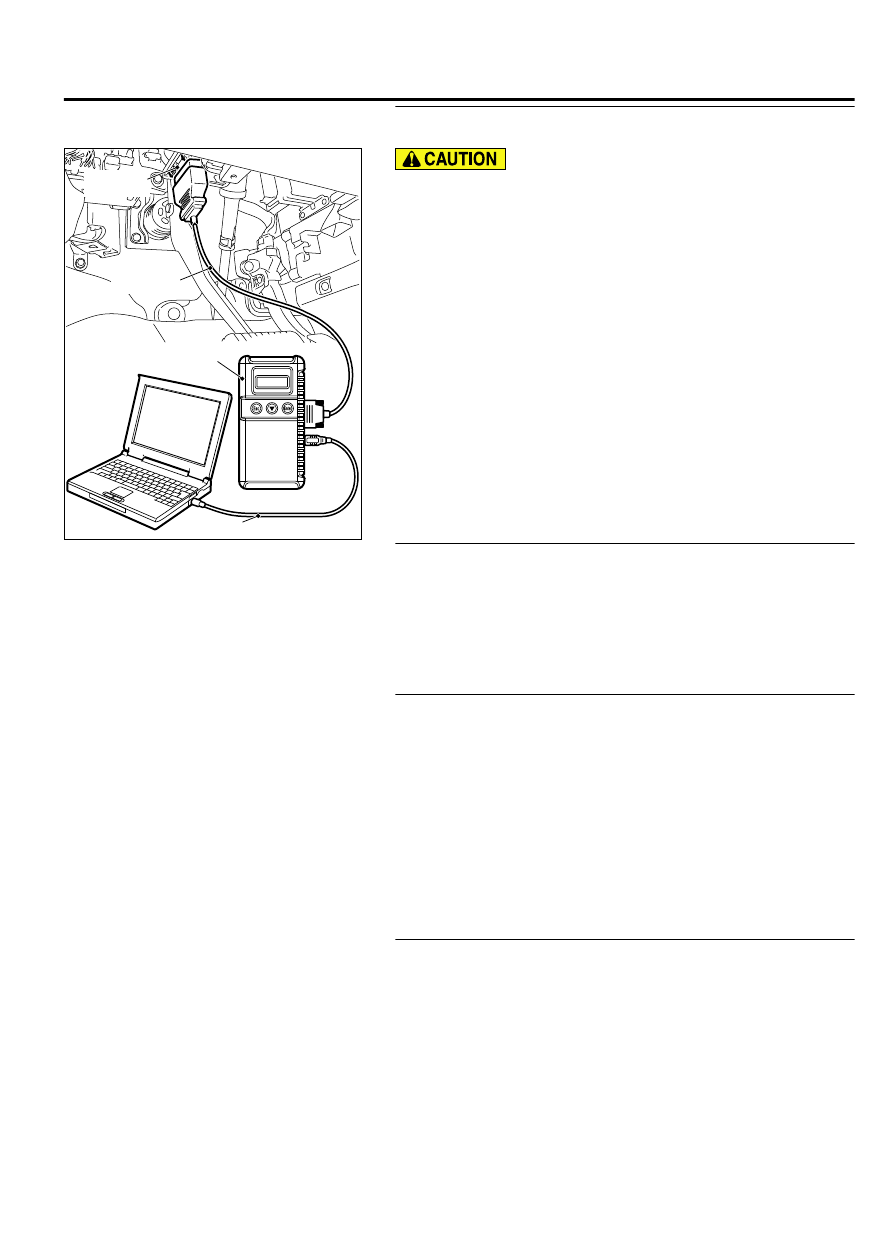

STEP 4. Replace the key reminder switch, and check
whether the diagnostic trouble code is reset.
(1)
Erase the DTC.
(2)
Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.
(3)
Check if the DTC is set.
Q:Is the DTC set?
YES:
Replace KOS-ECU and register the ID codes. (Refer
NO:
The trouble can be an intermittent malfunction (Refer
to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

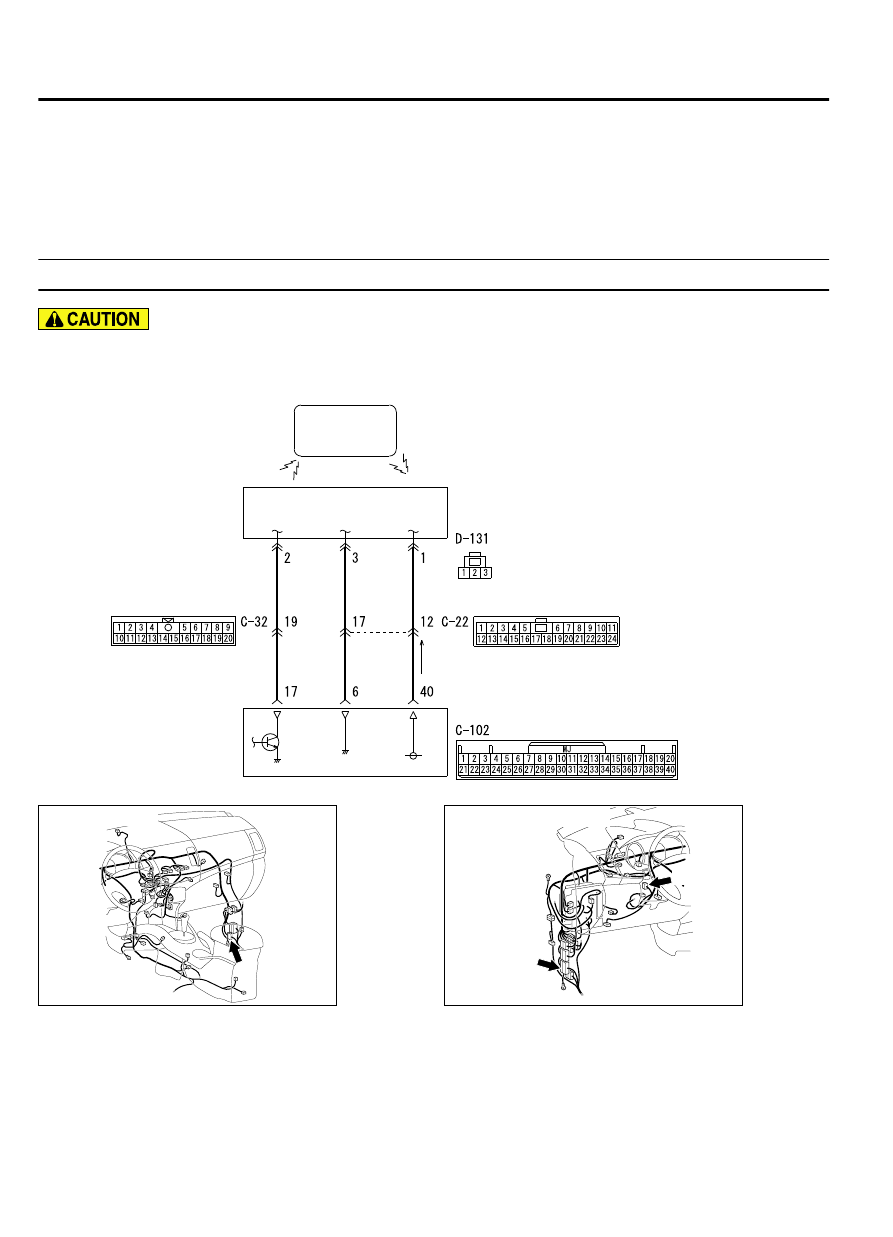

DTC B2409: STL unit comm.(No response)
M14209100126USA0000010000
｠
If the DTC B2409 is set, diagnose the CAN bus
lines.
｠
Whenever the steering lock unit is replaced,
ensure that the communication circuit is
normal.
KEYLESS OPERATION SYSTEM (KOS)
42B-47
DIAGNOSIS
