DTC C1014: Mutual monitoring of FL wheel speed sensor
M13506100018USA0000010000

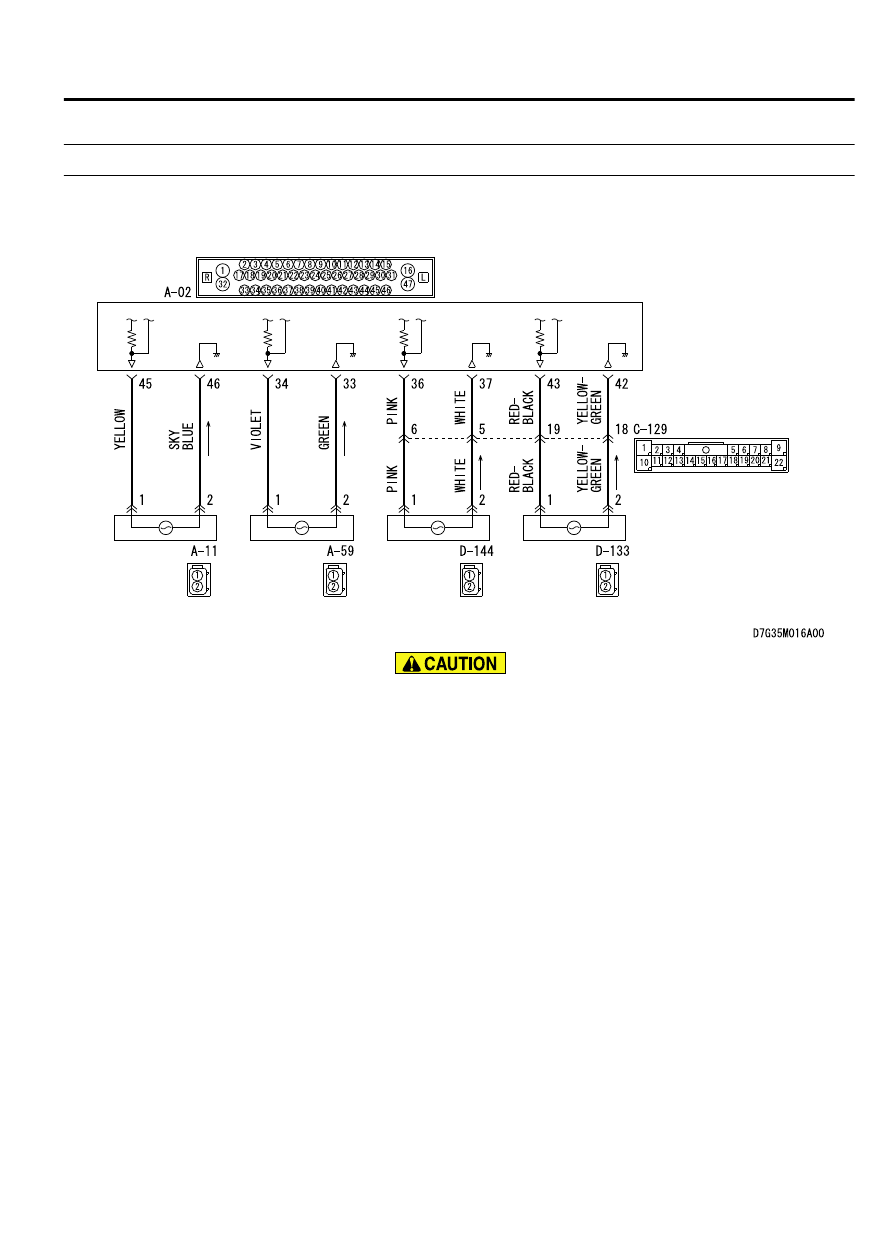

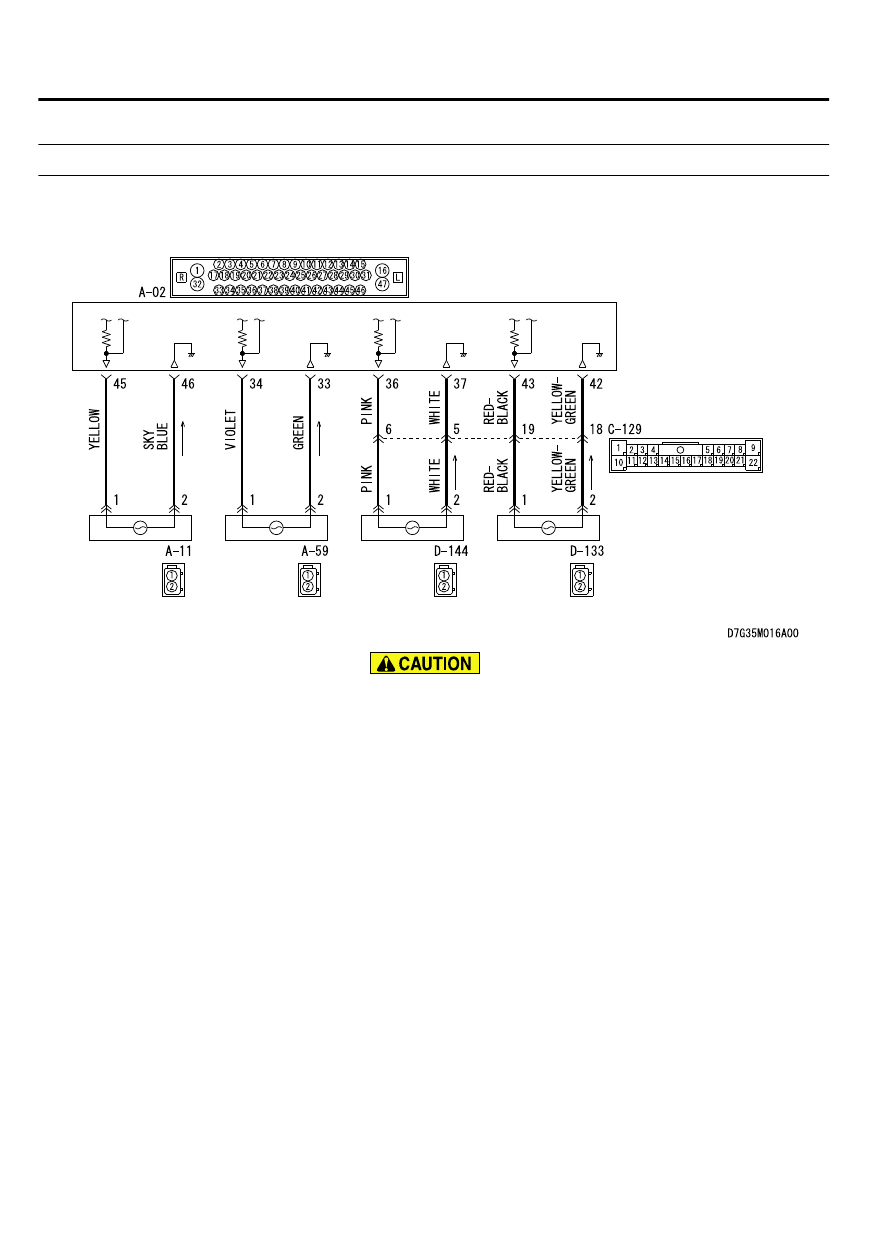

Wheel Speed Sensor Circuit
ASC-ECU
FRONT
WHEEL
SPEED
SENSOR
(LH)
FRONT
WHEEL
SPEED
SENSOR
(RH)
REAR
WHEEL
SPEED
SENSOR
(LH)
REAR
WHEEL
SPEED
SENSOR
(RH)
If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).
CIRCUIT OPERATION
⦆

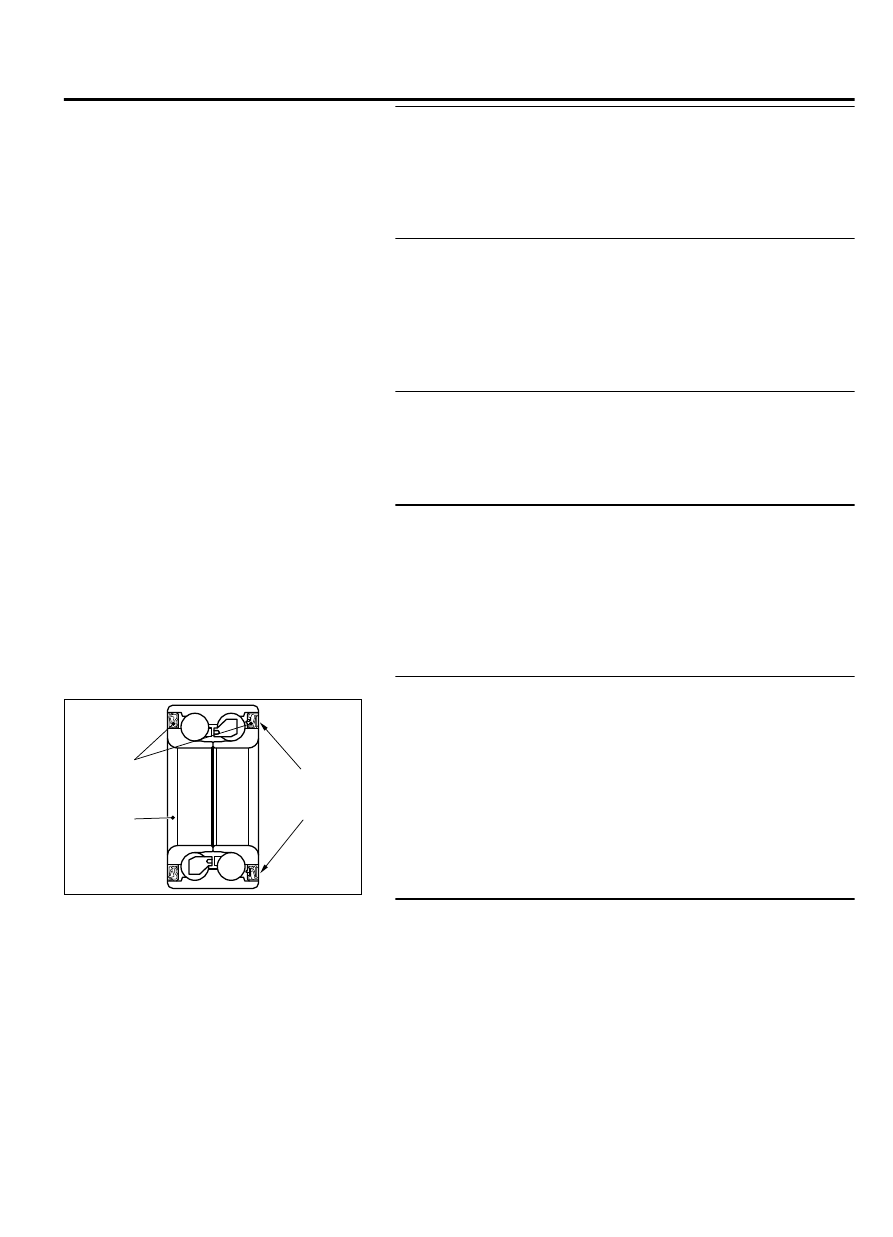

The wheel speed sensor is a kind of a pulse generator. It
consists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the wheel speed which rotates at the same speed of the
wheels and wheel speed sensors. This sensor outputs
frequency pulse signals in proportion to the wheel speed.
⦆
The pulse signals, which the wheel speed sensor creates, are
sent to ASC-ECU. ASC-ECU uses the frequency of the pulse
signals to determine the wheel speed.
DTC SET CONDITIONS
ASC-ECU monitors the signals from each wheel speed sensor
while the vehicle is being driven. If any fault below is found in
these sensor signals, ASC-ECU will set the relevant diagnostic
trouble code.
⦆
Missing wheel speed sensor signal
ACTIVE SKID CONTROL SYSTEM (ASC)
35C-55
DIAGNOSIS
