Mitsubishi Outlander XL. Manual - part 525

ZK603000AA00

58.

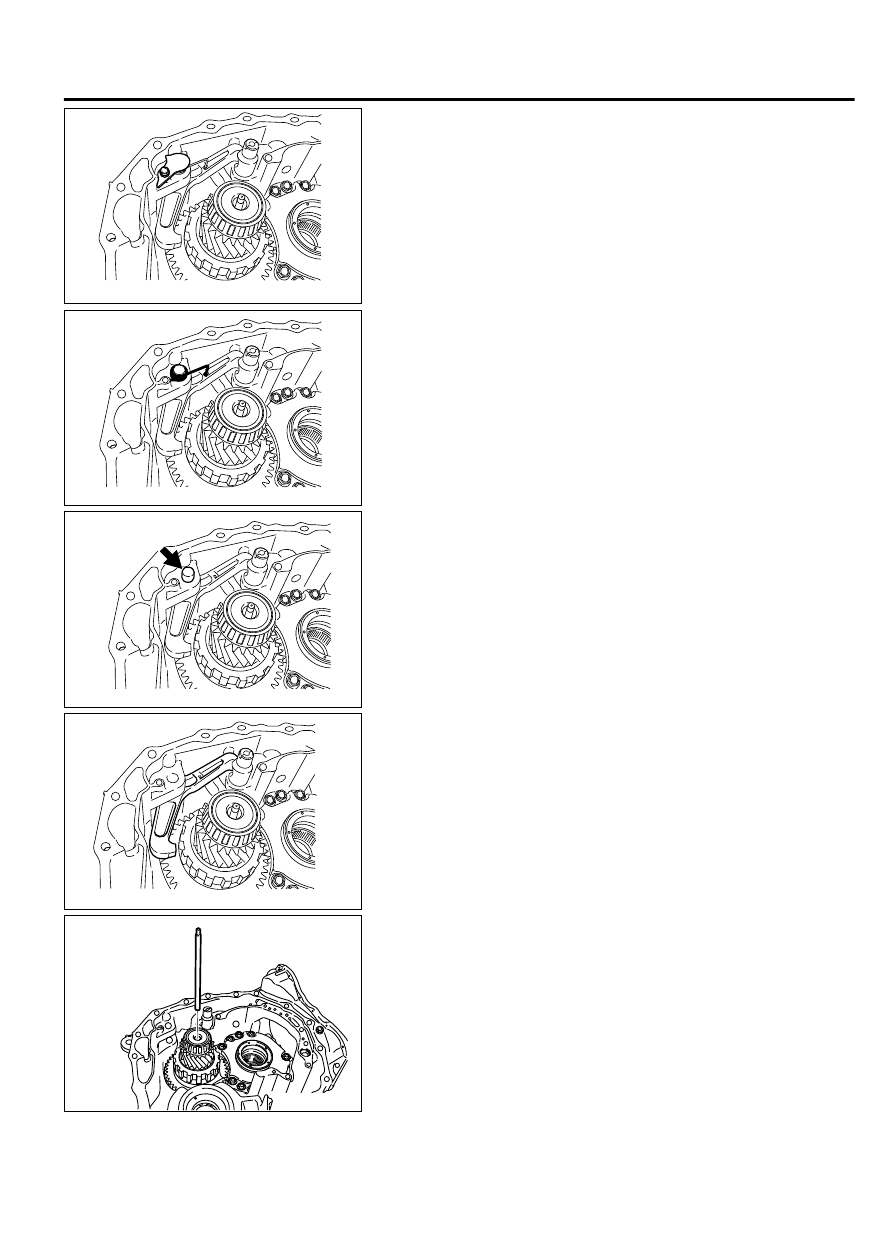

Remove the parking plate.

ZK603001AA00

59.

Remove the return spring.

ZK603002AA00

60.

Remove the parking shaft.

ZK603003AA00

61.

Remove the parking pawl.

ZK602199AA00

62.

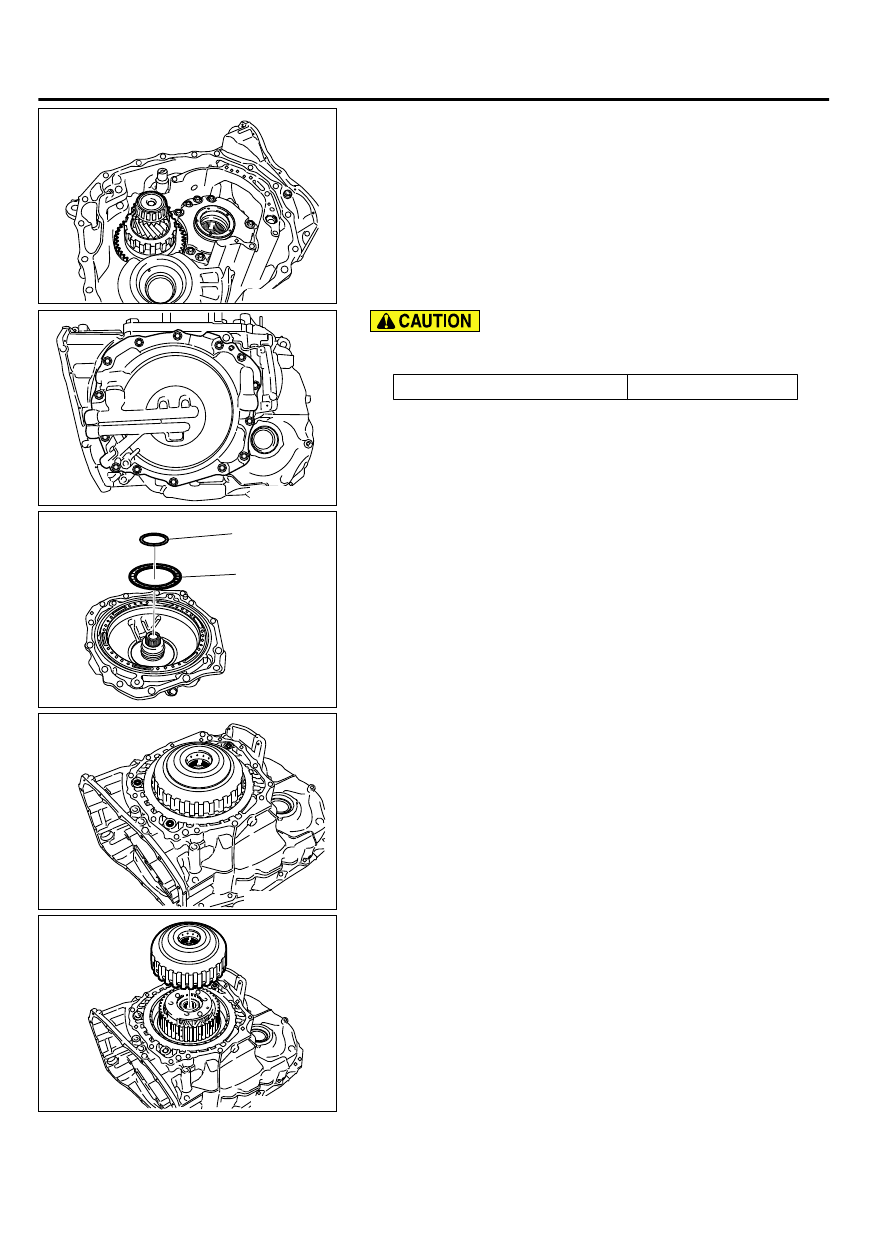

Remove the reduction gear lubrication tube.

AUTOMATIC TRANSAXLE OVERHAUL

23B-35

TRANSAXLE

ZK602200 AA00

63.

Remove the reduction gear assembly.

ZK602984AA00

Mounting bolts are Torx E16 bolts.

64.

Remove the side cover.

No. of bolts

14

ZK602203AA00

Spacer

Needle

bearing

65.

Remove the spacer and needle bearing from the side cover.

ZK602204AA00

66.

Remove the O-ring from the transaxle case.

ZK602205AA00

67.

Remove the high clutch assembly.

23B-36

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

ZK602206AA00

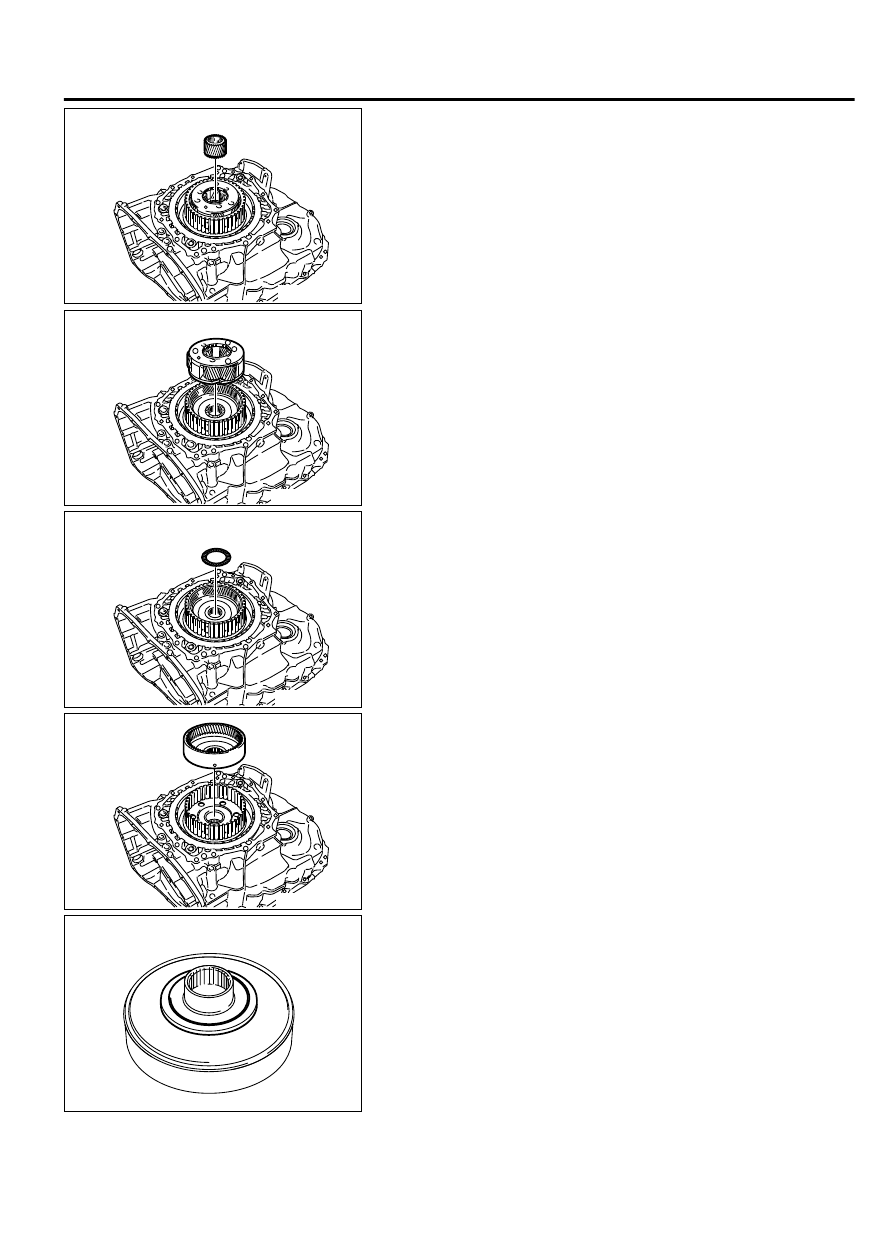

68.

Remove the reduction sun gear.

ZK602207AA00

69.

Remove the reduction carrier.

ZK602208AA00

70.

Remove the needle bearing from the reduction internal gear.

ZK602209AA00

71.

Remove the reduction internal gear from the high clutch hub.

ZK602210AA00

72.

Remove the needle bearing from the reduction internal gear.

AUTOMATIC TRANSAXLE OVERHAUL

23B-37

TRANSAXLE

ZK602211AA00

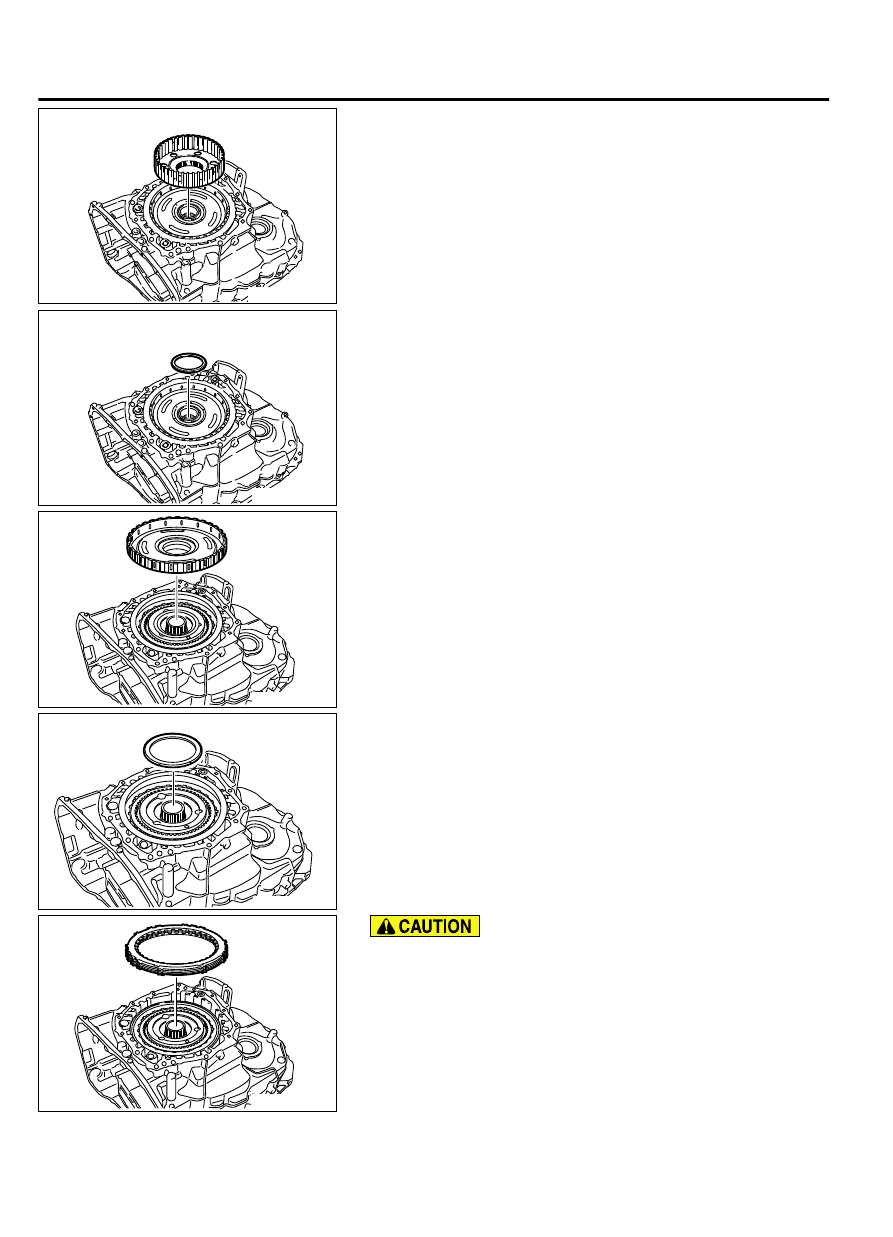

73.

Remove the high clutch hub.

ZK602212AA00

74.

Remove the needle bearing from the RR sun gear on the rear
side.

ZK602213AA00

75.

Remove the RR sun gear on the rear side.

ZK602214AA00

76.

Remove the needle bearing from the RR carrier assembly.

ZK602215AA00

Check the plates for damage, deformation, surface burn or
permanent strain. If faulty, replace.

77.

Remove the 2-6 brake retaining plate, drive plate and driven
plate from the transaxle case.

23B-38

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
