DTC

ITEM

P0443

Evaporative emission control system purge control valve circuit

P0446

Evaporative emission control system vent control circuit

P0450

Evaporative emission control system pressure sensor malfunction

P0451

Evaporative emission control system pressure sensor range/performance

P0452

Evaporative emission control system pressure sensor low input

P0453

Evaporative emission control system pressure sensor high input

P0455

Evaporative emission control system leak detected (gross leak)

P0456

Evaporative emission control system leak detected (very small leak)

P0461

Fuel level sensor circuit range/performance (main)

P0462

Fuel level sensor circuit low input

P0463

Fuel level sensor circuit high input

P0489

EGR valve (stepper motor) circuit malfunction (Ground short)

P0490

EGR valve (stepper motor) circuit malfunction (Battery short)

P0506

Idle control system RPM lower than expected

P0507

Idle control system RPM higher than expected

P0551

Power steering pressure switch circuit range/performance

P0552

Power steering pressure sensor circuit low input

P0553

Power steering pressure sensor circuit high input

P0603*

EEPROM malfunction

P0606*

Engine control module main processor malfunction

P0630*

Vehicle Identification Number (VIN) malfunction

P0638*

Throttle actuator control motor circuit range/ performance

P0642*

Throttle position sensor power supply

P0657*

Throttle actuator control motor relay circuit malfunction

P1020

Mitsubishi innovative valve timing electronic control system (MIVEC) performance problem

P1021

Engine oil control valve circuit

P1233*

Throttle position sensor (main) plausibility

P1234*

Throttle position sensor (sub) plausibility

P1235*

Mass airflow sensor plausibility

P1236*

A/D converter

P1237*

Accelerator pedal position sensor plausibility

P1238*

Mass airflow sensor plausibility (torque monitor)

P1239

Engine RPM plausibility

P1241

Torque monitor

P1540

LIN communication check by ECM (sending message to radiator sensor) <California>

P1541

LIN communication (receiving message from radiator sensor) <California>

P1543

DOR tampering monitor (temperature check after thermostat open) <California>

P1544

DOR tampering monitor (temperature check before thermostat open) <California>

P1545

DOR tampering monitor (temperature change after thermostat open) <California>

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-11

DIAGNOSTIC FUNCTION

DTC

ITEM

P1546

DOR tampering monitor (temperature check at cold start) <California>

P1547

DOR tampering monitor (rationality check) <California>

P1580

DOR radiator tampering monitor (encrypted message) <California>

P1590*

TCM to ECM communication error in torque reduction request

P1603*

Battery backup line malfunction

P1676*

Variant coding

P2066

Fuel level sensor (sub) circuit range/performance

P2100*

Throttle actuator control motor circuit (open)

P2101*

Throttle actuator control motor magneto malfunction

P2122*

Accelerator pedal position sensor (main) circuit low input

P2123*

Accelerator pedal position sensor (main) circuit high input

P2127*

Accelerator pedal position sensor (sub) circuit low input

P2128*

Accelerator pedal position sensor (sub) circuit high input

P2135*

Throttle position sensor (main and sub) range/performance problem

P2138*

Accelerator pedal position sensor (main and sub) range/performance problem

P2195

Heated oxygen sensor inactive (bank 1 sensor 1)

P2197

Heated oxygen sensor inactive (bank 2 sensor 1)

P2228*

Barometric pressure circuit low input

P2229*

Barometric pressure circuit high input

P2252

Heated oxygen sensor offset circuit low voltage

P2253

Heated oxygen sensor offset circuit high voltage

P2423

HC adsorber (HC trap catalyst) efficiency below threshold <California>

P2567

LIN communication check by radiator sensor (thermistor error) <California>

U0101*

A/T-ECU time-out

U0141*

Combination meter time-out

U1180*

Combination meter time-out

NOTE:

If the Malfunction Indicator Lamp (SERVICE

ENGINE SOON or Check Engine Lamp) illuminates
because of a malfunction of the engine control
module (ECM), communication between the scan tool
MB991958 (M.U.T.-III sub assembly) and the ECM is
impossible. In this case, the diagnostic trouble
code cannot be read.

NOTE:

After the ECM has detected a malfunction,

the Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) illuminates when the
engine is next turned on and the same malfunction
is re-detected. However, for items marked with a
"*" in the DTC NO. column, the Malfunction
Indicator Lamp (SERVICE ENGINE SOON or Check

Engine Lamp) illuminates only on the first
detection of the malfunction.

NOTE:

After the Malfunction Indicator Lamp

(SERVICE ENGINE SOON or Check Engine Lamp)
illuminates, it will be switched off under the
following conditions.

｠

When  the  ECM  monitored  the  powertrain
malfunction  three  times*  and  met  set  condition
requirements, it detected no malfunction. *: In this
case, "one time" indicates from engine start to next
engine start.

13Ab-12

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC FUNCTION

｠

For misfiring or a fuel trim malfunction, when driving
conditions  (engine  speed,  engine  coolant
temperature,  etc.)  are  similar  to  those  when  the
malfunction was first recorded.

NOTE:

Sensor 1 indicates the sensor mounted at a

position closest to the engine, and sensor 2
indicates the sensor mounted at the position

second closest to the engine. Also, sensor 3
indicates the sensor mounted at the position third
closest to the engine.

NOTE:

Bank 1 indicates the right bank side

cylinder, and bank 2 indicates the left bank side
cylinder.

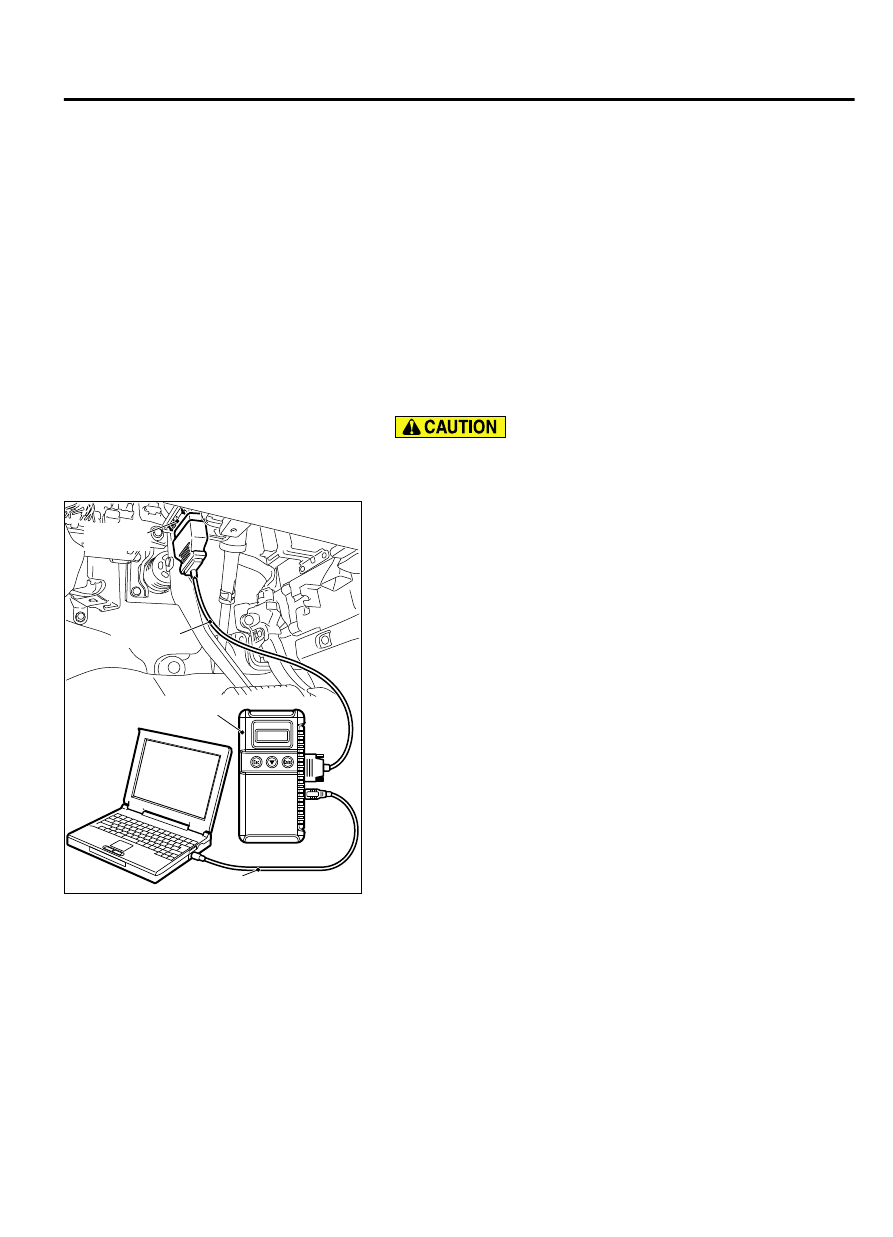

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

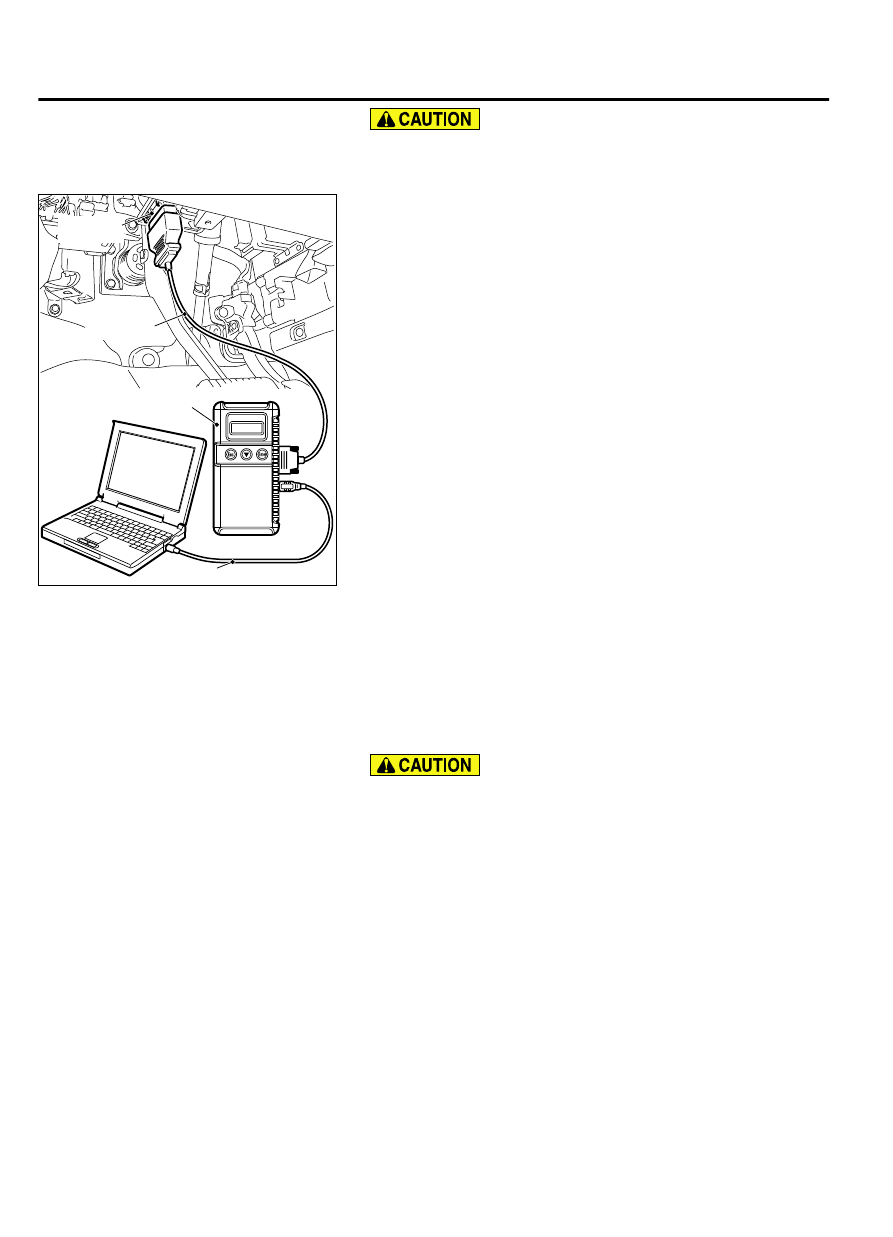

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to special tool MB991824.

5.

Connect special tool MB991910 to the data link connector.

6.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When the special tool MB991824 is energized,

special tool MB991824 indicator light will be illuminated
in a green color.

7.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting the scan tool MB991958 is the reverse

of the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC

TROUBLE CODES.

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-13

DIAGNOSTIC FUNCTION

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System select."

4.

Choose "from 2006 MY" under "MODEL YEAR".

5.

Check that "Vehicle Information" contents are correct.

6.

Choose "MFI".

7.

Select "Diagnostic Trouble Code"

8.

If a DTC is set, it is shown.

9.

Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.
