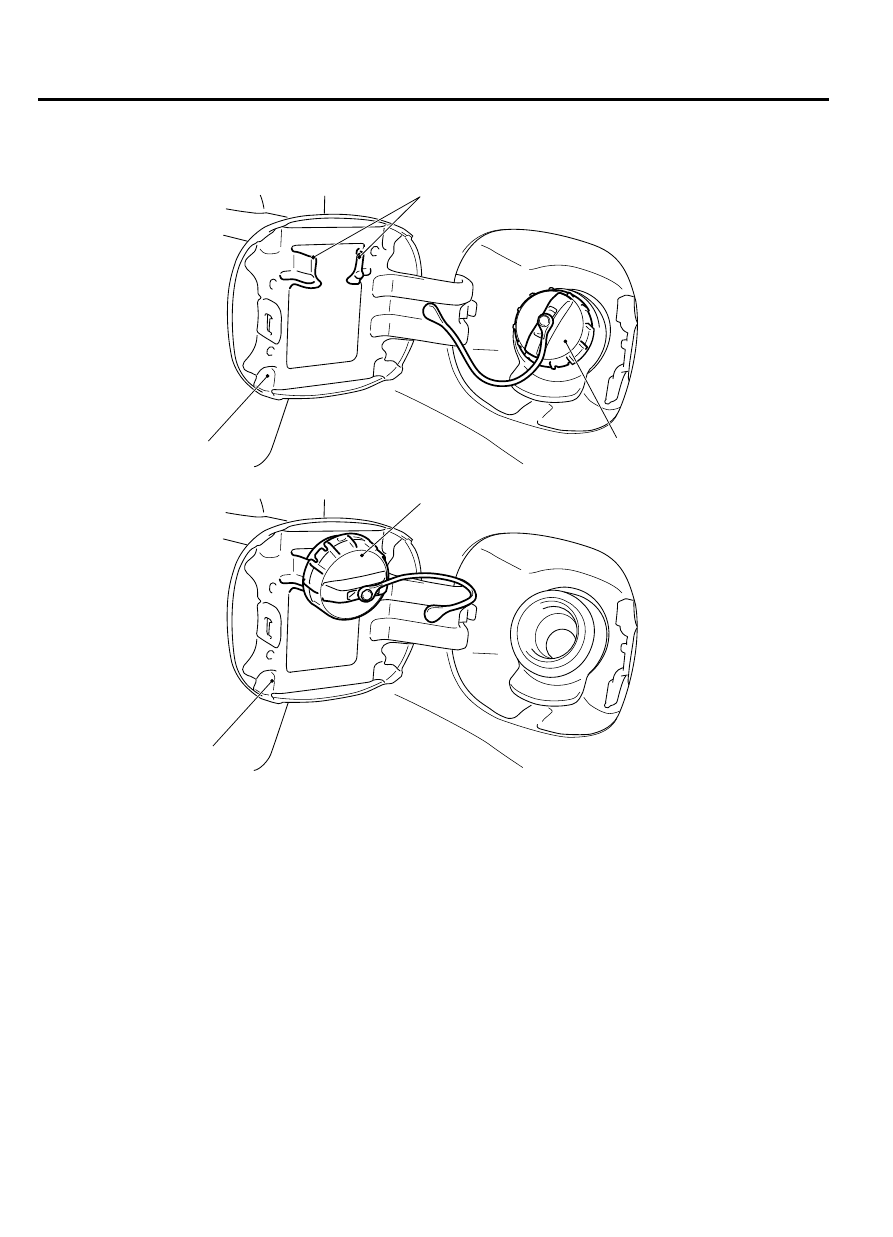

FUEL FILLER DOOR

M24200000140USA0000010000

ZC6001310000

Fuel filler cap holder

Fuel filler door

Fuel filler door

Fuel filler cap

Fuel filler cap

<When using fuel filler cap holder>

The fuel filler cap holder has been installed to the fuel
lid, holding the removed cap in refueling to prevent the
fuel cap from being left open.

42A-10

BODY

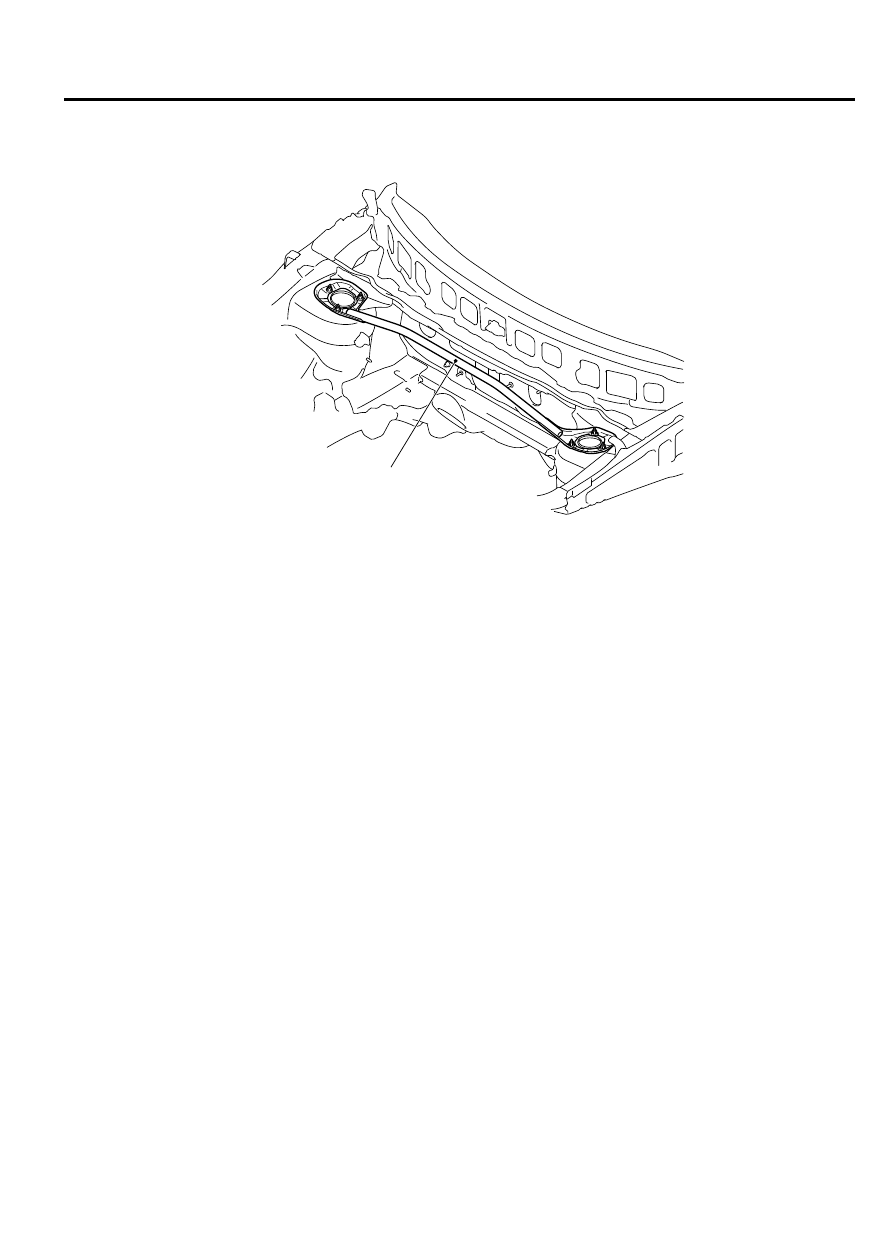

STRUT TOWER BAR

STRUT TOWER BAR

M24200000013USA0000010000

ZC600132

Strut tower bar

0000

The  strut  tower  bar  has  been  adopted  to  the  strut
attachment point to improve steering ability.

BODY

42A-11

DOOR AND LIFTGATE

DOOR AND LIFTGATE

DOOR AND LIFTGATE LOCK

M24200000011USA0000010001

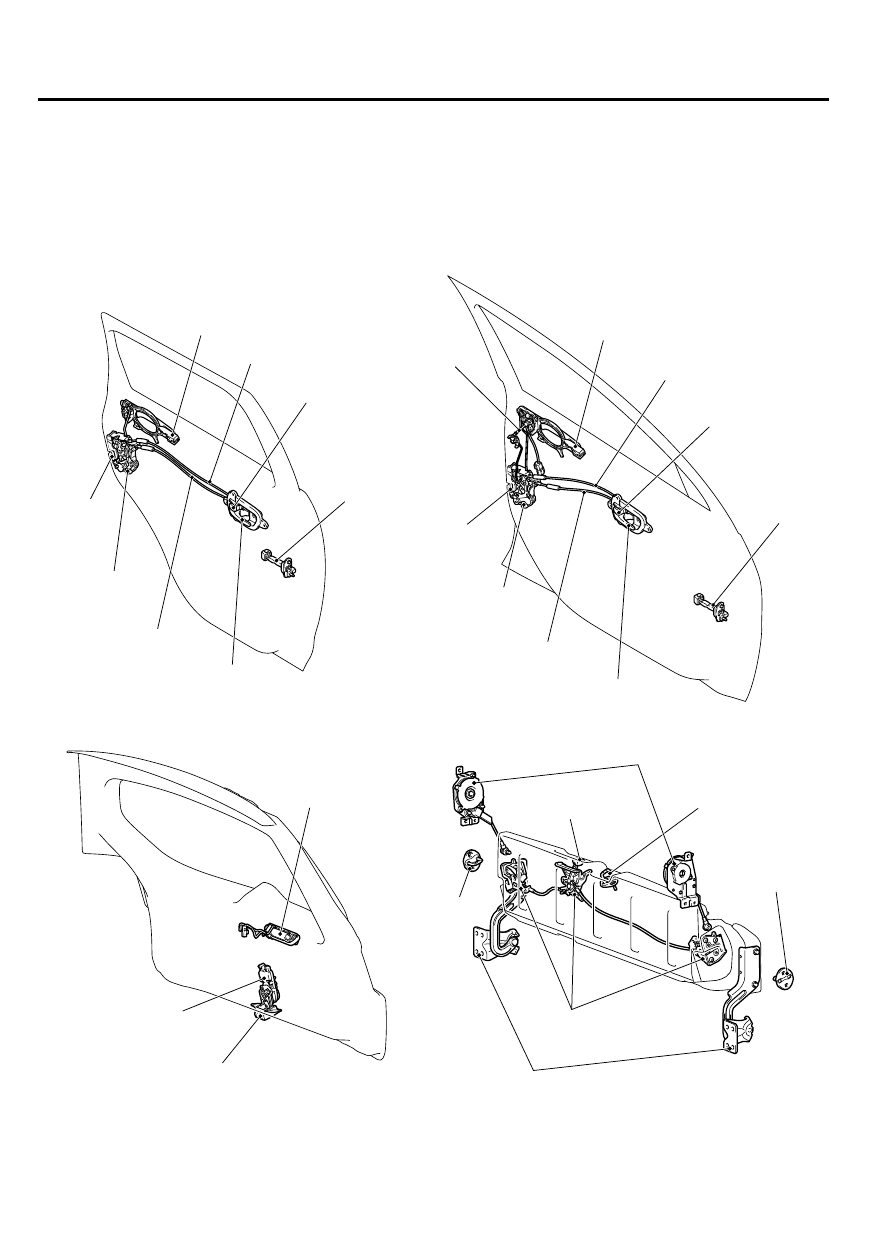

CENTRAL DOOR LOCKING

ZC6001330000

<Front door>

<Rear door>

Inside lock cable

Inside handle

Outside handle

Door lock
actuator

Outside handle

Door latch
assembly

Door latch
assembly

Door lock
actuator

Inside handle cable

Inside lock cable

Inside handle

Inside handle cable

Key cylinder
(Driver's side only)

Inside lock knob

Inside lock knob

Door check

Door check

ZC6001340000

<Liftgate upper>

Liftgate lock actuator

Liftgate lock
release handle

Liftgate upper latch assembly

<Liftgate lower>

Liftgate lock
release handle knob

Liftgate lower latch assembly

Liftgate lower cable assembly

Striker

Striker

Striker

Liftgate lower hinge

42A-12

BODY

DOOR AND LIFTGATE

ZC600368

LOCK

LOCK

0000

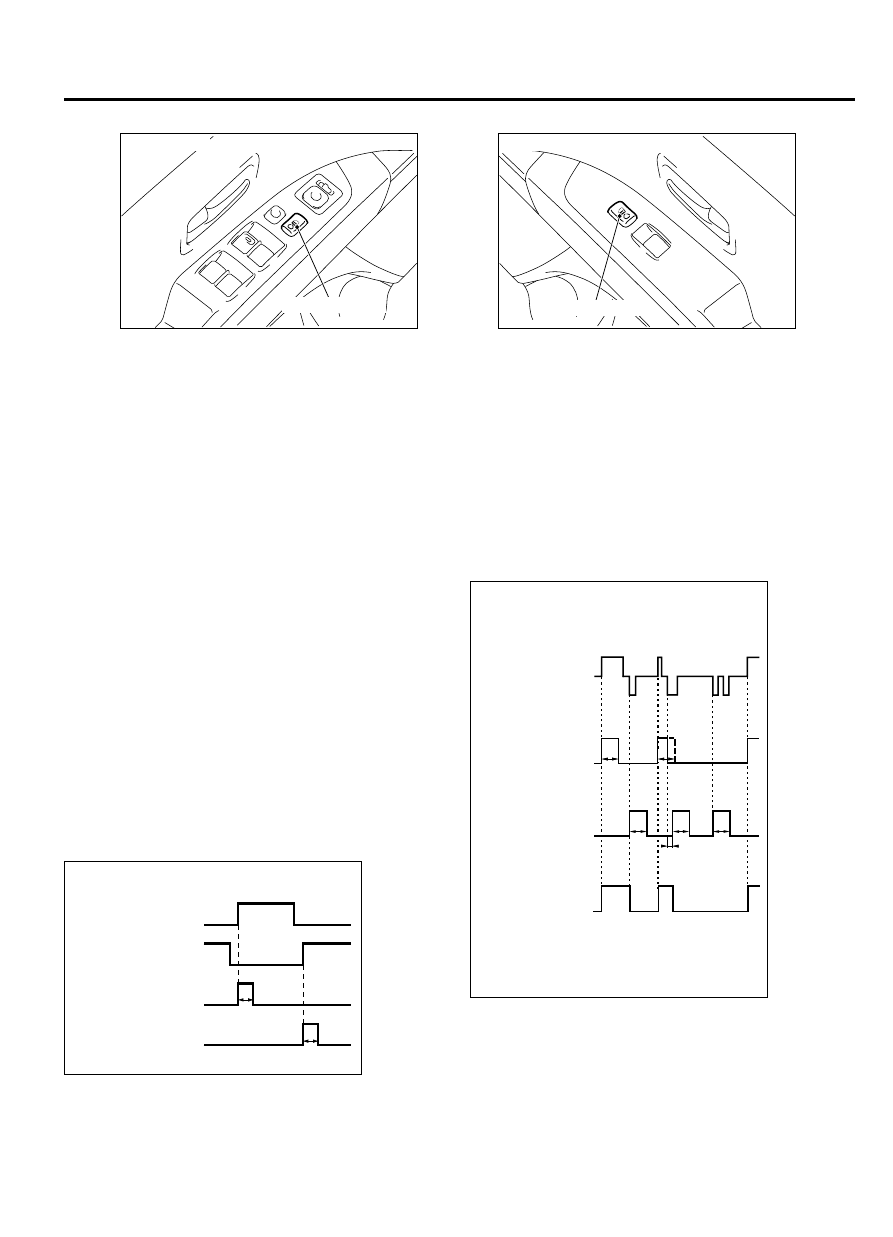

Location of the door lock switches

Driver's side

Passenger's side

Door lock switch

Door lock switch

｠

The  central  door  locking  system  locks/unlocks  all
the  doors  and  liftgate  using  the  driver's  door  key
cylinder,  the  driver’s  side  door  lock  switch  or  the
passenger’s side door lock switch.

｠

The  child  protection  function  prevents  the  rear
doors  from  being  opened  accidentally  during
driving.

｠

The  key-in  prevention  function  has  been
introduced.

｠

The  selector  "P"  position-linked  door  unlocking
function has been introduced.

｠

The direct combination key cylinder mechanism has
been adopted.

DESCRIPTION OF CONSTRUCTION AND

OPERATION

CENTRAL DOOR LOCKING
All  the  doors  (including  liftgate)  can  be  locked/
unlocked, using the door key cylinder on the driver’s
door,  the  driver’s  side  door  lock  switch  or  the
passenger’s side door lock switch.
The function that allows the driver's door to be opened
by pulling the driver's door inside handle even when
the driver's door inside lock knob is in the lock position
is called "override function".

ZC6001350000

t

t

ON

OFF

ON

OFF

ON

OFF

ON

OFF

t: 0.25 second

Lock switch

Lock relay output

Unlock relay output

Unlock switch

When the driver's door is locked by turning the door
lock key cylinder to the lock side (when the lock switch

turns ON after turning OFF the unlock switch in the
driver's  door  lock  actuator),  ETACS-ECU  turns  ON
the  lock  relay  output  for  0.25  second,  and  locks  all
doors (including the liftgate). When the driver's door
is unlocked by turning the door lock key cylinder to the
unlock side (when the unlock switch turns ON after
turning OFF the lock switch on the driver's door lock
actuator),  ETACS-ECU  turns  ON  the  unlock  relay
output  for  0.25  second,  and  unlocks  all  doors
(including the liftgate).

ZC600257

t

ON

(LOCK)

ON

(UNLOCK)

ON

OFF

ON

OFF

Driver's or
passenger's
door lock
switch

Unlock relay
output

Lock relay
output

t: 0.25 Second

t

t

Time lag

t

t

OFF

LOCK

UNLOCK

All doors
lock
actuator

0000
