MEMO

14-4

ENGINE COOLING

GROUP 15

INTAKE AND EXHAUST

CONTENTS

AIR INTAKE SYSTEM...............

15-2

AIR DUCT AND AIR CLEANER........

15-2

INTAKE MANIFOLD.................

15-3

EXHAUST SYSTEM..................

15-4

EXHAUST MANIFOLD................

15-4

EXHAUST PIPE AND MUFFLER........

15-4

15-1

AIR INTAKE SYSTEM

AIR DUCT AND AIR CLEANER

M21500000040USA0000010000

A front air intake system that actively sucks cooling air
from the front through the top of the radiator has been

adopted in order to improve engine performance and
reduce air intake noise.

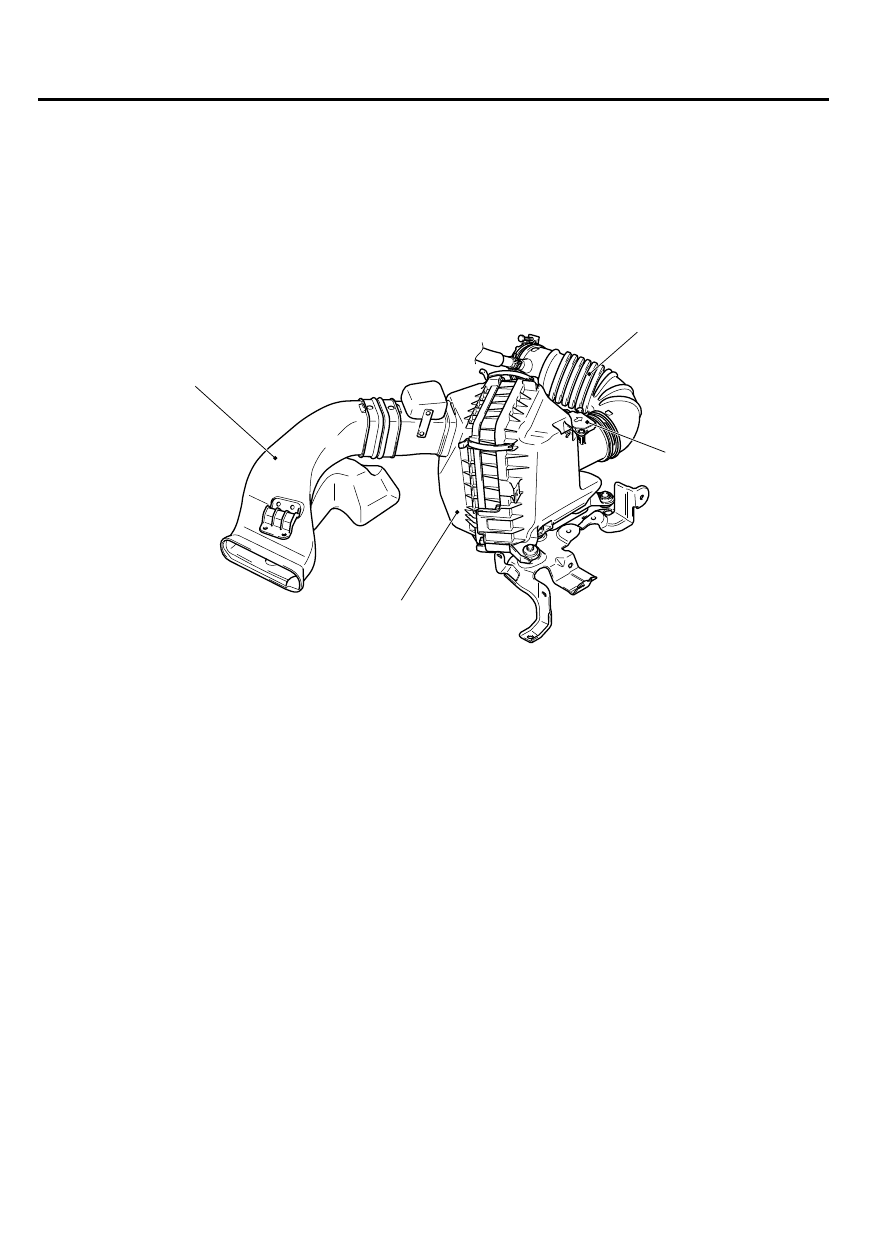

CONSTRUCTION DIAGRAM

ZC6003310000

Air cleaner intake duct

Air cleaner to throttle body duct

Mass airflow sensor

Air cleaner assembly

15-2

INTAKE AND EXHAUST

AIR INTAKE SYSTEM

INTAKE MANIFOLD

M21500000050USA0000010000

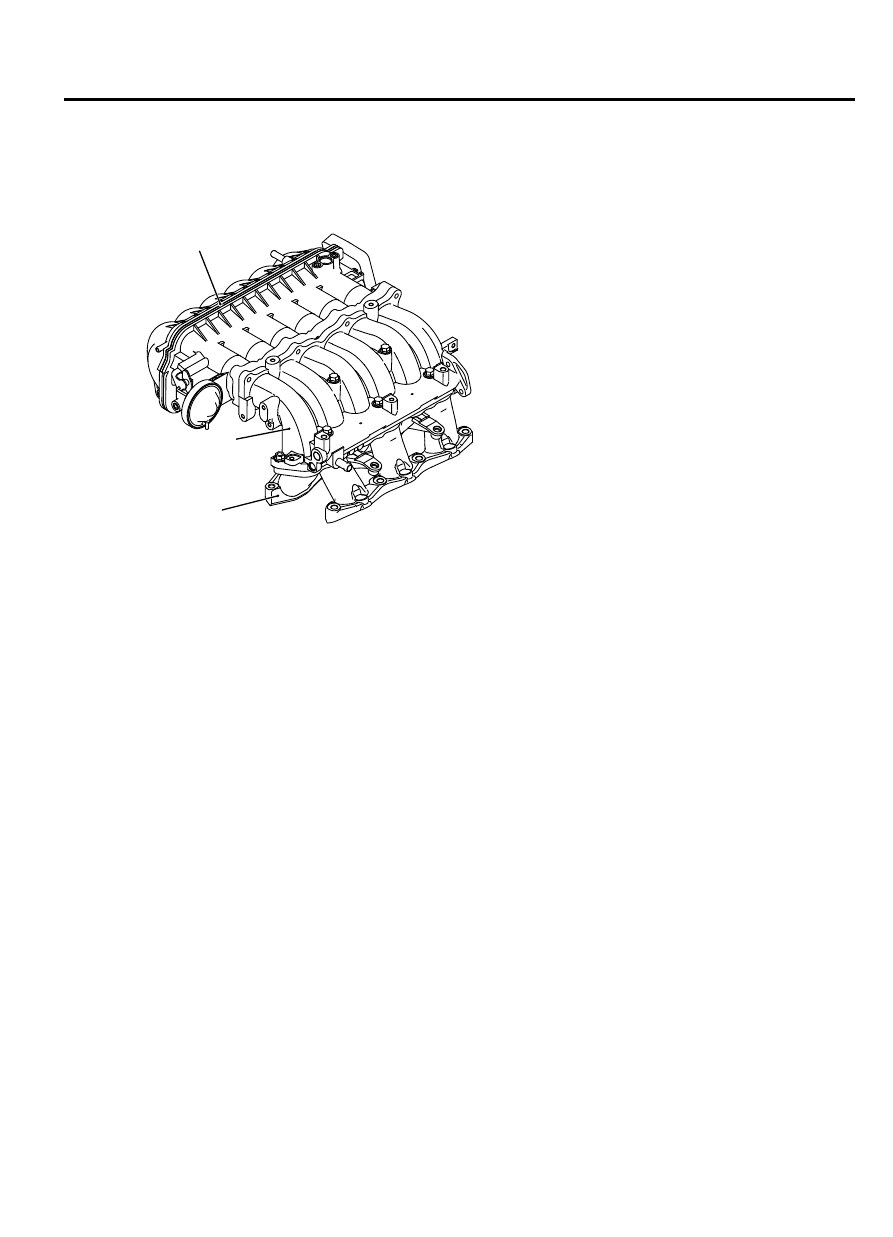

ZK602609AA00

Lower intake manifold

Upper intake manifold

Induction control
valve assembly

The intake manifold consists of the induction control
valve  assembly,  the  upper  intake  manifold  and  the
lower intake manifold.

The induction control valve assembly is made of resin,
the upper intake manifold and the lower one are made
of an aluminum cast to be lightweight.
The induction control valve assembly and the upper
intake manifold cannot be overhauled. They must be
replaced as an assembly.
Exhaust Gas Recirculation (EGR) distribution aisle is
had by upper intake manifold built-in.

INTAKE AND EXHAUST

15-3

AIR INTAKE SYSTEM
