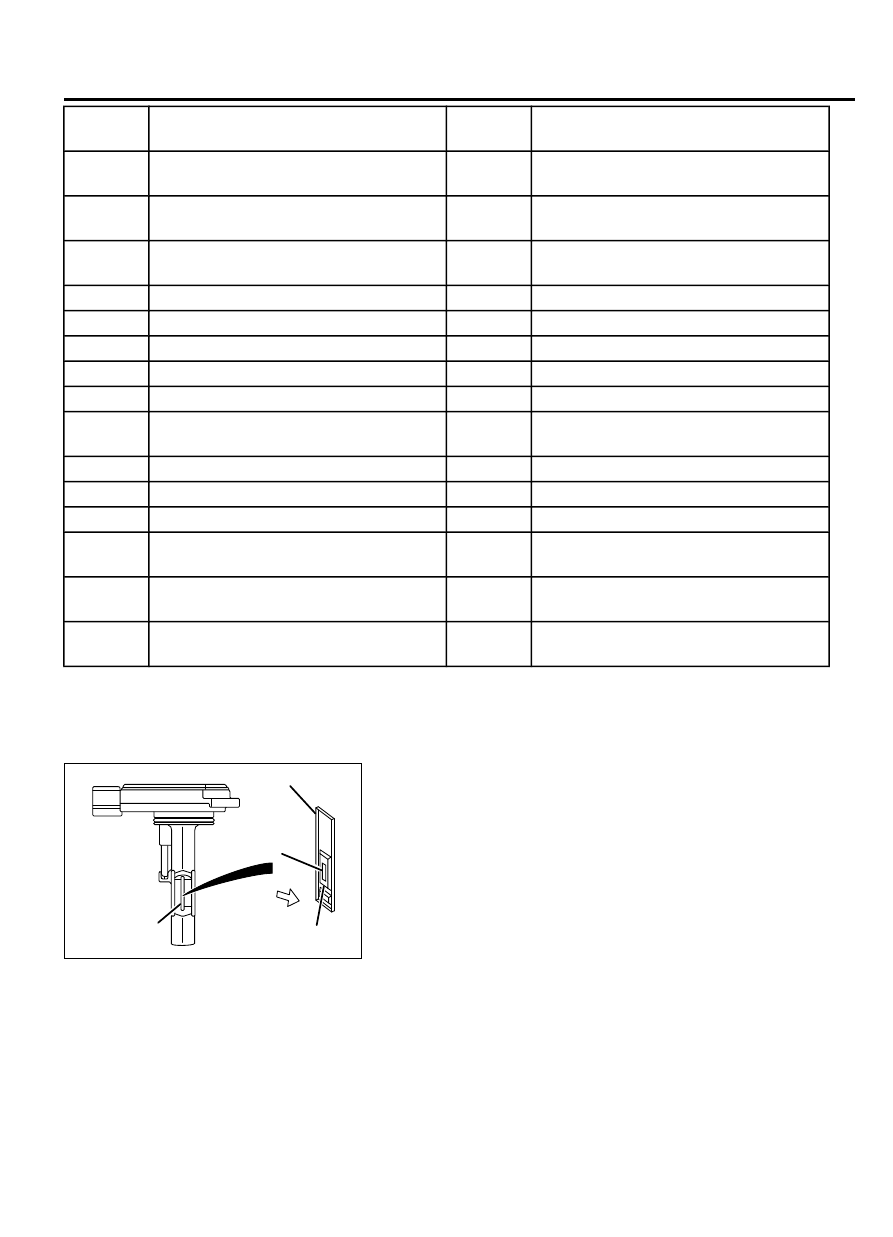

Mitsubishi Outlander XL. Manual - part 1240

9

Sensor supplied voltage

10

Throttle position sensor (main)

11

Throttle position sensor (sub)

12

Power supply voltage applied to throttle
position sensor

13

Throttle position sensor ground

14

Camshaft position sensor

15

Throttle actuator control motor (+)

16

Throttle actuator control motor (-)

18

No.3 injector

19

No.4 injector

20

Ignition  coil  No.3  (ignition  power
transistor)

21

Ignition  coil  No.4  (ignition  power
transistor)

24

Crankshaft position sensor ground

25

Left bank knock sensor

26

Engine coolant temperature sensor

27

Engine  coolant  temperature  sensor
ground

28

Right bank knock sensor

29

Right bank knock sensor ground

30

Camshaft position sensor ground

31

EGR valve (stepper motor coil <A>)

32

EGR valve (stepper motor coil <B>)

33

Right bank heated oxygen sensor (front)
heater

34

Left bank heated oxygen sensor (front)
heater

35

Left bank heated oxygen sensor (rear)
heater

36

Engine oil pressure switch (for warning
lamp)

37

Evaporative emission purge solenoid

38

Left bank heated oxygen sensor (front) 39

Left bank heated oxygen sensor (front)
offset voltage

40

Left bank heated oxygen sensor (rear) 41

Left bank heated oxygen sensor (rear)
offset voltage

42

Left bank knock sensor ground

43

Power supply voltage applied to power
steering pressure sensor

44

Power  supply  voltage  applied  to
manifold absolute pressure sensor

45

Manifold absolute pressure sensor

46

Manifold  absolute  pressure  sensor
ground

47

EGR valve (stepper motor coil <C>)

48

EGR valve (stepper motor coil <D>)

49

Right bank heated oxygen sensor (rear)
heater

50

No.5 injector

51

No.6 injector

52

Ignition  coil  No.5  (ignition  power
transistor)

53

Ignition  coil  No.6  (ignition  power
transistor)

54

Right bank heated oxygen sensor (front) 55

Right bank heated oxygen sensor (front)
offset voltage

56

Right bank heated oxygen sensor (rear) 57

Right bank heated oxygen sensor (rear)
offset voltage

58

Power steering pressure sensor

59

Power steering pressure sensor ground

60

Generator G terminal

61

Generator FR terminal

62

Generator L terminal

64

Intake manifold tuning solenoid

71

Throttle actuator control motor ground

72

Throttle  actuator  control  motor  power
supply

13A-8

MULTIPORT FUEL SYSTEM (MFI)

CONTROL UNIT

73

MFI relay (power supply)

74

Accelerator  pedal  position  sensor
(main)

75

Power  supply  voltage  applied  to
accelerator pedal position sensor (main)

76

Accelerator  pedal  position  sensor
(main) ground

77

Accelerator pedal position sensor (sub) 78

Power  supply  voltage  applied  to
accelerator pedal position sensor (sub)

79

Accelerator pedal position sensor (sub)
ground

81

ECM ground

82

Power supply

83

Throttle actuator control motor ground

84

Throttle actuator control motor relay

87

Mass airflow sensor

88

Mass airflow sensor ground

89

Intake air temperature sensor

90

CAN interface (high)

91

CAN interface (low)

92

Ignition switch-IG

93

ECM ground

96

Fuel pump relay

101*

Center  exhaust  pipe  heated  oxygen
sensor

102

A/C compressor relay

103

Flash EP-ROM power supply

104

Backup power supply

105

Ignition switch-ST

106

Starter relay

112

Fuel tank differential pressure sensor

113

Fuel  tank  differential  pressure  sensor
ground

114

Power  supply  voltage  applied  to  fuel
tank differential pressure sensor

115

Fuel tank temperature sensor

116*

Center  exhaust  pipe  heated  oxygen
sensor earth offset voltage

117

Evaporative

 emission

 ventilation

solenoid

118*

Center  exhaust  pipe  heated  oxygen
sensor heater

SENSOR

M21302000010USA0000010000

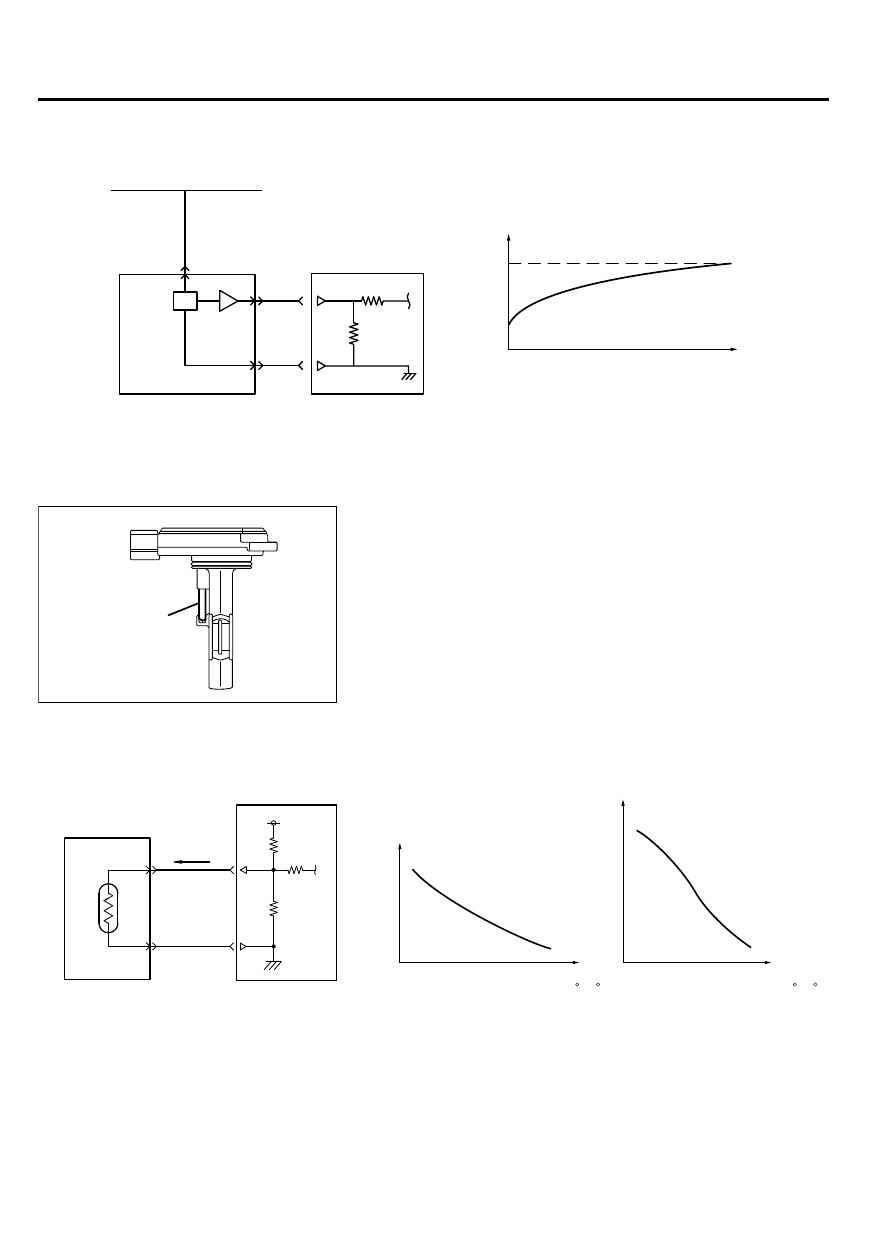

MASS AIRFLOW SENSOR

ZK600234 AA01

Sensing area

Silicon substrate

Heat sensing
resistor

Intake air

Diaphragm

Mass  airflow  sensor  is  installed  in  the  air  intake  hose.  Mass
airflow sensor is composed of an extremely small heatsensing
resistor. The mass airflow sensor controls the amount of electric
current flowing into the heat sensing resistor to keep the heat
sensing  resistor  at  a  constant  temperature  to  the  intake  air
temperature. The faster the air flow speed, the higher the mass
flow  rate.Because  the  amount  of  heat  transfer  from  the  heat
sensing  resistor  to  the  air  increases,  the  mass  airflow  sensor
increases  the  amount  of  electric  current  to  the  heat  sensing
resistor.  Thus,  the  amount  of  electric  current  increases  in
accordance with the air mass flow rate. The mass airflow sensor
measures  the  air  mass  flow  rate  by  detecting  the  amount  of
electric current. The mass airflow sensor amplifies the detected
electric current amount and outputs it into the ECM. ECM uses
this  output  current  and  engine  speed  to  calculate  and  decide
basic fuel injection time. Sensor properties are as shown in the
figure.

MULTIPORT FUEL SYSTEM (MFI)

13A-9

SENSOR

ZK603918

From MFI relay

Mass airflow sensor

ECM

Output current mA

Mass flow g/s

AA01

INTAKE AIR TEMPERATURE SENSOR

ZK600236AA01

Sensory part
(thermistor)

Intake  air  temperature  sensor  is  built  in  to  the  mass  airflow
sensor.  Intake  air  temperature  sensor  detects  intake  air
temperature through thermistor's resistance change and outputs
the voltage according to intake air temperature to ECM. ECM
uses this output voltage to compensate fuel injection control and
ignition  timing  control.  Sensor  properties  are  as  shown  in  the
figure.

ZK600237

ECM

Resistance k

Ω

Output voltage V

    Intake air temperature

sensor (thermistor)

5 V

AA02

Intake air

                               temperature  C ( F)

Intake air

                               temperature  C ( F)

13A-10

MULTIPORT FUEL SYSTEM (MFI)

SENSOR

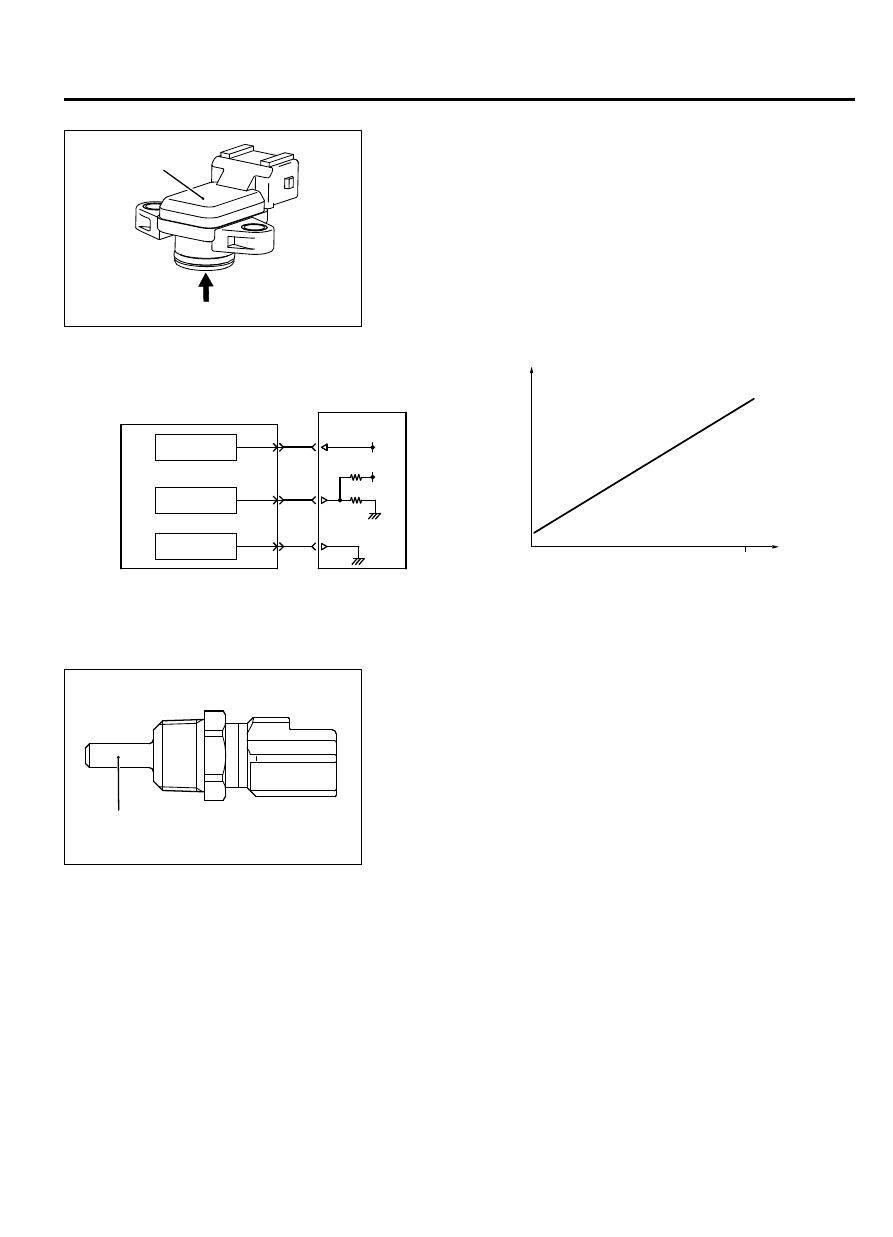

MANIFOLD ABSOLUTE PRESSURE SENSOR

ZK600232 AA01

Pressure

Manifold absolute
pressure sensor

The manifold absolute pressure sensor is installed in the intake
manifold  plenum.  Manifold  absolute  pressure  sensor  uses  a
piezo resistive semiconductor to output the voltage according to
manifold  absolute  pressure  to  ECM.  ECM  uses  this  output
voltage  to  compensate  fuel  injection  volume  according  to
manifold absolute pressure. Sensor properties are as shown in
the figure.



ZK600233

5V

0

101

5V

Ground

Output voltage V

Pressure kPa (in.Hg)

Manifold absolute pressure sensor

ECM

Power supply

Output signal

AA02

ENGINE COOLANT TEMPERATURE SENSOR

ZK600238AA00

Sensory part
(thermistor)

Thw  engine  coolant  temperature  sensor  is  installed  in  the
thermostat  housing.  Engine  coolant  temperature  sensor  uses
thermistor's  resistance  change  to  detect  coolant  temperature
and output the voltage according to coolant temperature to ECM.
ECM  uses  this  output  voltage  to  appropriately  control  fuel
injection  volume,  idle  speed  and  ignition  timing.  Sensor
properties are as shown in the figure.



MULTIPORT FUEL SYSTEM (MFI)

13A-11

SENSOR
