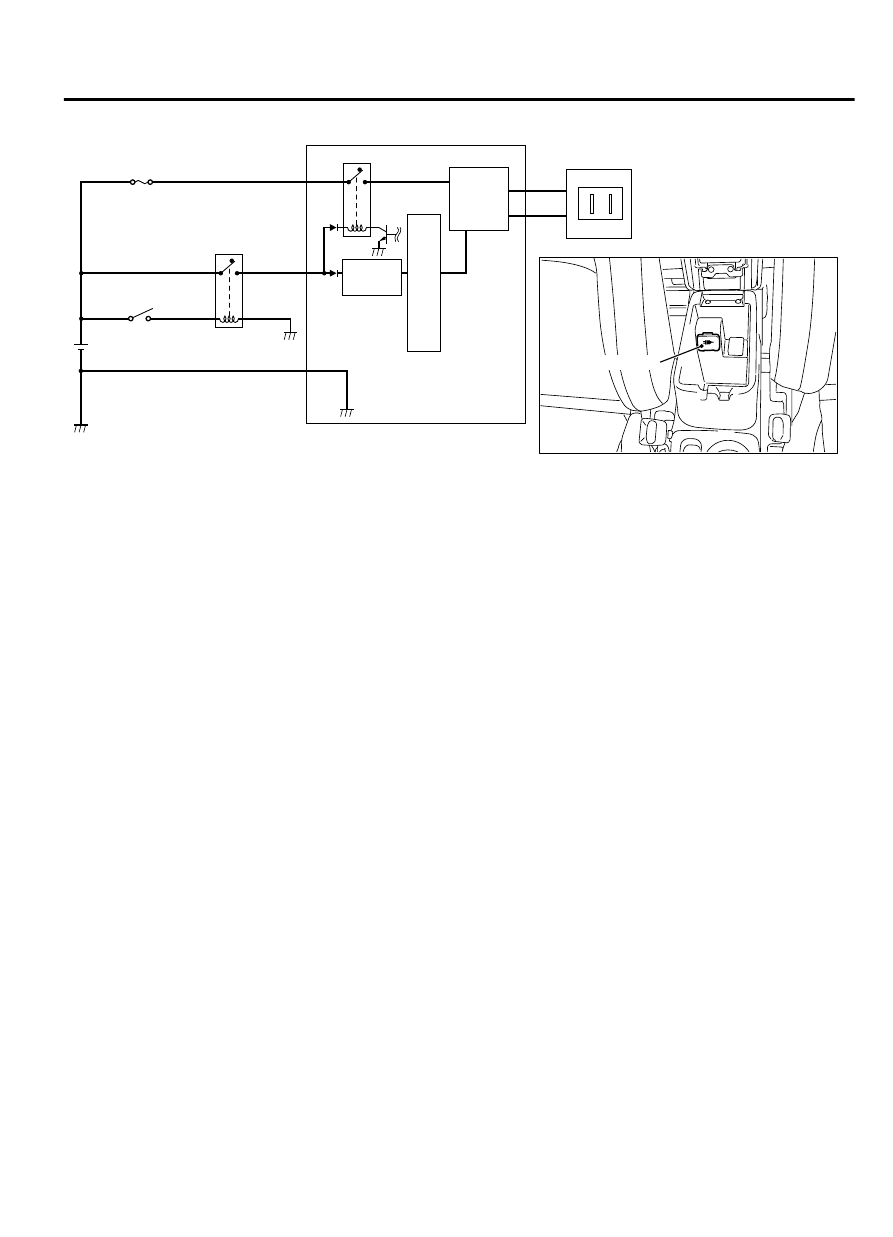

ZC600495

A C115V100

W

IG1 relay

IG1 swith
(IG1)

AC inverter

AC outlet

C
P
U

AC outlet

0000

Power
circuit

Inverter
parts

With the AC inverter, the DC power supply of the
vehicle battery can be inverted into the AC power
supply and provided from the AC outlet.

The electric appliance whose power consumption is
100 W or less when 115 V AC is supplied can be
used.

NOTE:

The home appliance whose power

consumption is 100 W or less but requires a
large amount of power at startup (such as TV,
refrigerator, vacuum cleaner) may not be used.

To  prevent  damages  caused  by  overcurrent,
overvoltage, low voltage, and overheat* when the
power is supplied, the protection function to stop the
power supply and prevention function against dead
battery have been provided.

NOTE:

*: When the inside of the vehicle is held

at high temperature (35°C or more) for a long

time (for example under the scorching sun), if
the AC power supply is used with the vehicle
parked, the operation may automatically stop to
prevent the inverter unit from being
overheated.After the power supply is cut off,
when the AC inverter temperature decreases, the
power automatically returns to ON.

When  the  power  supply  stops,  turn  the  ignition
switch to "LOCK" (OFF) position once to inhibit the
power  supply  to  the  inverter.  After  that,  turn  the
ignition switch to "ON" again for return.

ACCESSORY

54Ae-3

ACCESSORY SOCKET

ACCESSORY SOCKET

REMOVAL AND INSTALLATION

M15410400014USA0000010001

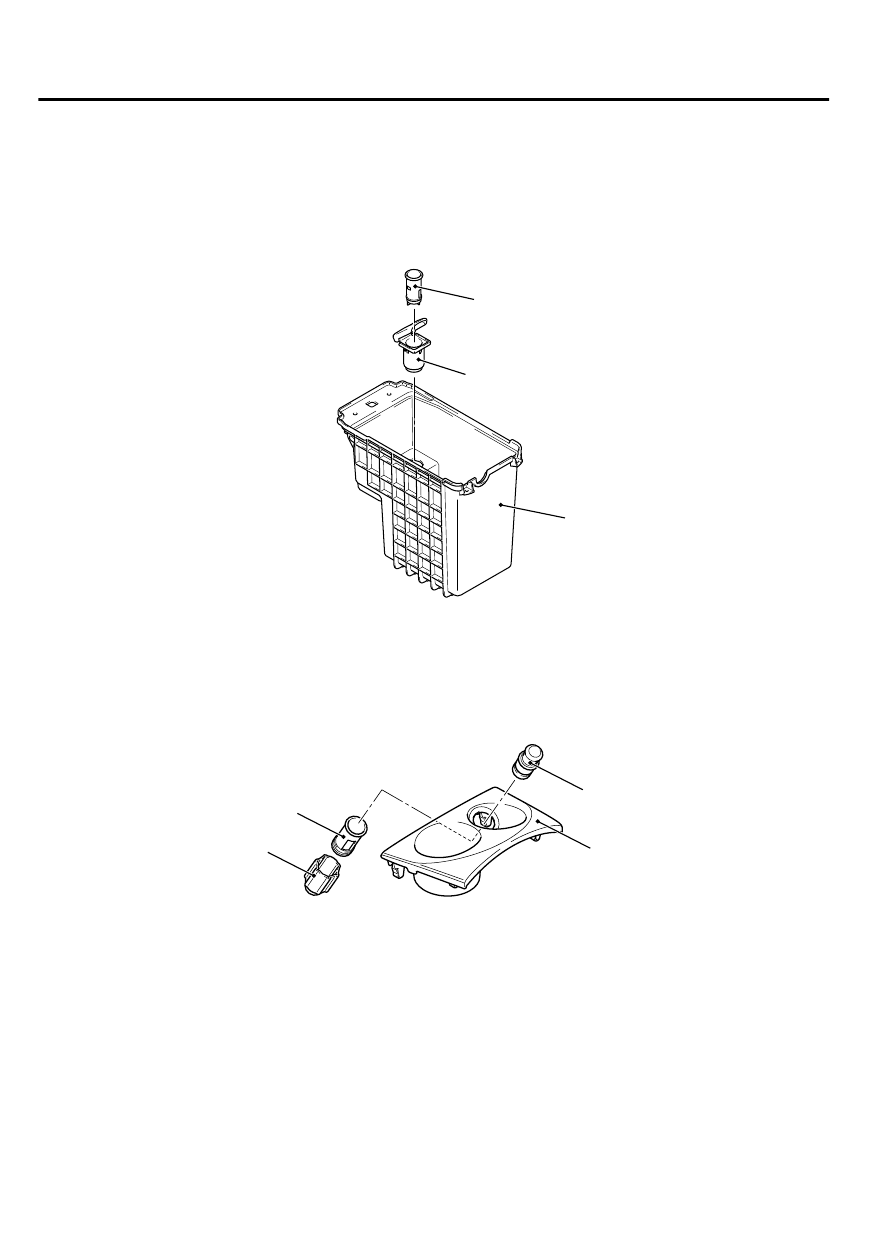

<REAR FLOOR CONSOLE>

ZC3056150000

2

1

3

Removal Steps

1.

Rear  floor  console  box  (Refer  to
GROUP  52A,  Rear  Floor  Console
Assembly P.52A-9.)

Removal Steps

<<A >>

2.

Accessory socket

3.

Accessory socket cover

<FRONT FLOOR CONSOLE>

ZC6002610000

2

4

3

1

Removal Steps

1

Front  floor  console  panel  (Refer  to
GROUP

 52A,

 Floor

 Console

Assembly P.52A-8.)

2.

Accessory socket case

Removal Steps

3.

Accessory socket cap

4.

Accessory socket

54Ae-4

ACCESSORY

ACCESSORY SOCKET

<LOWER QUARTER TRIM (RH)>

ZC3056170000

2

1

3

Removal Steps

1.

Lower  quarter  trim  (RH)  (Refer  to
GROUP 52A, Interior Trim P.52A-10.)

2.

Accessory socket case

Removal Steps

3.

Accessory socket

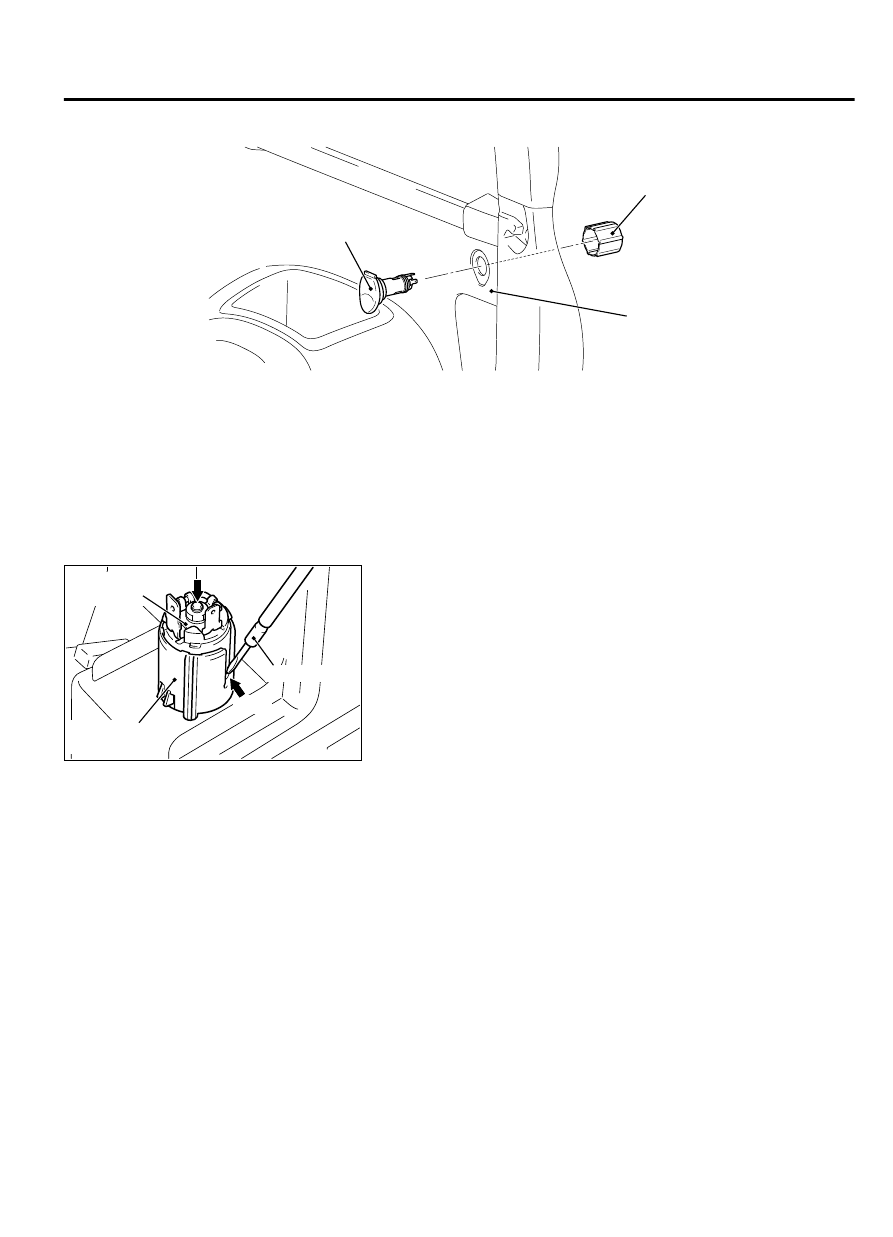

REMOVAL SERVICE POINT

<<A>> ACCESSORY SOCKET REMOVAL

ZC3056160000

Screwdriver (-)

Claw

Push

Accessory
socket cover

Accessory
socket

Lift the accessory socket cover tab, then remove by pressing
down the accessory socket.

ACCESSORY

54Ae-5

ACCESSORY SOCKET

AC POWER SUPPLY

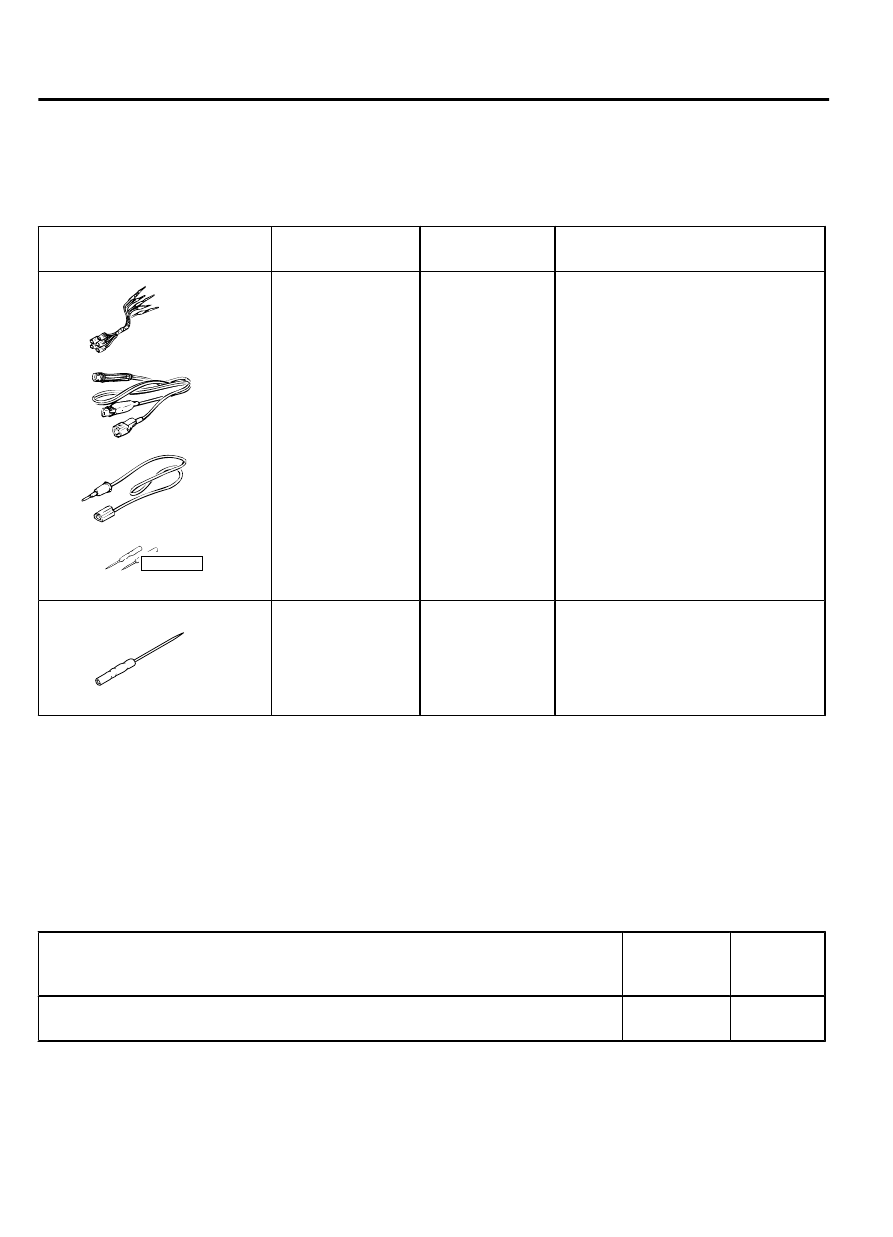

SPECIAL TOOLS

M15410400002USA0000010000

Tool

Tool  number  and
name

Supersession

Application

YB9912230000

Do not use

a

b

c

d

MB991223

a.

MB991219

b.

MB991220

c.

MB991221

d.

MB991222

Harness set

a.

Test harness

b.

LED harness

c.

LED

 harness

adaptor

d.

Probe

General  service
tools

Continuity  check  and  voltage
measurement  at  harness  wire  or
connector.

a.

Connector  pin  contact  pressure
inspection

b.

Power circuit inspection

c.

Power circuit inspection

d.

Commercial tester connection

MB992006

MB992006
Extra fine probe

-

Continuity  check  and  voltage
measurement  at  harness  wire  or
connector.

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M15410400004USA0000010000

Refer  to  GROUP  00,  Troubleshooting  contents  P.
00-6.

TROUBLE SYMPTOM CHART

M15410400005USA0000010000

Trouble symptom

Inspection
Procedure
No.

Reference
page

Even when the equipment (power consumption is 100 W or less) is connected,
the equipment cannot be used.

1

 P.

54Ae-7

54Ae-6

ACCESSORY

AC POWER SUPPLY
