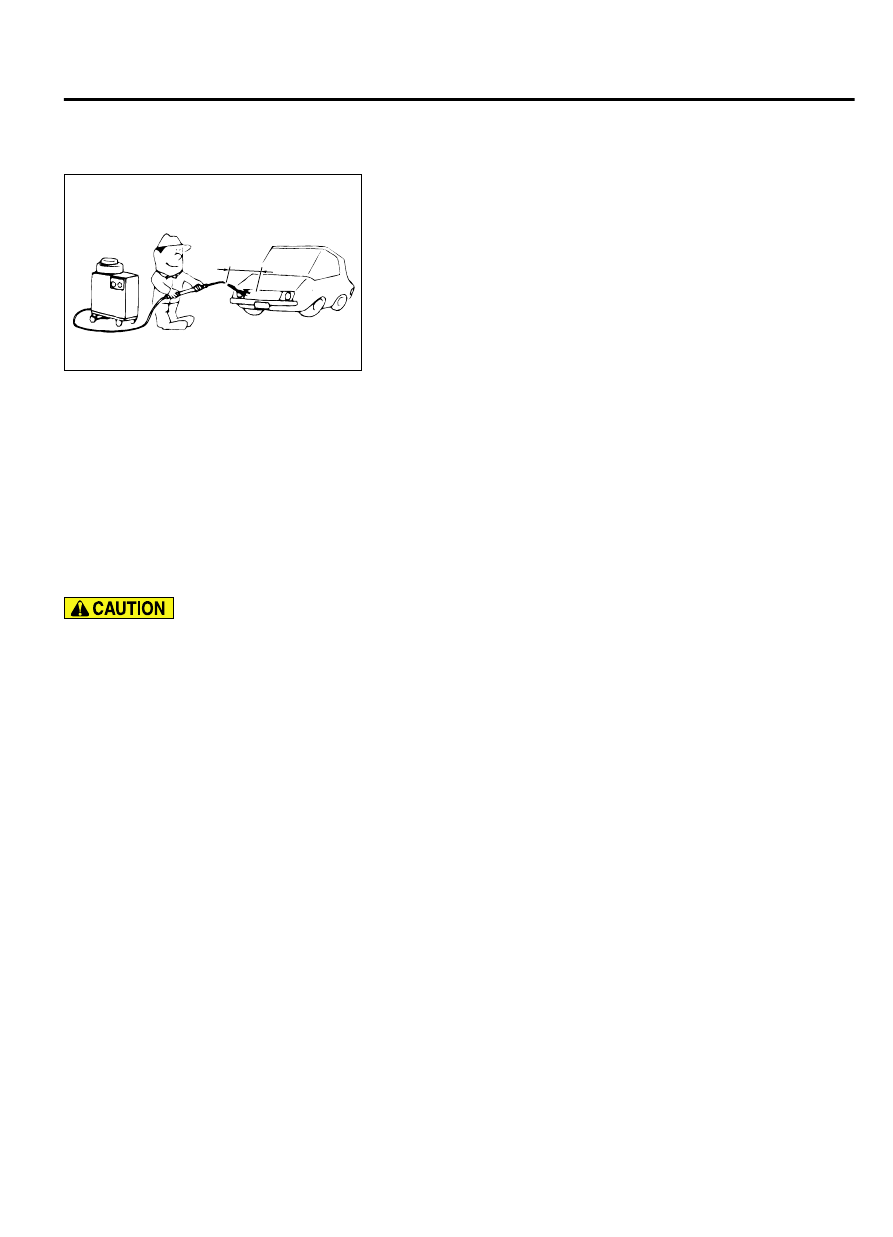

VEHICLE WASHING

M10001000120USA0000010000

ZC501232

Approximately
40 cm (16 in)

0000

If high-pressure car-washing equipment or steam car-washing
equipment is used to wash the vehicle, be sure to maintain the
spray nozzle at a distance of at least approximately 40cm (16
inches) from any plastic parts and all opening parts (doors,
luggage compartment, etc.).

APPLICATION OF ANTI-CORROSION AGENTS

AND UNDERCOATS

M10001000110USA0000010000

Be careful not to apply oil or grease to the heated oxygen sensor.
If applied, the sensor may malfunction. Protect the heated
oxygen sensor with a cover before applying anti-corrosion agent,
etc.

SCAN TOOL (MULTI USE TESTER { M.U.T.-III } SUB ASSEMBLY)

M10001000122USA0000010000

Turn the ignition switch to the "LOCK" (OFF)
position before disconnecting or connecting the
scan tool.

NOTE:

M.U.T.-III trigger harness is not necessary

when pushing V.C.I. ENTER key.

GENERAL <BODY AND CHASSIS>

00-33

PRECAUTIONS BEFORE SERVICE

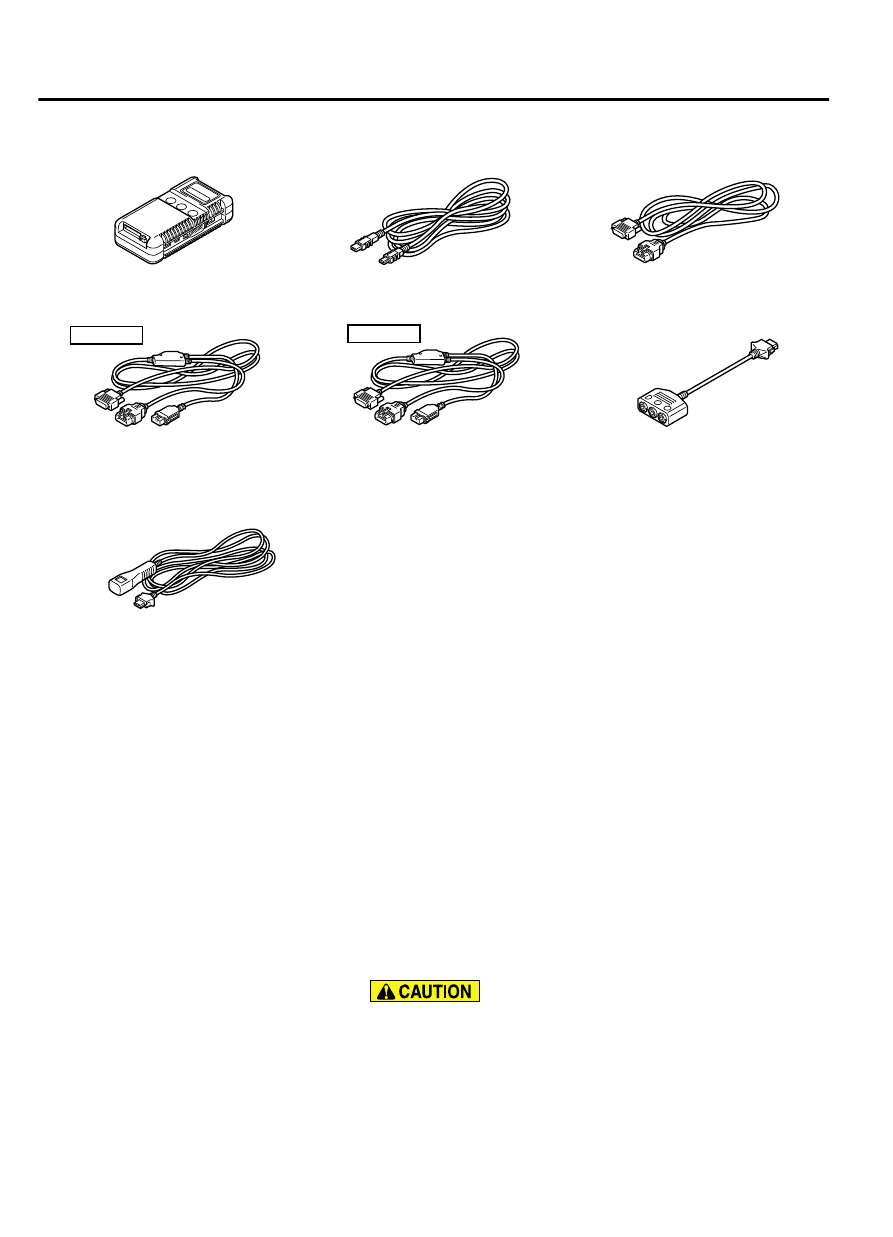

ZC501929

MB991910

MB991826

MB991911

MB991825

MB991824

MB991827

MB991914

Vehicle communication interface (V.C.I)

M.U.T.-lll main harness B

M.U.T.-lll trigger harness

M.U.T.-lll main harness C

M.U.T.-lll measurement adapter

M.U.T.-lll USB cable

M.U.T.-lll main harness A

0000

Do not use

CODING LIST

M10001000147USA0000010000

Before troubleshooting, check that the coding data written into
the engine control module and ETACS-ECU are normal. If they
are not the same as the initial settings, various functions and
systems will not work correctly.

VARIANT CODING

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

The items marked with*3are actually installed to a vehicle
but their initial settings are "Not present." This is because
the items do not adapt CAN, and does not indicate abnormal
coding data.

00-34

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE

The coding data can be checked by operating scan tool
MB991958.

NOTE:

For details on how to use the scan tool MB991958,

refer to the "M.U.T.-III Owner’s manual".

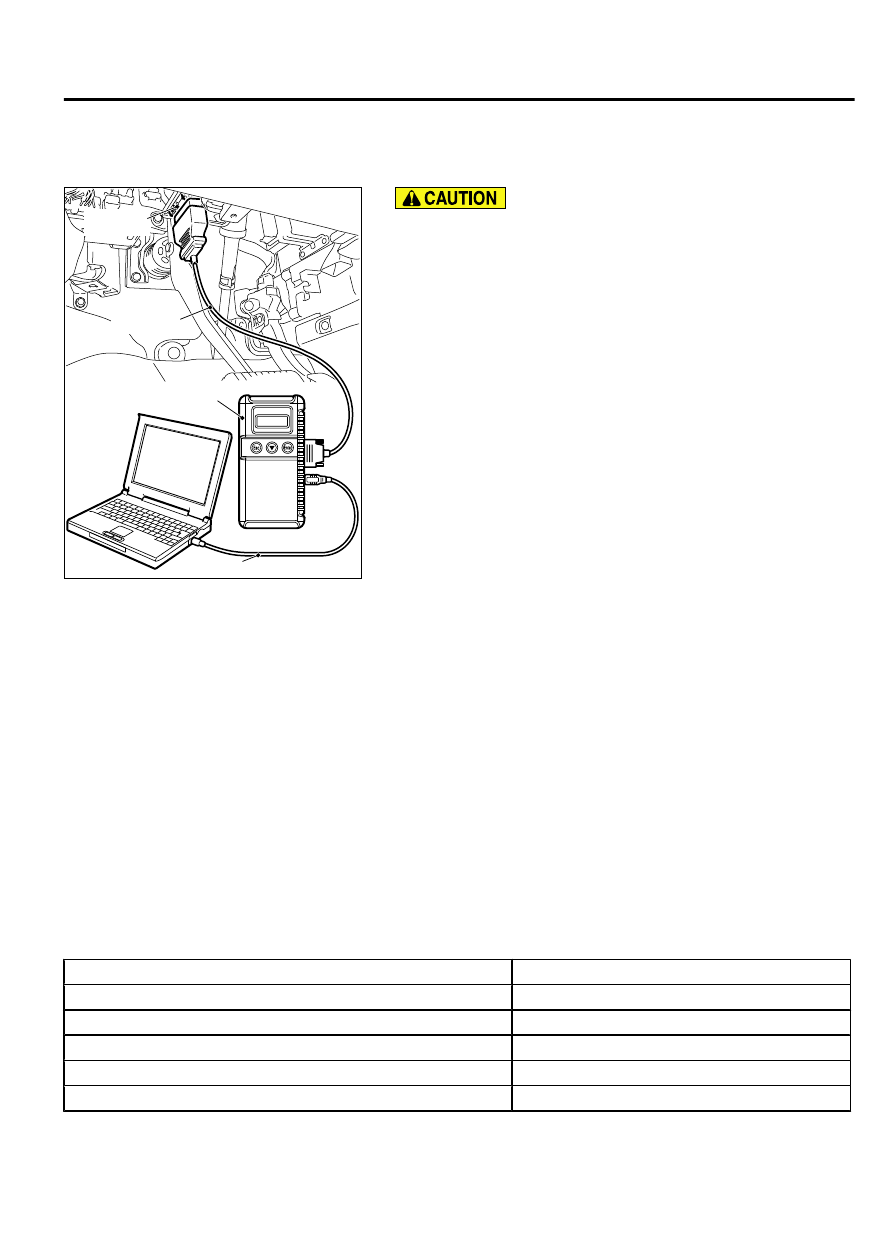

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

Start up the personal computer.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

Connect special tool MB991910 to special tool MB991824.

Connect special tool MB991910 to the data link connector.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

Start the "M.U.T.-III system" on the personal computer.

Turn the ignition switch to the "ON" position.

Select "System select" from the start-up screen.

10.

Select "From 2006 MY" under "Model Year". Check that
"Vehicle Information" contents are correct.

11.

On the system list screen, select "GasolineENG" to check the
engine control module data, and "ETACS" to check the
ETACS-ECU data.

NOTE:

｠

If "Loading Option Setup" list is shown, click appropriate
box.

｠

When you select "GasolineENG" system, a selection
screen appears asking whether MITSUBISHI. Select a
button that the engine belongs to.

12.

Select "Coding."

13.

Select "Coding Information."

14.

If  the  displayed  coding  information  is  different  from  the
corresponding initial setting in the list, replace the ECU with
a correctly coded one. For replacement of the engine control
module,  refer  to  GROUP  13Aa,  engine  control  module  P.
13Aa-37.  For  replacement  of  the  ETACS-ECU,  refer  to
GROUP 54Ad, ETACS P.54Ad-93.

ENGINE CONTROL MODULE CODING DATA LIST

Item name

Initial value

Vehicle Model

OUTLANDER

Model year

(Displays the model year)

Destination

U.S.

Detail Destination

USA (49STATES)

Transmission

6AT

GENERAL <BODY AND CHASSIS>

00-35

PRECAUTIONS BEFORE SERVICE

Item name

Initial value

Engine type

S4 MIVEC

Engine power

Normal

Final drive

FWD or AWD

Final gear ratio

6.466

T/M Type

SPORTS MODE

Fuel cut Maximum Speed

210 km/h

Tire circumference

2124mm

IMMOBILIZER

Present

TCM

Present

ABS

Present or Not present

ASC

Present or Not present

Power window Dr

Present

Power window As

Not present

Power window RR

Not present

Power window RL

Not present

Power window RP

Not present

Sunroof

Sunroof not present or Sunroof present

S/W variation

Variation No.1

ETACS-ECU CODING DATA LIST

Item name

Initial value

Vehicle line

OUTLANDER

Model year

(Displays the model year)

Destination

U.S.

Transaxle

6AT

Engine type

S4 MIVEC

Engine power

Normal

Handle side

LHD

Final drive

Front Drive or AWD FF Base

Transfer

FWD or ECC

Tire size

225/55R18 or 215/70R16

Tire circumference

2155mm

Fuel tank

60L

DRL*1

Dimming DRL W/P or Independent DRL/P

Smart entry system

Not present or Type C

TPMS*1

Present

Keyless entry*2

Present

SKIM

Type B

Cruise control

Present

00-36

GENERAL <BODY AND CHASSIS>

PRECAUTIONS BEFORE SERVICE
