INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-317

INSPECTION PROCEDURE N-4: The front door switch (RH) signal is not received. <R.H. drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the front door switch (RH) is used to
operate the functions below. If the signal is abnormal,
these functions will not work normally.

•

Lamp reminder function

•

Headlamp automatic-shutdown function

•

Room lamps

POSSIBLE CAUSES

•

Malfunction of the front door switch (RH)

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FRONT DOOR
SWITCH (RH)

ETACS-ECU

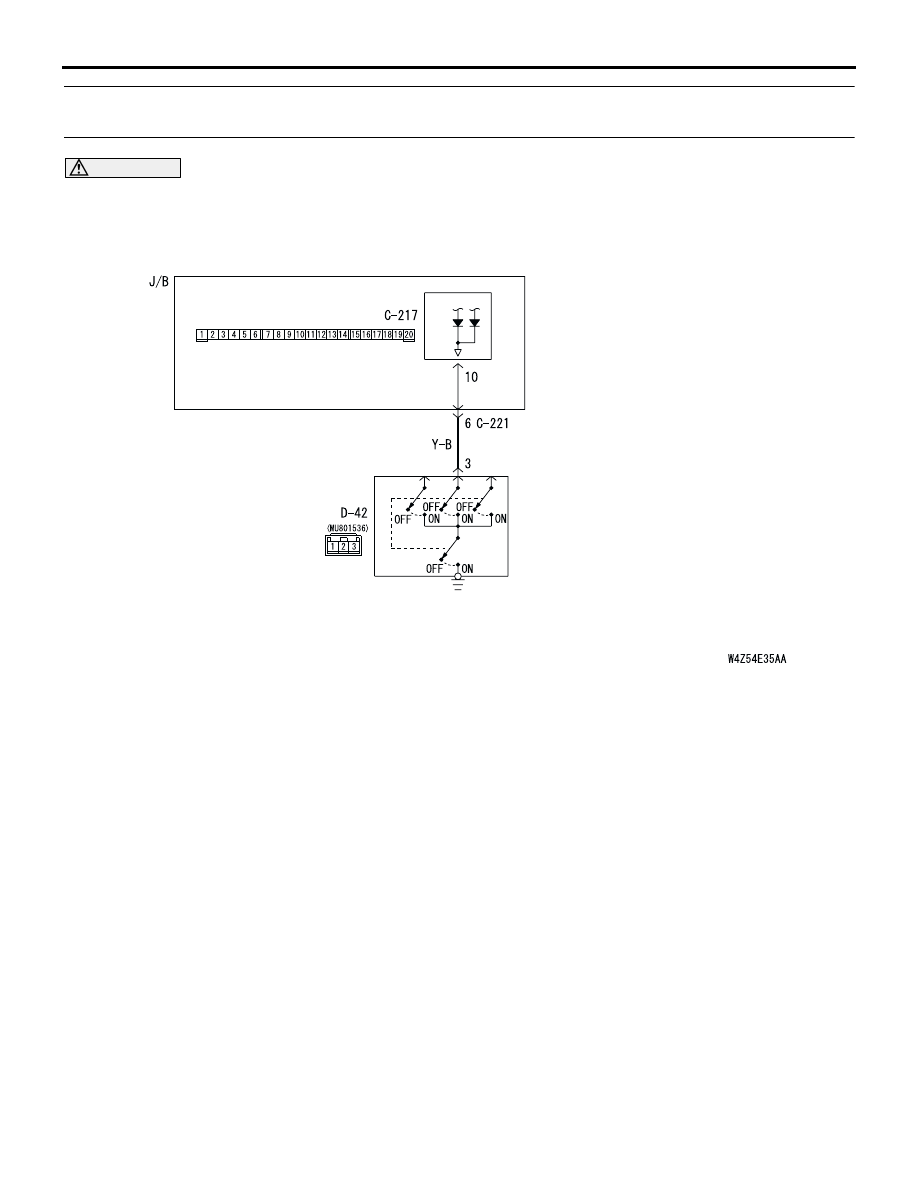

Driver's Door Switch Input Circuit <RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-318

DIAGNOSTIC PROCEDURE

Step 1. Check the installation condition.

Check that the front door switch (RH) is installed on
the body correctly.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Correct the installation condition.

Step 2. Connector check: D-42 front door switch
(RH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the front door switch (RH).

Refer to GROUP 42

−

 Door

P.42-30

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the front door switch (RH).

Step 4. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the wiring harness between D-42
front door switch (RH) connector terminal No.3
and C-217 ETACS-ECU connector terminal No.10.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-221, and repair if necessary.

•

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

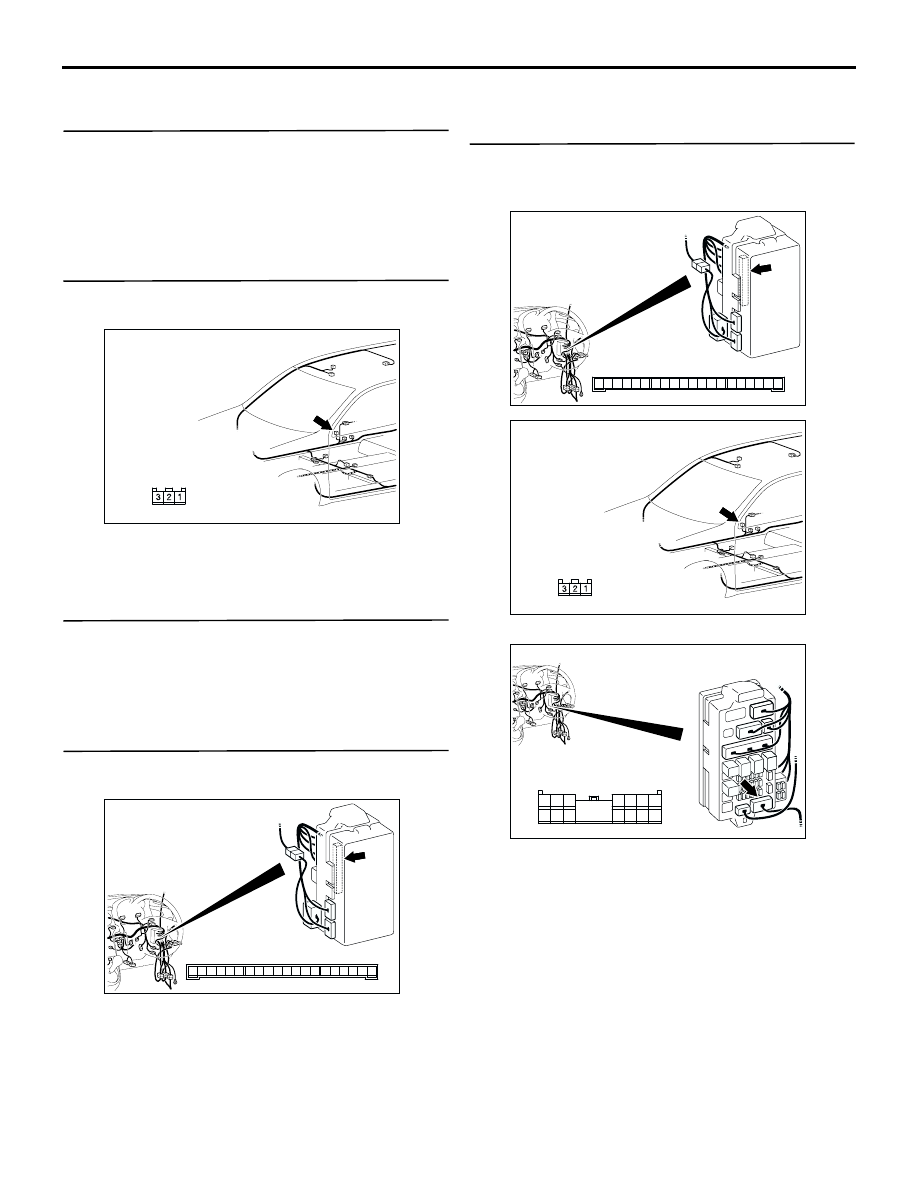

AC308785

AC

Connector: D-42 <RHD>

Harness side

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308785

AC

Connector: D-42 <RHD>

Harness side

AC308772

Connector: C-221 <RHD>

Harness side

AG

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

Junction block (Front view)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-319

Step 6. Retest the system.

Check that the front door switch (RH) signal is
received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE N-5: The column switch (lighting, turn-signal lamp and headlamp washer
switch) signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the column switch (lighting,
turn-signal lamp and headlamp washer switch) is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

•

Lamp reminder function

•

Headlamp and tail lamp

•

Fog lamp

•

Turn signal lamp

•

Headlamp washer

POSSIBLE CAUSES

•

Malfunction of the column switch

•

Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the column switch connector.

Check that the wiper and washer switch connector,
the lighting switch connector and the switch body
connector are in good condition.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the column switch (lighting switch
and switch body).

Refer to GROUP 54A

−

 Column switch

P.54A-105

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the column switch.

Step 3. Use the MUT-II/III to confirm a diagnosis
code.

Check that the ETACS-ECU sets a diagnosis code.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.00-6

.

NO :

Go to Step 4.

W3Z10E28AB

LO

HI

PASS

OFF

HEAD

TAIL

OFF TAIL

HEAD

OFF

LH

RH

COLUMN-ECU

DIMMER·
PASSING SWITCH

TURN-SIGNAL
LAMP SWITCH

LIGHTING
SWITCH

COLUMN SWITCH

Lighting Switch Input Circuit

OFF

ON

HEADLAMP
WASHER SWITCH

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-320

Step 4. Retest the system.

Replace the column switch, and check if the column
switch (lighting, turn-signal lamp and headlamp
washer switch) sends signal.
(1) Replace the column switch.

(2) Check if the column switch (lighting and

turn-signal switch) sends signal.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the ETACS-ECU.

INSPECTION PROCEDURE N-6: The column switch (windshield wiper washer and rear wiper washer
switch) signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the column switch (wiper switch) is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

•

Windshield wiper and washer

•

Rear wiper and washer

POSSIBLE CAUSES

•

Malfunction of the column switch

•

Damaged harness wires and connectors

WINDSHIELD
WASHER
SWITCH

REAR
WIPER
SWITCH

REAR
WASHER
SWITCH

WINDSHIELD
WIPER SWITCH

UPPER
SIDE

COLUMN SWITCH

COLUMN-ECU

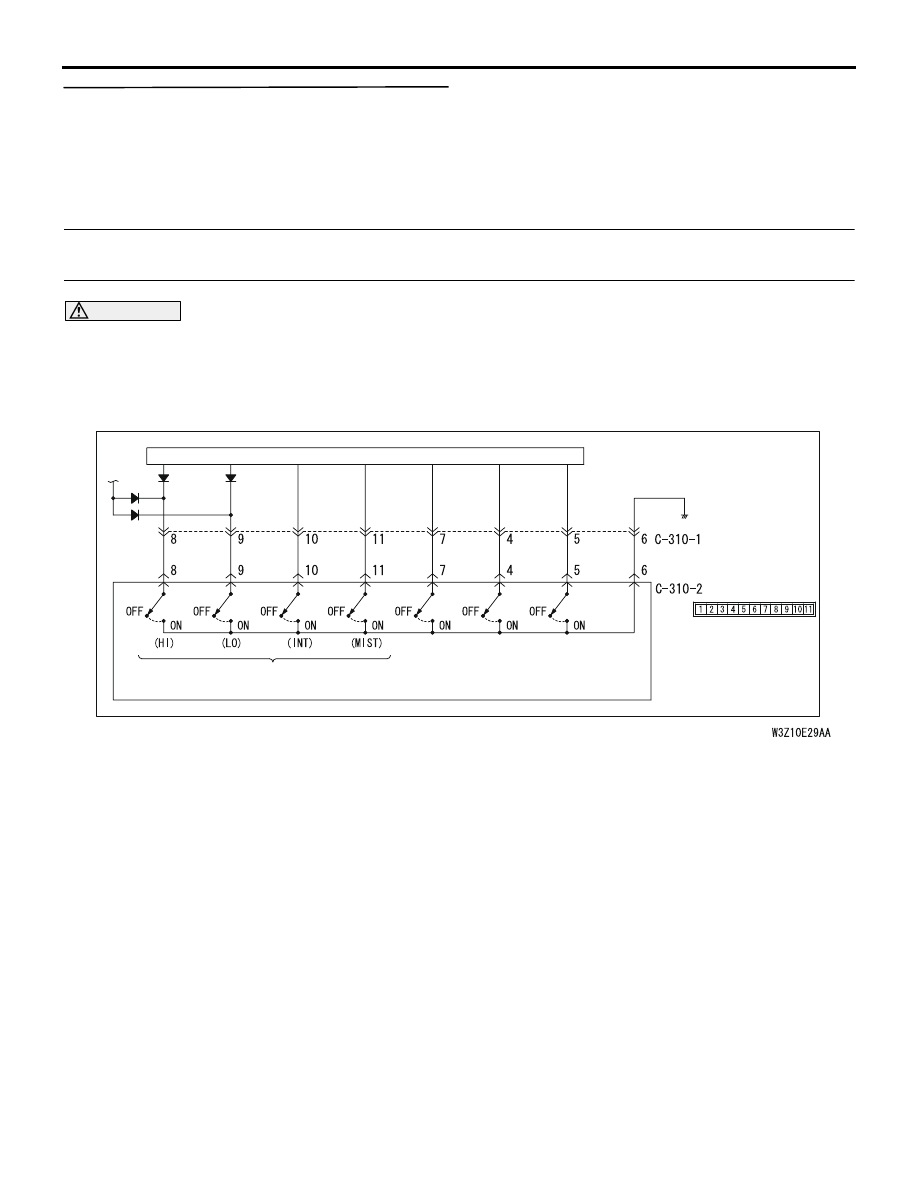

Windshield Wiper and Washer Switch Input Circuit
