Mitsubishi Outlander (2003+). Manual - part 497





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-277

DIAGNOSTIC PROCEDURE

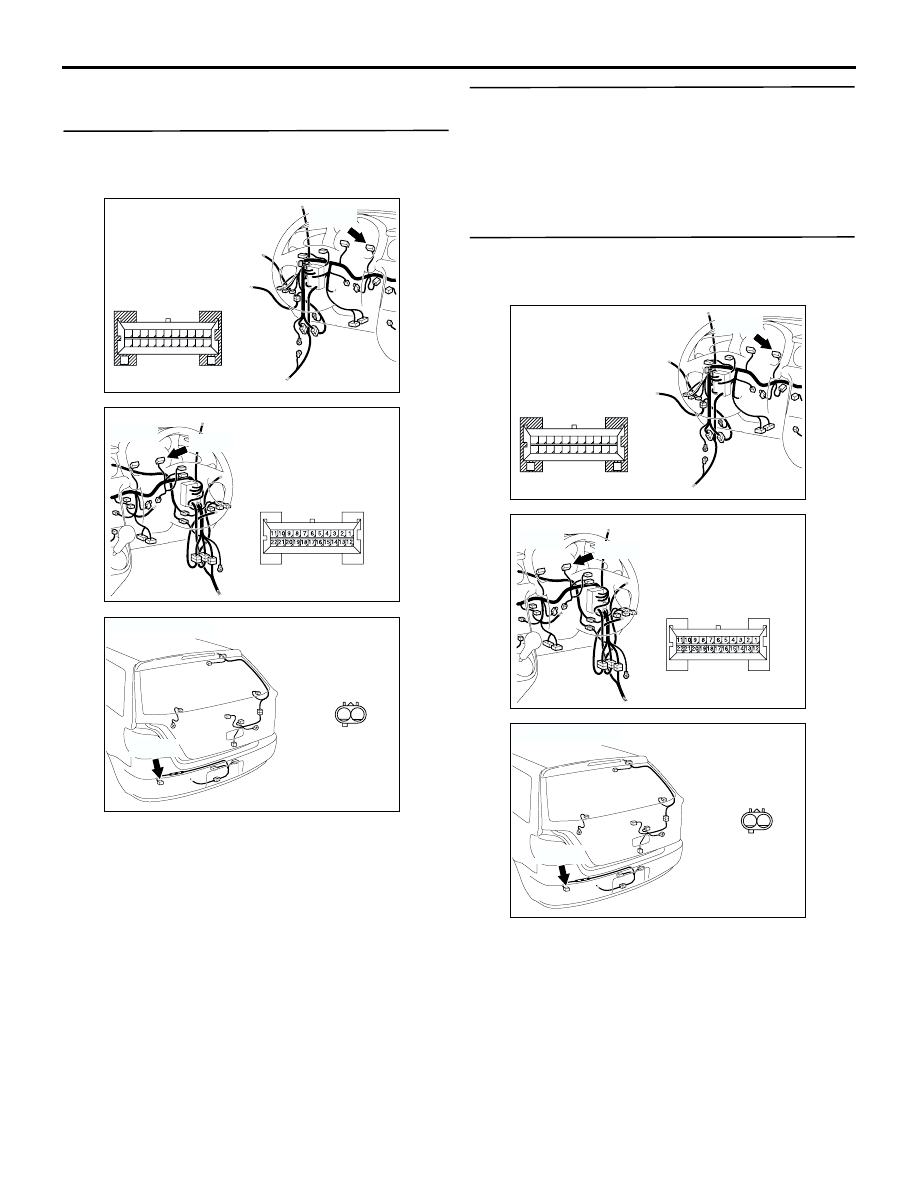

Step 1. Connector check: F-12 rear fog lamp
connector or C-05 <rear fog lamp indicator lamp>
combination meter connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the rear fog lamps or
the rear fog lamp indicator lamp.

Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

Step 3. Measure the resistance at the F-12 rear
fog lamp connector or C-05 <fog lamp indicator
lamp> combination meter connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

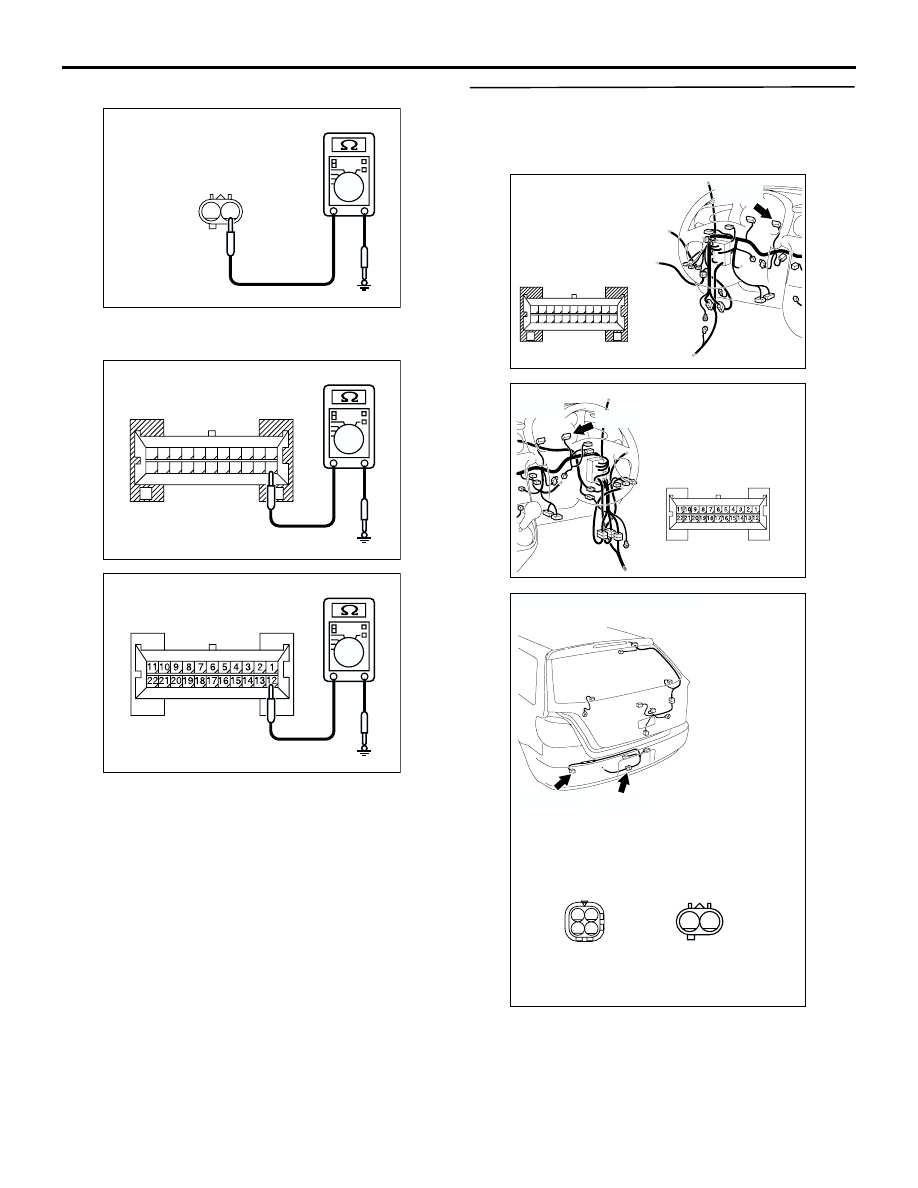

(2) Check the resistance between the lamp

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308808

Connector: F-12

AF

Harness side

2

1

F-12(B)

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308808

Connector: F-12

AF

Harness side

2

1

F-12(B)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-278

connector and body earth.

•

Resistance between F-12 rear fog lamp relay

connector terminal No.1 and body earth

•

Resistance between C-05 <rear fog lamp

indicator lamp> combination meter connector
terminal No.12 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness from F-12 rear
fog lamp connector terminal No.1, C-05 <rear fog
lamp indicator lamp> combination meter
connector terminal No.12 to body earth.

NOTE: Prior to the wiring harness inspection, check
intermediate connector F-09 <rear fog lamp>, and
repair if necessary.

•

Check the earth wires for open circuit.

AC301541BN

Connector F-12
(Harness side)

2

1

AC301541 FX

Connector C-05 <LHD>
(Harness side)

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

AC301541 FY

Connector C-05 <RHD>
(Harness side)

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308809

Connectors: F-09, F-12

AF

F-09

Harness side

F-09(GR)

1

3

2

4

2

1

F-12(B)

F-12

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-279

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-212 rear fog lamp
relay connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from F-12 rear
fog lamp connector terminal No.2, C-05 <rear fog
lamp indicator lamp> combination meter
connector terminal No.5 to C-212 rear fog lamp
relay connector terminal No.1.

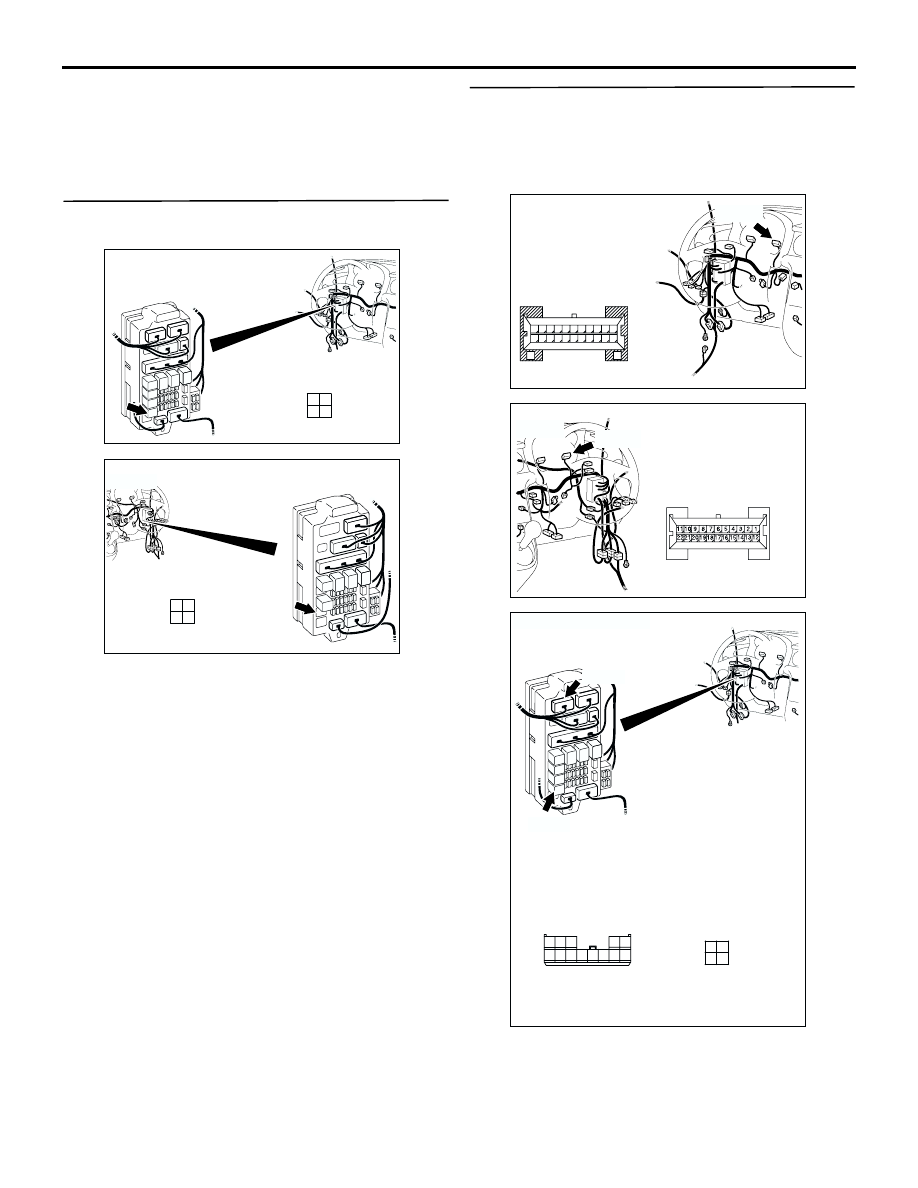

AC308720

Connector: C-212

AJ

3

1

2
4

Junction block (Front view)

Junction block side

<LHD>

AC308772

Connector: C-212

AI

3

1

2
4

Junction block (Front view)

Junction block side

<RHD>

AC308716

AO

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

Connector: C-05

Harness side

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308721

Connectors: C-201, C-212

AI

Junction block (Front view)

C-201

Junction block side

C-212

3

1

2
4

C-212

Harness side

5 4 3

2 1

13121110 9 8 7 6

C-201

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-280

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-117 <rear fog lamp>, F-09
<rear fog lamp> and junction block connector C-201
<rear fog lamp and rear fog lamp indicator lamp>,
and repair if necessary.

•

Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC308773

Connectors: C-201, C-212

AJ

Junction block (Front view)

C-201

Junction block side

C-212

3

1

2
4

C-212

Harness side

5 4 3

2 1

13121110 9 8 7 6

C-201

<RHD>

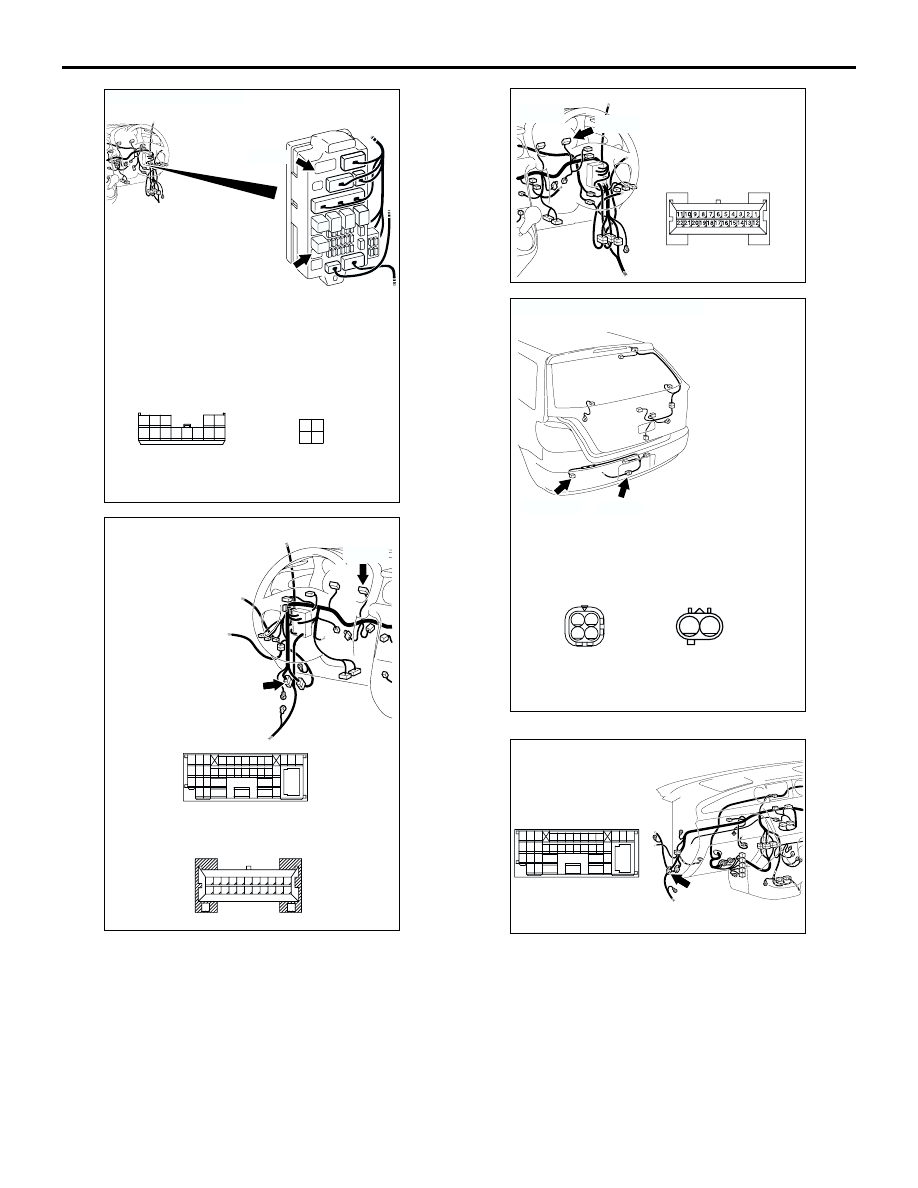

AC308717

Connectors: C-05, C-117

AH

C-05

Harness side

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

C-05(L)

38

1213

11

26

14

1

20

6

232425

37

31

36

30

10

9

2122

35

8

7

34

17

29

18 19

5

4

1516

33

28

32

27

3

2

C-117

C-117

<LHD>

AC308769

AJ

Connector: C-05

Harness side

C-05(L)

<RHD>

AC308809

Connectors: F-09, F-12

AF

F-09

Harness side

F-09(GR)

1

3

2

4

2

1

F-12(B)

F-12

AC308735

Connectors: C-117

AN

38

1213

11

26

14

1

20

6

232425

37

31

36

30

10

9

2122

35

8

7

34

17

29

18 19

5

4

1516

33

28

32

27

3

2

<RHD>
