SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-141

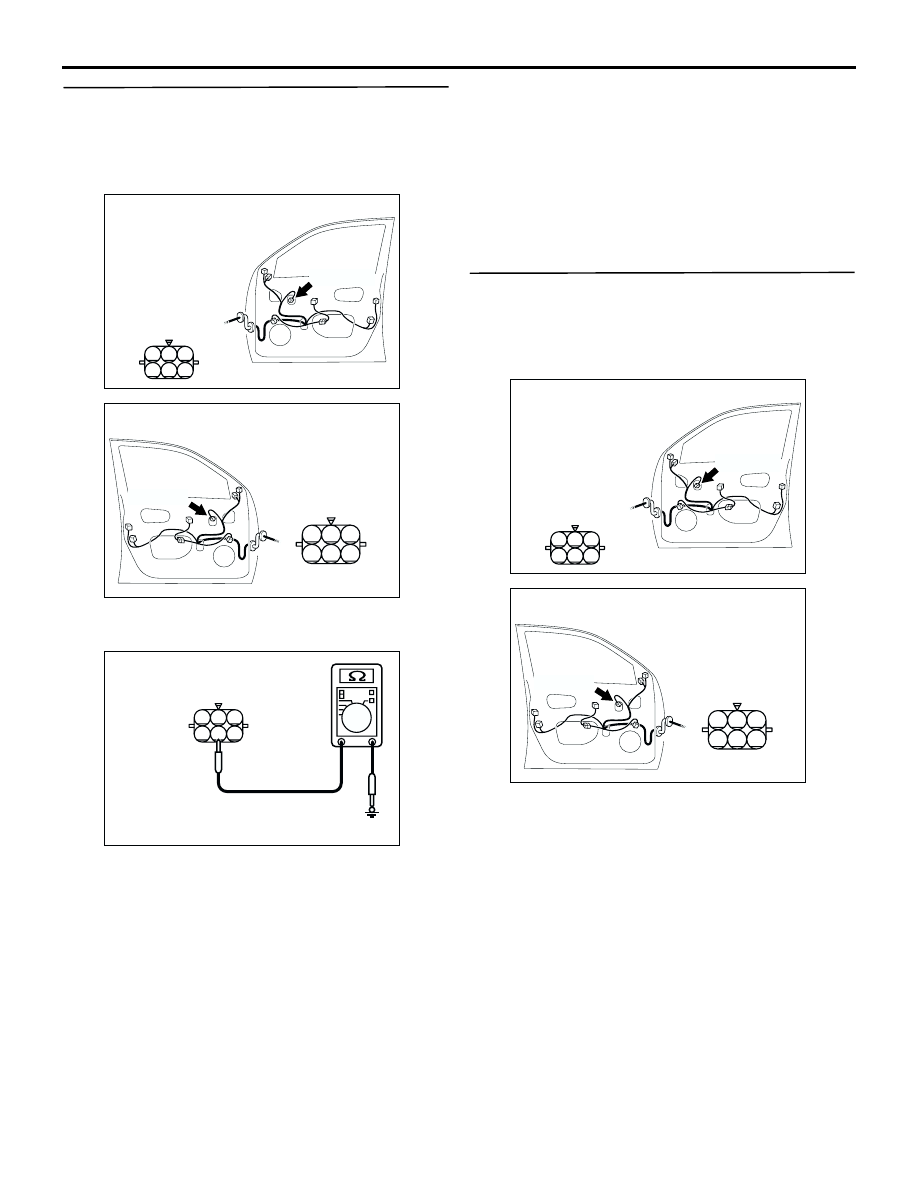

Step 8. Measure the resistance at E-23 power
window motor (front RH) connector <L.H. drive
vehicles> or E-13 power window motor (front LH)
connector <R.H. drive vehicles> power window
motor (front RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-23 power window motor

(front RH) connector <L.H. drive vehicles> or
E-13 power window motor (front LH) connector
<R.H. drive vehicles> power window motor (front
RH) connector terminal No.5 and body earth.

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

Step 9. Check the wiring harness from E-23
power window motor (front RH) connector
terminal No.5 <L.H. drive vehicles> or E-13 power
window motor (front RH) connector terminal No.5
<R.H. drive vehicles> to body earth.

AC308793

Connector: E-23
<LHD>

AG

Harness side

E-23(GR)

4

6 5

3 2 1

AC308805

Connector: E-13
<RHD>

AG

Harness side

E-13(GR)

4

6 5

3 2 1

4

6 5

3 2 1

AC301471

Connector E-23 <LHD>, E-13 <RHD>
(Harness side)

AD

AC308793

Connector: E-23
<LHD>

AG

Harness side

E-23(GR)

4

6 5

3 2 1

AC308805

Connector: E-13
<RHD>

AG

Harness side

E-13(GR)

4

6 5

3 2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-142

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-15 <L.H. drive vehicles> or
C-34 <R.H. drive vehicles>, and repair if necessary.

•

Check the input and output lines to the revolution
detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

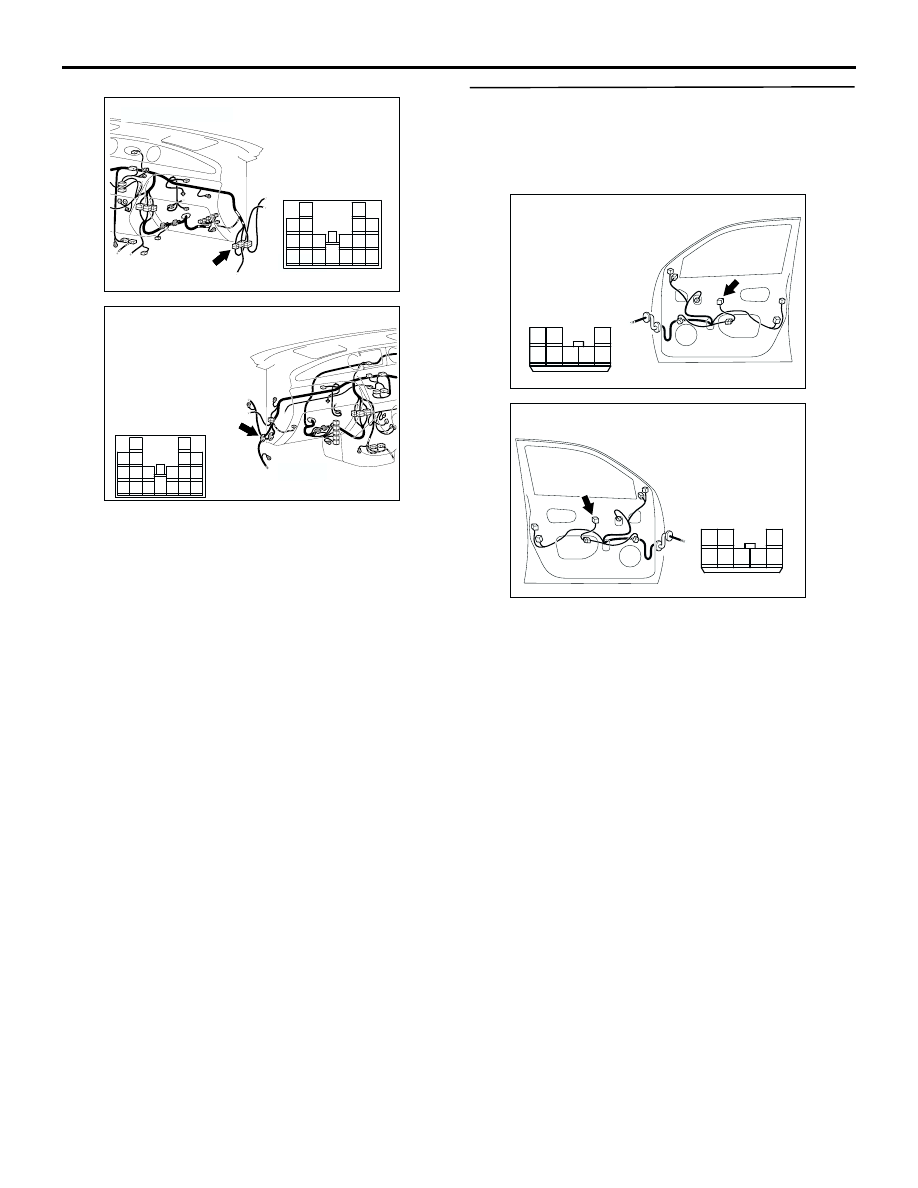

Step 10. Connector check: E-17 power window
sub switch (front RH) connector <L.H. drive
vehicles> or E-31 power window sub switch
(front LH) connector <R.H. drive vehicles> power
window sub switch (front RH) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

AC308718

Connector: C-15 <LHD>

AG

C-15(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC308735

Connector: C-34
<RHD>

AI

C-34(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

AC308793

Connector: E-17
<LHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308805

Connector: E-31
<RHD>

Harness side

AE

1

4

5

3 2

7 6

8

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-143

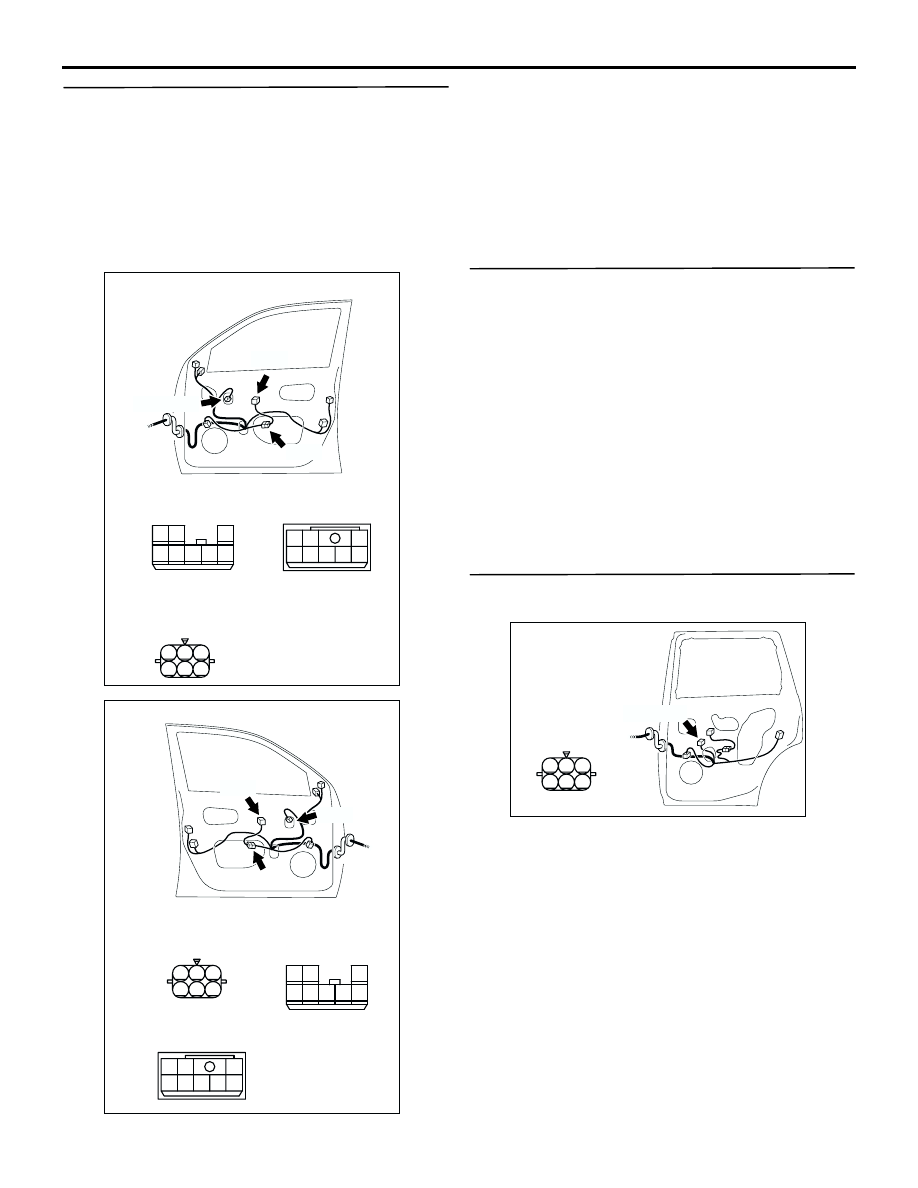

Step 11. Check the wiring harness from E-17
power window sub switch (front RH) connector
<L.H. drive vehicles> or E-31 power window sub
switch (front LH) connector <R.H. drive vehicles>
terminal Nos. 2, 8 and 3 to E-23 power window
motor (front LH) connector terminal Nos. 6, 4 and
2 <L.H. drive vehicles> or E-13 power window
motor (front LH) connector terminal Nos. 4, 6 and
2 <R.H. drive vehicles>.

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-24 <L.H. drive vehicles> or
E-30 <R.H. drive vehicles>, and repair if necessary.

•

Check the input and output lines to the revolution
detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the wiring harness.

Step 12. Retest the system.

After the power window sub switch (front LH) is
replaced, check that the front passenger's anti-trap
function can be operated by the power window sub
switch.
(1) Replace the power window sub switch (front LH).
(2) Check that the front passenger's power window

anti-trap function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the power window motor assembly
(front LH).

Step 13. Connector check: E-20 power window
motor (rear RH) connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

AC308794

Connectors: E-17, E-23, E-24
<LHD>

AC

E-17

Harness side

E-23

E-24

Harness side

E-17

E-23(GR)

E-24

1

4

5

3 2

7 6

8

4

6 5

3 2 1

4

1

5

2

7

6

8

3

AC308806

Connectors: E-13, E-30, E-31
<RHD>

AC

E-13

Harness side

E-30

E-31

Harness side

E-13

E-30

E-31

1

4

5

3 2

7 6

8

4

6 5

3 2 1

4

1

5

2

7

6

8

3

AC308795

Connector: E-20

Harness side

E-20(GR)

AE

4

6 5

3 2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-144

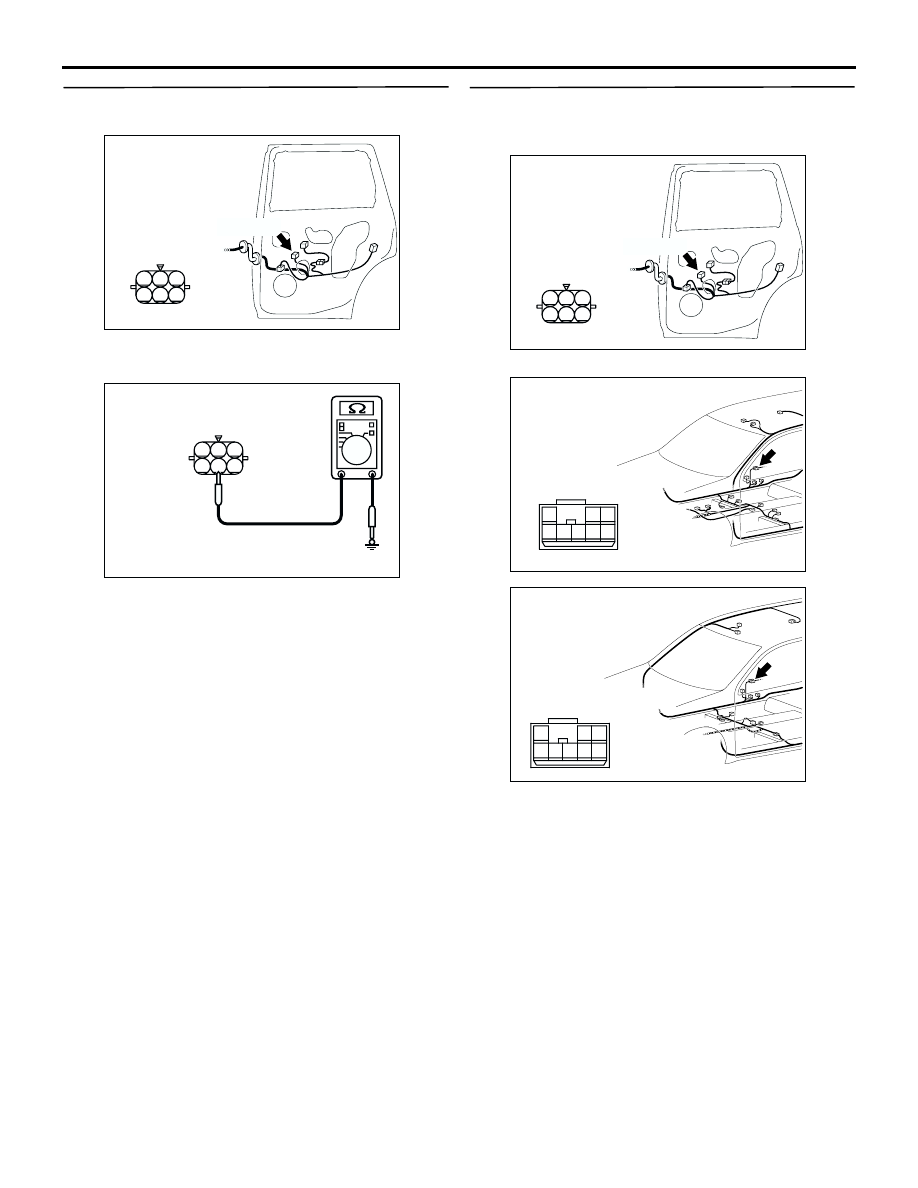

Step 14. Measure the resistance at E-20 power
window motor (rear RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-20 power window motor

(rear RH) connector terminal No.5 and body
earth.

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Go to Step 15.

Step 15. Check the wiring harness from E-20
power window motor (rear RH) connector
terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector D-02, and repair if necessary.

•

Check the input and output lines to the revolution
detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the wiring harness.

AC308795

Connector: E-20

Harness side

E-20(GR)

AE

4

6 5

3 2 1

4

6 5

3 2 1

AC301471

Connector E-20
(Harness side)

AB

AC308795

Connector: E-20

Harness side

E-20(GR)

AE

4

6 5

3 2 1

AC308781

Connector: D-02
<LHD>

AE

8

3

1

4 5 6

2

7

AC308785

Connector: D-02
<RHD>

AD

8

3

1

4 5 6

2

7
