SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-117

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

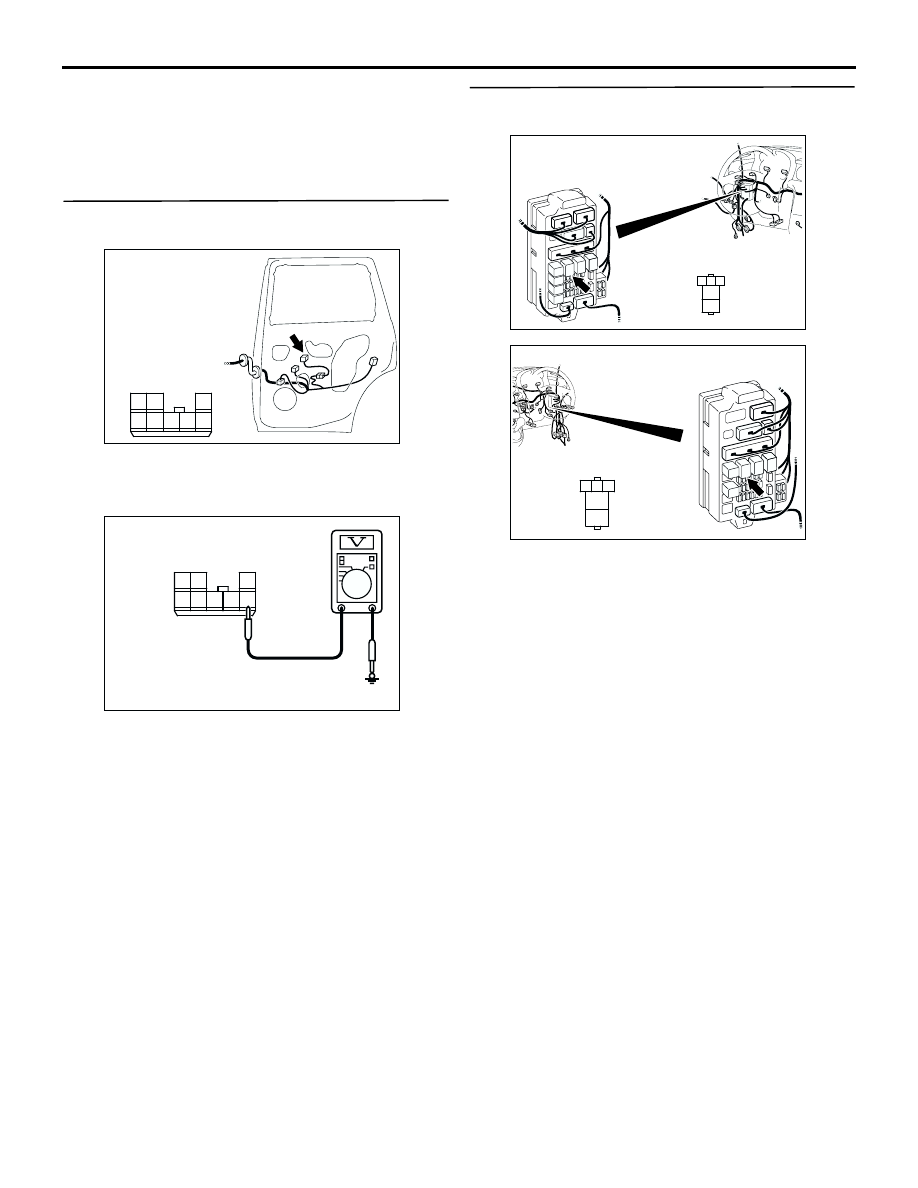

Step 15. Measure the voltage at E-21 power
window sub switch (rear RH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between terminal 4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Go to Step 16.

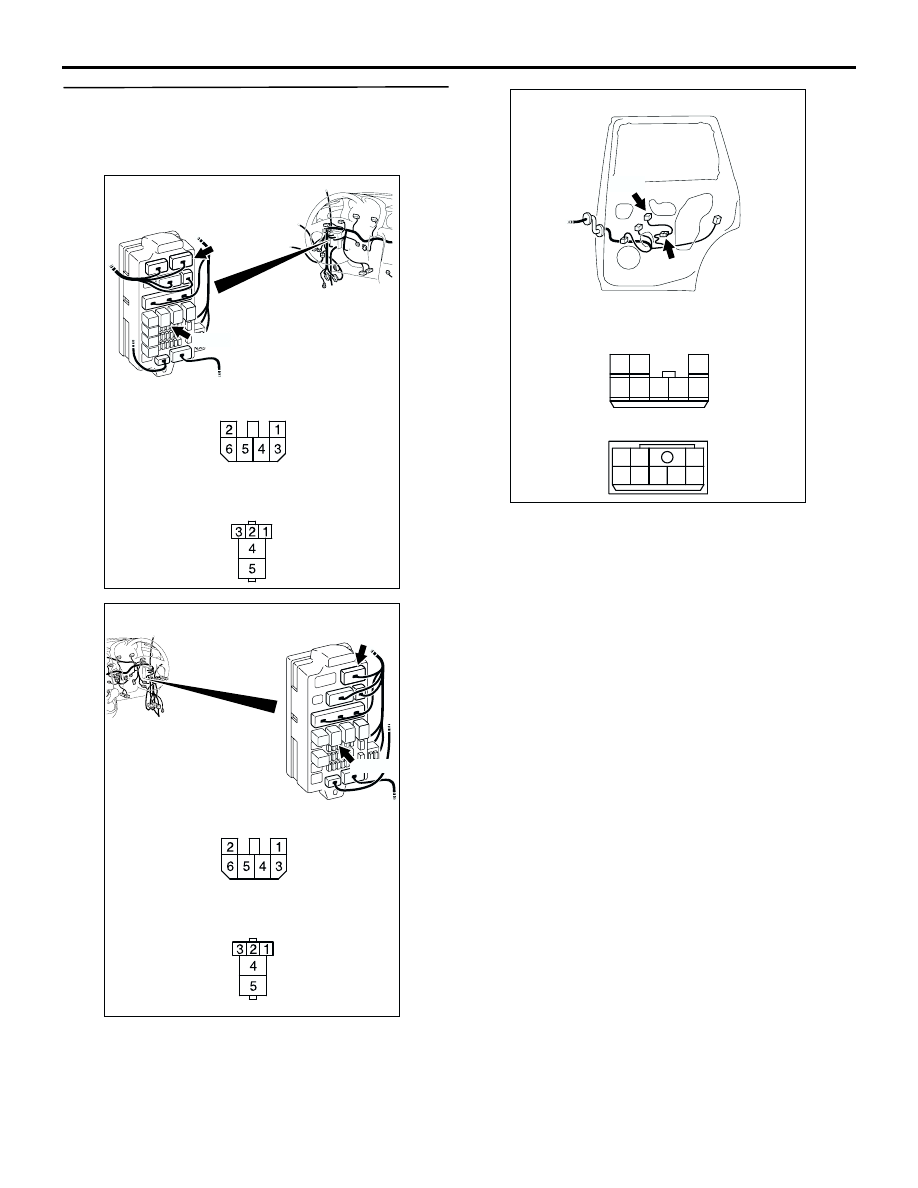

Step 16. Connector check: C-208 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the connector.

AC308795

Connector: E-21

AC

Harness side

1

4

5

3 2

7 6

8

1

4

5

3 2

7 6

8

AC301462

Connector E-21
(Harness Side)

AC

AC308720

Connector: C-208

AG

3

4

5

1

2

Junction block (Front view)

Junction block side

<LHD>

AC308772

Connector: C-208

AF

3

4

5

1

2

Junction block (Front view)

Junction block side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-118

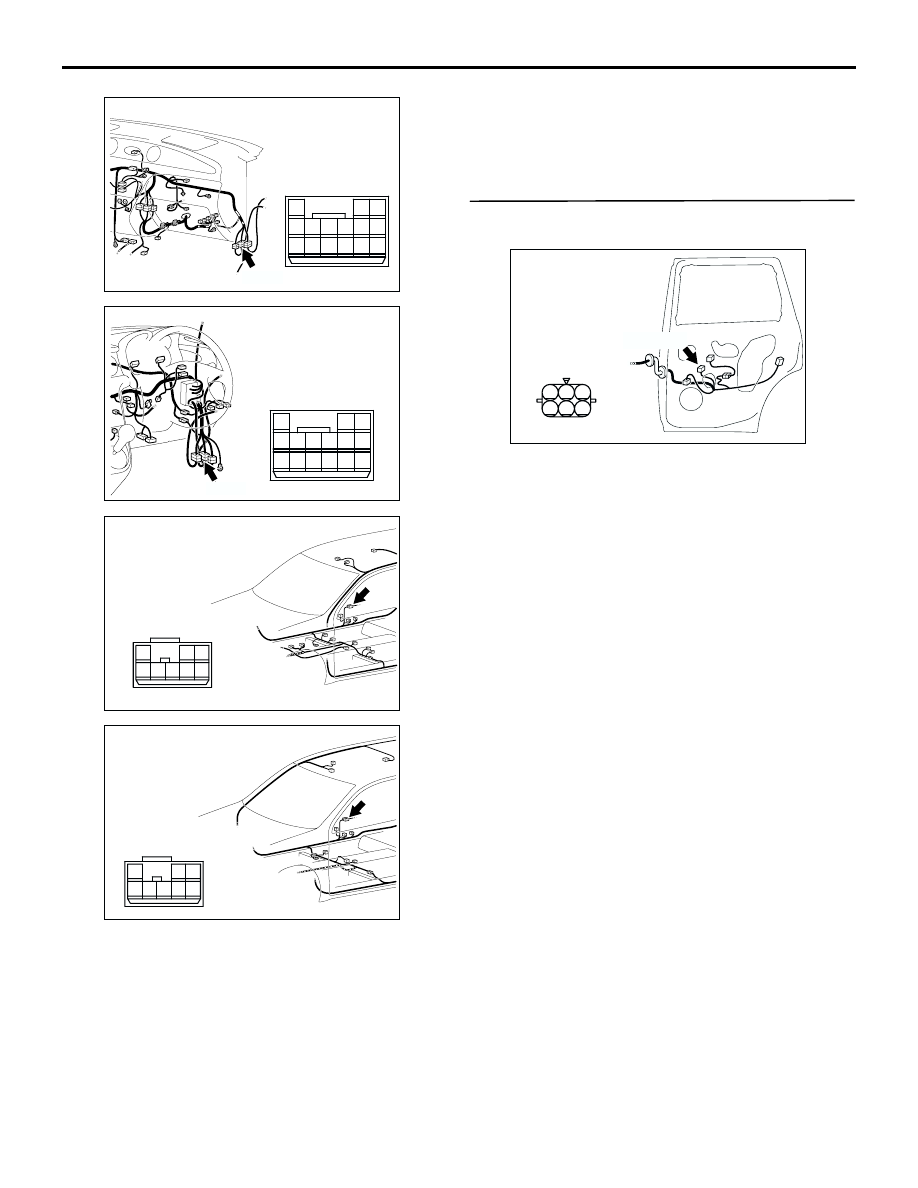

Step 17. Check the wiring harness from E-21
power window sub switch (rear RH) connector
terminal No.4 to C-208 power window connector
terminal No.4.

AC308721

Junction block side

Junction block (Front view)

Connectors: C-203, C-208

C-203

C-208

Harness side

C-203

AG

<LHD>

C-208

AC308773

Junction block side

Junction block
(front view)

Connectors: C-203, C-208

C-203

C-208

Harness side

C-203

AG

<RHD>

C-208

AC308796

Connectors: E-21, E-27

AB

E-21

E-27

E-21

E-27

Harness side

4

1

5

2

7

6

8

3

1

4

5

3 2

7 6

8

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-119

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-13, D-02, E-27 and
junction block connector C-203, and repair if
necessary.

•

Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

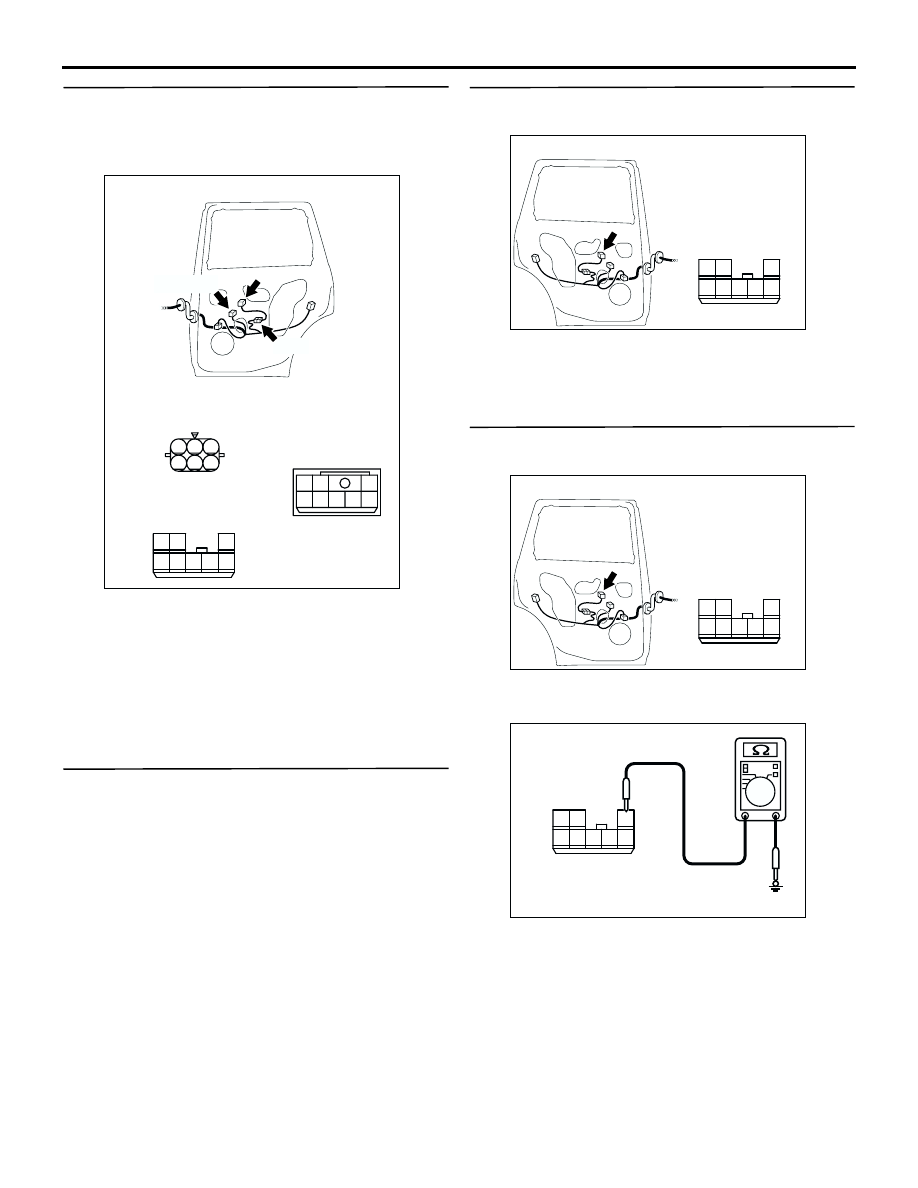

Step 18. Connector check: E-20 power window
motor (rear RH) connector

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the connector.

AC308718

Connector: C-13 <LHD>

C-13(L)

AJ

10

1

4

2 3

13

7

12

11

5 6

15

14

8 9

AC308769

Connector: C-13 <RHD>

C-13(L)

AN

10

1

4

2 3

13

7

12

11

5 6

15

14

8 9

AC308781

Connector: D-02
<LHD>

AE

8

3

1

4 5 6

2

7

AC308785

Connector: D-02
<RHD>

AD

8

3

1

4 5 6

2

7

AC308795

Connector: E-20

Harness side

E-20(GR)

AE

4

6 5

3 2 1

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-120

Step 19. Check the wiring harness from E-20
power window motor (rear RH) connector
terminal Nos. 1 and 3 to E-21 power window sub
switch (rear RH) connector terminal Nos. 7 and 5.

NOTE: Prior to the wiring harness inspection, check
intermediate connector E-27, and repair if necessary.

•

Check the input and output lines for open or short
circuit.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Repair the wiring harness.

Step 20. Retest the system.

After the power window sub switch (rear RH) is
replaced, check that the rear right door power
window can be operated by the power window sub
switch (rear RH).
(1) Replace the power window sub switch (rear RH).
(2) Check that the rear right door power window can

be operated by the power window sub switch
(rear RH).

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the power window motor assembly
(rear RH).

Step 21. Connector check: E-01 power window
sub switch (rear LH) connector

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Repair the connector.

Step 22. Measure the resistance at E-01 power
window sub switch (rear LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between terminal 1 and body earth

OK: 2

Ω

 or less

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Go to Step 23.

AC308796

Connectors: E-20, E-21, E-27

AC

E-21

E-27

E-20

Harness side

E-21

E-27

Harness side

E-20(GR)

4

6 5

3 2 1

4

1

5

2

7

6

8

3

1

4

5

3 2

7 6

8

AC308789

Connector: E-01

AC

Harness side

1

4

5

3 2

7 6

8

AC308789

Connector: E-01

AC

Harness side

1

4

5

3 2

7 6

8

1

4

5

3 2

7 6

8

AC301461

Connector E-01
(Harness Side)

AB
