LICENCE PLATE LAMP

CHASSIS ELECTRICAL

54A-91

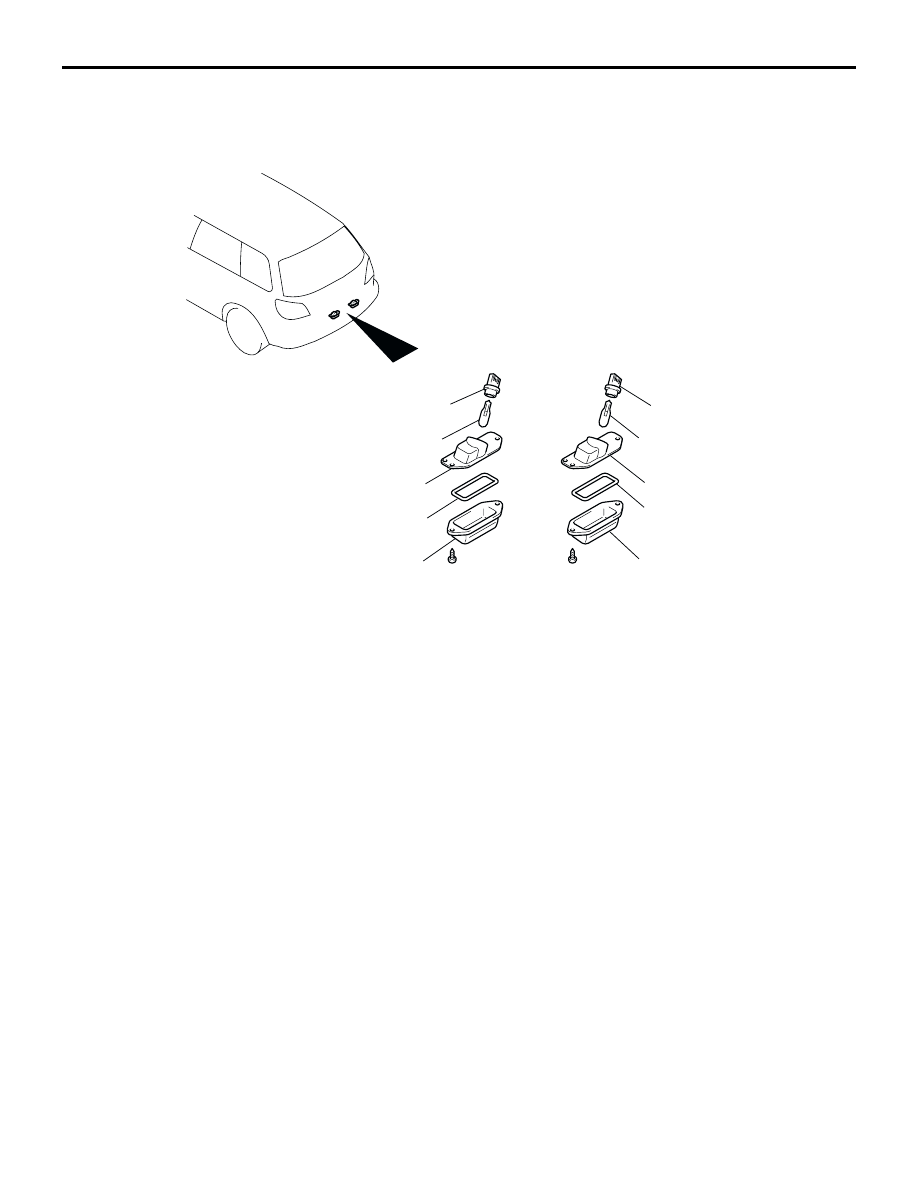

LICENCE PLATE LAMP

REMOVAL AND INSTALLATION

M1542004200230

AC300488AB

1

2

3

4

1

2

3

4

(L.H.side)

(R.H.side)

5

5

Removal steps

1.

Licence plate lamp lens

2.

Packing

3.

Licence plate lamp body

4.

Licence plate lamp bulb

5.

Socket assembly

Removal steps (Continued)

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-92

HAZARD WARNING LAMP SWITCH

TROUBLESHOOTING

M1542000701485

FLASHER TIMER FUNCTION

The hazard warning lamps (flasher timer function)
are controlled by the Smart Wiring System (SWS).
For troubleshooting, refer to respective Groups
below.

•

Not using SWS monitor: GROUP 54B, SWS
Troubleshooting

P.54B-41

.

•

Using SWS monitor: GROUP 54C, SWS
Troubleshooting

P.54C-25

.

SPECIAL TOOL

M1542000601079

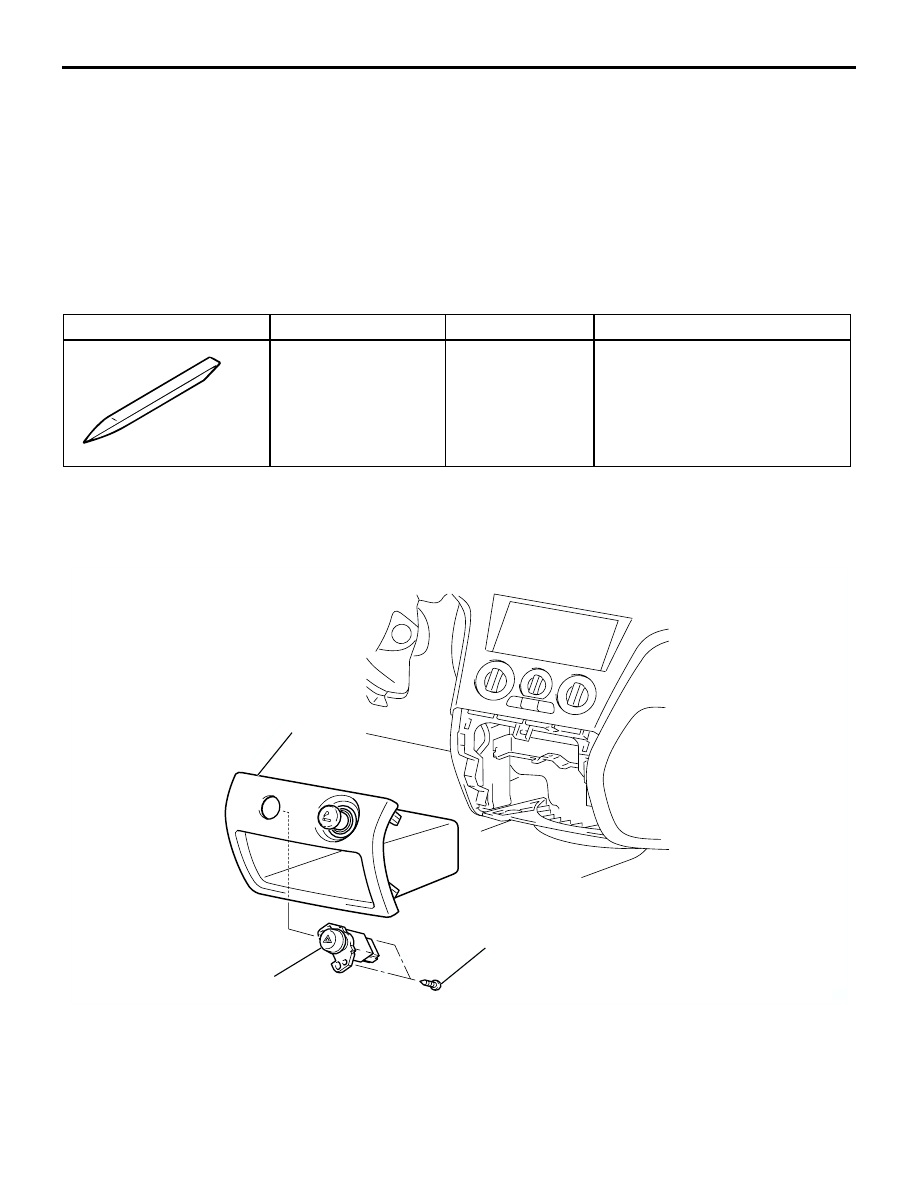

HAZARD WARNING LAMP SWITCH

REMOVAL AND INSTALLATION

M1542006600483

Tool

Number

Name

Use

MB990784

Ornament remover Removal of centre lower panel

assembly

MB990784

AC300490

AC301773AB

1

2

1.5 ± 0.5 N·m

Removal steps

1. Center lower panel assembly (Refer to

GROUP 52A, Instrument panel

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

2. Hazard warning lamp switch

HAZARD WARNING LAMP SWITCH

CHASSIS ELECTRICAL

54A-93

INSPECTION

M1542011201019

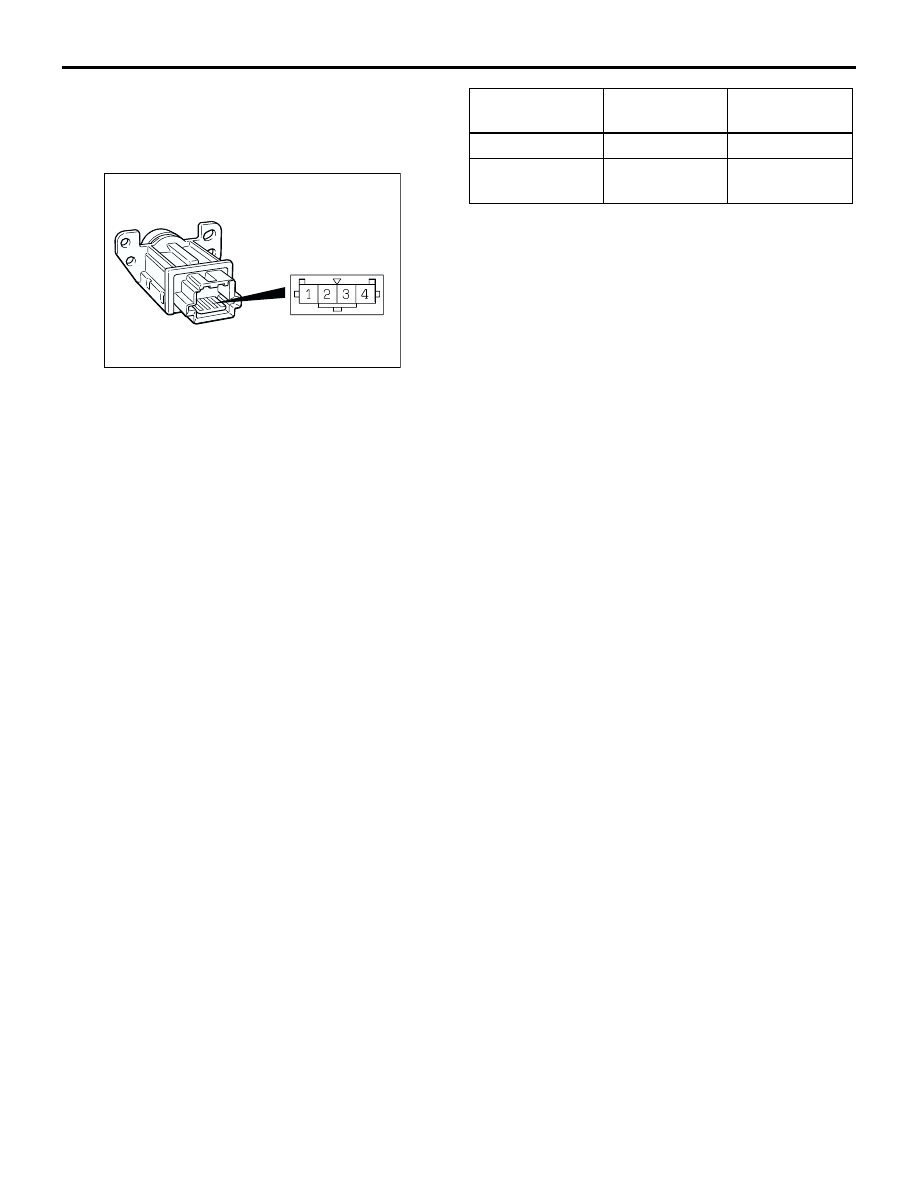

HAZARD WARNING LAMP SWITCH
CONTINUITY CHECK

AC102590

AB

Switch position Tester

connection

Specified
condition

Released

1

−

 2

Open circuit

Pressed

1

−

 2

Less than 2
ohms

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-94

COLUMN SWITCH

SPECIAL TOOL

M1542000601080

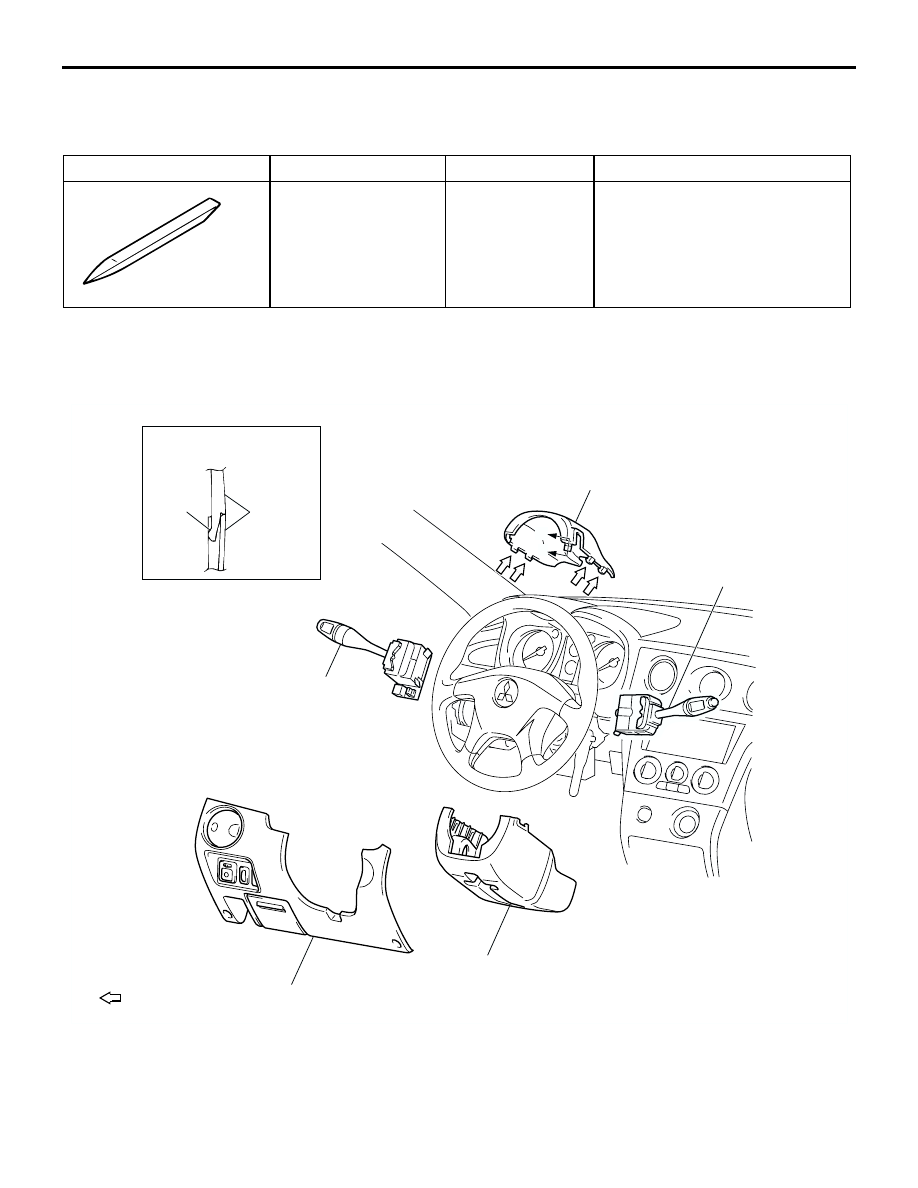

COLUMN SWITCH

REMOVAL AND INSTALLATION

M1543009100480

Tool

Number

Name

Use

MB990784

Ornament remover Removal of column cover

MB990784

AC100538

Section A - A

Column
cover

Claw

A

A

1

2

3

4

5

AC

Note
      : Claw position

Removal steps

1. Instrument lower panel (Refer to GROUP

52A, Instrument panel

P.52A-2

<LHD> or

P.52A-8

<RHD>.)

2. Column cover upper

3. Column cover lower
4. Turn-signal and lighting switch
5. Windshield wiper and washer switch

Removal steps (Continued)
