STEP 13. Connector check: C-205 junction block
connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

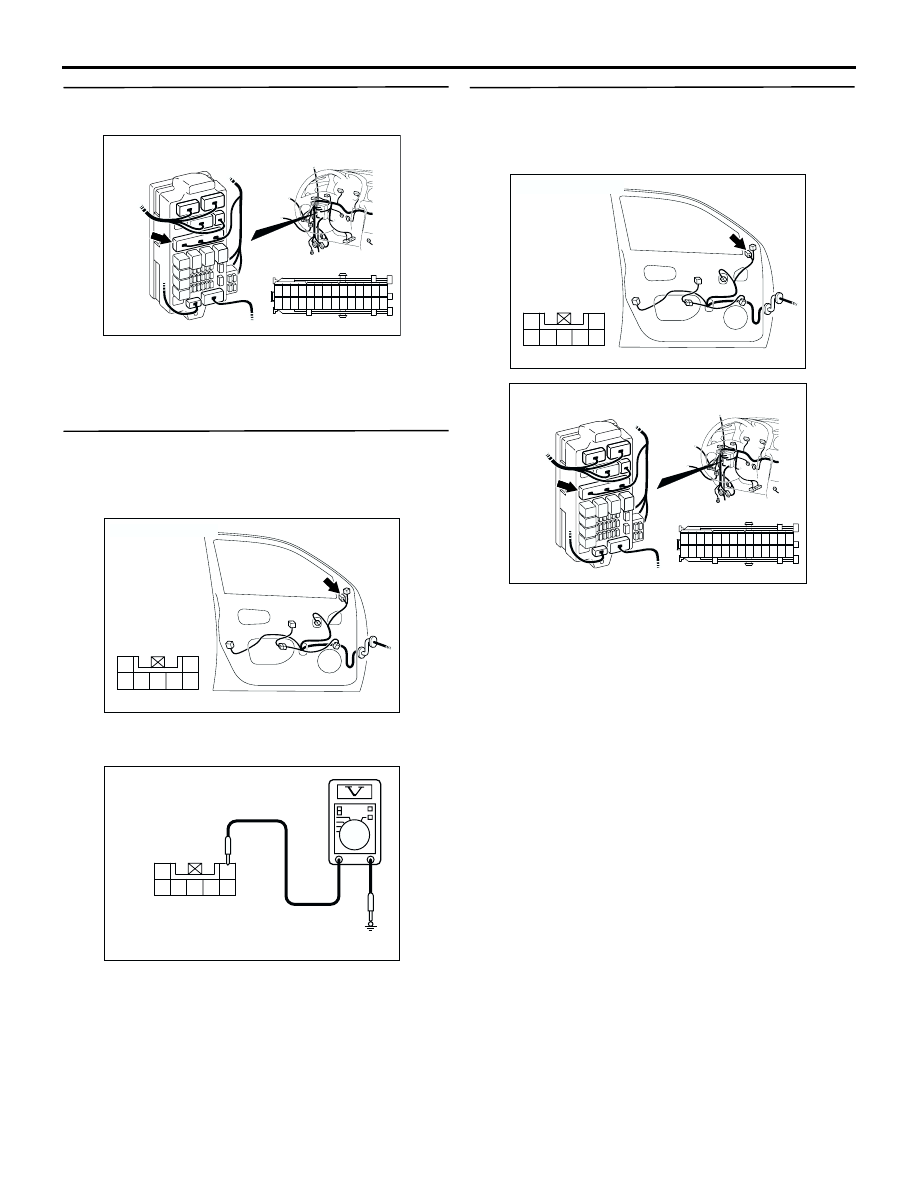

STEP 14. Measure the voltage at the E-06 door
mirror assembly (LH) connector.
(1) Turn the ignition switch to the ON position.
(2) Defogger switch: ON

(3) Disconnect the connector, and measure at the

wiring harness side.

(4) Voltage between E-06 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Go to Step 15.

STEP 15. Check the wiring harness between E-06
door mirror assembly (LH) connector terminal
No.1 and C-205 junction block connector
terminal No.3.

•

Check the power supply line for open circuit.

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

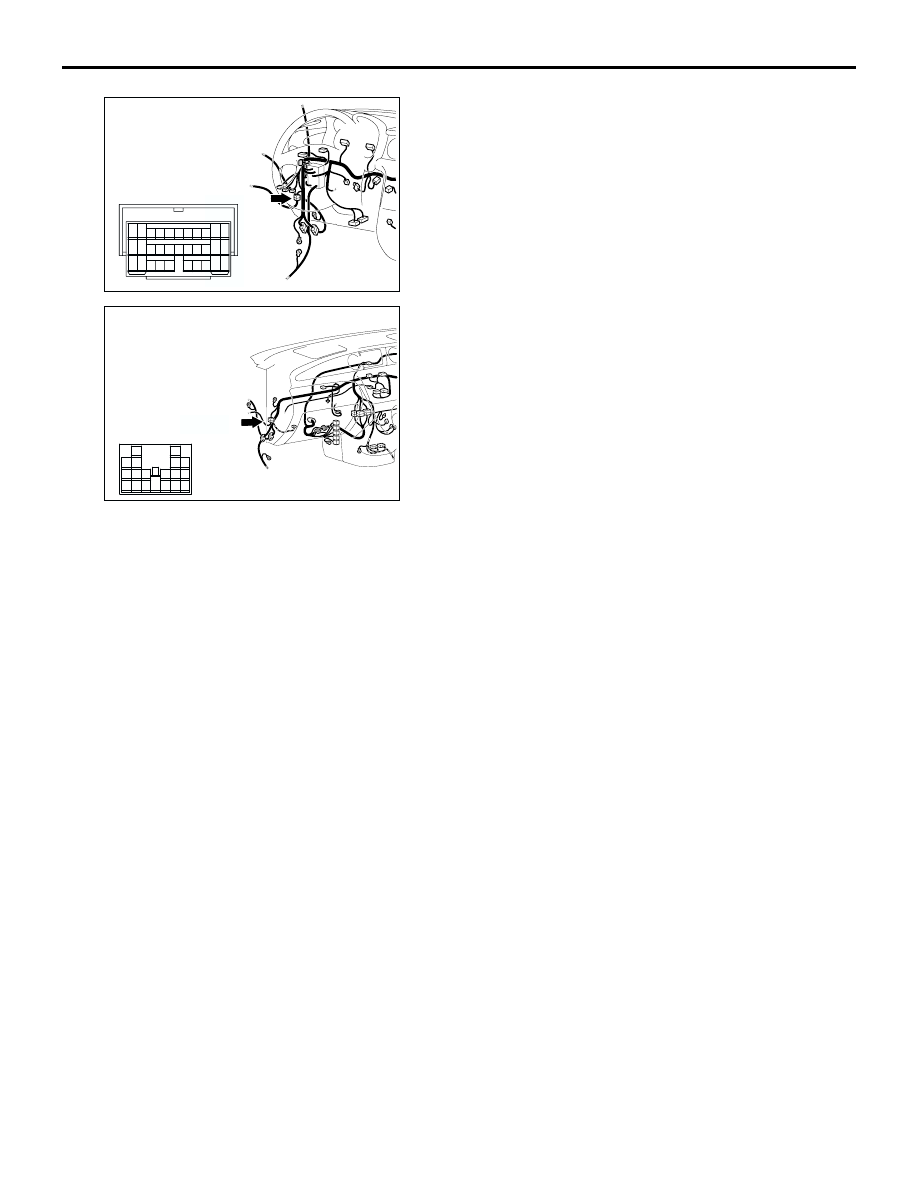

Junction block (Front view)

AC301418

Connector: E-06

E-06

Harness side

AE

2
7 6

1
3

5 4

2
7 6

1
3

5 4

AC301695

Connector E-06
(harness side)

AC

AC301418

Connector: E-06

E-06

Harness side

AE

2
7 6

1
3

5 4

AC210474

Connector: C-205

Harness side

AE

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Junction block (Front view)

DOOR MIRROR

EXTERIOR

51-56

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-118 <L.H. driver vehicles>
and C-34 <R.H. driver vehicles>, and repair if
necessary.

Q: Is the check result normal?

YES : .

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO : .

Repair the wiring harness.

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

AC308735

Connector: C-34
<RHD>

AG

C-34(GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

DOOR MIRROR

EXTERIOR

51-57

DOOR MIRROR

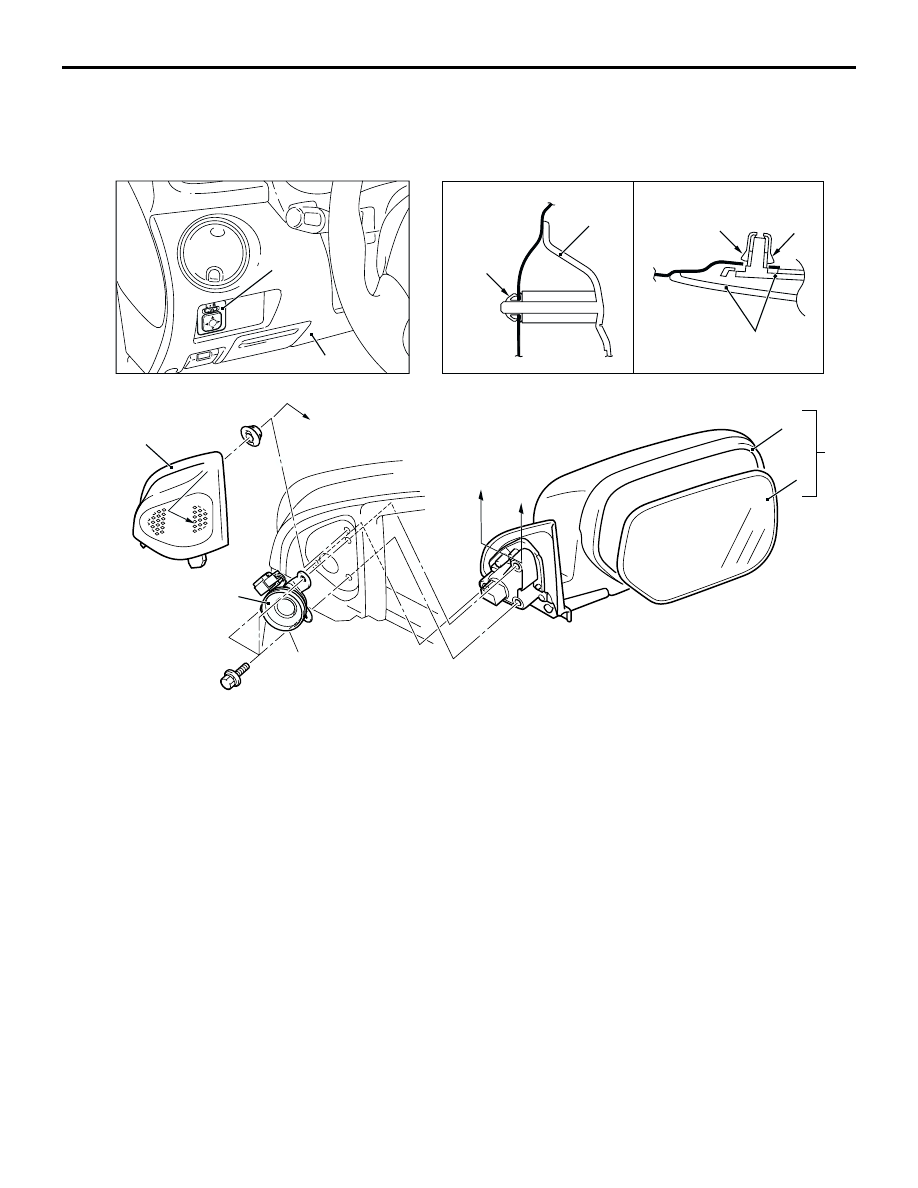

REMOVAL AND INSTALLATION

M1511006400405

AC201696

7

Section A – A

Section B – B

Clip

AB

6

1

Claw

Claw

3

4

5

3

B

B

A

1

A

A

2

Door mirror removal steps
1. Delta cover
2. Tweeter

>>A<<

3. Door mirror assembly
4. Door mirror body assembly

<<A>>

5. Mirror

Remote controlled mirror switch
removal steps
6. Instrument panel lower cover (Refer

to GROUP 52A, Instrument panel

P.52A-2

<L.H. drive vehicles>,

P.52A-8

<R.H. drive vehicles>.)

7. Remote controlled mirror switch

DOOR MIRROR

EXTERIOR

51-58

REMOVAL SERVICE POINT

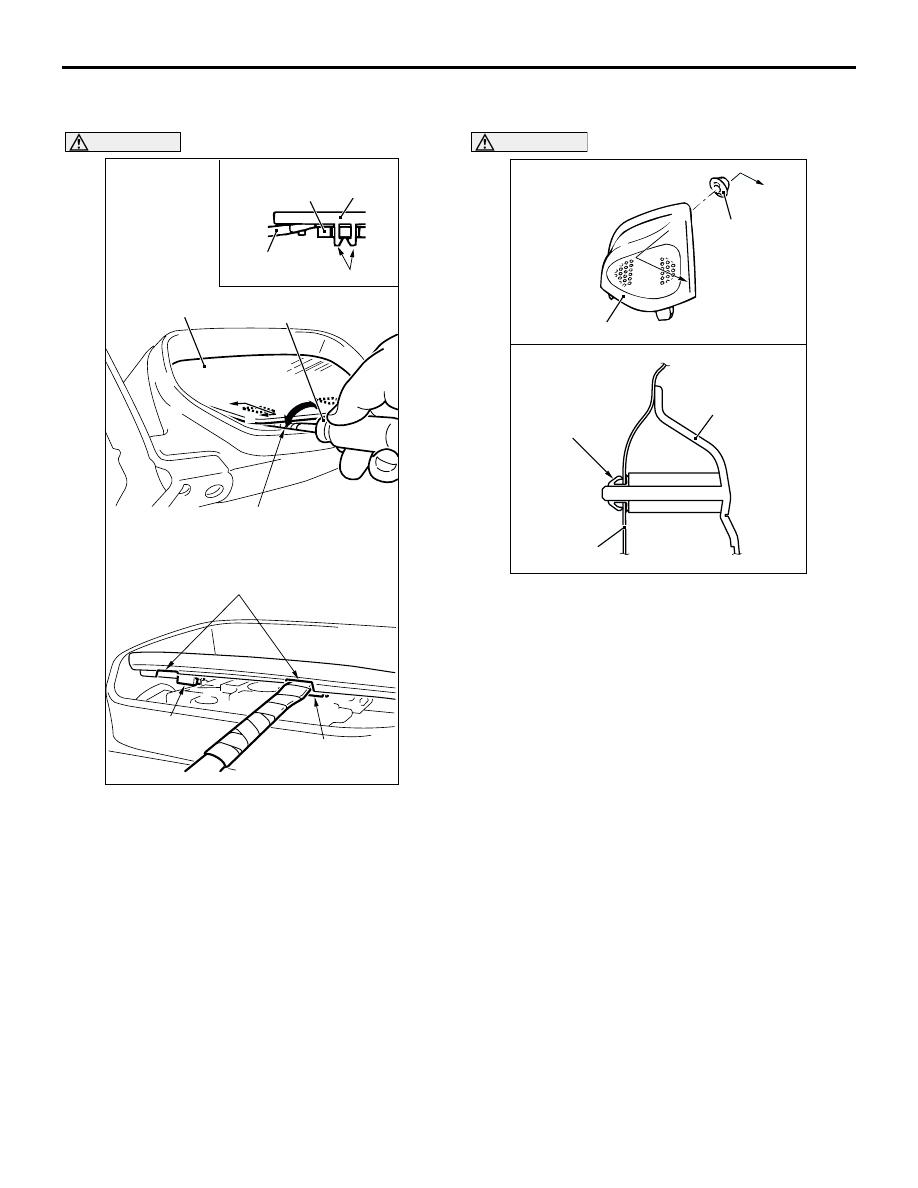

<<A>> MIRROR REMOVAL

CAUTION

The thumb of the mirror is prone to breakage
when working in cold temperatures. Always
warm up the mirror thumb and thumb periphery
to 20

°

C or higher before handling.

Slant the mirror upward with your hands. Then insert
a flat-tipped screwdriver wrapped with protective
tape between the pivot plate and mirror through the
cut-out from behind the mirror. Now pry off the mirror
thumb and remove the mirror as shown.

INSTALLATION SERVICE POINT

>>A<< DELTA COVER INSTALLATION

CAUTION

If the delta cover is placed with the clip on the
door panel, the clip may be pushed into the door
panel and fall off. Thus, special care is
necessary.
Install the delta cover with the clip installed.

AC103244

AC

Section A – A

Mirror

Flat-tipped
screwdriver

Flat-tipped
screwdriver

Mirror

A

A

Protective tape

Notch

Claw

Claw

Claw

Pivot plate

AC107642

Clip

Section A – A

A

A

Delta cover

Delta cover

Clip

Door panel

AB

A
