WIPER DEICER

EXTERIOR

51-43

WIPER DEICER

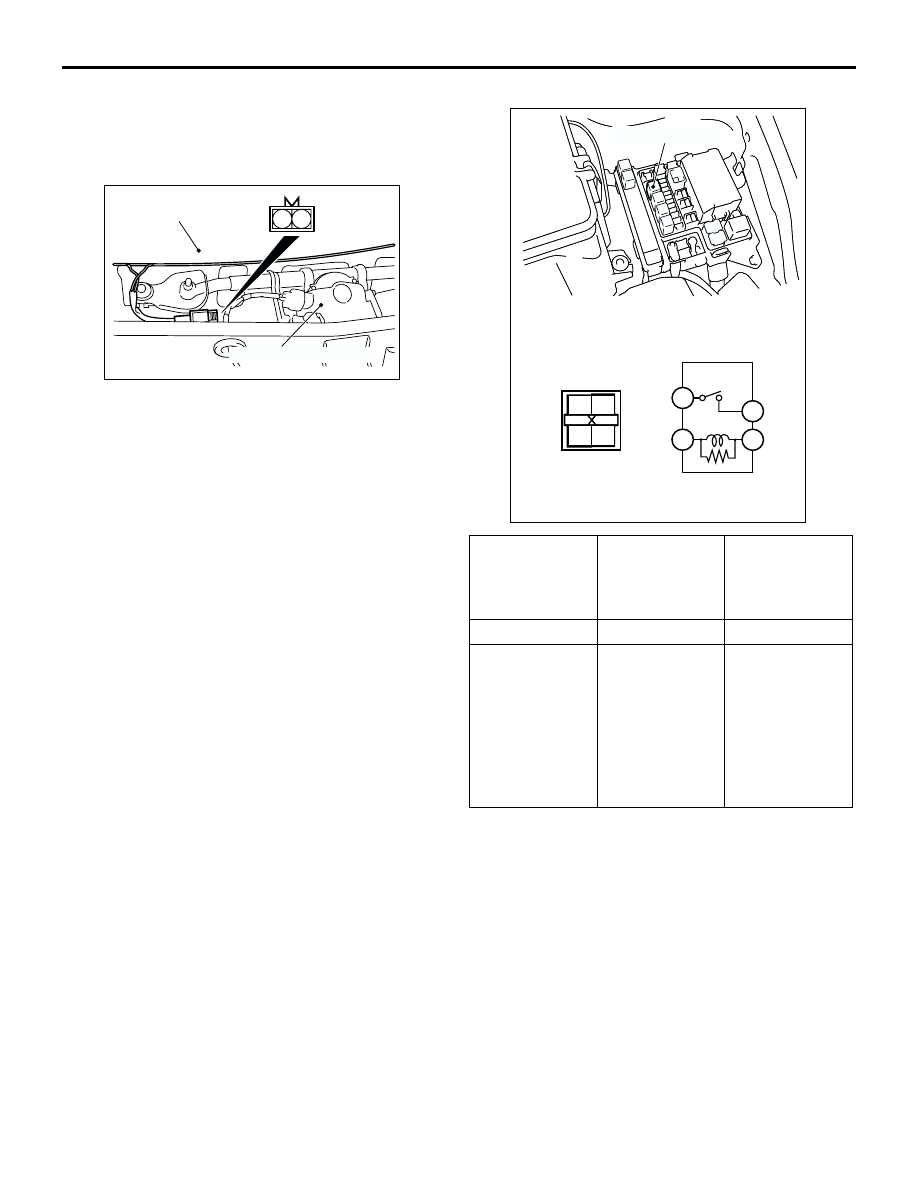

INSPECTION

M1511019100619

WIPER DEICER CHECK

There should be continuity between the wiper deicer
connector terminal No.1 and 2.

WIPER DEICER RELAY CHECK

1 2

AC301953

Windshield wiper motor

Windshield

AB

Battery voltage Terminal

number to be
connected to
tester

Continuity test
results

Not applied

1

−

 4

Open circuit

Connect
terminal No.3
and battery (

−

)

terminal.
Connect
terminal No.2
and battery (+)
terminal.

1

−

 4

Less than 2
ohms

AC211776

3

4

1

2

1 2

3 4

AC301954 AB

Wiper deicer relay

HEADLAMP WASHER

EXTERIOR

51-44

HEADLAMP WASHER

TROUBLESHOOTING

M1511000700486

The headlamp washer is controlled by the Smart
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, Troubleshooting

P.54B-41

 or GROUP

54C, Troubleshooting

P.54C-25

.

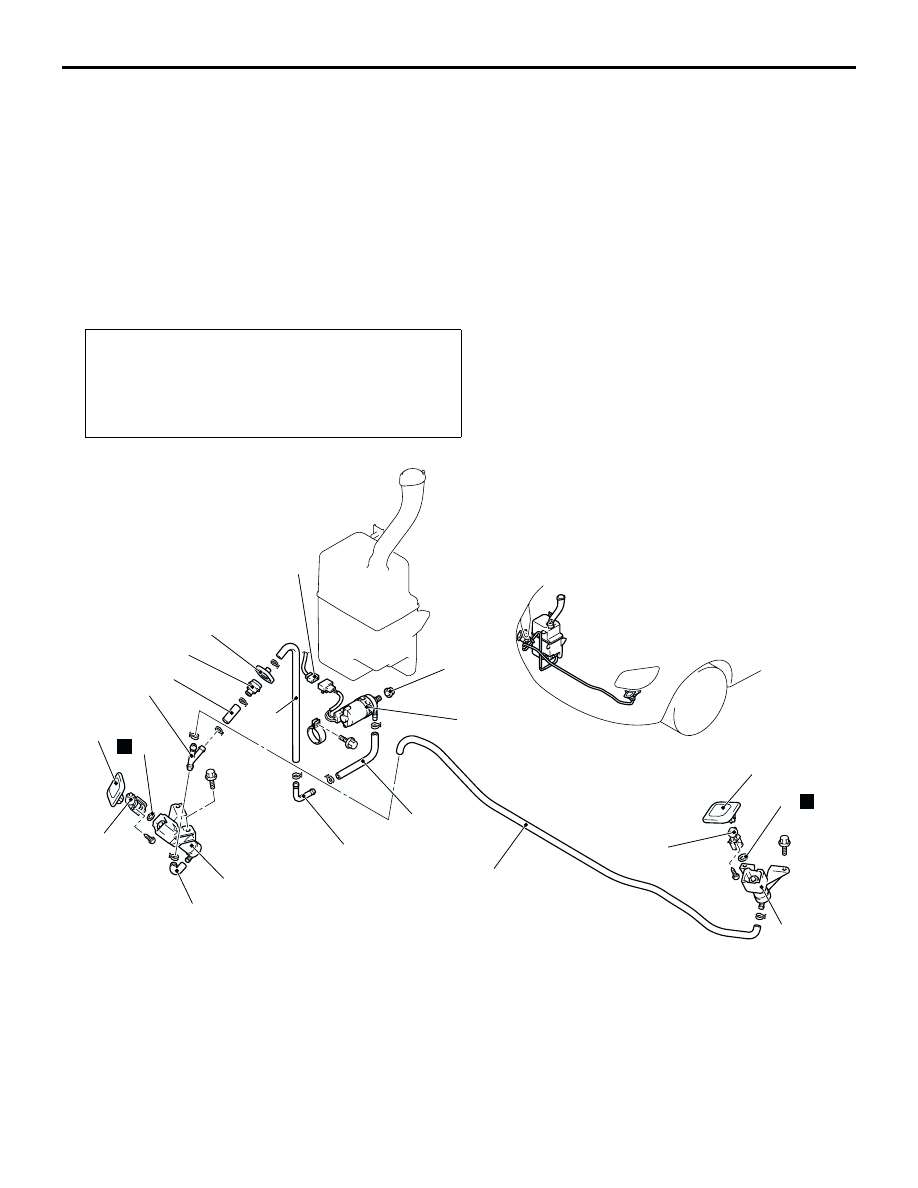

HEADLAMP WASHER

REMOVAL AND INSTALLATION

M1511009700041

Pre-removal and Post-installation Operation

•

Radiator Grille Removal and Installation (Refer to

P.51-10

).

•

Front Bumper Extension Removal and Installation (Refer

to

P.51-3

).

•

Under Cover Removal and Installation (Refer to

P.51-19

).

AC300298

1

2

3

4

5

6

7

8

9

10

8

9

10

11

12

11

12

13

14

15

N

N

AB

Removal steps

•

Washer fluid draining

1.

Headlamp washer hose connection

2.

Headlamp washer motor connector

3.

Headlamp washer hose

4.

Headlamp washer joint

5.

Headlamp washer hose

6.

Headlamp washer motor

7.

Headlamp washer motor packing

•

Front bumper (Refer to

P.51-3

).

8.

Headlamp washer cover

Removal steps (Continued)

MARK

EXTERIOR

51-45

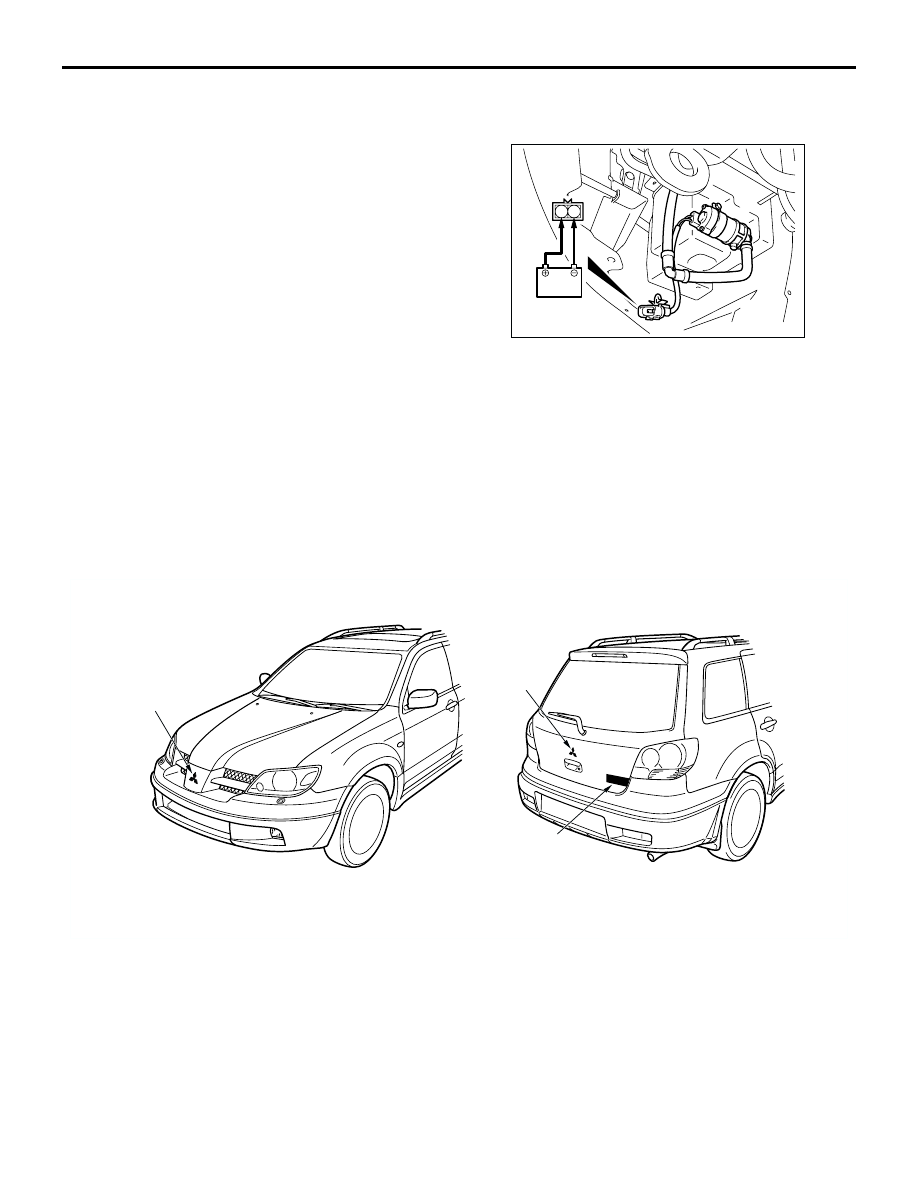

INSPECTION

M1511009800060

HEADLAMP WASHER MOTOR CHECK

1. Remove the headlamp washer motor connector.
2. Check to see that the water is vigorously sprayed

when connecting the positive battery terminal to
terminal number 1 and terminal number 2 to the
negative battery terminal.

MARK

REMOVAL AND INSTALLATION

M1511011800603

9.

Headlamp washer nozzle

10. O-ring
11. Headlamp washer actuator

assembly

12. Headlamp washer hose
13. Headlamp washer joint
14. Headlamp washer hose
15. Headlamp washer joint

Removal steps (Continued)

AC300406

1 2

AB

AC300472

1

2

3

AC

1. Front three-diamond mark

>>A<<

2. Rear three-diamond mark

>>A<<

3. OUTLANDER mark and 4WD mark

MARK

EXTERIOR

51-46

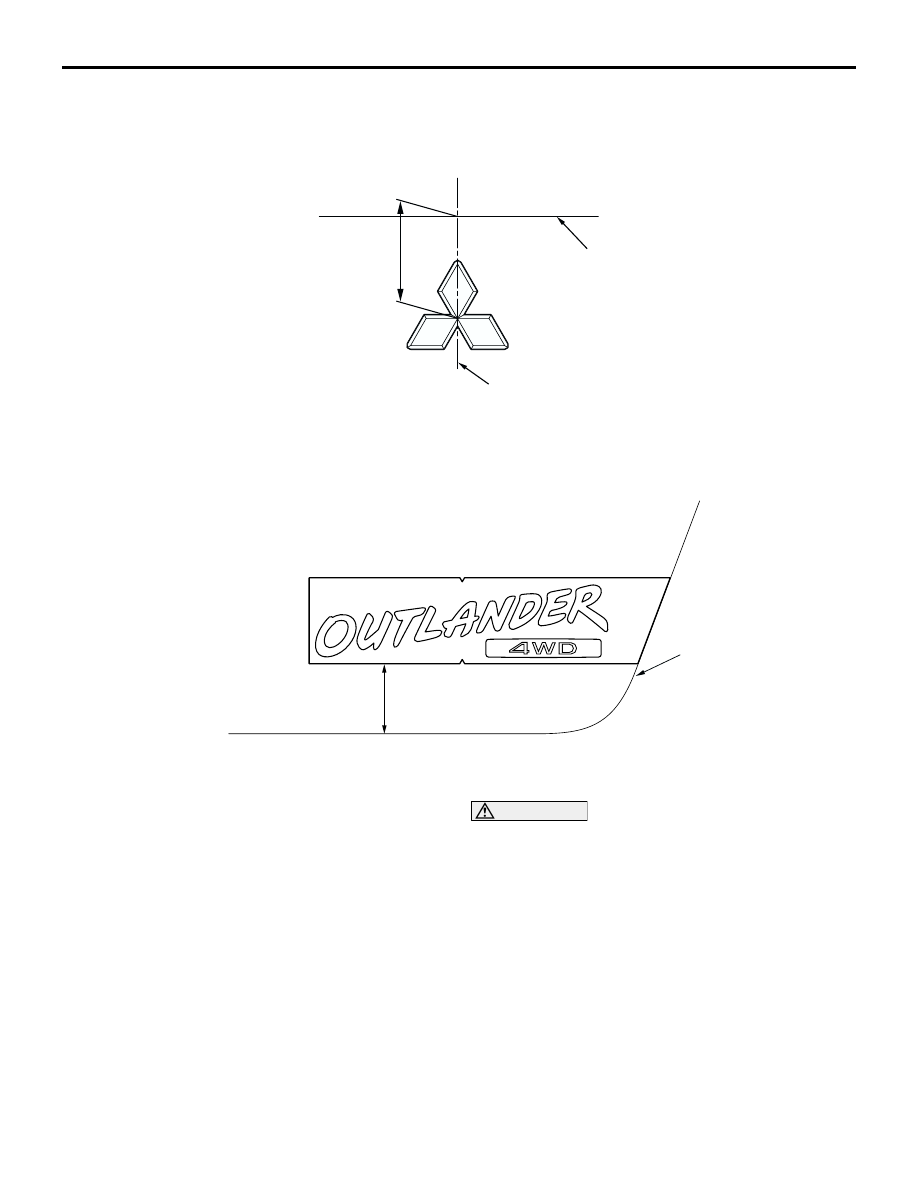

INSTALLATION SERVICE POINT

>>A<< MARK INSTALLATION

1. Clean the mark installation surfaces on the body

with unleaded petrol.

CAUTION

When attaching the marks, the ambient
temperature should be 20

−

 38

°

C and the air

should be completely free of dust. If the ambient
temperature is lower than 20

°

C, the marks and

the places on the vehicle body where the marks
are to be attached should be heated to 20

−

 38

°

C.

2. Peel off the protection sheet on the back of the

mark to paste it on the installation position.

AC309427

Centre line

of vehicle

Press line

Units: mm

AB

66 ± 1

Three-diamond mark

AC309426

AB

50

OUTLANDER mark and 4WD mark

Tailgate panel end line

Units: mm
