Mitsubishi Outlander (2003+). Manual - part 320





KEYLESS ENTRY SYSTEM

BODY

42-55

When the MUT-II is used

1. Check that the doors lock normally when the key

is used.

2. Insert the ignition key.

CAUTION

Before connecting or disconnecting the MUT-II,
turn the ignition switch to the "LOCK" (OFF)
position.

3. Connect the MUT-II to the diagnosis connector.

4. Press the hazard warning switch six times within

10 seconds.
NOTE: Once the process is completed six times,
then it will operate with all doors and tailgate lock
and unlock operations once and then go to the
save mode.
NOTE: The hazard warning lamp switch is turned
on and off alternately whenever it is pushed.

5. Press the transmitter switch, and then press it two

times within 10 seconds of the first press. This will
register the code.

6.  Once the program is saved, it will operate once

with the all doors and tailgate lock and unlock
operations.

7. If you are using two or more transmitters or have

added a second transmitter, the same registration
procedure should be carried out within one minute
after registering the code for the first transmitter.

8. Registration mode will be canceled under the

following conditions:

When the secret code for four transmitters has
been registered;

When one minute has passed after registration
mode started;

When the MUT-II is disconnected from the
diagnosis connector

When the key is removed from the key cylinder;

9. After the registration is completed, remove the

ignition key and close all the doors, and then
check that the keyless entry system operates
normally.

When the special tool V. C. I. MB991824 is
used

1. Check that the doors lock normally when the key

is used.

2. Insert the ignition key.

CAUTION

Before connecting or disconnecting the V. C. I.,
turn the ignition switch to the "LOCK" (OFF)
position.

3. Connect the V. C. I. to the diagnosis connector.

AC107200AC

MB991502

16 Pin

ACX00571

MUT-II connected

Within 10 seconds

Hazard
warning
switch

ON

OFF

1

2

3

4

5

6

AB

AC305321

AC

MB991911

MB991824

16-Pin

KEYLESS ENTRY SYSTEM

BODY

42-56

4. Within 10 seconds after turning the V.C.I. power

switch to the "ON" position, press the hazard
switch six times.
NOTE: Once the process is completed six times,
then it will operate with all doors and tailgate lock
and unlock operations once and then go to the
save mode.
NOTE: The hazard warning lamp switch is turned
on and off alternately whenever it is pushed.

5. Press the transmitter switch, and then press it two

times within 10 seconds of the first press. This will
register the code.

6.  Once the program is saved, it will operate once

with the all doors and tailgate lock and unlock
operations.

7. If you are using two or more transmitters or have

added a second transmitter, the same registration
procedure should be carried out within one minute
after registering the code for the first transmitter.

8. Registration mode will be canceled under the

following conditions:

When the secret code for four transmitters has
been registered;

When one minute has passed after registration
mode started;

When the V. C. I. is disconnected from the
diagnosis connector;

When the key is removed from the key cylinder;

9. After the registration is completed, remove the

ignition key and close all the doors, and then
check that the keyless entry system operates
normally.

ACX00571

Connect V. C. I. and turn
the V. C. I. power supply
switch ON.

Within 10 seconds

Hazard
warning
switch

ON

OFF

1

2

3

4

5

6

AJ

SUNROOF ASSEMBLY

BODY

42-57

SUNROOF ASSEMBLY

SERVICE SPECIFICATIONS

M1421000300255

TROUBLESHOOTING

CHECK CHART FOR TROUBLE
SYMPTOMS

M1426002000114

Item

Standard value

Roof lid glass operation current  A (at 20

°

C)

7 or less

Symptom

Inspection
procedure
number

Reference
page

Sunroof does not work at all.

1

P.42-58

Any of the sunroof switch positions is defective.

2

P.42-66

Sunroof anti-trap function does not work normally.

3

P.42-70

SUNROOF ASSEMBLY

BODY

42-58

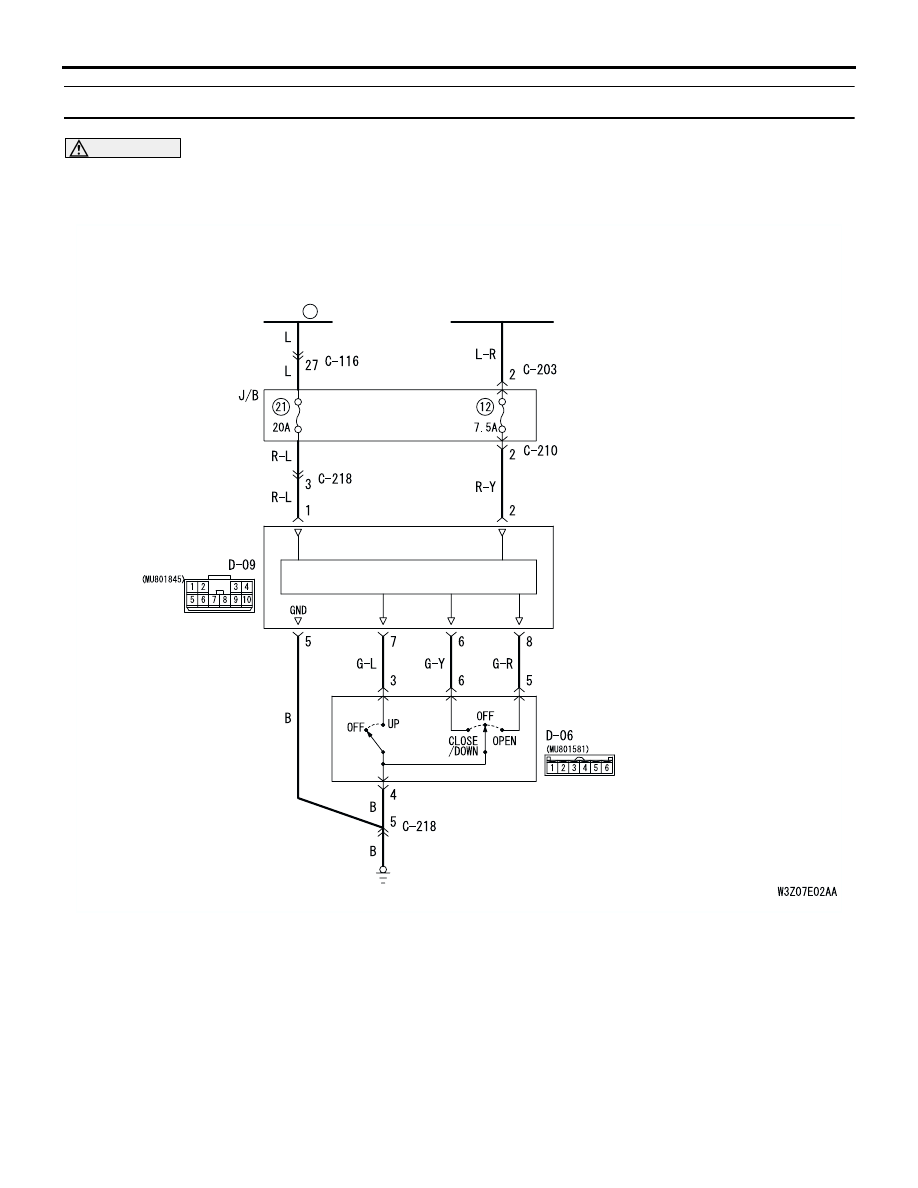

INSPECTION PROCEDURE 1: The sunroof does not work at all.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

CONTROL CIRCUIT

SUNROOF
SWITCH

SUNROOF
MOTOR ASSEMBLY

FUSIBLE
LINK

5

IGNITION
SWITCH (IG2)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AC309237AB

Sunroof-ECU Power Supply Circuit <L.H. drive vehicles>
