POWER STEERING HOSES

POWER STEERING

37A-43

<2400>

AC309400

AB

15 ± 3 N·m

12 ± 2 N·m

12 ± 2 N·m

12 ± 2 N·m

57 ± 7 N·m

57 ± 7 N·m

3

1

2

9

4

13

10

7

11

12

5

6

12

8

14

13

15

12 ± 2 N·m

12 ± 2 N·m

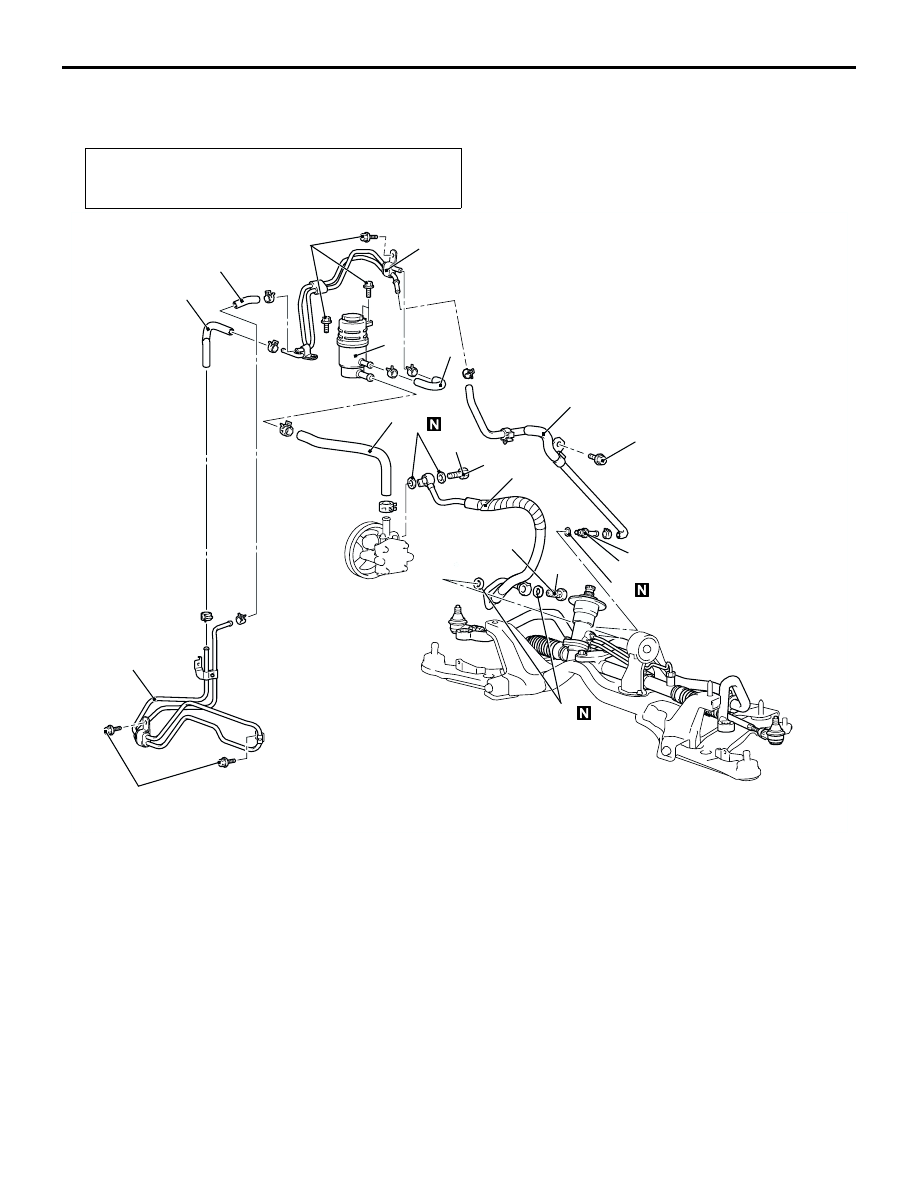

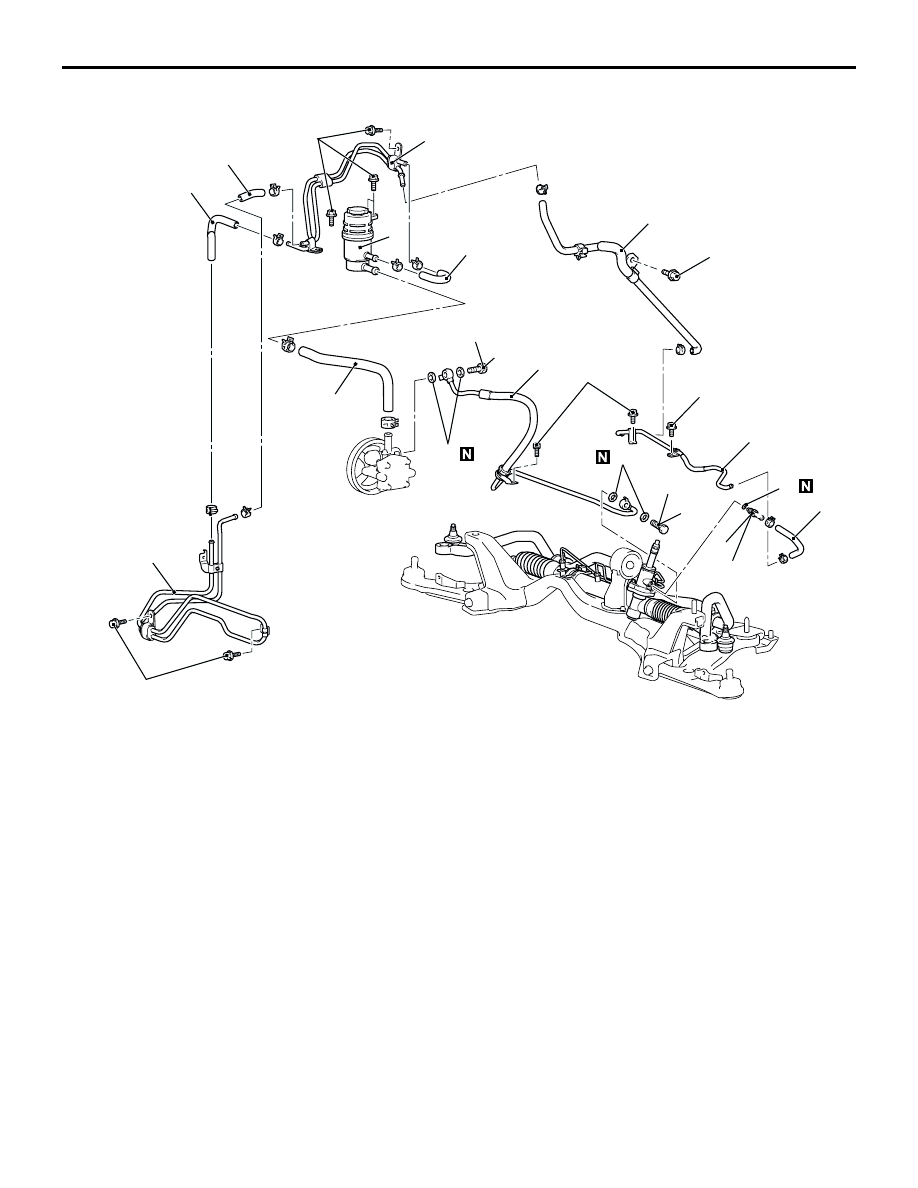

Removal steps

1.

Oil reservoir

>>F<<

2.

Return hose

>>E<<

3.

Suction hose

>>D<<

4.

Return hose

>>C<<

5.

Return hose

>>B<<

6.

Return hose

7.

Return tube assembly

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper Assembly

P.51-3

).

8.

Cooler tube assembly

•

Tie rod end and knuckle connection
(Refer to

P.37A-21

).

•

Stabilizer link (Refer to GROUP 33A,
Stabilizer Bar

P.33-14

).

>>A<<

9.

Return hose

10.

Return tube

11.

O-ring

12.

Eye bolt

13.

Gasket

14.

Pressure hose assembly

15.

Return tube

Removal steps (Continued)

POWER STEERING HOSES

POWER STEERING

37A-44

INSTALLATION SERVICE POINTS

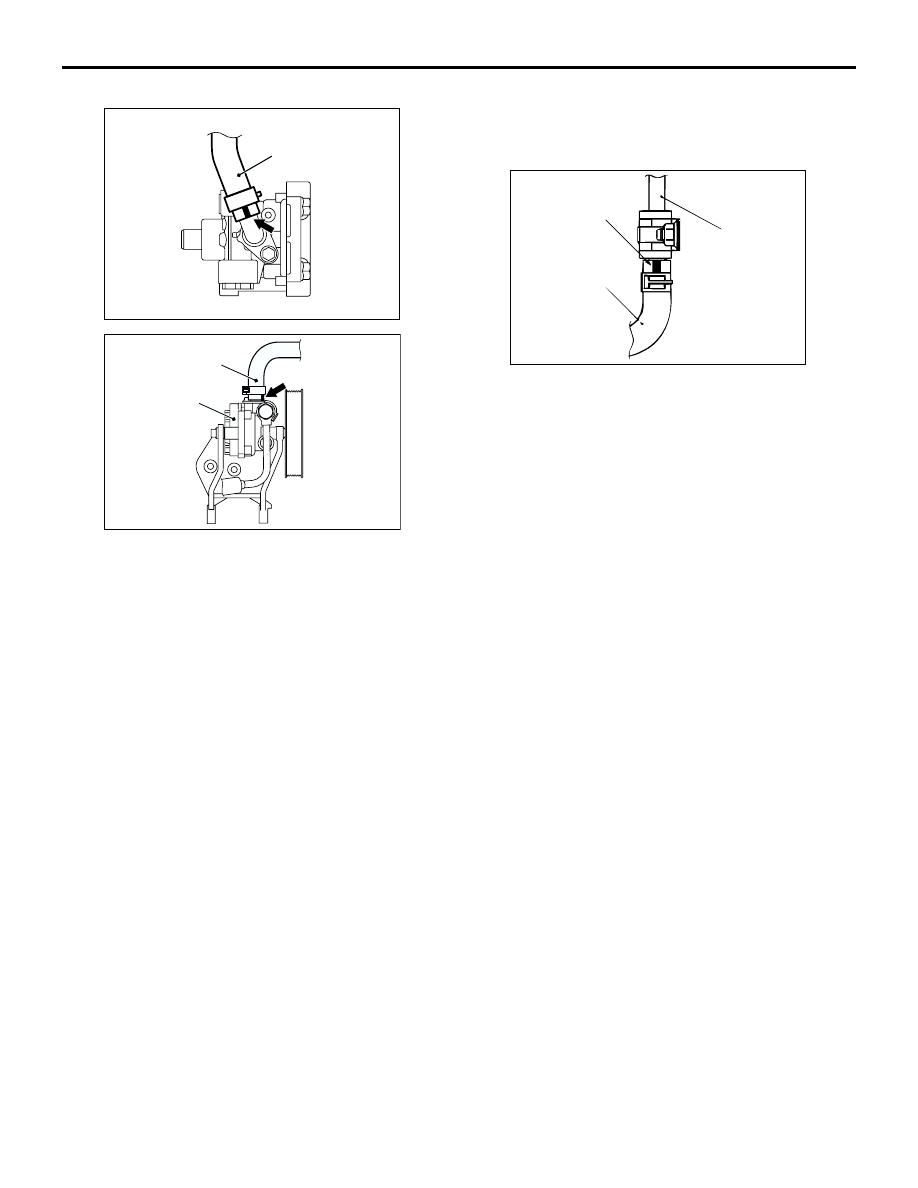

>>A<< RETURN HOSE INSTALLATION

Install the return hose so that the marking is
positioned as shown in the illustration.

>>B<< RETURN HOSE INSTALLATION

Install the return hose so that the marking is
positioned as shown in the illustration.

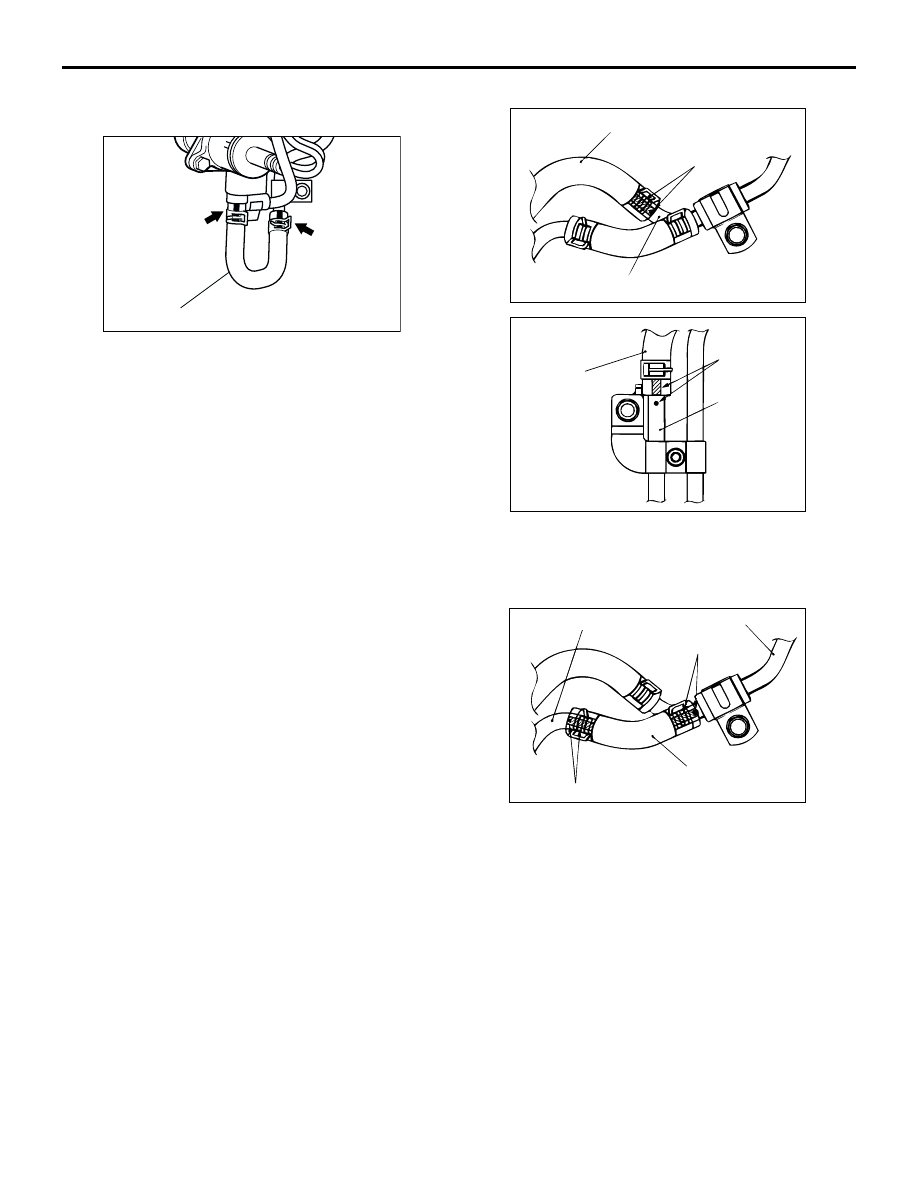

>>C<< RETURN HOSE INSTALLATION

AC100277AB

Return hose

AC201792 AC

Return hose

Return tube

Marking

AC201922 AC

Return hose

Cooler tube
assembly

Marking

AC201791 AC

Return hose

Return tube

Marking

Marking

Cooler tube assembly

POWER STEERING HOSES

POWER STEERING

37A-45

>>E<< SUCTION HOSE INSTALLATION

Install the suction hose so that the marking is
positioned as shown in the illustration.

>>F<< RETURN HOSE INSTALLATION

Install the return hose so that the markings are
positioned as shown in the illustration.

AC103338

AE

Suction hose

<2000>

AC302812

Suction hose

Oil pump

AE

<2400>

AC201923 AC

Return hose

Return tube

Marking

POWER STEERING HOSES

POWER STEERING

37A-46

REMOVAL AND INSTALLATION <R.H.
drive vehicles>

M1372005700505

Pre-removal and Post-installation Operation

•

Power Steering Fluid Draining and Refilling (Refer to

P.37A-11

.) and Bleeding (Refer to

P.37A-12

.)

AC211765
AC309229

AC309399AB

15 ± 3 N·m

12 ± 2 N·m

12 ± 2 N·m

12 ± 2 N·m

57 ± 7 N·m

57 ± 7 N·m

3

1

2

4

10

7

10

9

5

6

8

11

9

12

13

Removal steps

1.

Oil reservoir

>>F<<

2.

Return hose

>>E<<

3.

Suction hose

>>D<<

4.

Return hose

>>C<<

5.

Return hose

>>B<<

6.

Return hose

7.

Return tube assembly

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper Assembly

P.51-3

.)

8.

Cooler tube assembly

•

Tie rod end and knuckle connection
(Refer to

P.37A-21

.)

•

Stabilizer link (Refer to GROUP 33A,
Stabilizer Bar

P.33-14

.)

9.

Eye bolt

10.

Gasket

>>A<<

11.

Pressure hose assembly

12.

Return tube

13.

O-ring

Removal steps (Continued)
