36-1

GROUP 36

PARKING BRAKES

CONTENTS

GENERAL INFORMATION . . . . . . . .

36-2

SPECIFICATIONS . . . . . . . . . . . . . . .

36-3

SERVICE SPECIFICATIONS . . . . . . . . . . .

36-3

ON-VEHICLE SERVICE. . . . . . . . . . .

36-4

PARKING BRAKE LEVER STROKE CHECK AND

ADJUSTMENT <L.H. drive vehicles> . . . . .

36-4

PARKING BRAKE PEDAL STROKE CHECK AND

ADJUSTMENT <R.H. drive vehicles>. . . . .

36-4

PARKING BRAKE SWITCH CHECK  . . . . .

36-5

LINING RUNNING-IN . . . . . . . . . . . . . . . . .

36-6

PARKING BRAKE LEVER
<L.H. drive vehicles>  . . . . . . . . . . . .

36-7

REMOVAL AND INSTALLATION . . . . . . . .

36-7

PARKING BRAKE PEDAL
<R.H. drive vehicles>  . . . . . . . . . . . .

36-8

REMOVAL AND INSTALLATION . . . . . . . .

36-8

PARKING BRAKE CABLE. . . . . . . . .

36-9

REMOVAL AND INSTALLATION

<L.H. drive vehicles> . . . . . . . . . . . . . . . . . .

36-9

REMOVAL AND INSTALLATION

<R.H. drive vehicles>  . . . . . . . . . . . . . . . . .

36-10

PARKING BRAKE LINING AND
DRUM . . . . . . . . . . . . . . . . . . . . . . . . .

36-12

REMOVAL AND INSTALLATION . . . . . . . .

36-12

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

36-13

GENERAL INFORMATION

PARKING BRAKES

36-2

GENERAL INFORMATION

M1361000100388

<L.H. drive vehicles>

•

The parking brake is of a mechanical rear-wheel
acting type, and its operation utilises a parking
brake lever.

<R.H. drive vehicles>

•

The parking brake is of a mechanical rear-wheel
acting type. The foot pedal is used to lock and
release the parking brake for easier operation.
The pedal surface is labeled with "PUSH", "ON",
and "OFF," and users can easily understand the
pedal release mechanism.

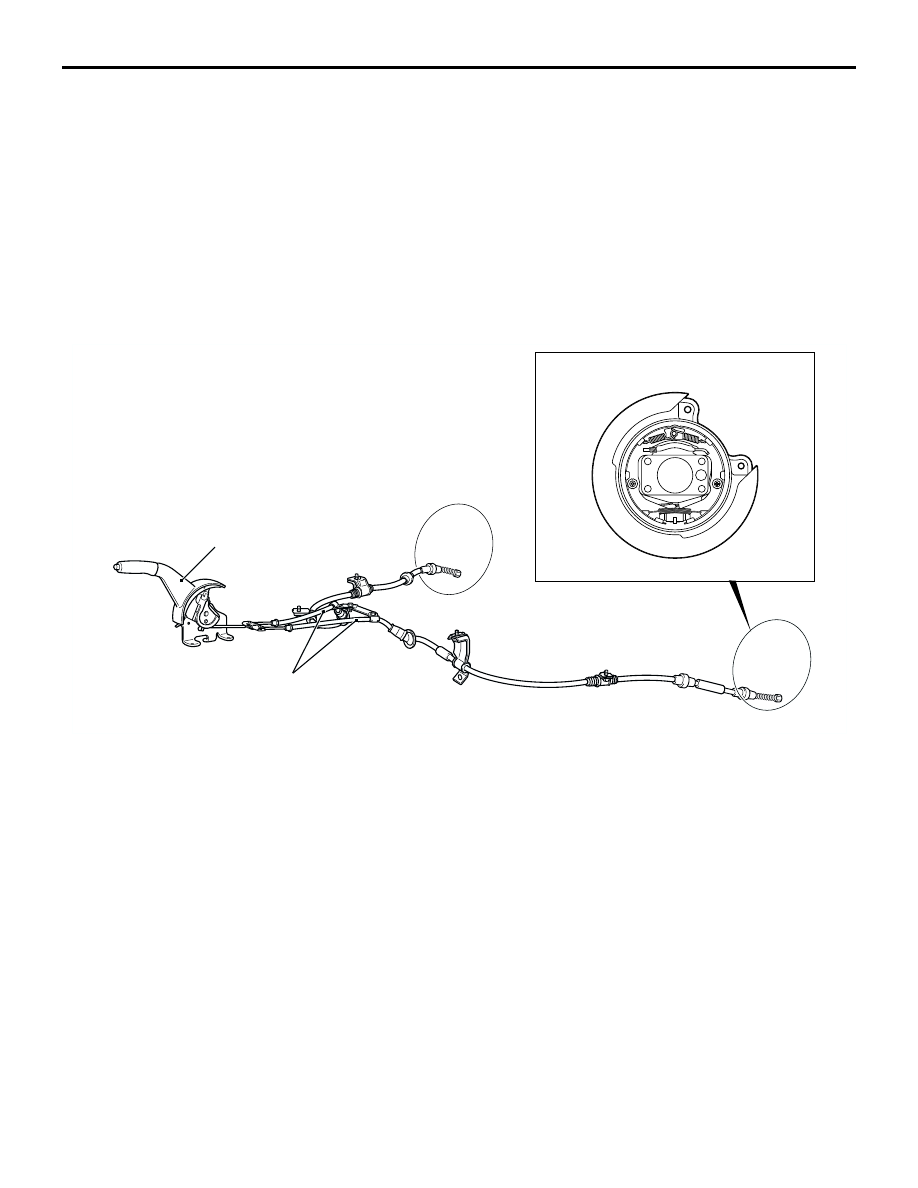

CONSTRUCTION DIAGRAM
<L.H. drive vehicles>

AC300160

AC202153

<Vehicles with rear drum-in disc brakes>

Parking brake lever

Parking brake cable

AB

SPECIFICATIONS

PARKING BRAKES

36-3

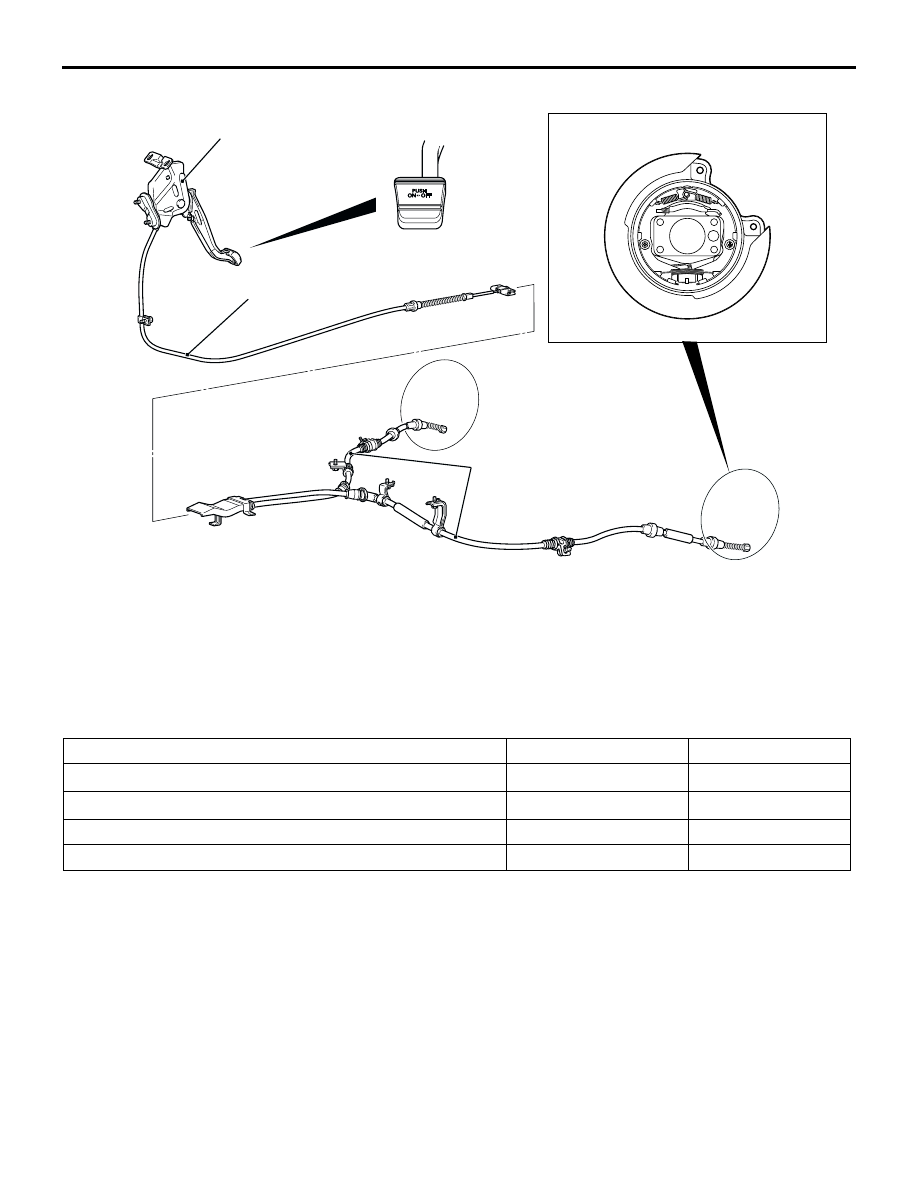

<R.H. drive vehicles>

SPECIFICATIONS

SERVICE SPECIFICATIONS

M1361000300467

AC300158

AC202153

<Vehicles with rear drum-in disc brakes>

AB

Parking brake pedal assembly

Front parking brake cable assembly

Rear parking brake cable assembly

Item

Standard value

Limit

Parking brake lever stroke <L.H. drive vehicles>

4

−

 5 notches

−

Parking brake pedal stroke <R.H. drive vehicles>

1

−

 2 notches

−

Rear brake lining thickness mm

2.8

1.0

Rear drum inside diameter mm

168.0

169.0

ON-VEHICLE SERVICE

PARKING BRAKES

36-4

ON-VEHICLE SERVICE

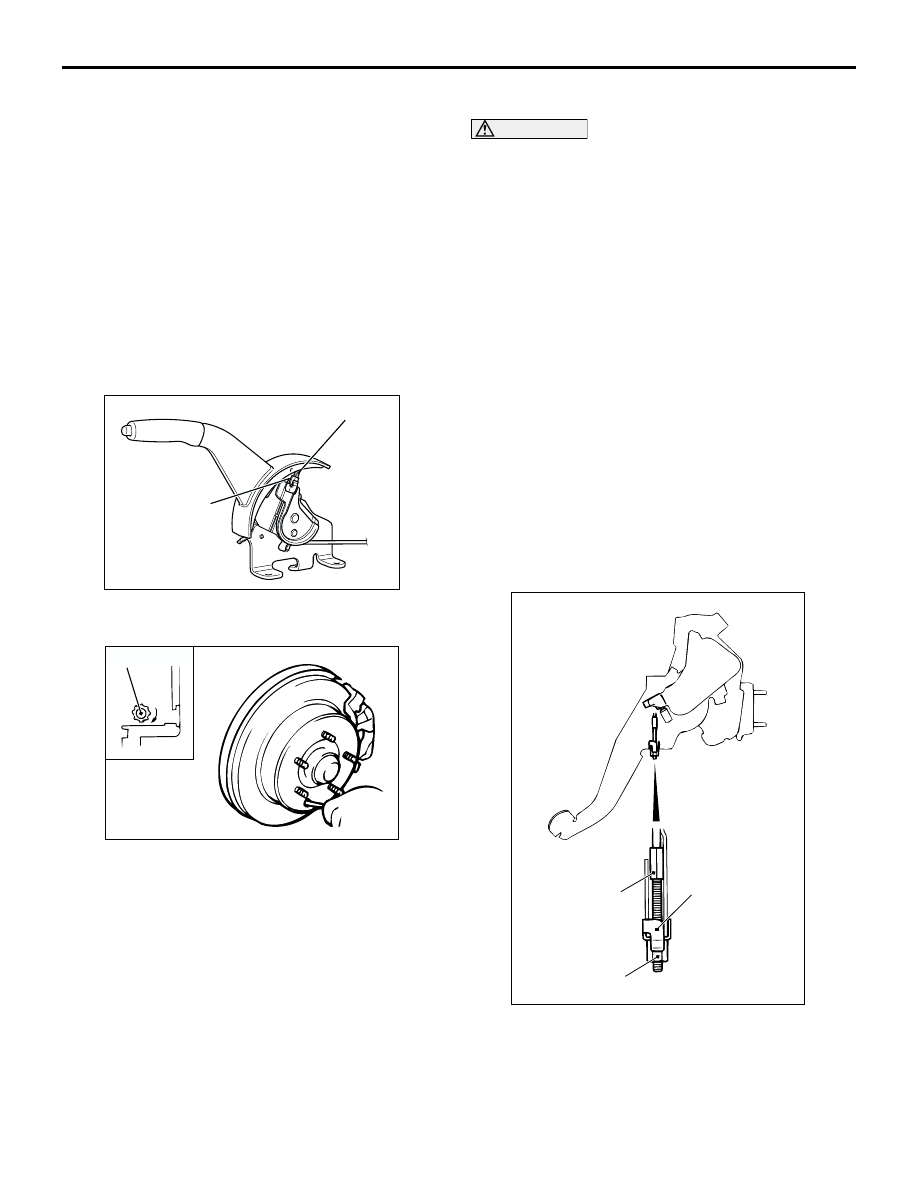

PARKING BRAKE LEVER STROKE
CHECK AND ADJUSTMENT <L.H. drive
vehicles>

M1361000900414

1. Pull the parking brake lever with a force of

approximately 200 N and count the number of
notches.

Standard value: 4

−

 5 notches

2. If the parking brake lever stroke is not the

standard value, adjust as described below.
(1) Remove the floor console assembly (Refer to

GROUP 52A, Floor Console Assembly

P.52A-14

).

(2) Loosen the adjusting nut to move it to the

cable rod end so that the cable will be free.

(3) Remove the rear brake adjusting hole plug.

Then insert a flat-tipped screwdriver to turn the
adjuster to the arrow direction (to expand the
shoe) until the parking brake shoe makes
contact and the disc can no longer be turned.
Back off the adjuster to the opposite direction
by five notches.

CAUTION

If the parking brake lever stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(4) Adjust the parking brake lever stroke to the

standard value by turning the adjusting nut.
After the adjustment, ensure that there is no
free play between the adjusting nut and the
parking brake lever.

(5) After the parking brake lever stroke is

adjusted, raise the rear of the vehicle. Release
the parking brake, turn the rear wheels to
confirm that the rear brakes are not dragging.

PARKING BRAKE PEDAL STROKE
CHECK AND ADJUSTMENT <R.H. drive
vehicles>

M1361001000102

1. Depress the parking brake pedal by

approximately 200 N.

Standard value: 1

−

 2 notches

2. If the parking brake pedal stroke is not within the

standard value, adjust as described below.

(1) Loosen the adjusting nut to the end of the

cable rod in order to allow slack in the cables.

AC107239

Cable rod

Adjusting nut

AD

AC202320AC

Adjuster

AC102699AE

Cable rod

Adjusting nut

Nut holder
