Mitsubishi Outlander (2003+). Manual - part 268





TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-15

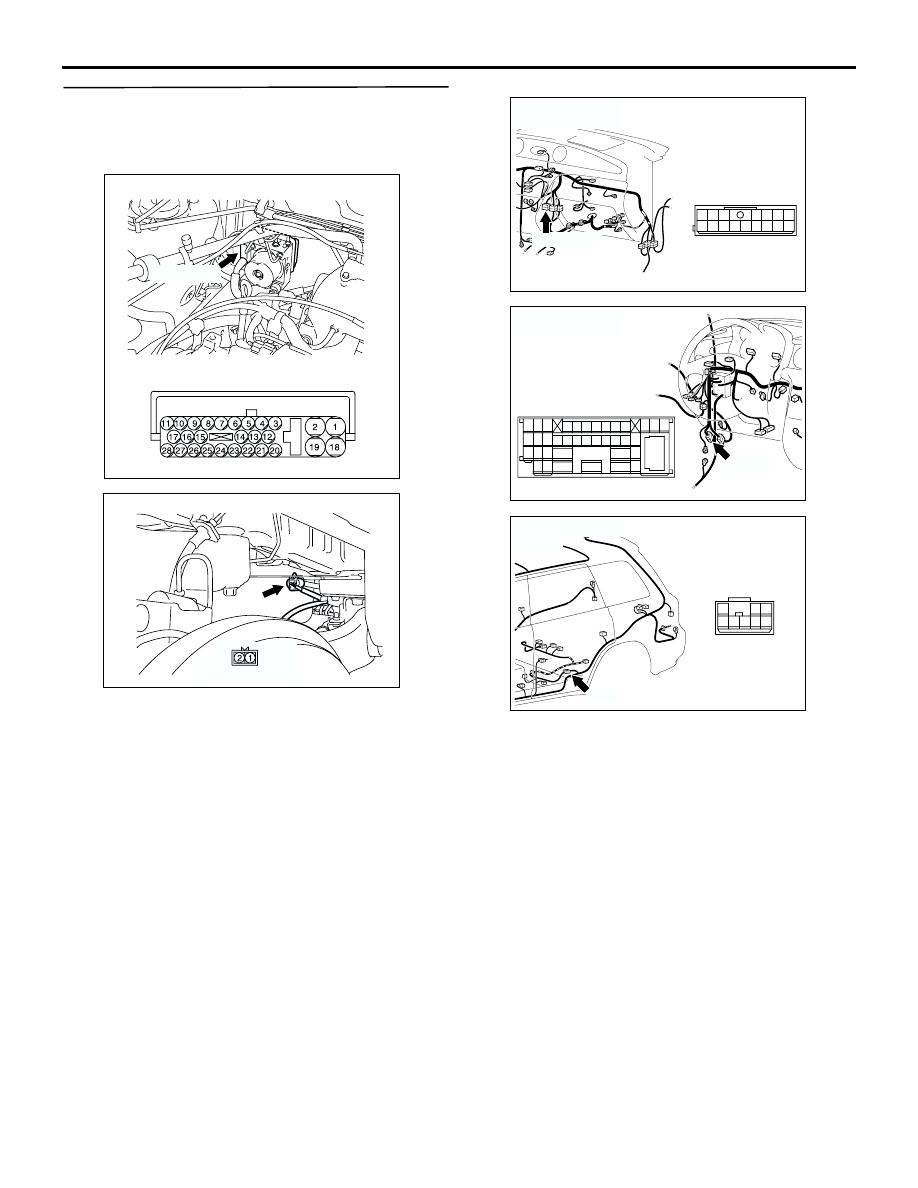

STEP 7. Check the harness wires between
ABS-ECU connector B-03 (terminals 11 and 17)
and ABS sensor <rear: RH> connector D-13
(terminals 1 and 2).

NOTE:

AC301441AB

Connector: B-03

B-03 (GR)

Harness side

AC301445AB

Connector: D-13

D-13 (B)

Harness side

AC308718

AQ

C-104 (B)

Connector: C-104
<LHD>

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

AC308716

AV

C-117

Connector: C-117
<LHD>

38

1213

11

26

14

1

20

6

2324 25

37

31

36

30

10

9

2122

35

8

7

34

17

29

1819

5

4

1516

33

28

32

27

3

2

AC309649

AB

D-24

Connector: D-24
<LHD>

D-24

8

3

1

4 5 6

2

7

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-16

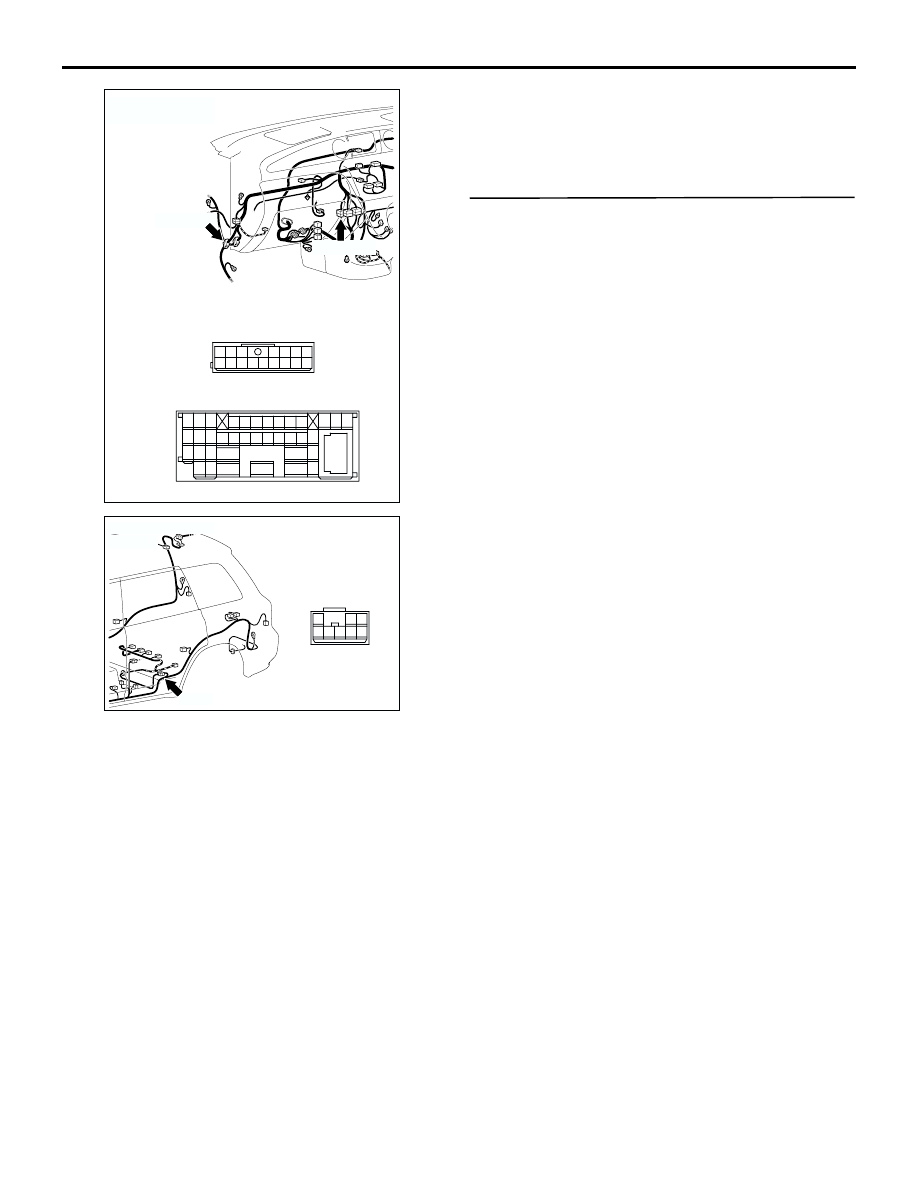

After inspecting ABS-ECU connector B-03,
intermediate connectors C-104, C-117 and D-24, and
ABS sensor <rear: RH> connector D-13, inspect the
wire. If any of these connectors is damaged, repair or
replace it. Then go to Step 8.

Q: Is any harness wire between ABS-ECU connector

B-03 (terminals 11 and 17) and ABS sensor <rear:
RH> connector D-13 (terminals 1 and 2) damaged?

YES :

Repair it and then go to Step 8.

NO :

Go to Step 8.

STEP 8. Check whether the diagnosis code is
reset.

Q: Is diagnosis code No.11, 12, 13 or 14 set?

YES :

Start over at Step 1.

NO :

The procedure is complete.

AC308736

C-117

AJ

C-104(B)

Connectors: C-104, C-117
<RHD>

C-117

C-104(B)

15

1
8

3

10

2
9

11

4

13

12

5

14

16

7

6

38

1213

11

26

14

1

20

6

2324 25

37

31

36

30

10

9

2122

35

8

7

34

17

29

1819

5

4

1516

33

28

32

27

3

2

AC309650

AB

D-24

Connector: D-24
<RHD>

D-24

8

3

1

4 5 6

2

7

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-17

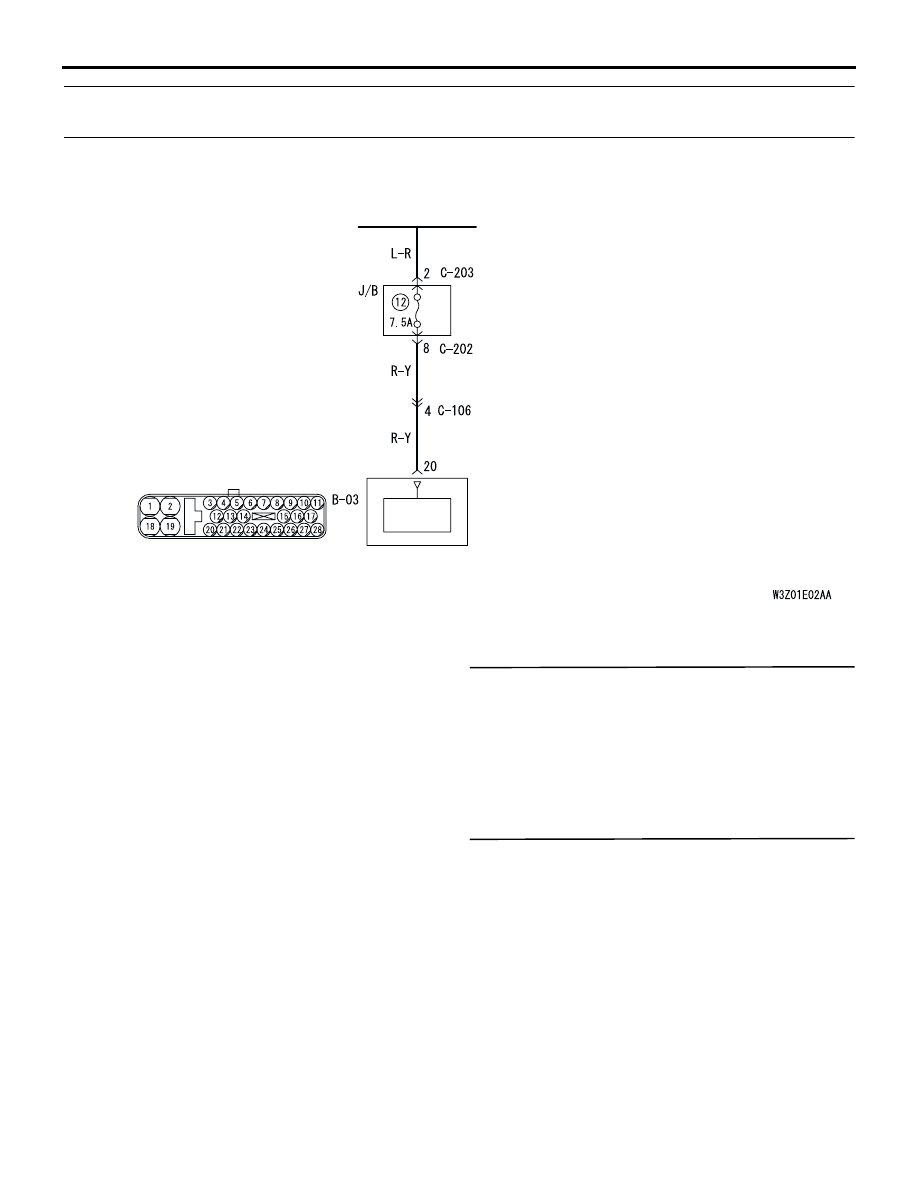

Code No.16: ABS-ECU Power Supply System (ABS-ECU Power Supply Voltage or Valve Relay Power
Supply Voltage below or above the Specified Value)

OPERATION
The ABS-ECU power is supplied to the ABS-ECU
(terminal 20) from the ignition switch (IG2) through
the multi-purpose fuse number 12 in the junction
block.

DIAGNOSIS CODE SET CONDITIONS
Output is provided when ABS-ECU power supply
voltage drops below or rises above the specified
value. Output is not provided if the power supply
voltage meets the specified voltage.

PROBABLE CAUSES
The most likely causes for this diagnosis code to set
are:

•

Malfunction of battery

•

Damaged wiring harness or connector

•

Malfunction of hydraulic unit and ABS-ECU

DIAGNOSIS

STEP 1. Check the battery.

Refer to GROUP 54A, Battery

−

 On-vehicle Service

−

 Battery Test

P.54A-6

.

Q: Is the battery damaged?

YES :

Charge or replace the battery and then go

to Step 4.

NO :

Go to Step 2.

STEP 2. Check the charging system.

Refer to GROUP 16, Charging System

−

 On-vehicles

Service

P.16-6

.

Q: Is the charging system damaged?

YES :

Repair the Charging System and then go to

Step 4.

NO :

Go to Step 3.

AC301687

ABS-ECU

IGNITION
SWITCH (IG2)

POWER
SOURCE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AB

ABS-ECU Power Supply Circuit

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-18

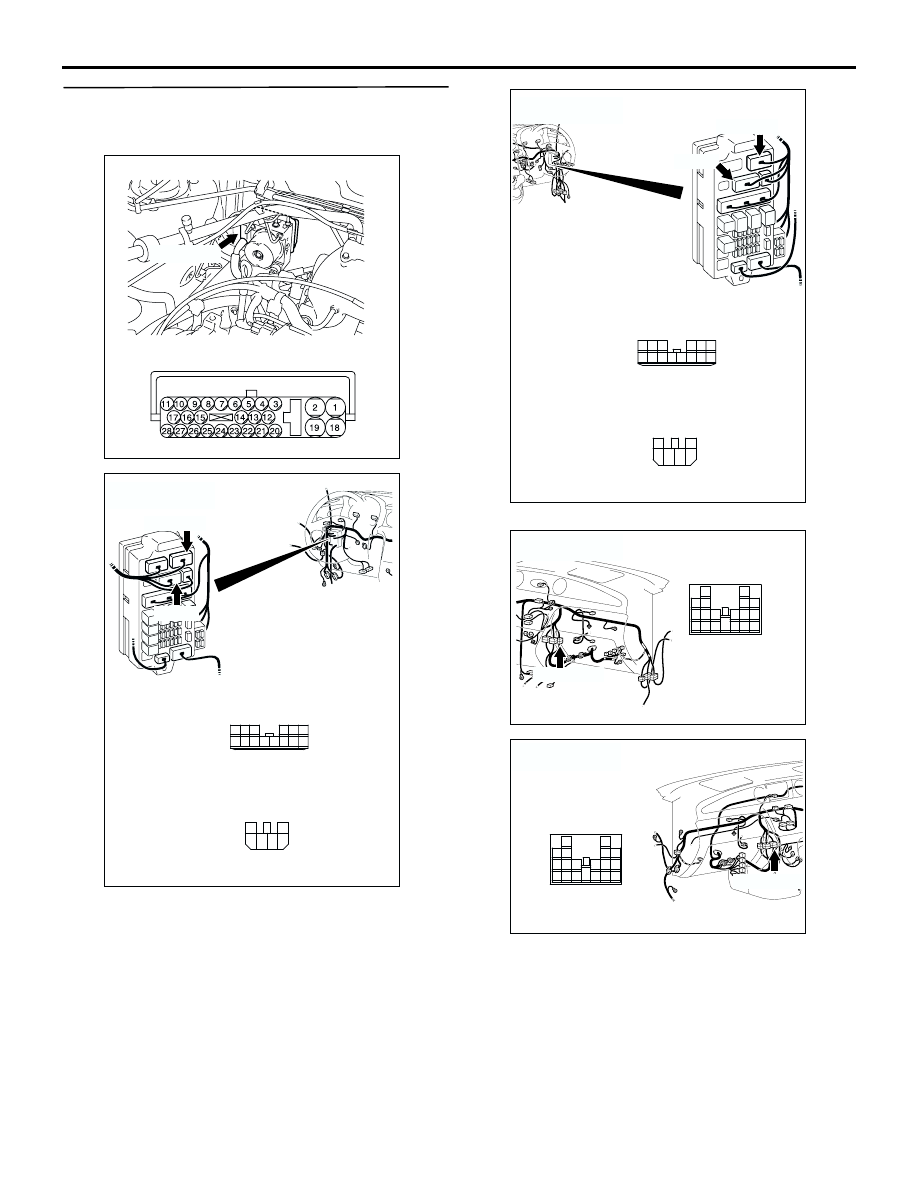

STEP 3. Check the harness wire between
junction block connector C-203 terminal 2 and
ABS-ECU connector B-03 terminal 20.

NOTE:

After inspecting ABS-ECU connector B-03,
intermediate connector C-106, and junction block
connector C-202 and C-203, inspect the wire. If any
of these connectors is damaged, repair or replace it.
Then go to Step 4.

AC301441AB

Connector: B-03

B-03 (GR)

Harness side

AC308721

C-203

AN

C-202

Connectors: C-202, C-203
<LHD>

C-202

Harness side

C-203

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

4

6 5

3

2

1

AC308773

C-203

AO

C-202

Connectors: C-202, C-203
<RHD>

C-202

Harness side

C-203

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

4

6 5

3

2

1

AC308718

C-106 (GR)

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2

Connector: C-106
<LHD>

AS

AC308735

AX

C-106 (GR)

Connector: C-106
<RHD>

13

3

7

16

19

15

14

18

17

12

6

4

8

1

9

11

10

5

2
