GENERAL INFORMATION

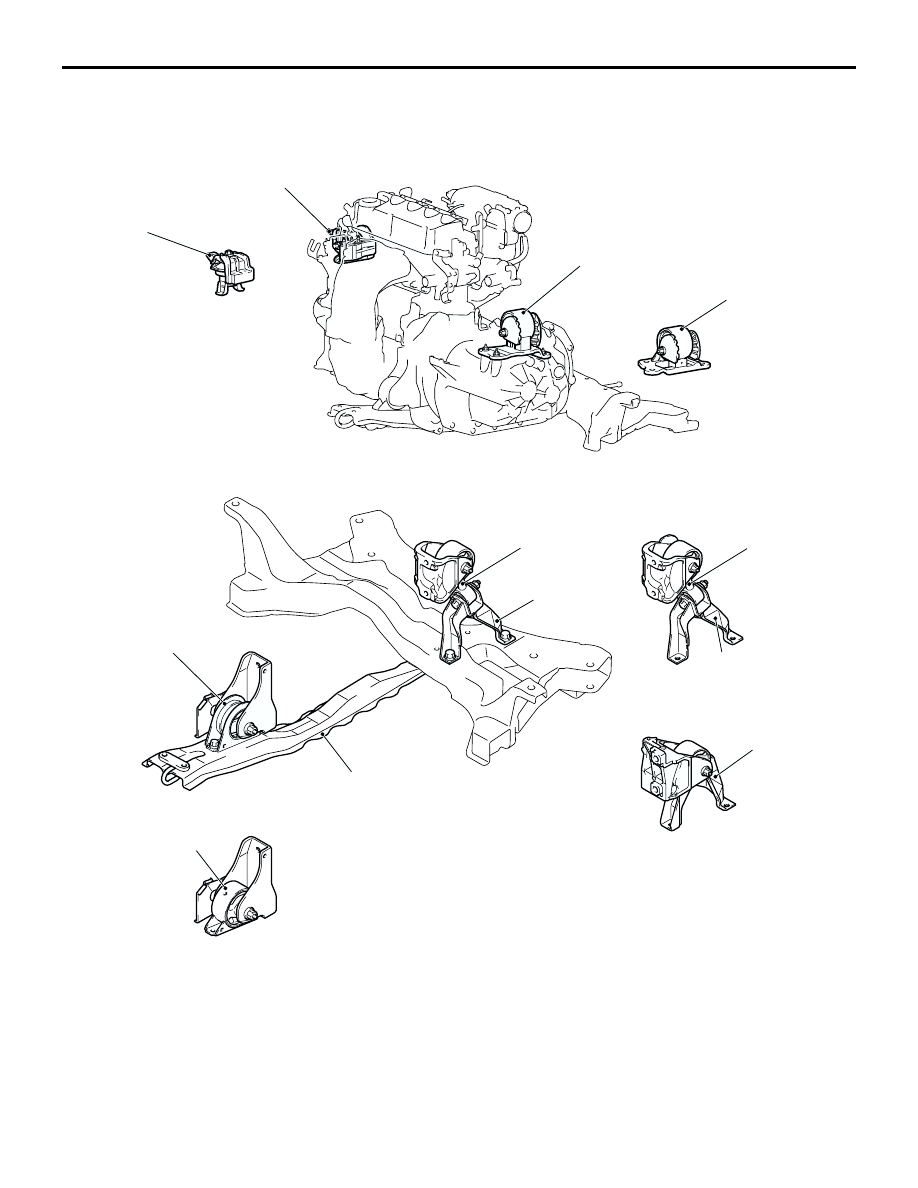

POWER PLANT MOUNT

32-3

AC309245

AC309246

AC309368

Centremember

Engine rear roll
stopper bracket

Engine roll stopper
rod bracket

Engine roll stopper
rod assembly

Engine roll stopper
bracket

Transmission mounting
body side bracket

<M/T>

<A/T-L.H. drive vehicles>

AC

<4G69>

Engine front mounting
bracket

<M/T>

<A/T>

<M/T>

<A/T>

<A/T-R.H. drive vehicles>

<M/T>

<A/T>

Engine roll stopper
rod assembly

Engine roll stopper
rod bracket

Engine roll stopper
bracket

Engine front mounting
bracket

Transmission mounting
body side bracket

SERVICE SPECIFICATION

POWER PLANT MOUNT

32-4

SERVICE SPECIFICATION

M1321000300377

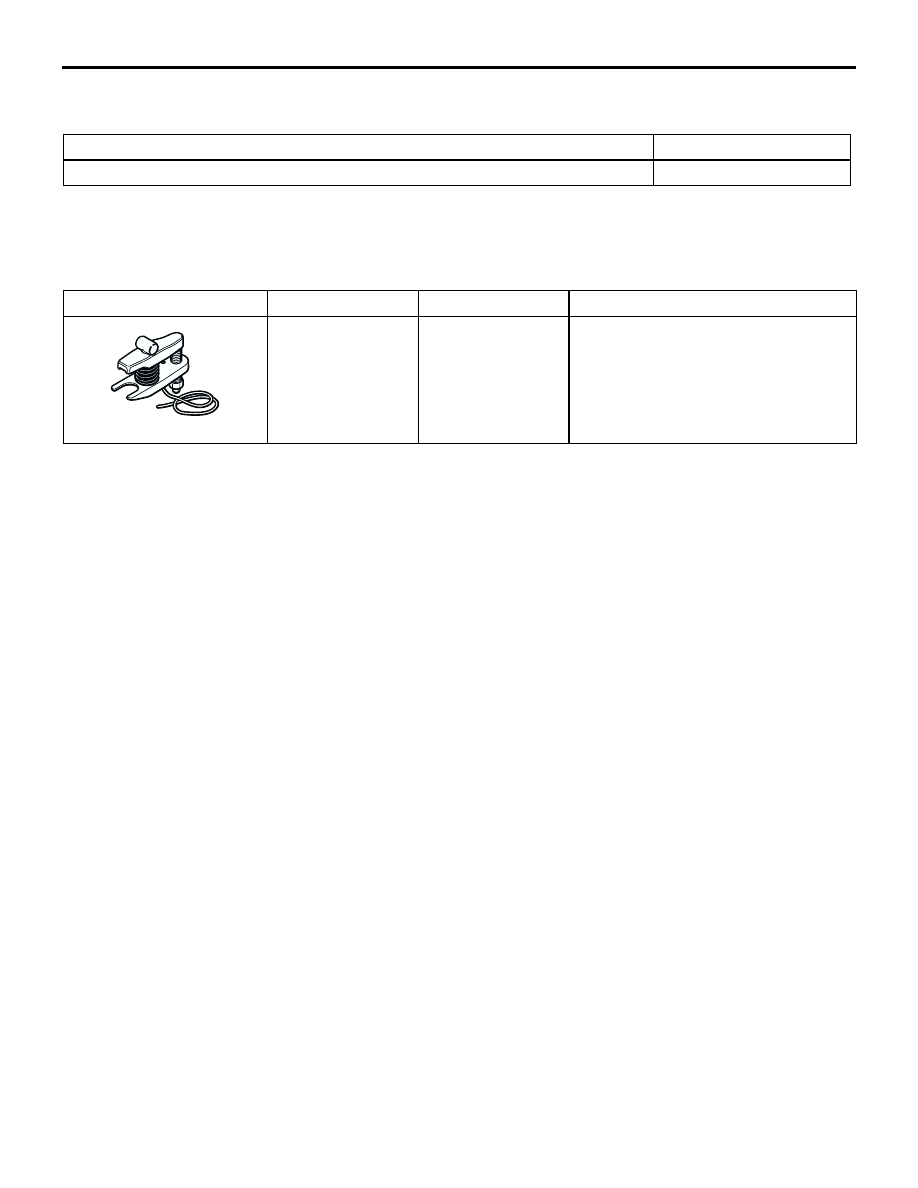

SPECIAL TOOL

M1321000600420

Item

Standard value

Protruding length of stabilizer link thread part mm

9.4

±

 0.4

Tool

Number

Name

Use

MB991897

Ball joint remover

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113) is also
available to disconnect knuckle and
tie rod end ball joint.

AC106827

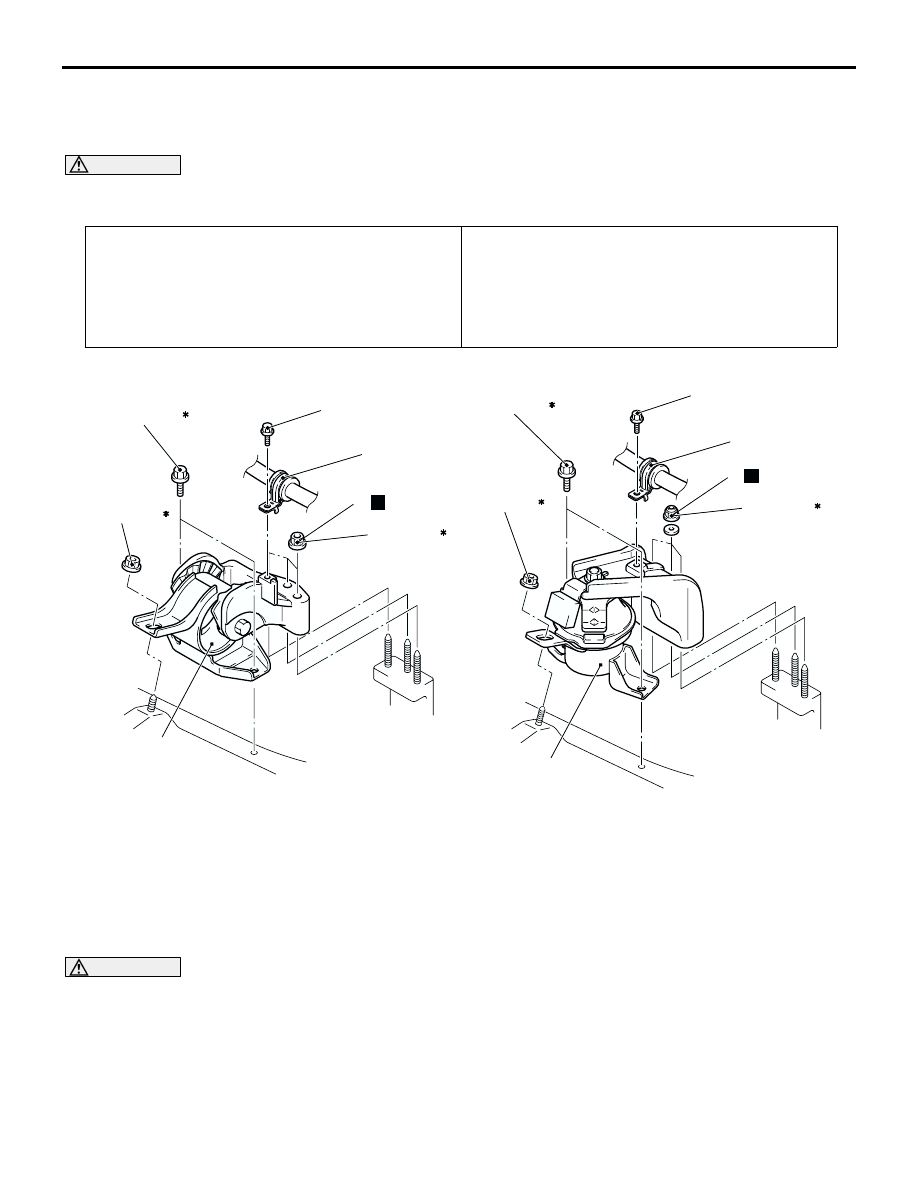

ENGINE MOUNTING

POWER PLANT MOUNT

32-5

ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321001100547

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

INSTALLATION SERVICE POINT

>>A<< SELF-LOCKING NUT INSTALLATION

CAUTION

Do not tighten the self-locking nuts while the
engine is hot.
Tighten the self-locking nuts to the specified torque
while the engine is cold.

Tightening torque: 70

±

 4 N

⋅

m

INSPECTION

M1321001200209

•

Check the engine front mounting bracket for
cracks or damage.

Pre-removal Operation

•

Raise the engine and transmission assembly until its
weight is not applied to the insulator, and support it

securely.

•

Accelerator Pedal Position Sensor Removal (Refer to

GROUP 17, Accelerator Pedal Position Sensor

P.17-9

)

<4G69>.

Post-installation Operation

•

Accelerator Pedal Position Sensor Installation (Refer to

GROUP 17, Accelerator Pedal Position Sensor

P.17-9

)

<4G69>.

•

Accelerator Cable Check and Adjustment (Refer to

GROUP 17, On-vehicle Service

P.17-5

) <4G69>.

AC309430

AC309429

AC309428

1

3

44 ± 10 N·m

44 ± 10 N·m

45 ± 5 N·m

12 ± 2 N·m

N

AB

1

3

44 ± 10 N·m

44 ± 10 N·m

70 ± 4 N·m

12 ± 2 N·m

N

<M/T>

<A/T>

2

2

Removal steps

1.

Pressure hose clamp

>>A<<

2.

Self-locking nut

3.

Engine front mounting bracket

TRANSMISSION MOUNTING <M/T>

POWER PLANT MOUNT

32-6

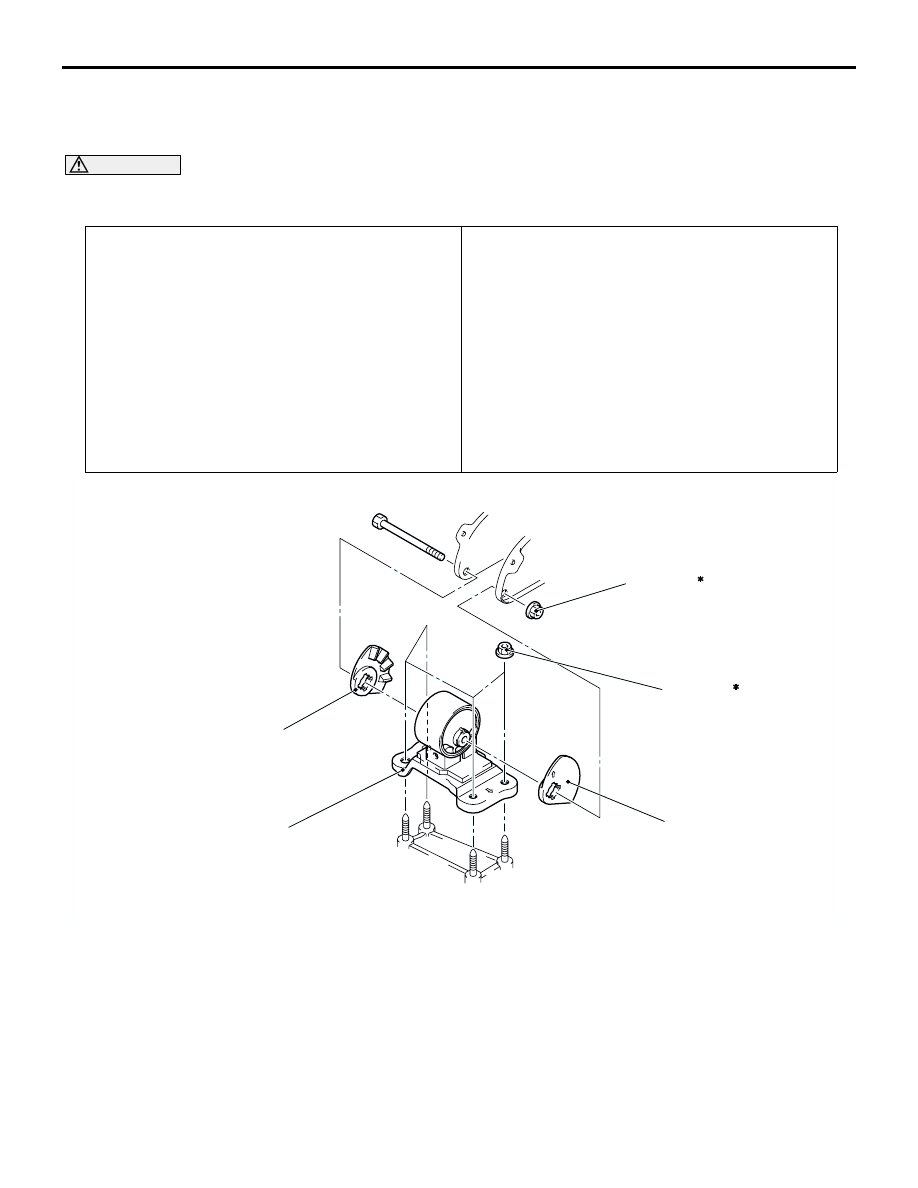

TRANSMISSION MOUNTING <M/T>

REMOVAL AND INSTALLATION

M1321001400485

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation

•

Raise the engine and transmission assembly until its
weight is not applied to the insulator, and support it

securely.

•

Air Cleaner Removal (4G63: Refer to GROUP 15, Air

Cleaner

P.15-3

), (4G69: Refer to GROUP 15, Air Cleaner

P.15-4

).

•

Centremember and Engine Roll Stopper Bracket Removal

<4G63-2WD> (Refer to

P.32-10

).

•

Engine Rear Roll Stopper rod assembly or Engine Rear

Roll Stopper Bracket Removal <4G63-4WD> (Refer to

P.32-10

).

•

Engine Rear Roll Stopper rod assembly or Engine Rear
Roll Stopper Bracket Removal <4G69-L.H. drive

vehicles> (Refer to

P.32-12

).

Post-installation Operation

•

Engine Rear Roll Stopper rod assembly or Engine Rear
Roll Stopper Bracket Installation <4G63-4WD> (Refer to

P.32-10

).

•

Engine Rear Roll Stopper rod assembly or Engine Rear

Roll Stopper Bracket Installation <4G69-L.H. drive

vehicles> (Refer to

P.32-12

).

•

Centremember and Engine Roll Stopper Bracket

Installation <4G63-2WD> (Refer to

P.32-10

).

•

Air Cleaner Installation (4G63: Refer to GROUP 15, Air

Cleaner

P.15-3

), (4G69: Refer to GROUP 15, Air Cleaner

P.15-4

).

AC301677

47 ± 7 N·m

82 ± 7 N·m

2

2

1

AB

Removal steps

1.

Transmission mounting body side
bracket

>>A<<

2.

Transmission mounting stopper
