ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-155

Only second brake hydraulic pressure is
abnormal.

Malfunction of the oil seal G
Malfunction of the oil seal H
Malfunction of the oil seal O
Malfunction of the second solenoid valve
Malfunction of the second pressure control valve
Malfunction of the fail safe valve B
Clogged orifice
Incorrect valve body installation
Malfunction of the accumulator for second brake

Only torque converter pressure is abnormal.

Clogged oil cooler
Malfunction of the oil seal N
Malfunction of the damper clutch control solenoid
Malfunction of the damper clutch pressure control valve
Clogged orifice
Incorrect valve body installation

Pressure applied to element which should not
receive pressure.

Incorrect transmission control cable adjustment
Malfunction of the manual valve
Malfunction of the check ball
Incorrect valve body installation

Trouble symptom

Probable cause

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-156

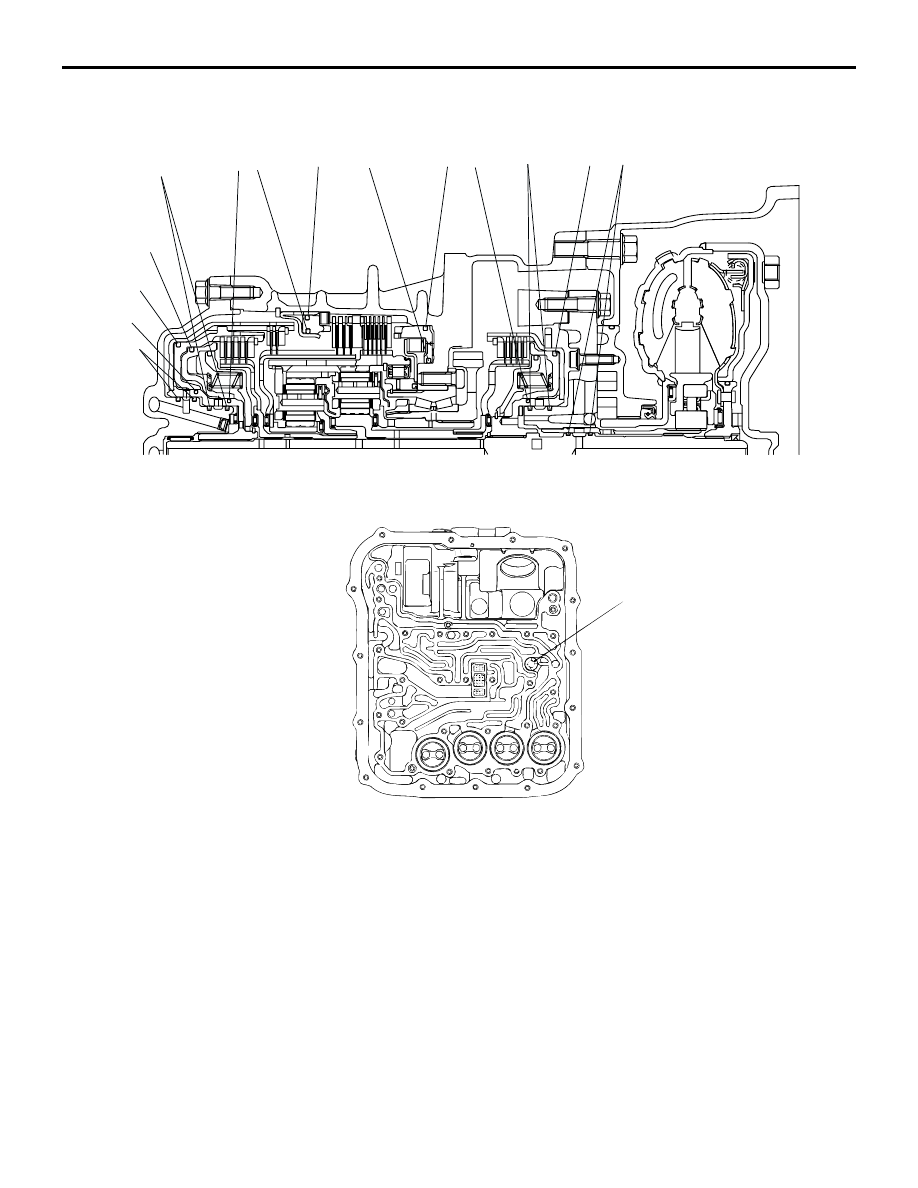

OIL SEAL LAYOUT

AC103760

A

B

C

D

E

F G

H

I

J

K

L

M

N

O

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-157

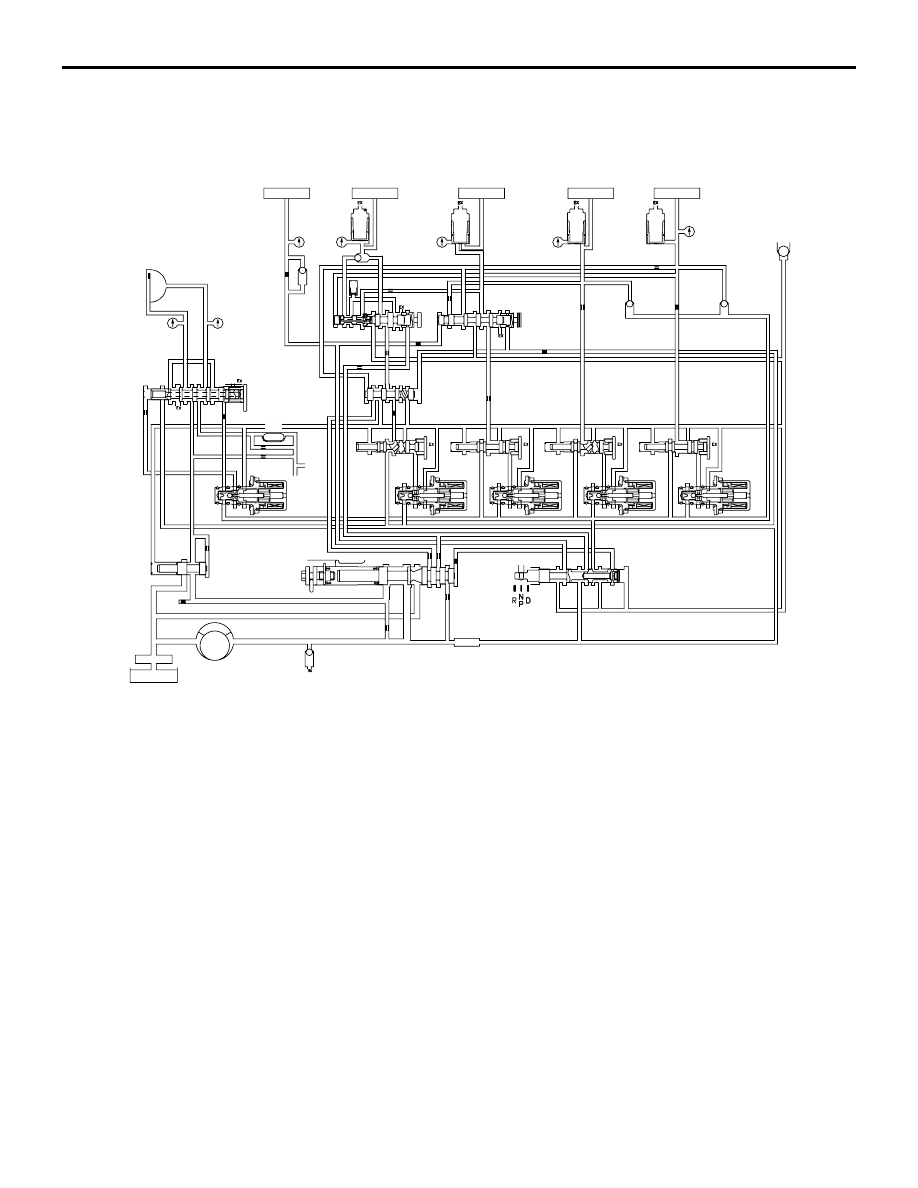

HYDRAULIC CIRCUIT

M1231008800370

AK202328

1

2

3

4

5

6

7

8

9

10

14

11

12

13

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

AD

1.

Reverse clutch

2.

Low-reverse brake

3.

Second brake

4.

Underdrive clutch

5.

Overdrive clutch

6.

Low-reverse accumulator

7.

Second accumulator

8.

Underdrive accumulator

9.

Overdrive accumulator

10. Damper clutch
11. Fail-safe valve A
12. Fail-safe valve B
13. Damper clutch control valve
14. Cooler
15. Switch valve
16. Low-reverse pressure control valve

17. Second pressure control valve
18. Underdrive pressure control valve
19. Overdrive pressure control valve
20. Damper clutch control solenoid valve
21. Low-reverse solenoid valve
22. Second solenoid valve
23. Underdrive solenoid valve
24. Overdrive solenoid valve
25. Damper clutch pressure control valve
26. Regulator valve
27. Manual valve
28. Oil filter
29. Oil pan
30. Oil pump
31. Relief valve
32. Oil strainer

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-158

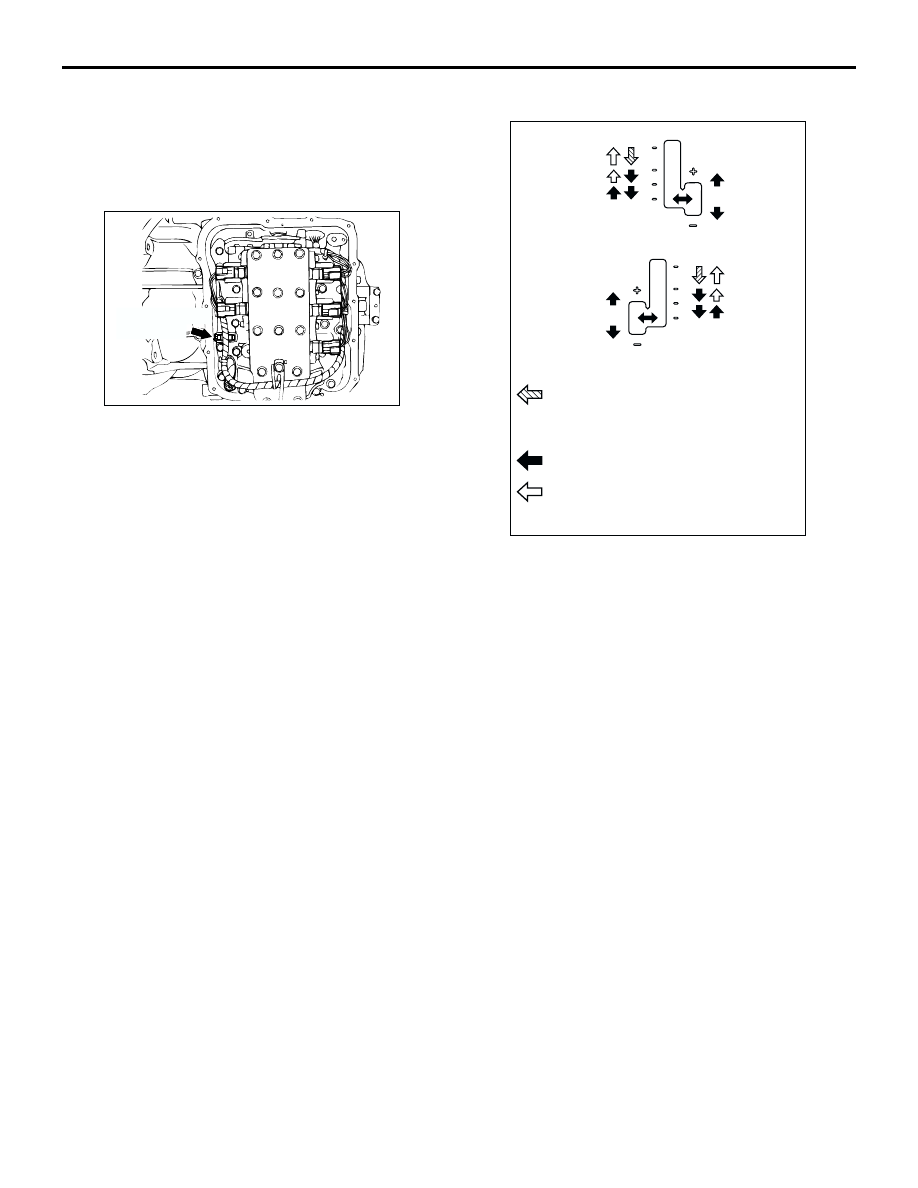

LINE PRESSURE ADJUSTMENT

M1231001700402

1. Drain the transmission fluid.

NOTE: The hydraulic pressure test must be
performed before attempting any adjustments.

2. Remove the valve body cover.

3. Turn the adjusting screw shown in the illustration

to adjust the line pressure to the standard value.
The pressure increases when the screw is turned
counterclockwise.
NOTE: When adjusting the line pressure, adjust
to the middle of the standard value range.

Standard value: 1.01

−

 1.05 MPa (Change in

pressure for a single full of the adjusting
screw: 0.035 MPa)

4. Install the valve body cover, and then pour in the

specified amount of ATF.

5. Repeat the hydraulic pressure test (Refer to

P.23A-152

.) Readjust the line pressure if

necessary.

SELECTOR LEVER OPERATION CHECK

M1231001300460

1. Apply the parking brake, and check that the

selector lever moves smoothly and accurately to
each position.

2. Check that the engine starts when the selector

lever is in the N or P position, and that it does not
start when the selector lever is in any other
position.

3. Start the engine, release the parking brake, and

check that the vehicle moves forward when the
selector lever is moved from N position to the D
position or to 1st or 2nd gear in Sport mode, and
that the vehicle reverses when the selector lever
is moved to the R position.

4. Stop the engine.
5. Turn the ignition switch to the ON position, and

check that the backup lamp illuminates when the
selector lever is shifted from the P position to the
R position.
NOTE: The A/T mis-operation prevention
mechanism prevents movement of the selector
lever from the P position if the ignition switch is in
a position other than LOCK (OFF) position and
the brake pedal is not depressed.

AC006153AC

Adjusting
screw

AC309372

P

R
N
D

P

R
N
D

: Operation when the ignition switch is turned to
  a position other than LOCK (OFF), the brake
  pedal is depressed and the pushbutton is kept
  pressed.

: Operation when the pushbutton is kept pressed.

: Operation when the pushbutton is not pressed.

AB

<LHD>

<RHD>
