TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-247

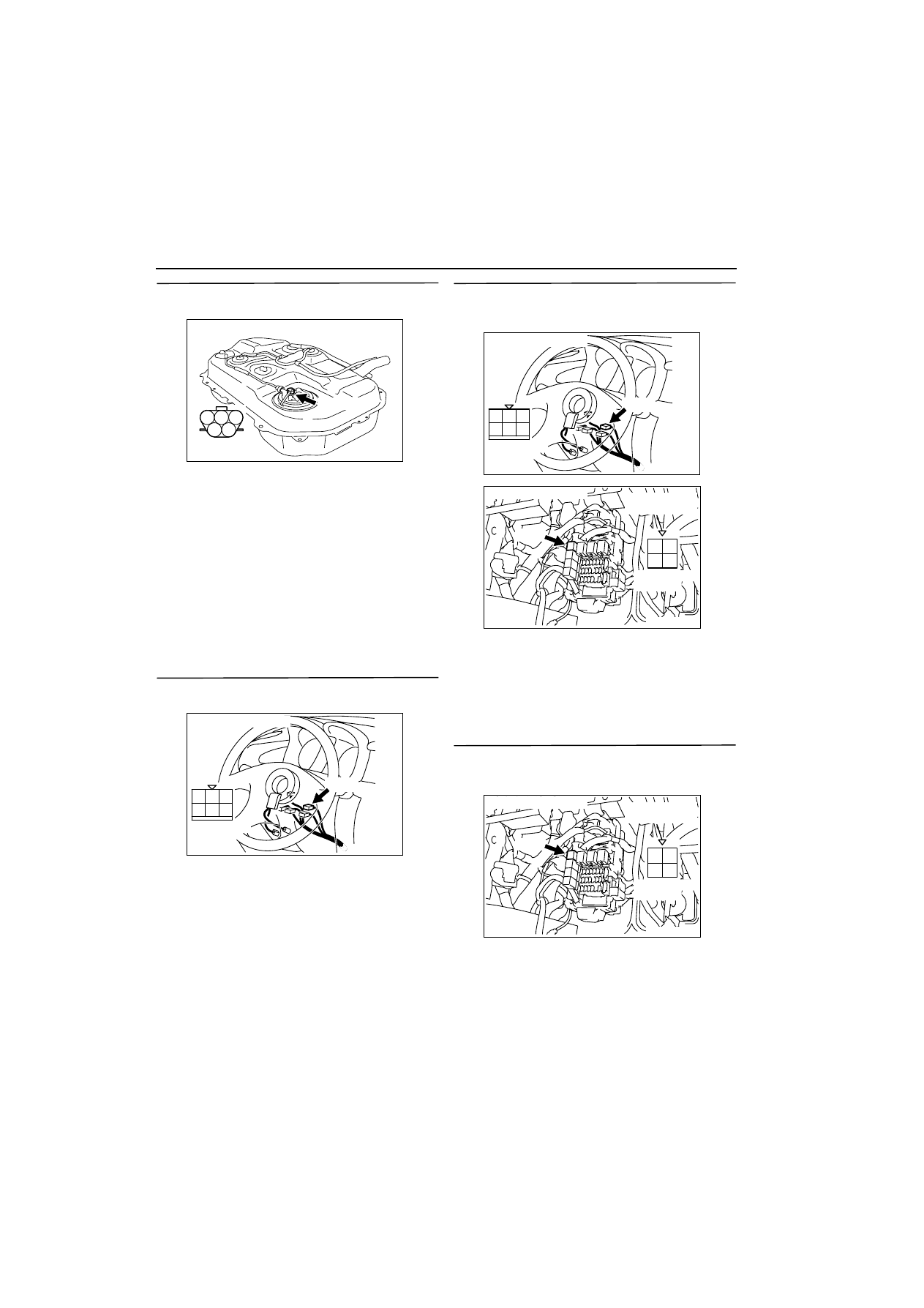

STEP 14. Measure resistance at D-16 fuel pump
connector.

œ

Disconnect connector, and measure at harness
side.

œ

Resistance between terminal No. 4 and earth.

OK: 2

W

 or less

Q: Is the check result normal?

YES :

Go to Step 15 .

NO :

Check intermediate connector D-24, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between D-16 (terminal No. 4) fuel
pump connector and body earth.

œ

Check earthing line for open circuit
and damage.

STEP 15. Connector check: C-303 ignition switch
connector

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Repair.

STEP 16. Check harness between C-303 (terminal
No. 2) ignition switch connector and C-215
(terminal No. 3) fuel pump relay (1) connector.

NOTE: Before checking harness,check intermediate
connector C-203, and repair if necessary.

œ

Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair.

STEP 17. Check harness between battery and C-
215 (terminal No. 4) fuel pump relay (1)
connector.

NOTE: Before checking harness, check intermediate
connector C-202, and repair if necessary.

œ

Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 18 .

NO :

Repair.

1

2

3

4

5

AK203431AC

Connector: D-16

Harness side
connector

D-16 (GR)

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300313

2 1

3

4

AB

CONNECTOR: C-215

C-215

Harness side
connector

Junction block’s
triangle marks

AK300313

2 1

3

4

AB

CONNECTOR: C-215

C-215

Harness side
connector

Junction block’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-248

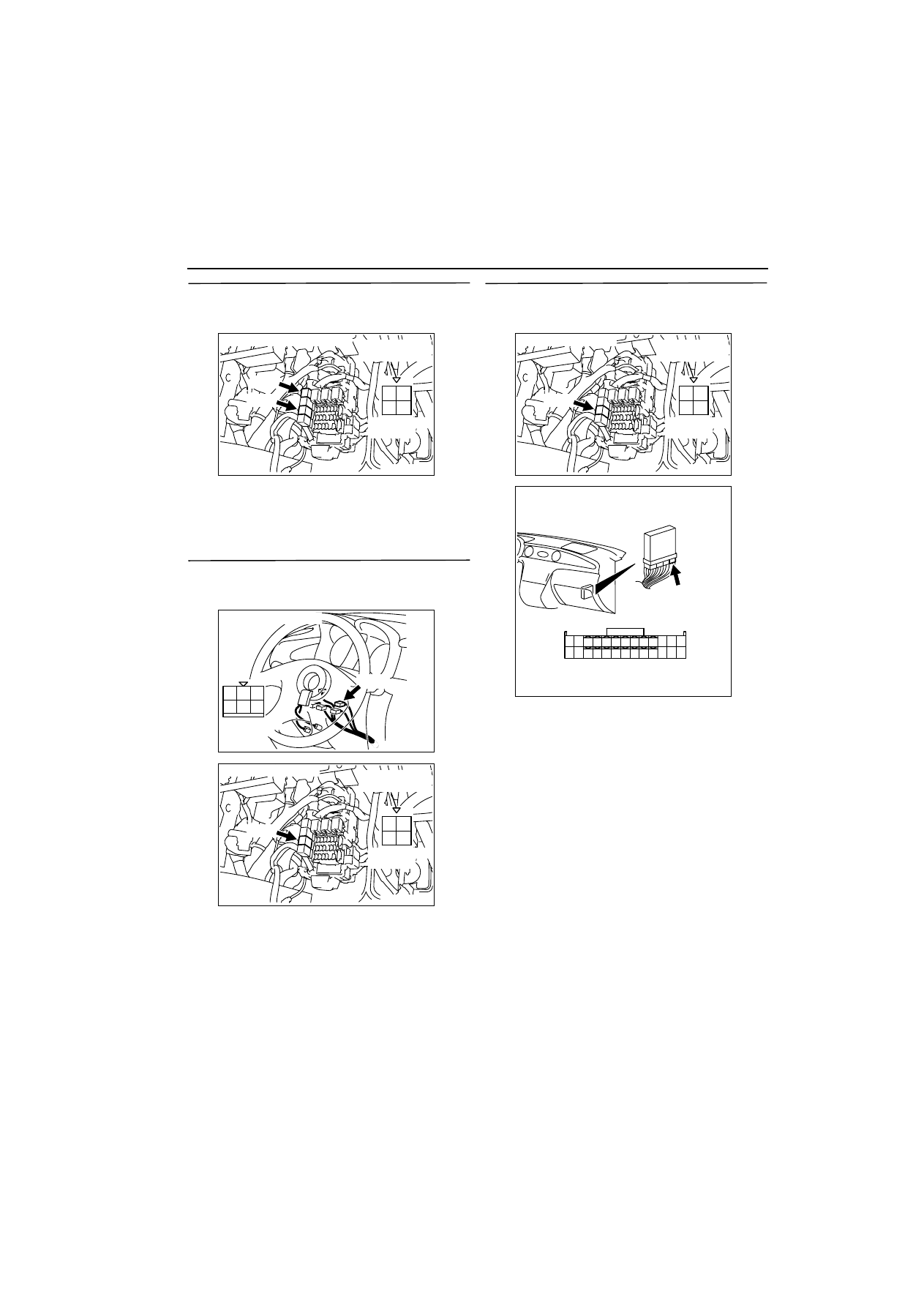

STEP 18. Check harness between C-215 (terminal
No. 1) fuel pump relay (1) connector and C-213
(terminal No. 1) fuel pump relay (2) connector.

œ

Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 19 .

NO :

Repair.

STEP 19. Check harness between C-303 (terminal
No. 2) ignition switch connector and C-213
(terminal No. 3) fuel pump relay (2) connector.

œ

Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 20 .

NO :

Repair.

STEP 20. Check harness between C-213 (terminal
No. 3) fuel pump relay (2) connector and C-134
(terminal No. 22) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connectors C-106 and C-205, and repair if neces-
sary.

œ

Check earthing line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair.

AK300312

2 1

3

4

AB

CONNECTOR: C-213, C-215

C-213

C-215

Harness side
connector

Junction block’s
triangle marks

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-249

STEP 21. Check harness between C-213 (terminal
No. 3) fuel pump relay (2) connector and D-16
(terminal No.5) fuel pump connector.

NOTE: Before checking harness, check intermediate
connectors D-24 and C-205, and repair if necessary.

œ

Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Replace fuel pump.

NO :

Repair.

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-250

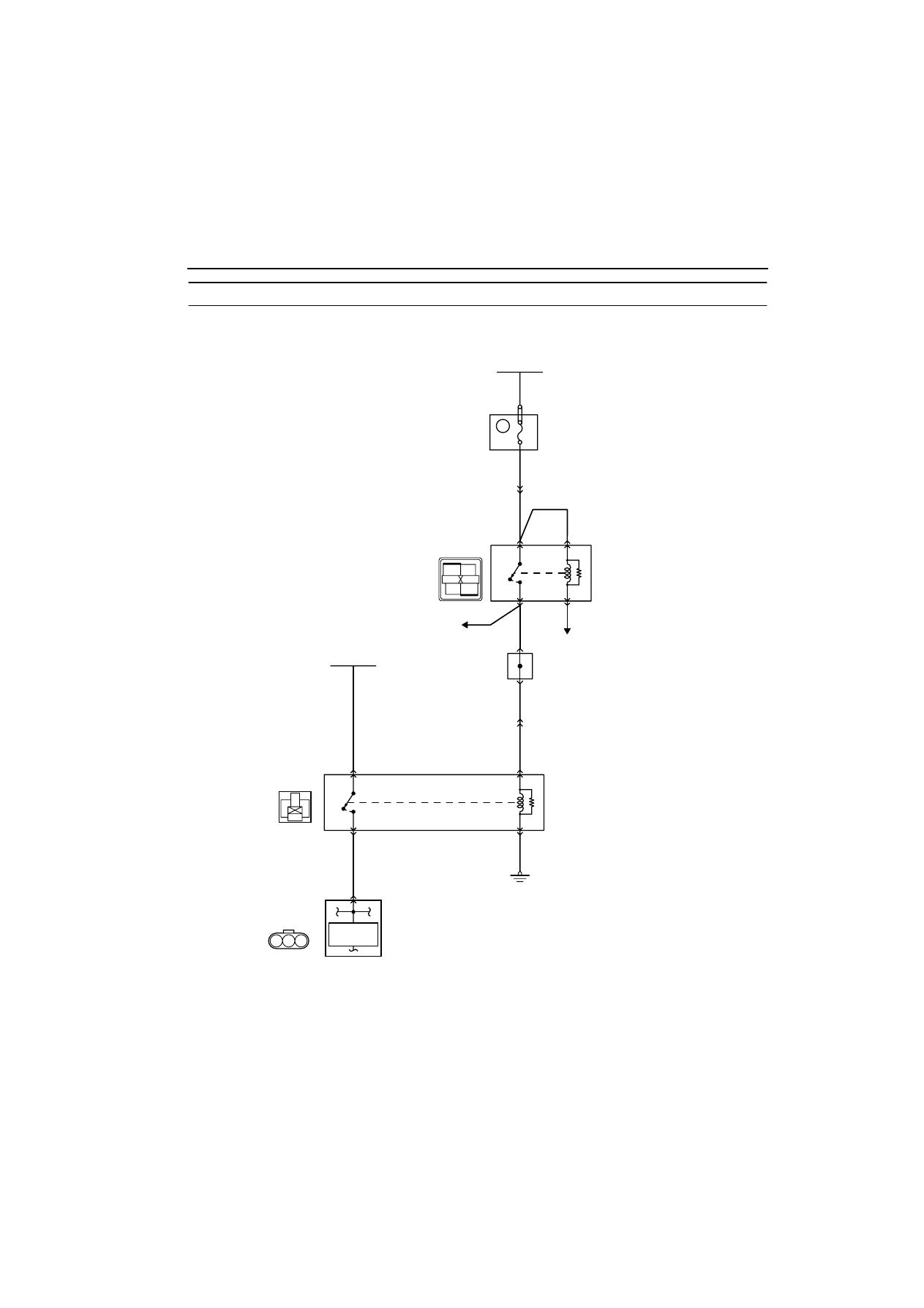

Inspection Procedure 25: Fan Control Relay System

1

2

3

4

2 3

1

1

3

2

4

AK300323

J/C (2)
C-17

9

20A

Smoothing
circuit

Engine control relay

Battery

W-B

W-B

L-W

A-10X

W-B

W

R

R

R

Engine control system

Fusible link (2)

4

3

1

2

Fan control relay

Fan controller

4

3

L

1

2

3

B

B-17X

To engine-ECU

4

5

5

A-14

11

A-14

      A-20
(MU802322)

AB

Fan control relay Circuit
