TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-151

STEP 7. Connector check: C-134 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-101

(terminal No. 1) purge control solenoid valve
connector and C-134 (terminal No. 9)
engine-ECU connector.

œ

Check output line for open and short
circuit.

NO :

Repair.

STEP 8. Connector check: C-134 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

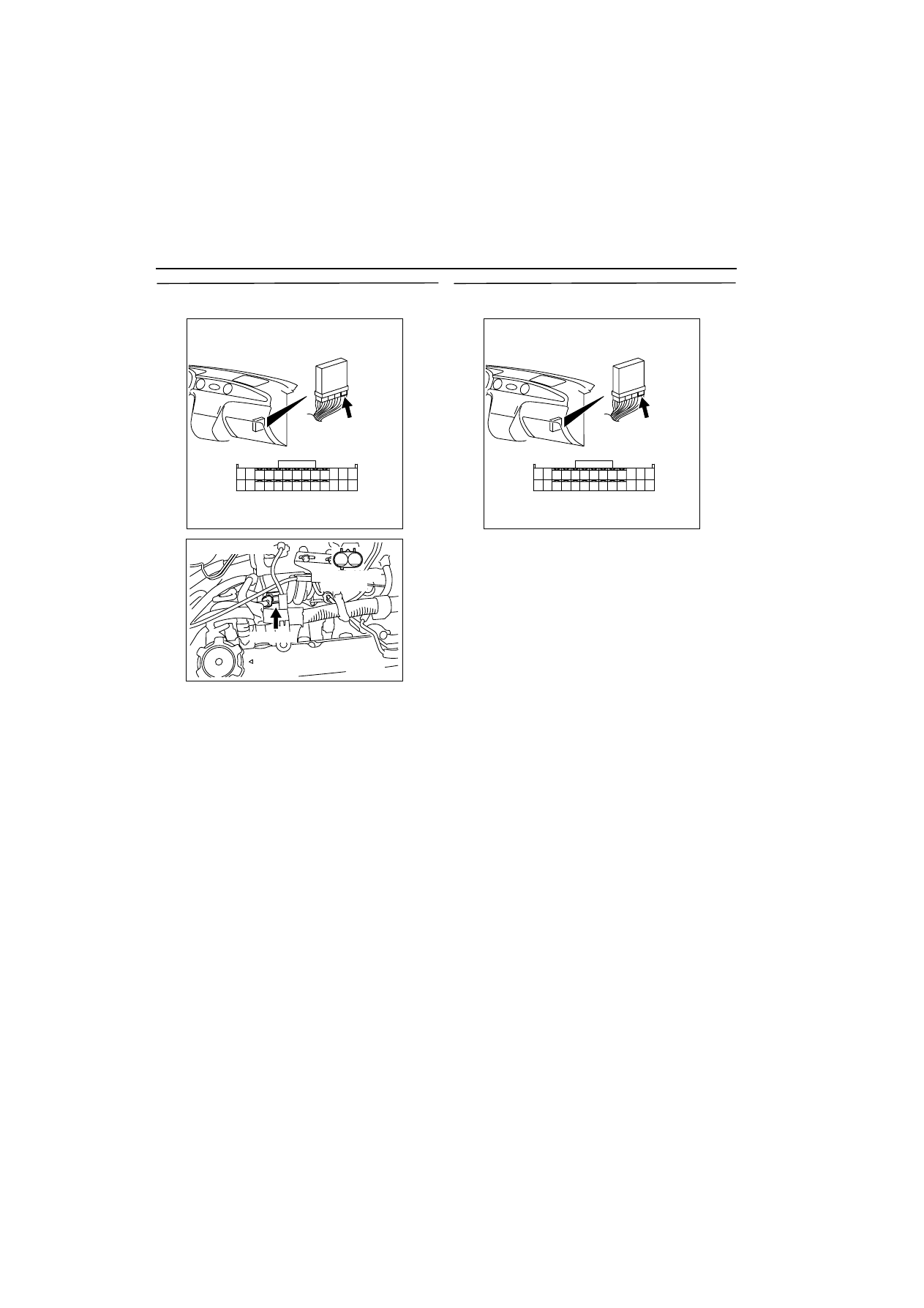

CONNECTOR: C-134

C-134

Harness side connector

1

2

AK300283AB

Harness side
connector

B-101 (B)

Connector: B-101

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-152

STEP 9. Check harness between B-101 (terminal
No. 1) purge control solenoid valve connector
and C-134 (terminal No. 9) engine-ECU
connector.

œ

Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair.

STEP 10. Check harness between B-101 (terminal
No. 2) purge control solenoid valve connector
and B-17X (terminal No. 1) engine control relay
connector.

œ

Check power line for damage.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair.

STEP 11. MUT-II actuator test

œ

Item 08: purge control solenoid valve

OK: Operating sound can be heard and the
valve vibrates

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

-

 How to Use

Troubleshooting/Inspection Service Points

3

00



).

NO :

Replace engine-ECU.

1

2

AK300283AB

Harness side
connector

B-101 (B)

Connector: B-101

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

1

2

AK300283AB

Harness side
connector

B-101 (B)

Connector: B-101

AK300255

2

1

3

4

Relay box’s
triangle marks

AB

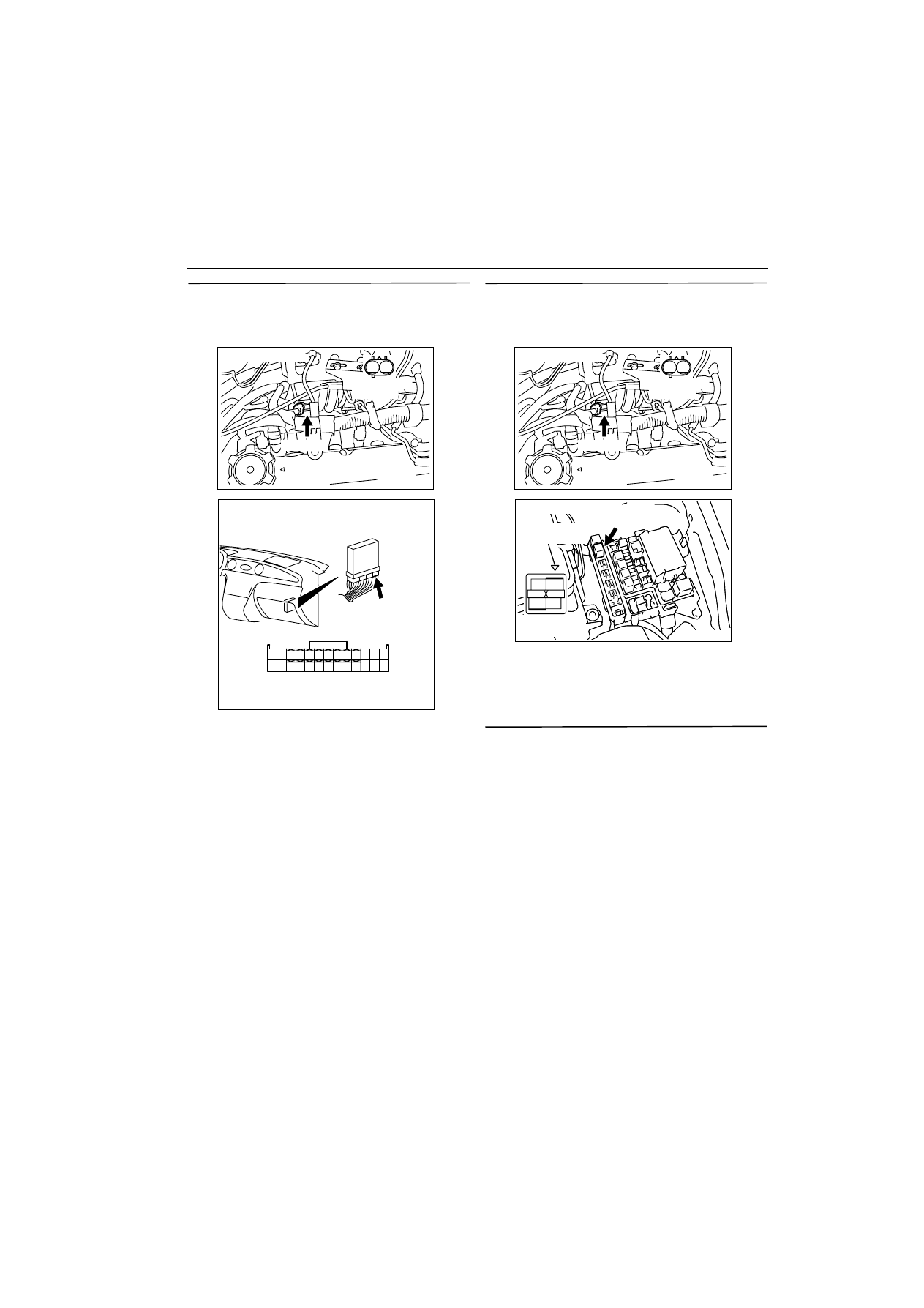

CONNECTOR: B-17X

B-17X

Harness side
connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-153

Code No. P0500: Vehicle speed sensor system

OPERATION

œ

A power voltage of 5 V is applied to the vehicle
speed sensor (terminal No. 3) from the engine-
ECU (terminal No. 86).

FUNCTION

œ

The vehicle speed sensor converts the vehicle
speed to the voltage, and then input it into the
engine-ECU

AK300284

3

4 5 6

1 2

82

78

81

80

89 90 9192

79

87

71

74

73

72

76

75

77

85

88

83 84

86

1

2

3

R

IG2

ST

LOCK

ACC

IG1

2

7.5A

AB

B-115

Vehicle speed sensor

86

B

B

L-B

B-W

B-W

W-L

W-L

Engine-ECU

Ignition switch

C-303

2

C-203
6

C-202
11

1

2

3

C-106
3

J/B

Meter and gauge

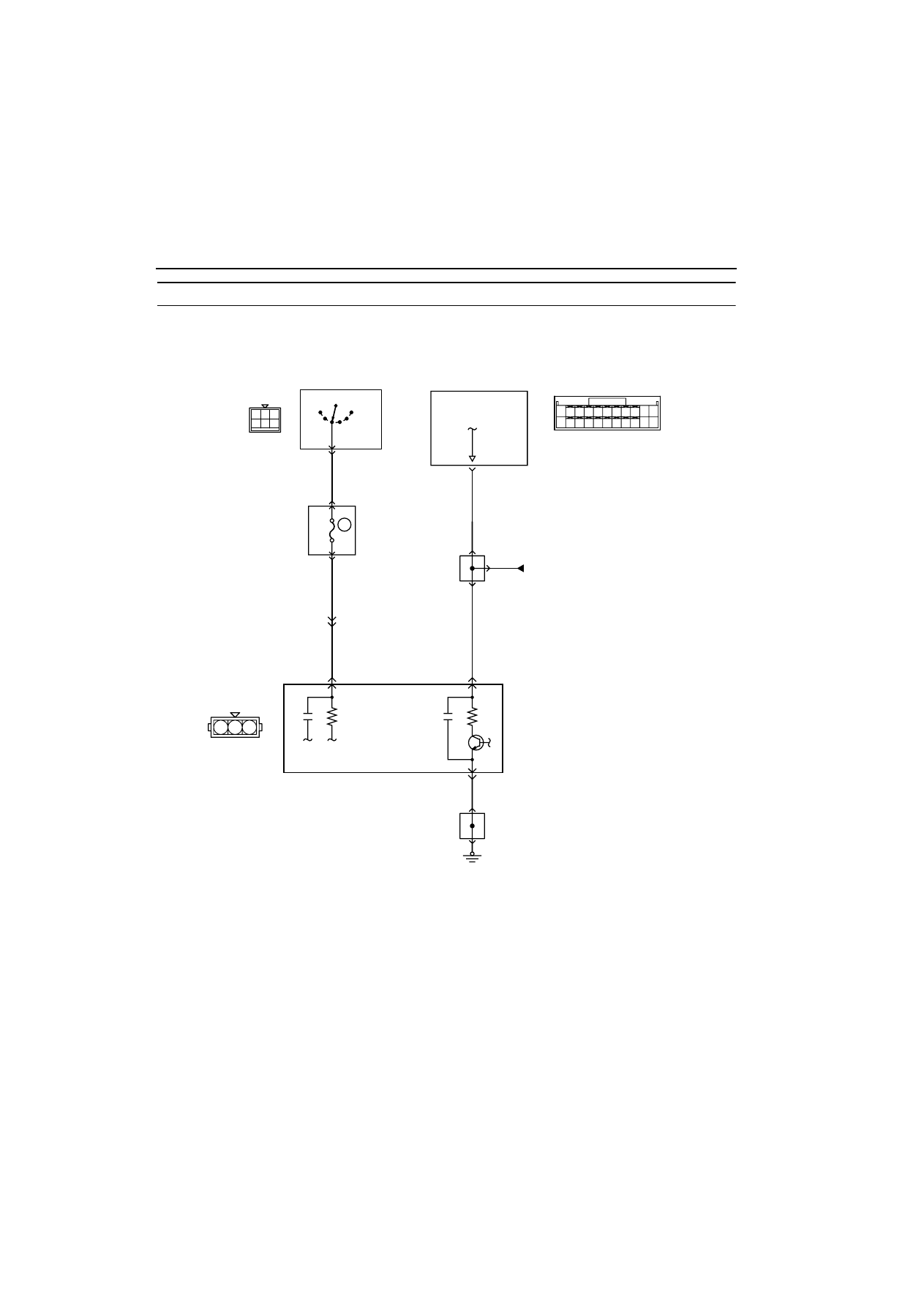

Vehicle speed sensor circuit

 C-137

8

1

J/C (2)
C-17

2

1

J/C (1)
C-16

3

Wire colour code
B: Black  LG: Light green  G: Green   L: Blue   W: White   Y: Yellow   SB: Sky blue   BR: Brown    O: Orange   GR: Gray
R: Red   P: Pink   V: Violet

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-154

TROUBLE JUDGMENT

Check Conditions

œ

2 seconds later after the engine has started up.

œ

Engine speed: 2,000 r/min or more.

œ

Under the high load operation (The volumetric
efficiency is 40

-

 75 %).

Judgment Criterion

œ

The sensor output voltage remains unchanged
(no pulse signal is inputted) for 2 seconds.

PROBABLE CAUSE

œ

Failed Vehicle speed sensor

œ

Open/short circuit in vehicle speed sensor circuit
or loose connector contact

œ

Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1.Check the speedometer

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Check the speedometer (Refer to GROUP
54A

-

Combination Meter Assembly and

Vehicle speed sensor

-

 On-vehicle Service

3

54A



).

STEP 2.MUT-II data list

œ

Refer to Data list reference table

3

13A



.

a. Item 24: Vehicle speed sensor

Q: Is the check result normal?

YES :

 Go to Step 3 .

NO :

Intermittent malfunction (Refer to GROUP
00 - How to Use Troubleshooting/Inspection
Service Points

3

00



).

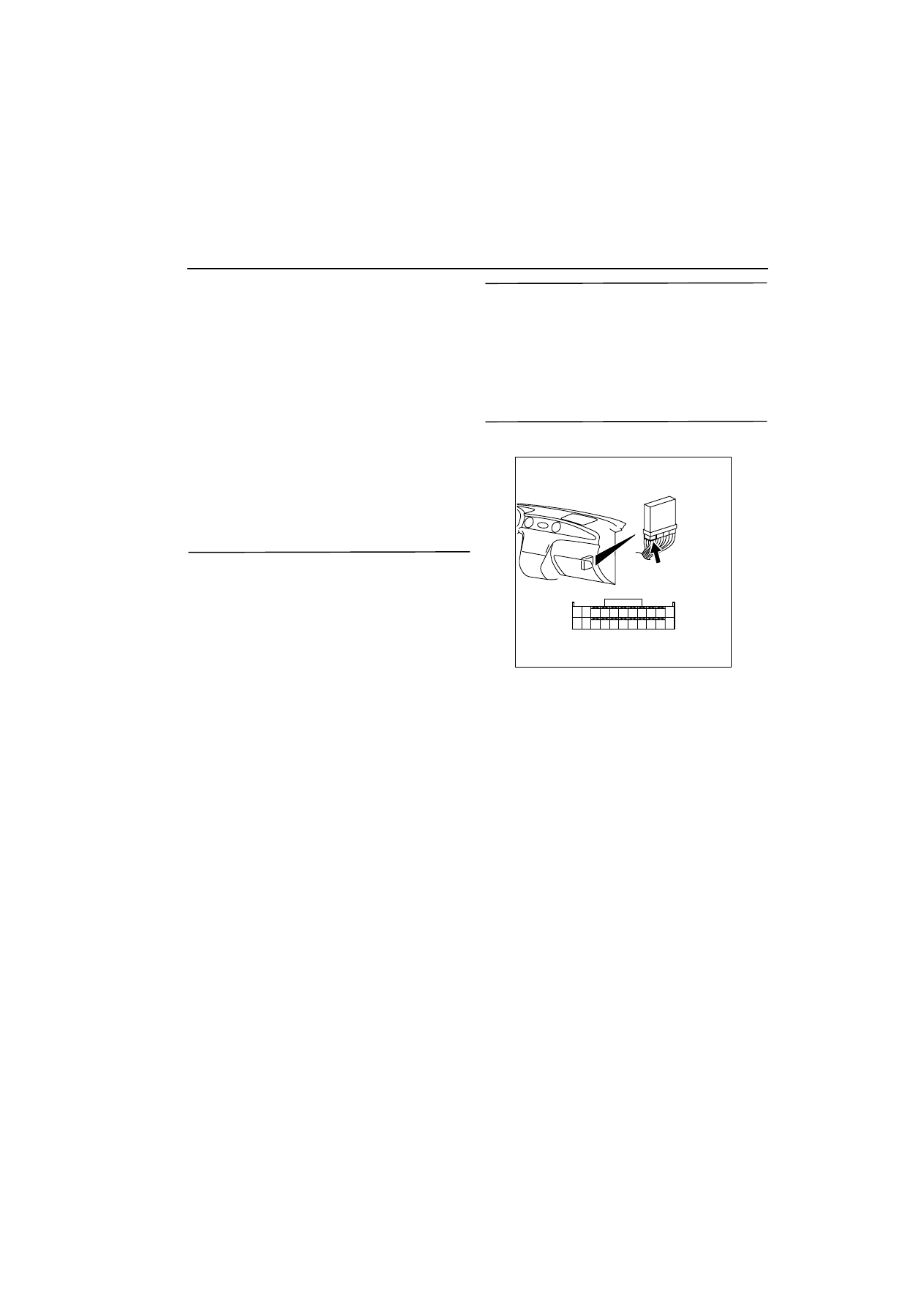

STEP 3.Check connector: C-137 engine-ECU
connector

Q: Is the check result normal?

YES :

 Go to Step 4 .

NO :

Repair.

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector
