Mitsubishi Outlander (2003+). Manual - part 37





TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-11

NOTE: If malfunctions have been detected in multi-
ple systems, store one malfunction only, which has
been detected first.

READINESS TEST STATUS

The engine-ECU monitors the following main diagno-
sis items, judges if these items are in good condition
or not, and the stores its history. this history can be
read out by using MUT-II. (If the ECU has judged a
item before, the MUT-II displays "Complete").

In addition, if diagnosis codes are erased or the bat-
tery cable is disconnected, this history will also be
erased (the memory will be reset).

œ

Catalyst: P0420

œ

Oxygen sensor: P0130

œ

Oxygen sensor heater: P0135, P0141

FAIL-SAFE FUNCTION REFERENCE TABLE

When the main sensor malfunctions are detected by the diagnosis function, the vehicle is controlled by
means of the pre-set control logic to maintain safe conditions for driving.

88

Fuel control condition

Open loop

OL

Closed loop

CL

Open loop owing to drive condition

OL-DRV.

Open loop owing to system malfunction

OL-SYS.

Closed loop based on one oxygen sensor

CL- H02S

87

Calculation load value

%

Diagnosis code during data recording

-

Item No.

Data

Unit

Malfunctioning item

Control contents during malfunction

Air flow sensor

1. Uses the throttle position sensor signal and engine speed signal (crank angle

sensor signal) to take reading of the basic injector drive time and basic ignition
timing from the pre-set mapping.

2. Fixes the idle speed control servo in the appointed position so idle control is not

performed.

Intake air temperature
sensor

Controls as if the intake air temperature is 25

•

C.

Barometric pressure
sensor

Controls as if the barometric pressure is 101 kPa.

Throttle position sensor  No increase in fuel injection amount during acceleration due to the throttle position

sensor signal.

Engine coolant
temperature sensor

Controls as if the engine coolant temperature is 80

•

C.

Camshaft position
sensor

Injectors fuel into the cylinders in the order 1-3-4-2 with irregular timing. (After the
ignition switch is turned to the "ON" position, the No. 1 cylinder top dead centre is
not detected at all)

Oxygen sensor (front)

Air/fuel ratio feedback control (closed loop control) is not performed.

Oxygen sensor (rear)

Performs the feedback control (closed loop control) of the air/fuel ratio by using
only the signal of the oxygen (front) installed on the front of the catalytic converter.

Detonation sensor

Fixes the ignition timing as that for regular gasoline.

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-12

INSPECTION CHART FOR DIAGNOSIS CODE

M1131151000624

Ignition coil
(incorporating power
transistor)

Cuts off the fuel supply to cylinders with an abnormal ignition.

Alternator FR terminal

Does not control the output of the alternator according to an electrical load. (works
as a normal alternator)

Misfiring

If the detected misfiring causes damage to the catalyst, the misfiring cylinder will be
shut down.

Malfunctioning item

Control contents during malfunction

Code No.

Diagnosis item

Reference page

P0100

Air flow sensor system

3

13A



P0105

Barometric pressure sensor system

3

13A



P0110

Intake air temperature sensor system

3

13A



P0115

Engine coolant temperature sensor system

3

13A



P0120

Throttle position sensor system

3

13A



P0125*

Feedback system monitor

3

13A



P0130

Oxygen sensor (front) system <Sensor 1>

3

13A



P0135

Oxygen sensor heater (front) system <Sensor 1>

3

13A



P0136

Oxygen sensor (rear) system <Sensor 2>

3

13A



P0141

Oxygen sensor heater (rear) system <Sensor 2>

3

13A



P0170

Abnormal fuel system

3

13A



P0201

No.1 Injector system

3

13A



P0202

No.2 Injector system

3

13A



P0203

No.3 Injector system

3

13A



P0204

No.4 Injector system

3

13A



P0300

Random cylinder mis-fire detection system

3

13A



P0301*

No.1 cylinder mis-fire detection system

3

13A



P0302*

No.2 cylinder mis-fire detection system

3

13A



P0303*

No.3 cylinder mis-fire detection system

3

13A



P0304*

No.4 cylinder mis-fire detection system

3

13A



P0325

Detonation sensor system

3

13A



P0335

Crank angle sensor system

3

13A



P0340

Camshaft position sensor system

3

13A



P0403

EGR control solenoid valve system

3

13A



P0420

Catalyst deterioration system

3

13A



P0443

Purge control solenoid valve system

3

13A



P0500

Vehicle speed sensor system

3

13A



P0505

Idle speed control system

3

13A



P0551*

Power steering fluid pressure switch system

3

13A



TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-13

NOTE:

.

œ

Do not replace the engine-ECU until a through terminal check reveals there are no short/open circuit.

œ

Check that the engine-ECU earth circuit is normal before checking for the cause of the problem.

œ

After the engine-ECU has detected a malfunction, a diagnosis code is recorded the next time the engine
is started and the same malfunction is re-detected. However, for items marked with "*", the diagnosis
code is recorded on the first detection of the malfunction.

œ

Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sen-
sor mounted at the position second closest to the engine.

P0622

Alternator FR terminal system

3

13A



P1603*

Battery back-up line system

3

13A



P1610

Immobilizer system

3

13A



Code No.

Diagnosis item

Reference page

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-14

INSPECTION PROCEDURE FOR
DIAGNOSIS CODES

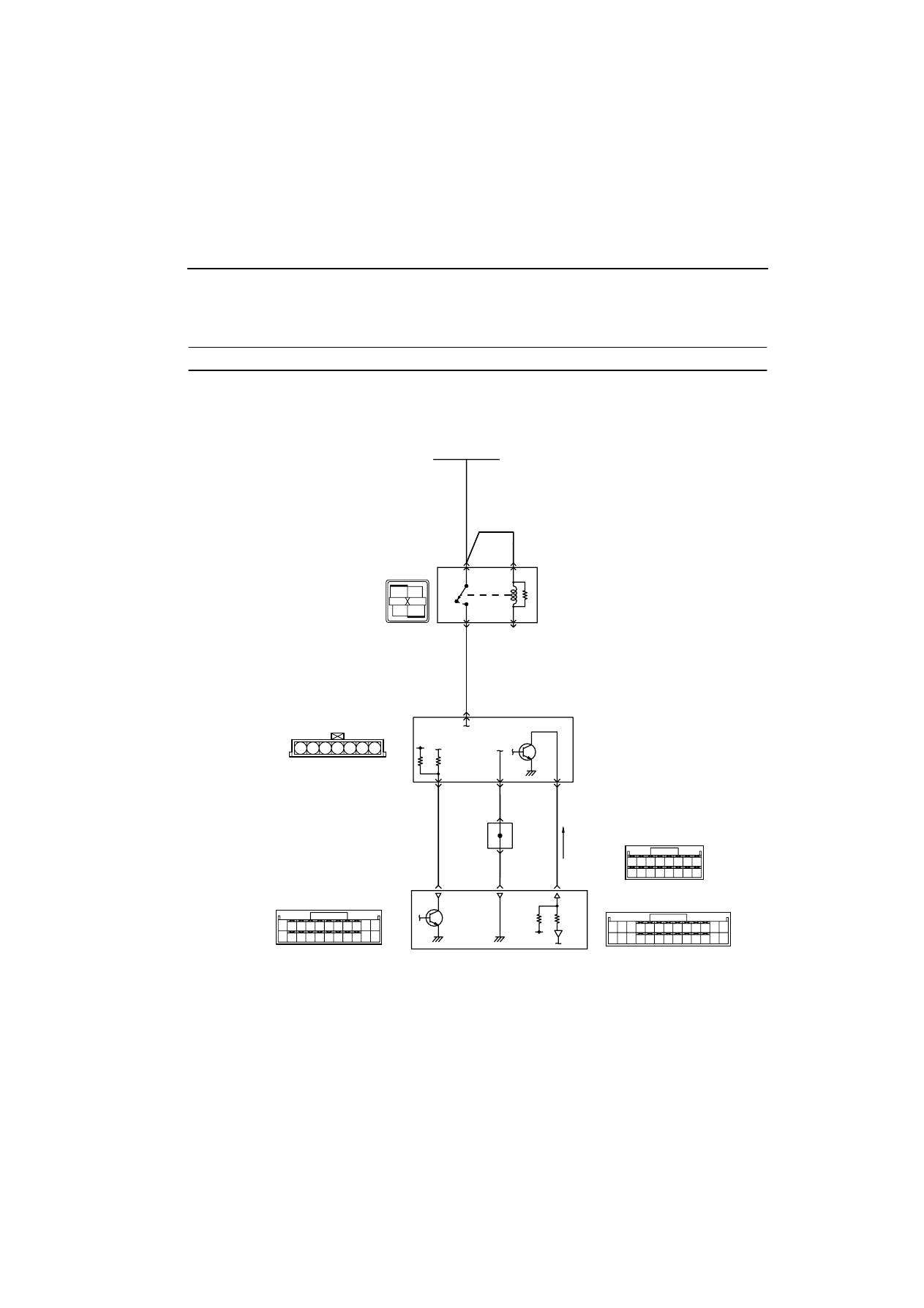

Code No. P0100 Air Flow Sensor System

AK300252

1 2 3 4 5 6 7

1

2

3

4

34

33

32

36

35

37

42

45

31

39

38

46

40 41

43 44

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13

12

23 24 25 26

21

3

10 11

82

78

81

80

89 90 9192

79

87

71

74

73

72

76

75

77

85

88

83 84

86

5 V

AB

B-08

Engine control relay

Battery

Air flow sensor

19

7

40

90

4

5

3

G-B

G-W

W-B

W-B

G-W

W-R

R

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V:Violet

Engine-ECU

4

3

1

2

B-17X

Air flow sensor circuit

20

17

J/C (1)
C-16

C-137

C-134

C-135
