SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-93

SEAT BELTS WITH PRE-TENSIONER

REMOVAL AND INSTALLATION

M1524004100356

WARNING

•

Never attempt to disassemble or repair the seat belt pre-tensioner. If faulty, replace it.

•

Be extremely careful when handling the seat belt with pre-tensioner. Do not subject it to
shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil.
Always replace it with a new part if any dents, cracks or deformation is found.

•

Do not place anything on top of the seat belt pre-tensioner.

•

Do not expose the seat belt with pre-tensioner to temperatures over 90

°

 C (194

°

 F).

•

After operating the seat belt pre-tensioner, replace the seat belt pre-tensioner with a new
part.

•

Gloves and protective goggles should be worn when handling a seat belt with
pre-tensioner once it has been used.

•

If disposing of a seat belt with pre-tensioner which has not yet been used, its seat belt
pre-tensioner should be operated first before disposal. (Refer to

P.52B-96

.)

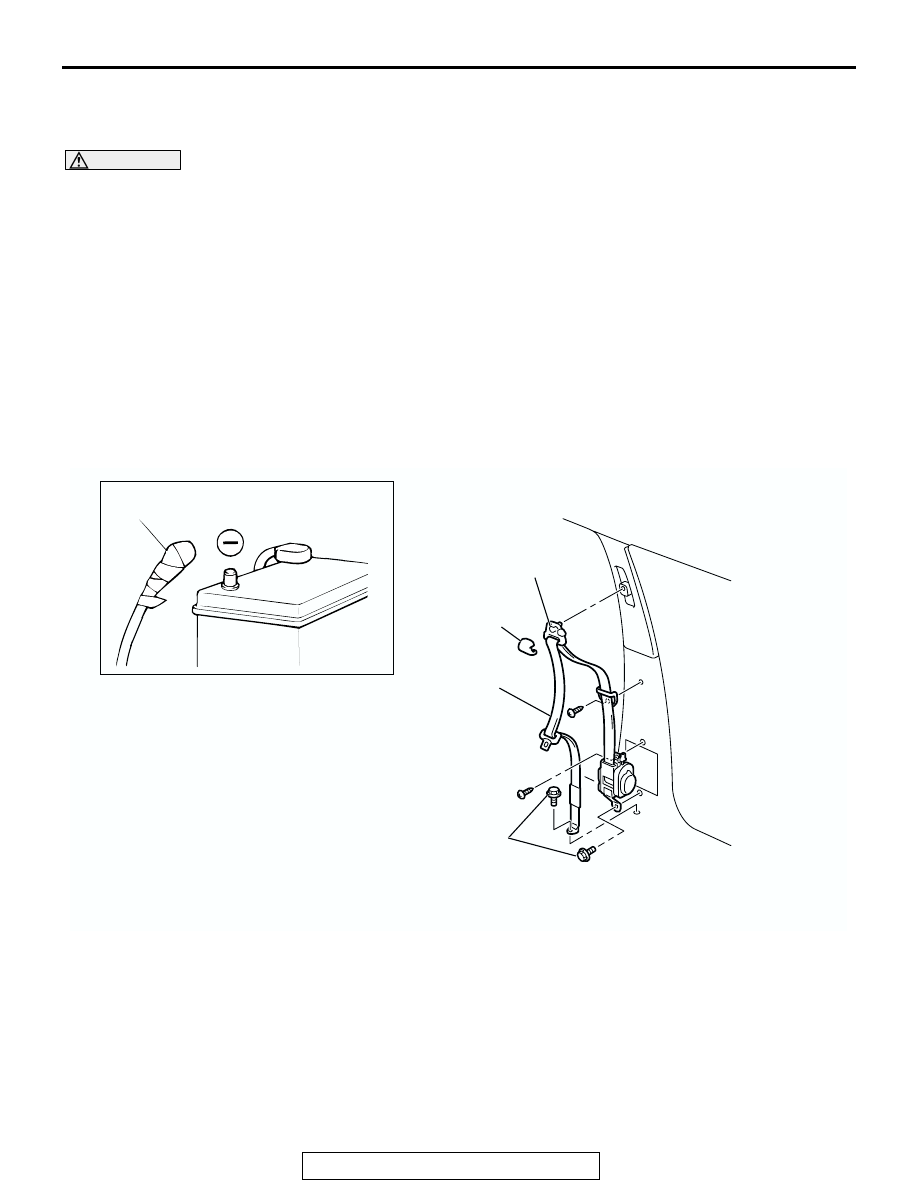

AC004152

1

2

3

44 N·m
33 ft-lb

44 N·m
33 ft-lb

AB

REMOVAL STEPS

<<A>>

1.

NEGATIVE (

−) BATTERY CABLE

DISCONNECTION

2.

SASH GUIDE COVER

3.

SEAT BELT WITH
PRE-TENSIONER

INSTALLATION STEPS

>>A<<

•

PRE-INSTALLATION INSPECTION

3.

SEAT BELT WITH
PRE-TENSIONER

2.

SASH GUIDE COVER

1.

NEGATIVE (

−) BATTERY CABLE

DISCONNECTION

>>B<<

•

POST-INSTALLATION
INSPECTION

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-94

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

−) BATTERY CABLE DISCONNECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-17

.)

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and deploy-
ment.

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION

WARNING

Dispose of seat belt pre-tensioner only according to
the specified procedure. (Refer to

P.52B-96

.)

1. When installing the new seat belt with pre-tensioner, refer to

"INSPECTION"

P.52B-95

.

2. Connect the negative (

−) battery cable.

CAUTION

Turn "OFF" the ignition switch before connecting or dis-
connecting scan tool MB991958.
3. Connect scan tool MB991958 to the data link connector.
4. Turn the ignition key to the "ON" position.
5. Conduct diagnostic test using scan tool MB991958 to

ensure entire SRS operates properly.

WARNING

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-17

.)

6. Turn the ignition key to the "OFF" position. Disconnect the

negative (

−) battery cable and tape the terminal to prevent

accidental connection and air bags deployment.

.

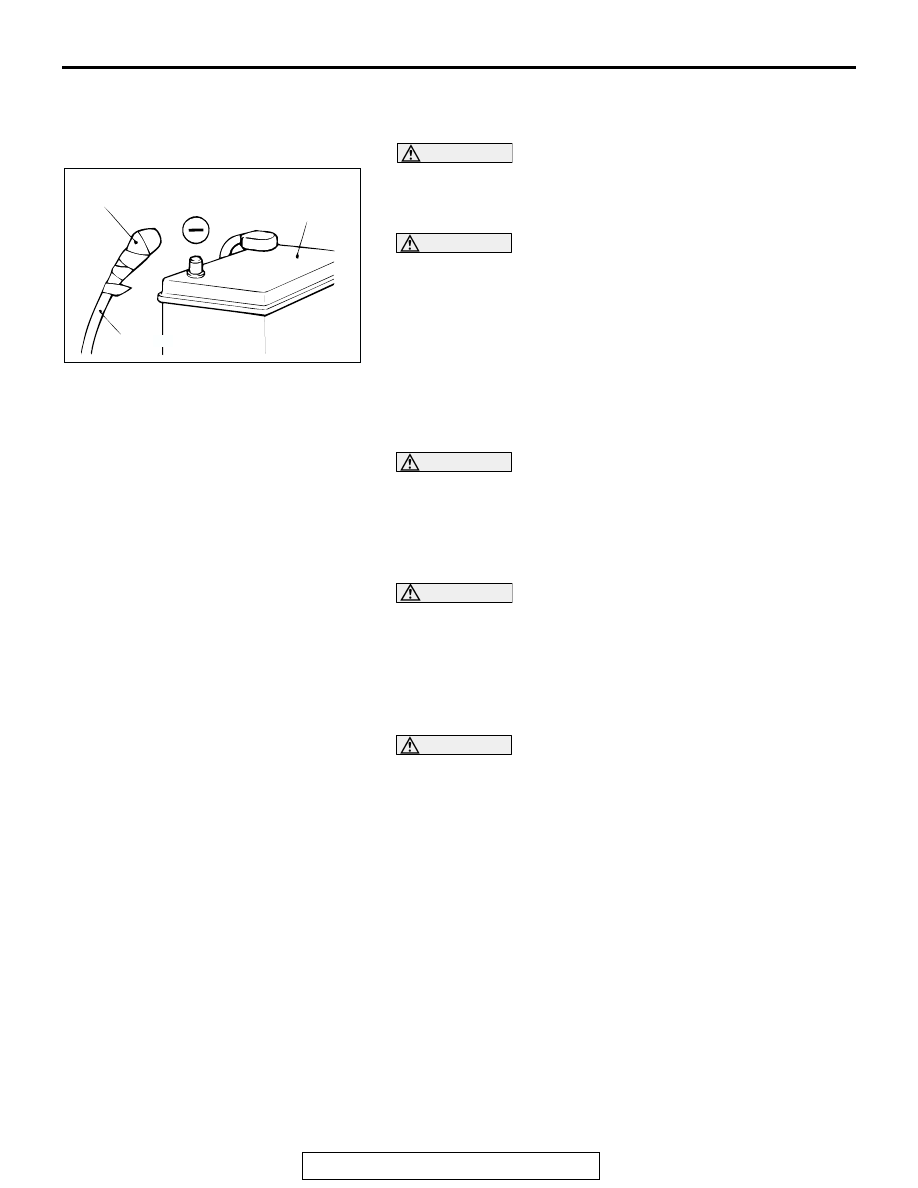

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-95

>>B<< POST-INSTALLATION INSPECTION
1. Reconnect the negative (

−) battery cable.

2. Turn the ignition key to the "ON" position.
3. Does the "SRS" warning light illuminate for approximately 7

seconds, and then remain off for at least 5 seconds after
turning "OFF?"

4. If yes, the SRS system is functioning properly.

If no, consult

P.52B-61

.

INSPECTION

M1524004200115

.

SEAT BELT WITH PRE-TENSIONER CHECK

WARNING

•

If any component damage is found during the fol-
lowing inspection, replace the seat belt with
pre-tensioner with a new one. Dispose of the old
one according to the specified procedure. (Refer to

P.52B-96

.)

•

Never attempt to measure the circuit resistance of
the seat belt pre-tensioner even if you are using
the specified tester. If the circuit resistance is mea-
sured with a tester, accidental seat belt
pre-tensioner operation will result in serious per-
sonal injury.

1. Check seat belt pre-tensioner for dents, cracks or

deformation.

2. Check the connectors for damage, the terminals for

deformation, and the harness for binds.

AC003277AD

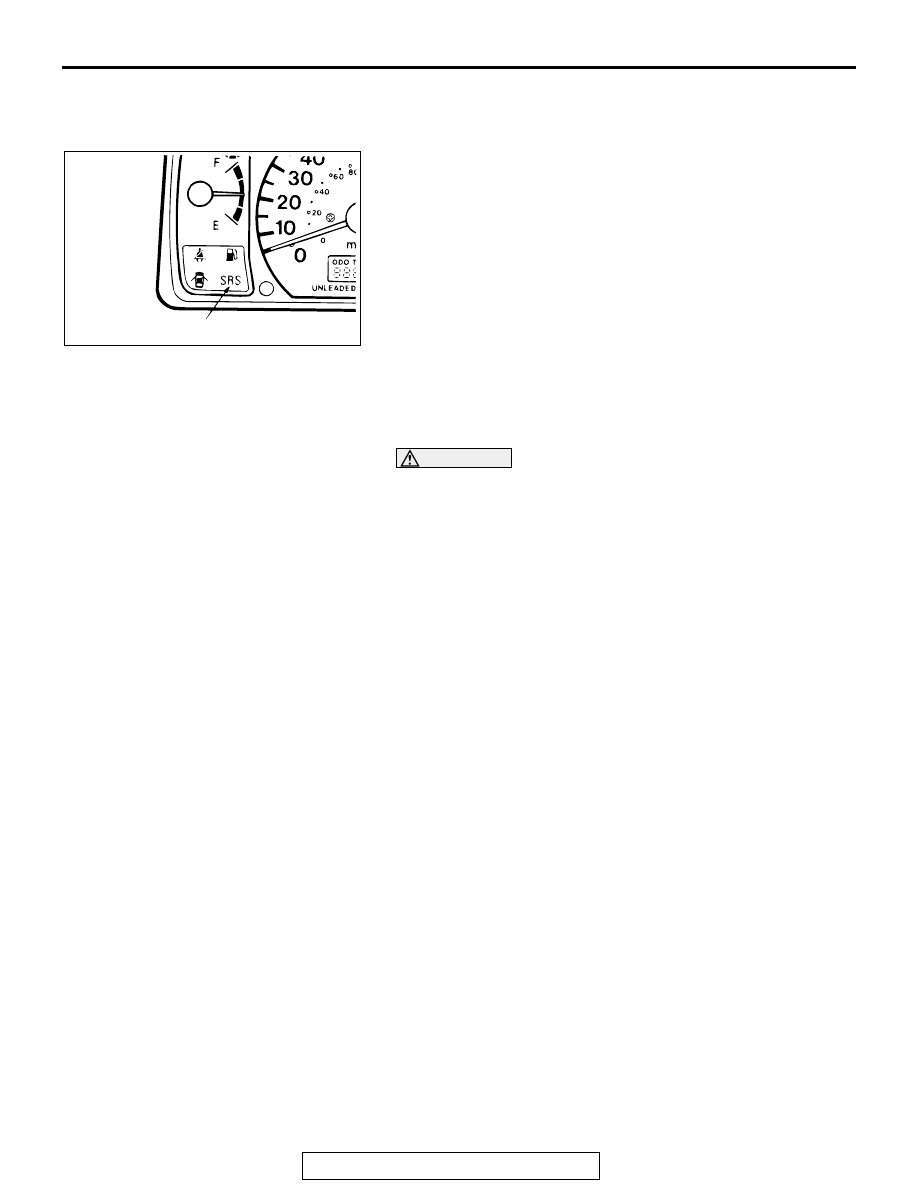

SRS WARNING LIGHT

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-96

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DISPOSAL PROCEDURES

M1524001200514

Before disposing of a vehicle which is equipped with
air bags or seat belts with pre-tensioner, or when dis-
posing of the air bags or seat belt pre-tensioner
themselves, the following procedures must be used
to deploy the air bags or operate the seat belt
pre-tensioner before disposal.

UNDEPLOYED AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER DISPOSAL

Required Special Tools:

• MB628919 or MR203491: SRS Air bag adapter harness B

• MB686560: SRS air bag adapter harness A

WARNING

•

If the vehicle is to be scrapped or otherwise dis-
posed of, deploy the air bags and operate the seat
belt pre-tensioner inside the vehicle. If the vehicle
will continue to be used and only the air bag mod-
ules and seat belt pre-tensioner are to be disposed
of, deploy the air bags and operate the seat belt
pre-tensioner outside the vehicle.

•

Since a large amount of smoke is produced when
the air bag is deployed and the seat belt
pre-tensioner is operated, avoid residential areas
whenever possible.

•

Since there is loud noise when the air bags are
deployed and when the seat belt pre-tensioner are
operated, avoid residential areas whenever possi-
ble. If anyone is nearby, give warning of the
impending noise.

•

Suitable ear protection should be worn by person-
nel performing these procedures or by people in
the immediate area.

.
