A/T FAULTY OPERATION PREVENTION MECHANISM DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-425

STEP 3. Check the lock cam.

Q: Is the lock cam in good condition?

YES :

Go to Step 4.

NO :

Replace the lock cam. Refer to

P.23A-449

.

Check that the ignition key can not be
turned to the "LOCK" (OFF) position with
the selector lever at any position other than
"P" position.

STEP 4. Check the fit of the key interlock cable.

Q: Is the key interlock cable installed correctly?

YES :

Go to Step 5.

NO :

Install the key interlock cable correctly.
Refer to

P.23A-451

. Check that the ignition

key can not be turned to the "LOCK" (OFF)
position with the selector lever at any
position other than "P" position.

STEP 5. Check the key interlock cable.

Q: Is the key interlock cable in good condition?

YES :

Go to Step 6.

NO :

Replace the key interlock cable. Refer to

P.23A-451

. Check that the ignition key can

not be turned to the "LOCK" (OFF) position
with the selector lever at any position other
than "P" position.

STEP 6. Check the fit of the transmission control
cable.

Q: Is the transmission control cable installed

correctly?

YES :

Replace the steering lock cylinder

assembly. Refer to

P.37A-25

 and

P.37A-28

.

Check that the ignition key can not be
turned to the "LOCK" (OFF) position with
the selector lever at any position other than
"P" position.

NO :

Install the transmission control cable
correctly. Refer to

P.23A-449

. Check that

the ignition key can not be turned to the
"LOCK" (OFF) position with the selector
lever at any position other than "P" position.

SPECIAL TOOLS

TSB Revision

AUTOMATIC TRANSMISSION

23A-426

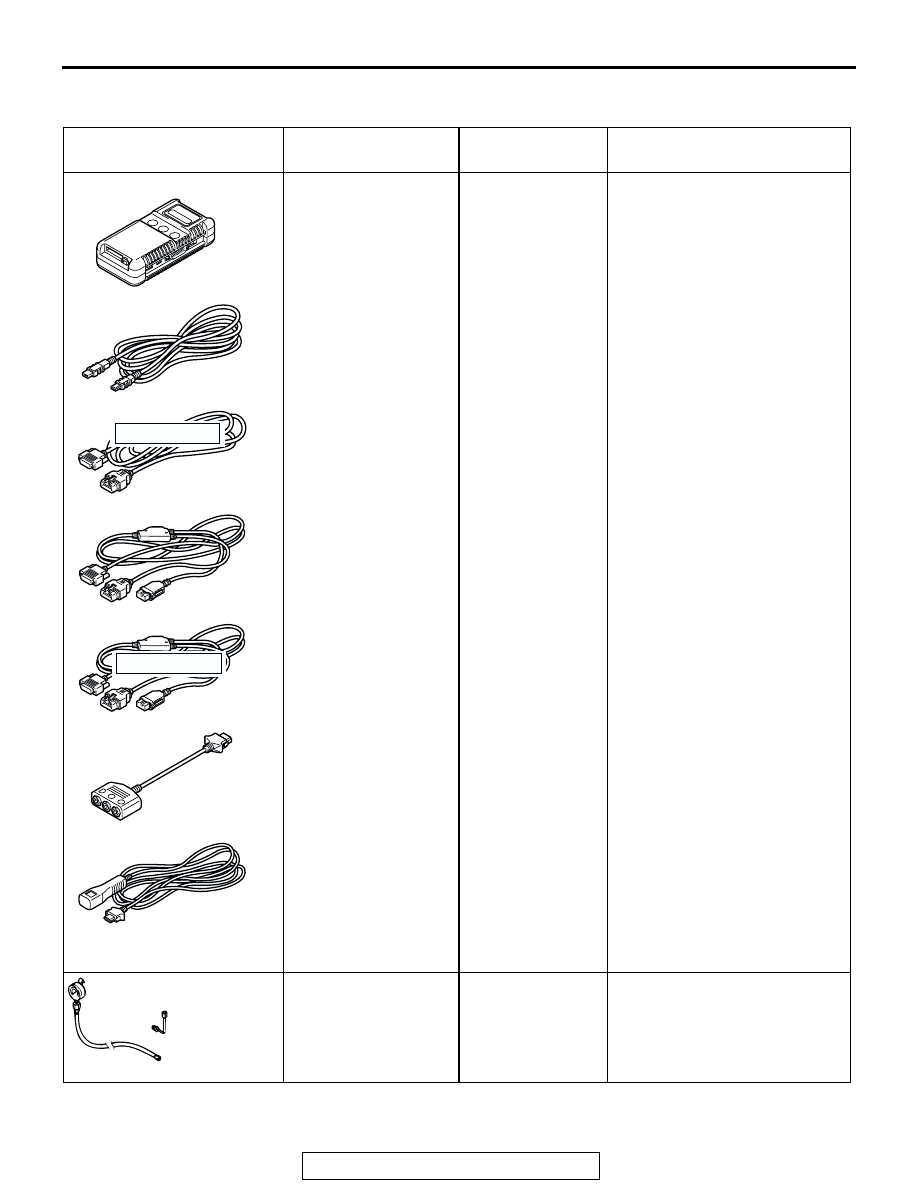

SPECIAL TOOLS

M1231100600164

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main

harness A (Vehicles
with CAN
communication
system)

D: MUT-III main

harness B (Vehicles
without CAN
communication
system)

E: MUT-III main

harness C (for
Daimler Chrysler
models only)

F: MUT-III

measurement
adapter

G: MUT-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826 MUT-III
trigger harness is
not necessary
when pushing
V.C.I ENTER key

Checking diagnostic trouble
codes

MD998330 (Includes
MD998331)
Oil pressure gauge
(3.0 MPa, 427 psi)

MD998330-01

Measurement of hydraulic
pressure

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

AC103525

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-427

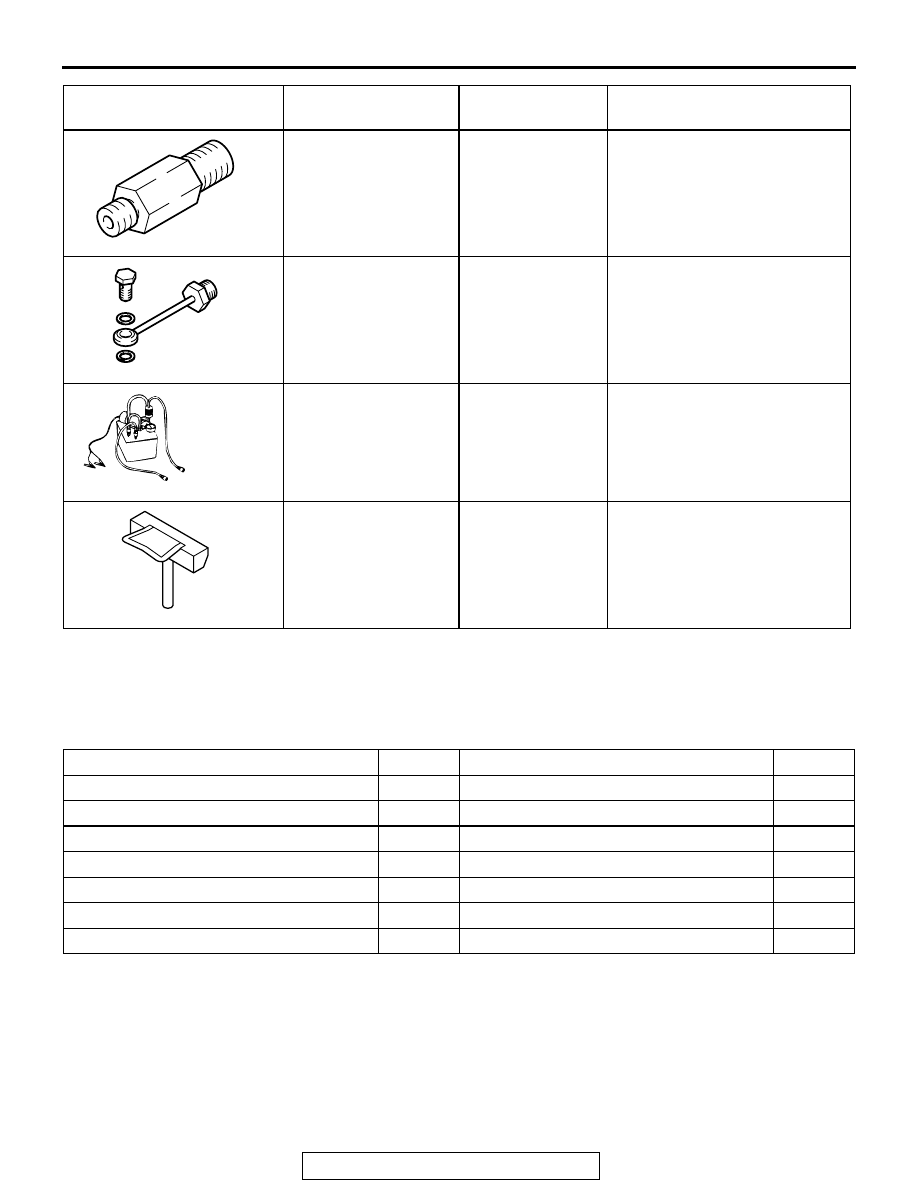

ON-VEHICLE SERVICE

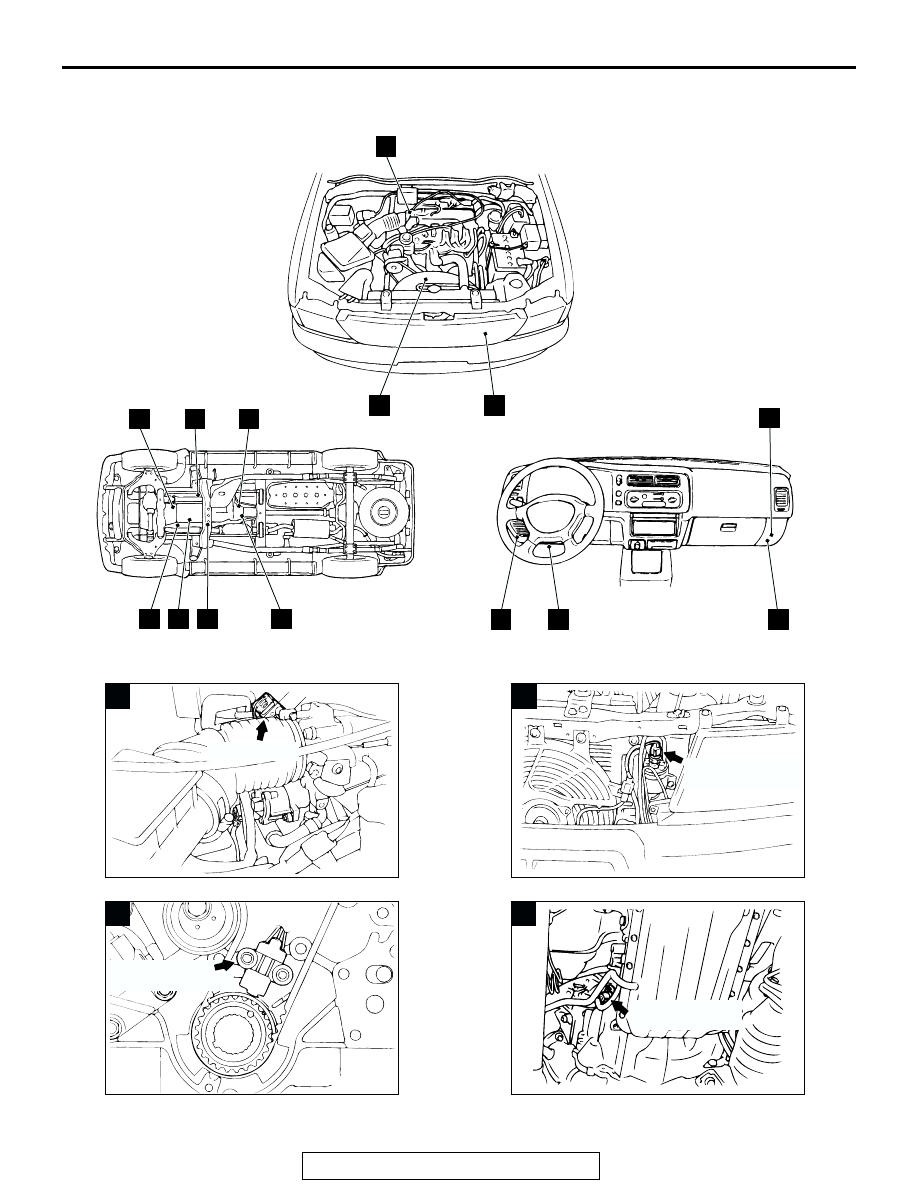

AUTOMATIC TRANSMISSION CONTROL COMPONENT LAYOUT

M1231102000157

MD998332
Adapter

MD998332-01

Connection for oil pressure
gauge

MD998900
Adapter

MD998900-01

Connection for oil pressure
gauge

MB995062
Flushing tool

−

Flushing cooler and tube

MD998727 Oil pan
remover

MD998727-01

Removal of oil pan

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998727

NAME

SYMBOL NAME

SYMBOL

A/T control relay

K

Output shaft speed sensor

H

A/T control solenoid valves

I

Transmission range switch

E

Transmission fluid temperature sensor

J

Powertrain control module (PCM)

L

Crankshaft position sensor

C

Stoplight switch

M

Data link connector (1), (2)

N

TP sensor

A

Dual pressure switch

B

Transfer low detection switch <V4A51>

G

Input shaft speed sensor

D

Vehicle speed sensor

F

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-428

AC101193

A

B

C

D

E

F

G

H

I

J

K

L

M

N

AB

AC002593

TP SENSOR

AH

A

AC002641

B

DUAL PRESSURE
SWITCH

AC

AC002599

CRANKSHAFT
POSITION SENSOR

AC

C

AC002609

D

AC

INPUT SHAFT
SPEED SENSOR
