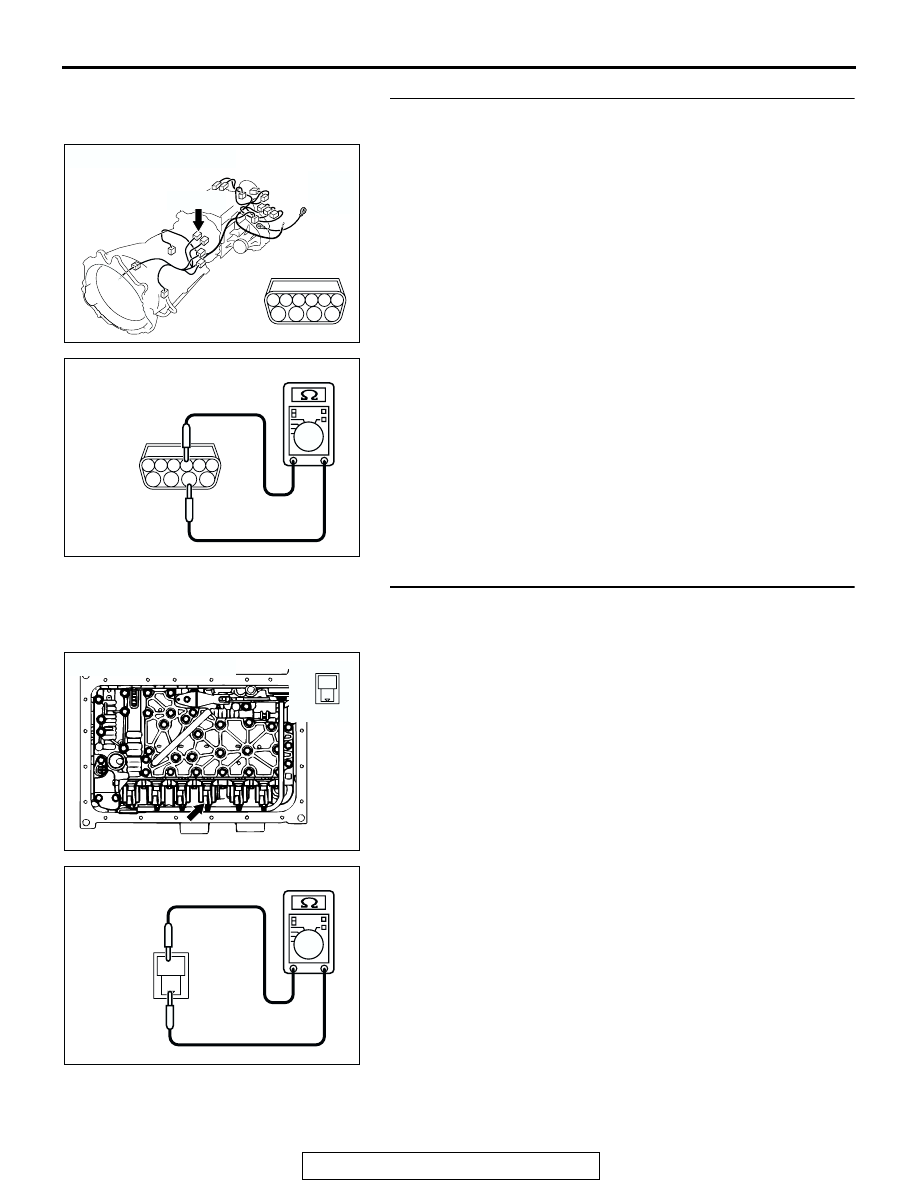

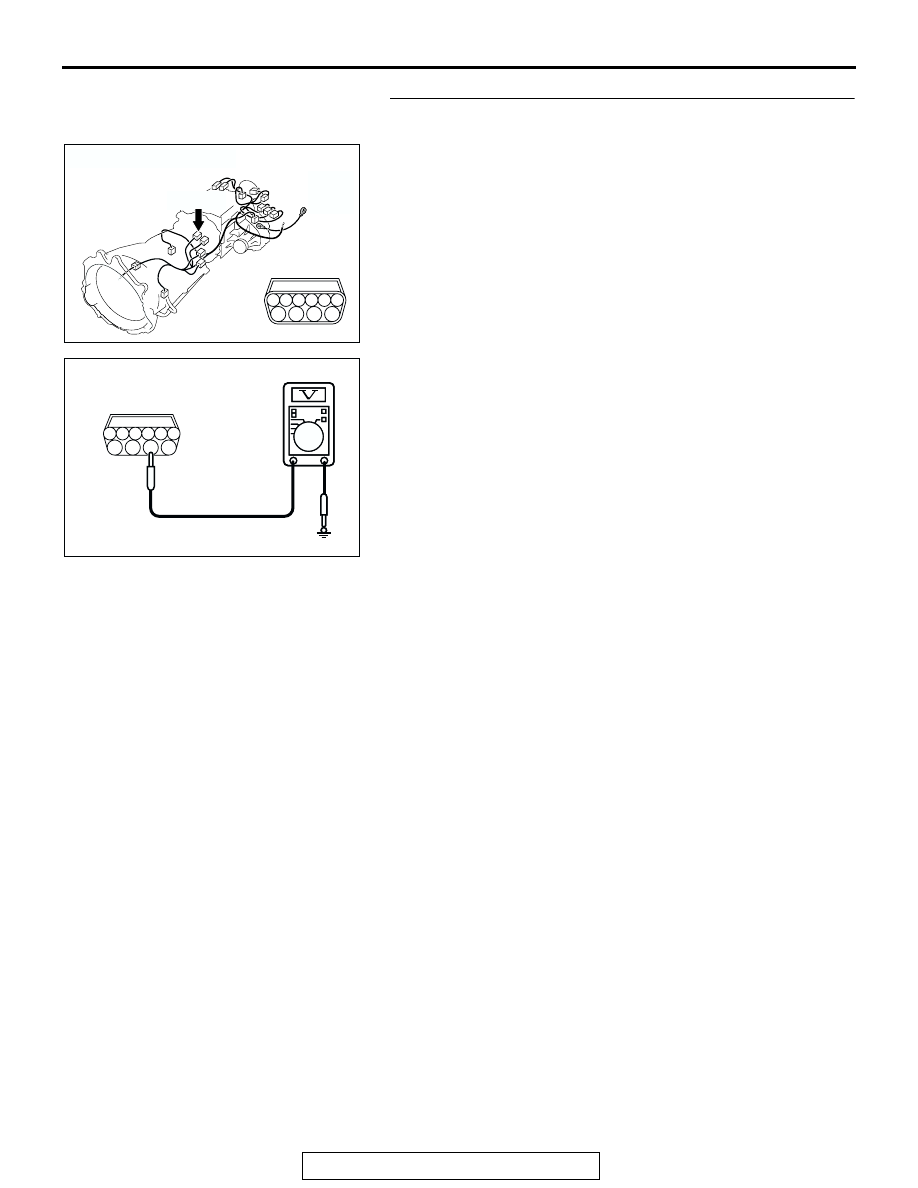

AUTOMATIC TRANSMISSION DIAGNOSIS TSB Revision AUTOMATIC TRANSMISSION 23A-207 STEP 4. Measure the second solenoid valve resistance at valve side. (2) Measure the resistance between solenoid valve assembly connector C-03 terminals 4 and 9. Resistance value: 2.7 − 3.4 Ω [at 20°C (68°F)] Q: Is the measured resistance 2.7 − 3.4 Ω [at 20°C (68°F)]? YES : Go to Step 6. STEP 5. Measure the solenoid valve resistance at the at the solenoid valve side. (2) Measure the resistance between second solenoid valve terminals 1 and 2. Resistance value: 2.7 − 3.4 Ω [at 20°C (68°F)] Q: Is the measured resistance 2.7 − 3.4 Ω [at 20°C (68°F)? YES : Replace the harness wire between A/T control solenoid valve assembly connector C-03 and the NO : Replace the second solenoid valve. Refer to GROUP 23B, Valve Body . AC204395 CONNECTOR : C-03 AE C-03 (B) 6 10 4 9 5 3 8 2 7 1 AC204918 C-03 HARNESS CONNECTOR : CU 6 10 4 9 5 3 8 2 7 1 AC204748 CONNECTOR : C-03-3 AD 1 AC204918 C-03-3 HARNESS CONNECTOR : CO 1 |
